USX-MOUNT XTL006-1 User manual

For 37-70" TV

If you have any questions along the way, just give us a call

1-800-460-0956 or mail to customerservice@x-mount.com.

We’re ready to help!

XTL006-1

INSTRUCTION MANUAL

Before getting started, let’s check below lists to make sure it is just right for you!

Check your TV

VESA is within

Min and Max size

Does your TV

(including accessories)

weigh MORE than

132 lbs. (60 kg)?

What is your

wall made of?

Do you have

all the tools

needed?

(Not included)

Caution

MAX:600mm/23.6"

(MIN:200mm/7.9")

MAX:400mm/15.7"

(MIN:100mm/3.9")

No? This mount is NOT compatible.

Yes? Perfect !

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

CAUTION:

Drywall with

wood studs?

Solid concrete Unsure?

Call Customer Service:

1-800-460-0956

Socket

Wrench

1/2"(13mm)

Electric

Drill

Screw

driver

LevelPencil

Tape

Measure Stud

Finder

7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone

● The wall must be capable of supporting five times the weight of the TV and mount itself

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Awl

TV INTERFACE WALL PLATE

SIDE VIEW SIDE VIEW

MAX:600mm/23.6"

MIN:200mm/7.9"

MAX:400mm/15.7"

MIN:100mm/3.9" 424mm/16.7"

102mm/4"

203.5mm/8"

305.5mm/12"

407.5mm/16"

509.5mm/20"

598mm/23.5"

16mm/0.6" 30mm/1.2"

158mm/6.2" 222mm/8.7"

650.5mm/25.6"

38mm/1.5"

0°~ -8°

TV Brackets

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm

M8x22mm

M4 M6

10mm

2.5mm

Washers

Spacers

TV Screws

x4 x4

x8 x4

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1

Lag Bolt M8x60mm M8 Washer

x4 x4

Allen Key

M5x8mm Bolt

Wall plate(Left) Wall plate(Right)

or mail to custom[email protected]. to have

these additional pieces shipped directly to you.

Concrete Wall Anchor

4pcs

203.2mm(8")

406.4mm(16")

609.6mm(24")

Mounting template

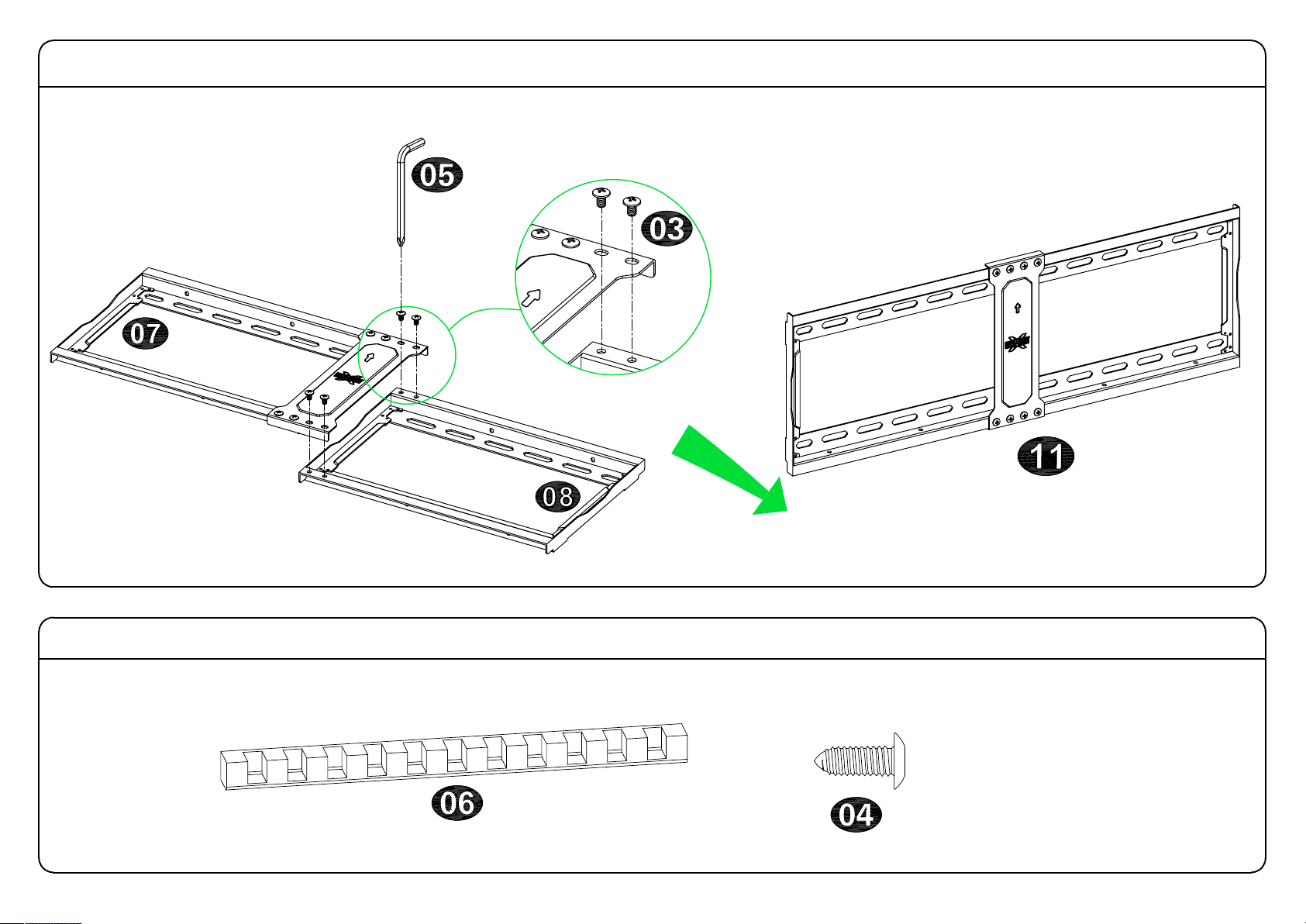

Parts and Hardware for STEP 2

M4x10mm Bolt

Sliding Stopper

Wall plate unit

Assemble Wall plate STEP 2

Part for STEP 4 (optional)

1-1 Select TV Screws

1-2 Figure out the suitable position of brackets

INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL

LOW MOUNTING HOLES HIGH MOUNTING HOLES

Tips: If you need to combine M6/M8(c/e/f) screws with

2.5mm spacers( i ), you have to remove the inner circle.

Yes, choose suitable screws, washers and spacers.

1-4 Attach the TV Plate

No!

No, choose suitable screws and washers.

1-3 Need Spacer?

Centre line

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall, must not exceed 5/8 in. (16 mm)

● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

● Maximum horizontal space between fasteners: 24 in. (609.6 mm)

● Stud center must be verified

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,

or an edge to edge stud finder.

2. Position the mounting template at your desired height and line up the holes with your stud center line.

Level the mounting template and mark the hole locations.

Again, find another wood stud

16"/24"

Wall

Mounting template
