USX-MOUNT WFL009-01 User manual
For 37-86" TV
If you have any questions along the way, just give us a call
1-800-460-0956 or mail to [email protected].
We’re ready to help!
WFL009-01
INSTRUCTION MANUAL
R
USA-A0
CAUTION: PLEASE READ ENTIRE MANUAL PRIOR TO USE AND SAVE THESE INSTRUCTIONS.
Before getting started, let’s check below lists to make sure it is just right for you!
2
Check your TV
VESA is within
Min and Max size
1
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
132 lbs. (60 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(Not included)
Caution
MAX:600mm/23.6"
(MIN:200mm/7.87")
MAX:400mm/15.7"
(MIN:100mm/3.94")
No - This mount is NOT compatible.
Yes - Perfect !
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Socket
Wrench
1/2"(13mm)
Electric
Drill
Screw
driver
LevelPencil
Tape
Measure Stud
Finder
7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Awl
Drywall with
wood studs? CAUTION: Solid concrete ?Unsure?
Call Customer Service:
1-800-460-0956
3
TV INTERFACE
WALL PLATESIDE VIEW
MAX:600mm/23.6"
MIN:200mm/7.87"
MAX:400mm/15.7"
MIN:100mm/3.94" 430mm/16.93"
229.6mm/8"
331.6mm/12"
433.6mm/16"
535.6mm/20"
610.6mm/24"
12.5mm/0.5" 26mm/1"
158mm/6.22" 222mm/8.74"
651mm/25.63"
31mm/1.22"
3-D
TV Brackets
x2
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Parts and Hardware for STEP 1
4
Spacers
TV Screws
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x45mm
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4 x4
x4 x4
x4 x4
x4
x4 x4
x8 x4
x4
Lag Bolt M8x60mm M8 Washer
x4 x4
Allen Key
x1
x4
M5x8mm Bolt
Wall plate(Left)
x1
Wall plate(Right)
x1
Parts and Hardware for STEP 2
Contact us at telephone 1-800-460-0956 (USA)
or mail to [email protected]. to have
these additional pieces shipped directly to you.
Concrete Wall Anchor
4pcs
5
M8
M6
M4
1-1 Select TV Screws
6
1-2 Figure out the suitable position of brackets
INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
7
Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
8

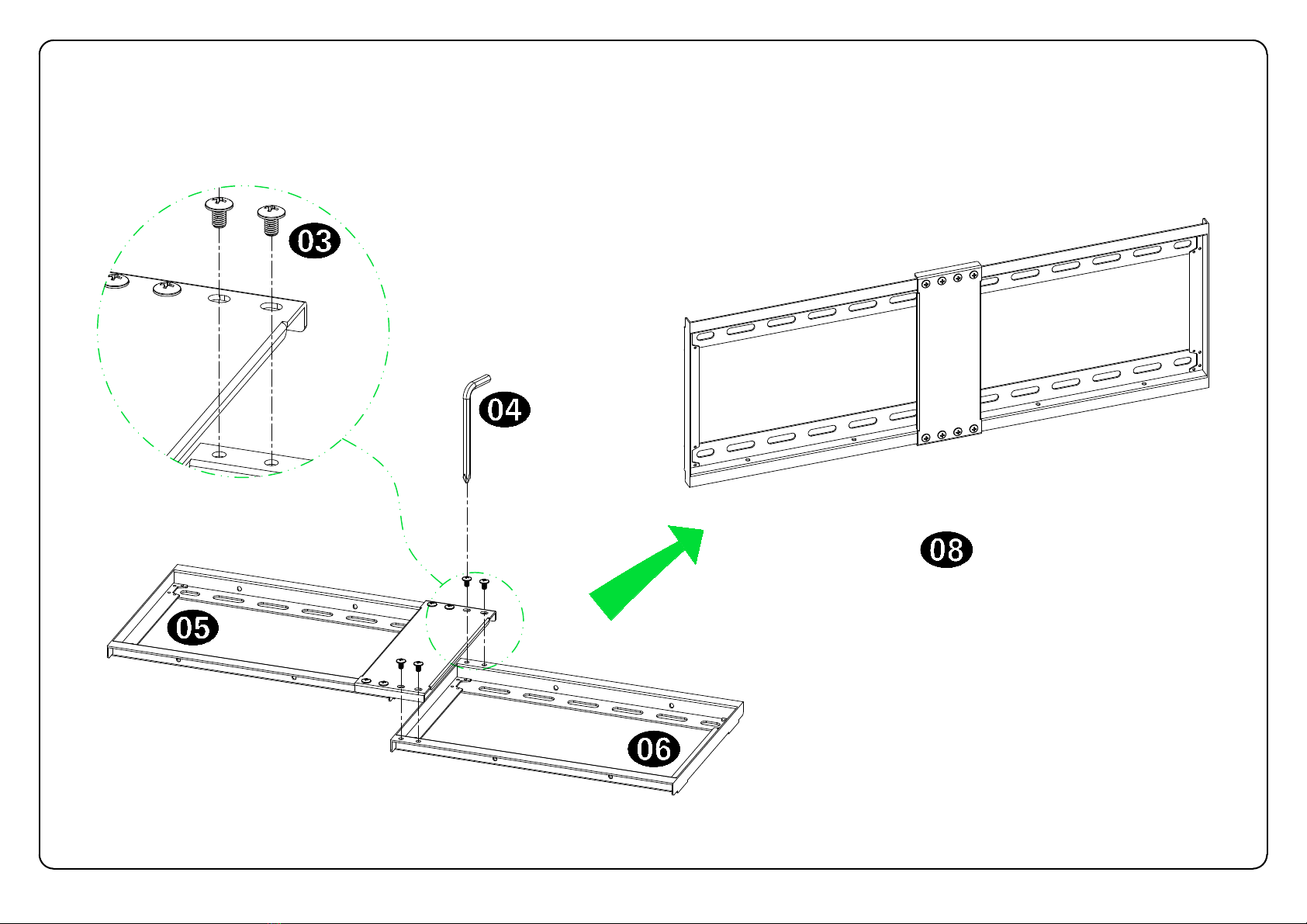

Assemble Wall plate
Wall plate unit
9
Centre line
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 24 in. (609.6 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the wall plate unit at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"/24"
Wall
Wall
10
