USX-MOUNT XAS004-03 User manual

XAS004-03

INSTRUCTION MANUAL(P1-P11)

Bedienungsanleitung(P12-P21)

If you have any questions along the way, mail to

[email protected]. We’re ready to help!

DE-A0

Before getting started, let’s check below lists to make sure it is just right for you!

Does your soundbar

(including accessories)

weigh MORE than

13.2 lbs. (6 kg)?

Do you have

all the tools

needed?

(NOT INCLUDE) Tape

Measure

CAUTION

Screw

driver

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, please feel free to contact Customer

Service:

Unsure? Mail to: customerservice.de

@x-mount.com

FRONT VIEW

3-D

FRONT VIEW

200mm

[7.87in]

200mm

[7.87in]

FRONT VIEW

200mm

[7.87in]

200mm

[7.87in]

600mm

400mm

220mm

[8.66in] 220mm

[8.66in]

220mm

[8.66in]

Product dimensions

40mm

[1.57in]

380mm

[14.96in] 426mm

[16.75in]

250mm

[9.84in] 27mm

[1.08in]

118mm

[4.63in]

103mm

[4.06in]

15mm

[0.59in]

84mm

[3.31in]

40mm

[1.57in]

35mm

[1.38in]

7mm

[0.28in]

10mm

[0.41in]

7mm

[0.28in]

10mm

[0.38in]

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for Brackets Installation

M6 Washers

Hook(big)

x2 x4

Hook(small) Handle

Horizontal Bar

Bracket

Spacers

TV Screws

M6x16mm

M8x20mm

M6x25mm

M8x30mm

8x10mm

2.5mm

Washers

x4 x4

Hardware for Soundbar Installation

Key Hole Bolt

Nut

M4x16mm

M5x16mm

Hardware for

soundbar

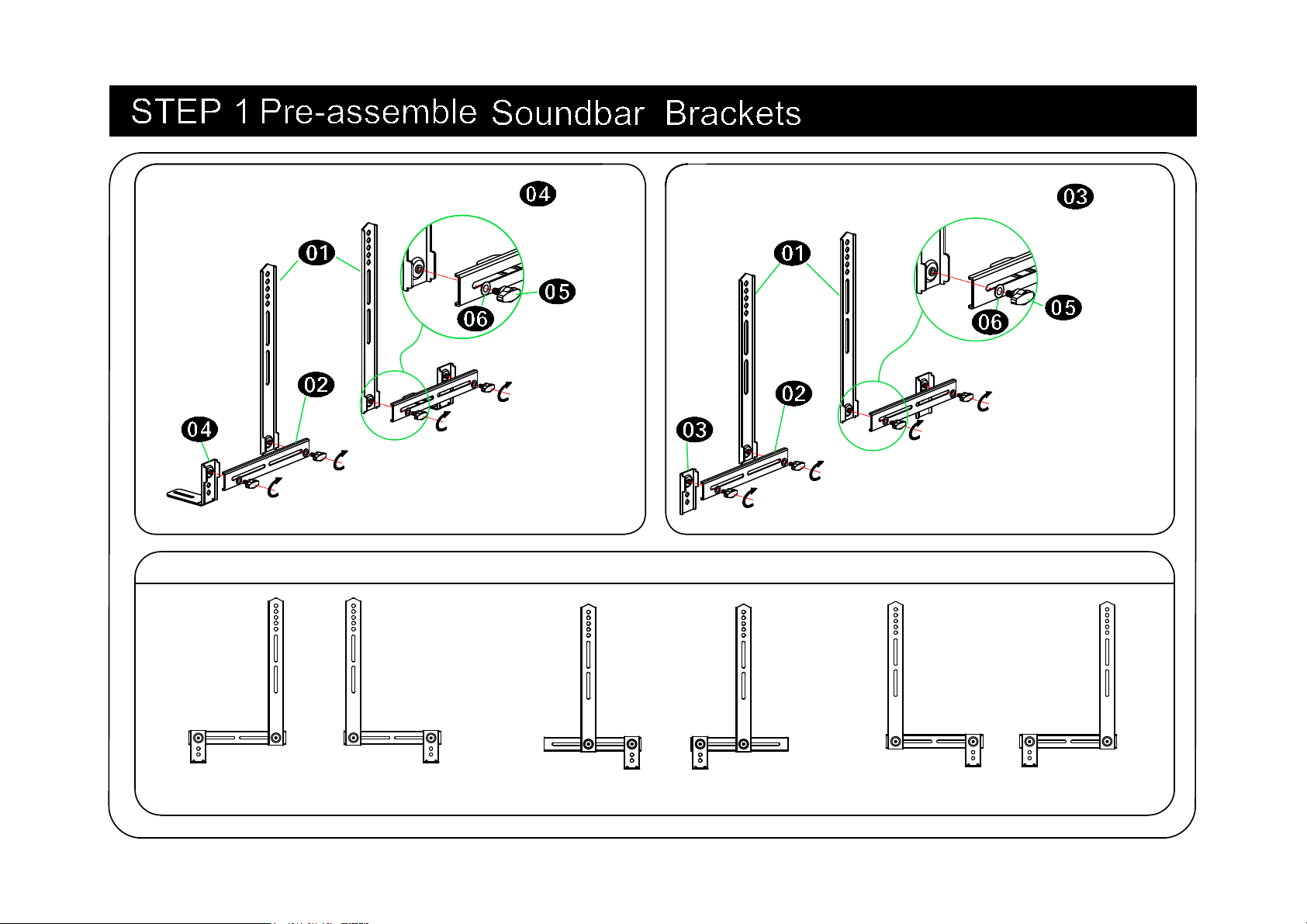

Option 1 Soundbar Brackets with Hook Option 2 Soundbar Brackets with Hook

The Effects of Brackets Assemble

Tips: The horizontal distance of the brackets depends on your TV VESA.

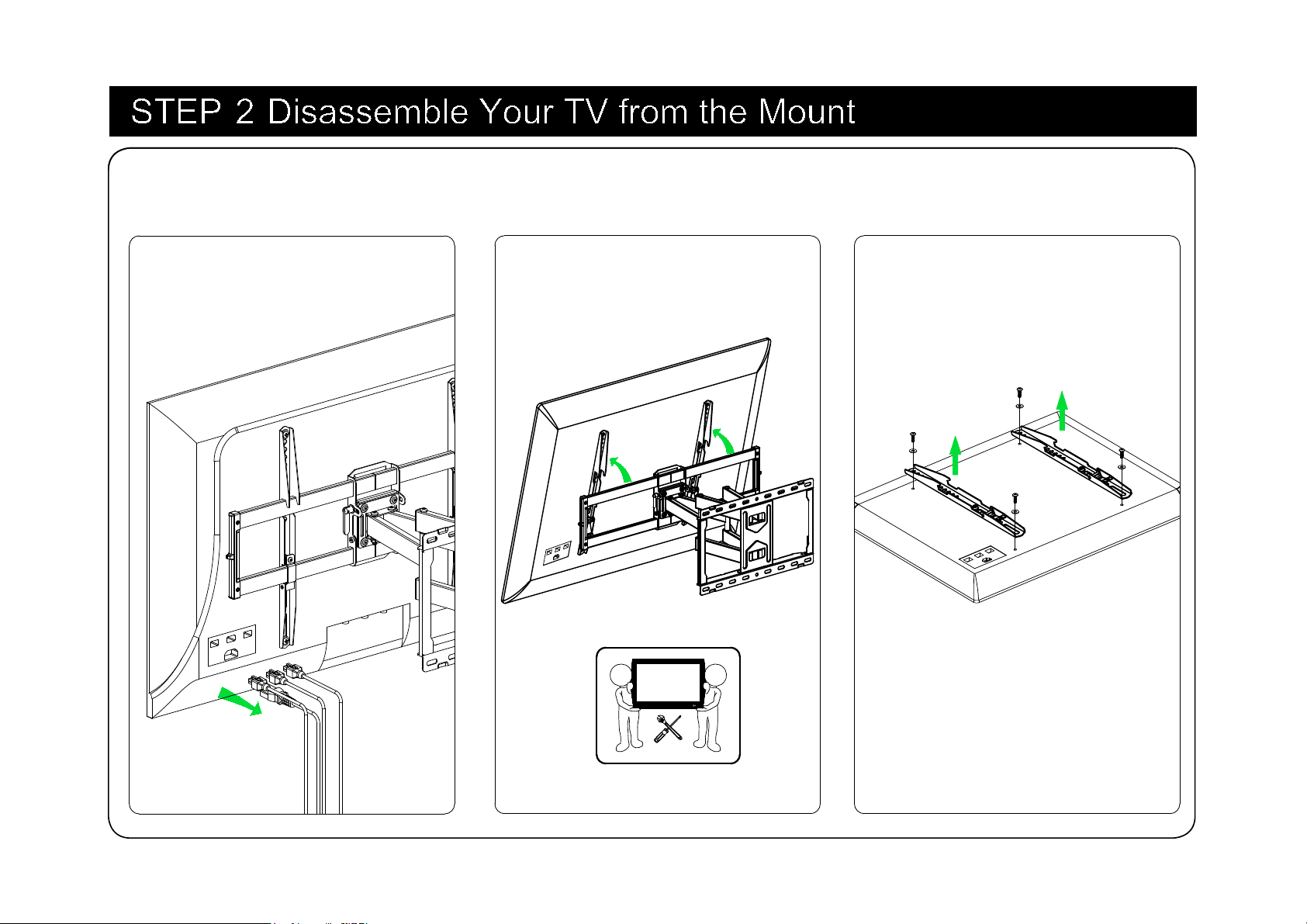

Ⅰ Remove all cables Ⅱ Take off the TV

from the mount

Ⅲ Remove the TV

brackets from your TV

1 2

No!

Tips: Before attach the TV,

check the vertical

distance of TV and bracket.

Tips: No need to use washer (g) when using M8 screw (b/d).

Option 1 Option 2 Option 3

1 2

Loosen Tighten

Put the soundbar on the hook (you can adjust the position of hook), and fully fasten

bolts and washers of soundbar as shown below.

Tips:The position of hook depends on the bottom hole of soundbar.
