USX-MOUNT SMS008-01 User manual
SMS008-01
INSTRUCTION MANUAL
R
For 10-26" TV
If you have any questions along the way, just message
to us.We’re ready to help!
USA-B0
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
2
Does your TV
(including accessories)
weigh MORE than
33 lbs. (15 kg)?
Where can you
install this mount?
Installation Tools
(Not Included)
Tape
Measure
CAUTION
Pencil Level Screw
driver
Electric
Drill
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
?
1/2 in.
(13 mm)
Socket
Wrench
● This product is designed for use in wooden board
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
1/8 in.
(3 mm)
Masonry
Drill Bit
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
MAX:100mm/3.94"
(MIN:50mm/1.97")
MAX:100mm/3.94"
(MIN:50mm/1.97")
Unsure?
Mail to us via Amazon.
0.5"(12.7mm) thick or above wooden board
Min. 0.5"(12.7mm)
TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
SIDE VIEW - RETRACTED
3
+5°
-15°
TOP VIEW - EXTENDED
221mm
[8.70in]
61mm
[2.40in]
150mm
[5.91in]
TOP VIEW - EXTENDED
326mm
[12.83in]
±90°
40mm
[1.57in]
7.5mm
[0.30in]
75mm
[2.95in]
170mm
[6.69in]
100mm
[3.94in]
50mm
100mm
[3.94in]
50mm
[1.97in]
[1.97in]
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
Hardware for STEP 1
4
Spacers
TV Screws
M4x12mm
M6x12mm
M4x30mm
M6x35mm
M6x17mm
M4 M6
2.5mm
Washers
x4 x4
x4 x4
x4 x4
x4 x4
M5x12mm
x4
M5x30mm
x4
Lag Bolt
x4
Allen Key
x1
5
Parts and Hardware for STEP 2
Wall Plate Unit
x1
Velcro x3
TV Plate
Wall Plate
x1
x1
one turn
①

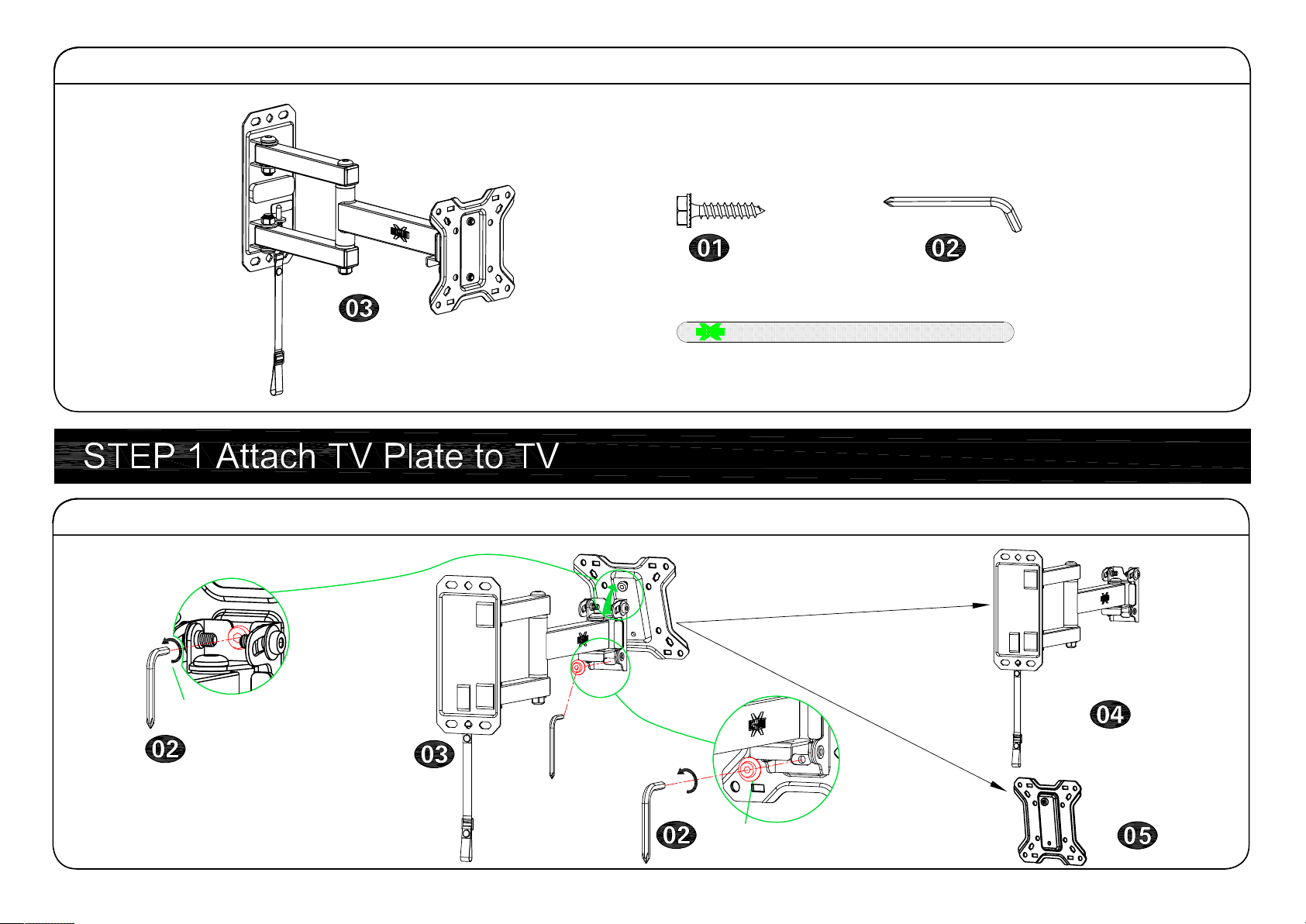

1-1 Disassemble this whole mount into Two Pieces by removing bolts ①.(Remember to keep bolts for next step use)
1-2 Select TV Screws
6
M6M5
M4
① 50X50
② 75X75
③ 100X100
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
7
100mm
50mm
75mm
100mm 50mm
75mm
1
2
3
1
2
3
1
2
3
1
2
3
Tips: If you need to combine M6(c/f) screws with
2.5mm spacers(g), you have to remove the
inner circle of spacers.
8
Wooden Board
UP
Min. 0.5"(12.7mm)
Wooden Board
Warning: Please double check the thickness of your RV
wooden board to make sure it is above 0.5”.
Remind: This TV mount is designed for RV use. We only
include the wall mounting hardware for RV wooden
board installation.
If you want to install this mount on wood studs or concrete
wall at home, you may need additional hardware. Which can
be gotten at your local hardware store or fell free to contact
our customer service via message.
CAUTION: Avoid potential personal injury or property damage!
9
Wooden Board
Wall plate
UP
1/8"
(3.18mm)
1.0"(25.4mm)
Wooden Board
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly.
Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
To prevent the TV falling down, please make sure you install this TV mount in the right up direction as
below figure shown.
10
Before hanging TV, please try to pull the mount to make sure that it has been assembled on the wooden
board tightly.
