USP DURAMAX Foundation Kit User manual

Ver : 1.0

OWNER’S MANUAL /

Instructions for Assembly

Size 8 Ft x 4 Ft / 2.4 m. x 1.2 m. (Approx.)

Call us for any missing or damaged parts.

Do not return to the store.

Customer

Service Hotline

(800) 483-4674

www.duramaxbp.com

TOOLS YOU WILL NEED

Cordless Drill - Philips Head Rubber mallet Hand Gloves Goggles Carpenters Square Level - 3ft.

Foundation Kit

Pent Roof Metal Garden Shed

ALL PURPOSE METAL STORAGE SHEDS

1. Assemble the channel (FC1B) & (FC2B) together using (S2) screws.

Make 2 sets.

FC2B

FC1B

2. Make a frame with the sub assemblies as shown below.

Make sure while assembling, the

channel position should be as

shown.

Note

Channel Position

FC1B

FC2B

FC3C

FC1B

FC3C

FC2B

‘U’ CHANNEL

Note: Check all parts prior to installation.

CODE DESCRIPTION

FC1B FOUNDATION ‘U’ CHANNEL 2

FC2B FOUNDATION ‘U’ CHANNEL 2

FC3C FOUNDATION‘U’ CHANNEL 2

FC4C FOUNDA TION ‘U’ CHANNEL 4

FC5B FOUNDATION ‘U’ CHANNEL 3

FCC FOUNDATION ‘U’ CHANNEL 4

ACCESSORIES

CODE DESCRIPTION QTY

S2 DIA. 4.2 x 16mm. (5/32” x 5/8”)

SHEET METAL SCREW 48

Parts List

FRONT SIDE

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

3. Fix the channel (FCC) to all the four corners to make a perfect

frame. See Fig.

4. Fix the channel (FC4C) into the main frame as shown.

See Fig.

Make sure while assembling, the

channel position should be as

shown.

Note

5. Fix the channel (FC5B) into the frame with screws as shown.

See Fig.

FCC

FC4C

FC5B

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

6. Assemble base bar back left (BLB) and base

bar back right (BRB) with four (S1) screws.

See fig. 1 & 2.

7. Place the base bar assembly on top of the

foundation. Use (S2) screws to fix the assembly to

foundation.

Fig.1 Fig.2

BLB

BRB

S1 BLB

BRB

8. Insert the base bar side (BSC) into (BLB) &

(BRB) secure with two (S1) screws on both sides.

See blowup.

Fig.1

Fig.2

Step 1

Step 2

BSC

BLB

BRB

BSC

BLB

BRB

Back

BSC

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

Step 1 Step 2

1 & 2

Fig.1

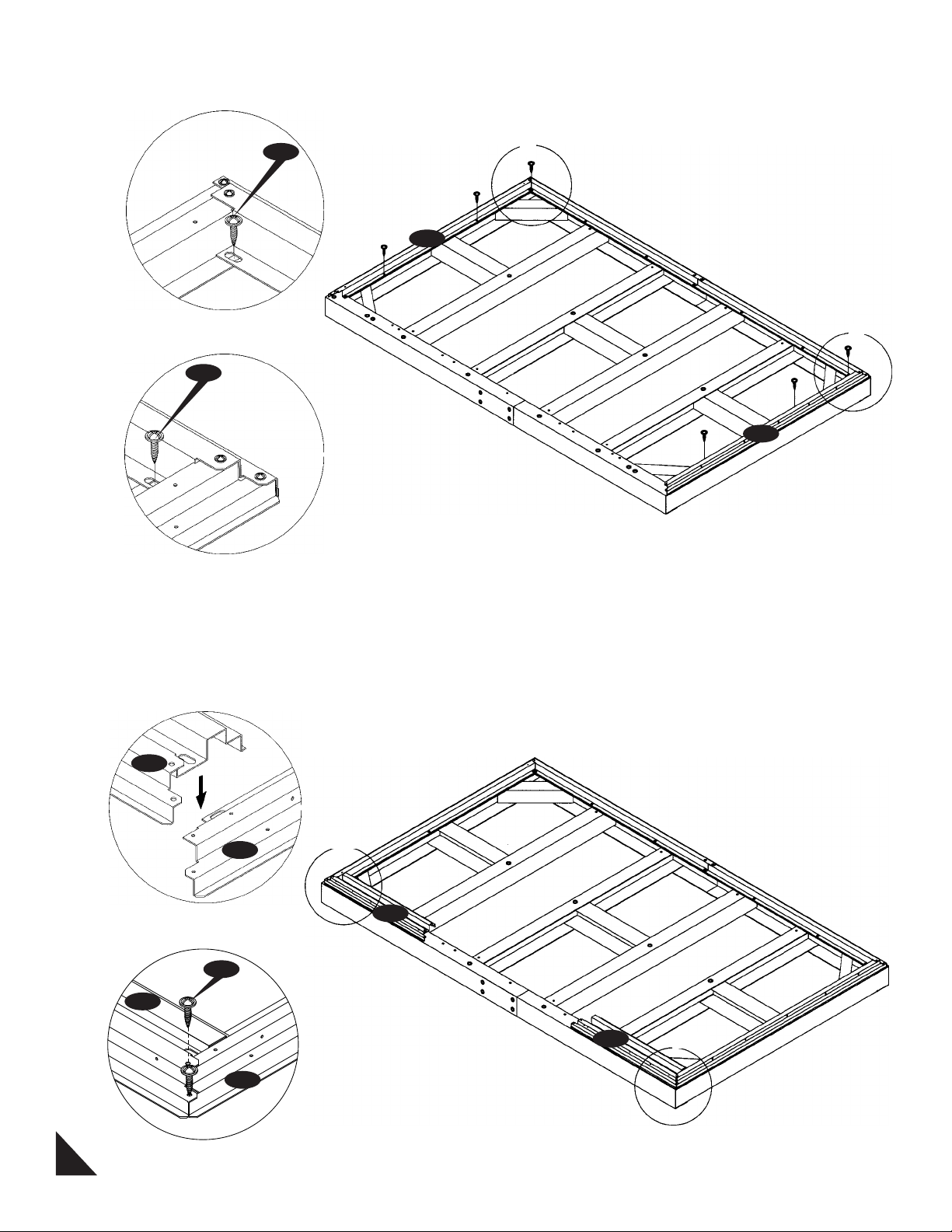

9. Line up the holes with foundation and secure with

(S2) screws.

10. Place the base bar (BBF) on top of (BSC)

on both sides. Secure with (S1) screw to (BSC)

on both corners. See fig. 1 & 2.

BBF

BSC

Fig.1

Fig.2

BBF

BSC

BBF

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

Fig.1

Step 1

Step 2

Fig.2

Step 1

Step 2

1&2

11. Secure the base (BBF) to the foundation with (S2) screws.

12. Place exterior grade CDX 3/4” (19mm) plywood inside

the foundation. See fig.

S2 BBF

BBF

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

Fig.1

OPTION - 1

14. After completing the assembly of the base bar fill the

concrete upto the foundation top surface.

IMPORTANT: USE HAND GLOVES TO PREVENT INJURY.

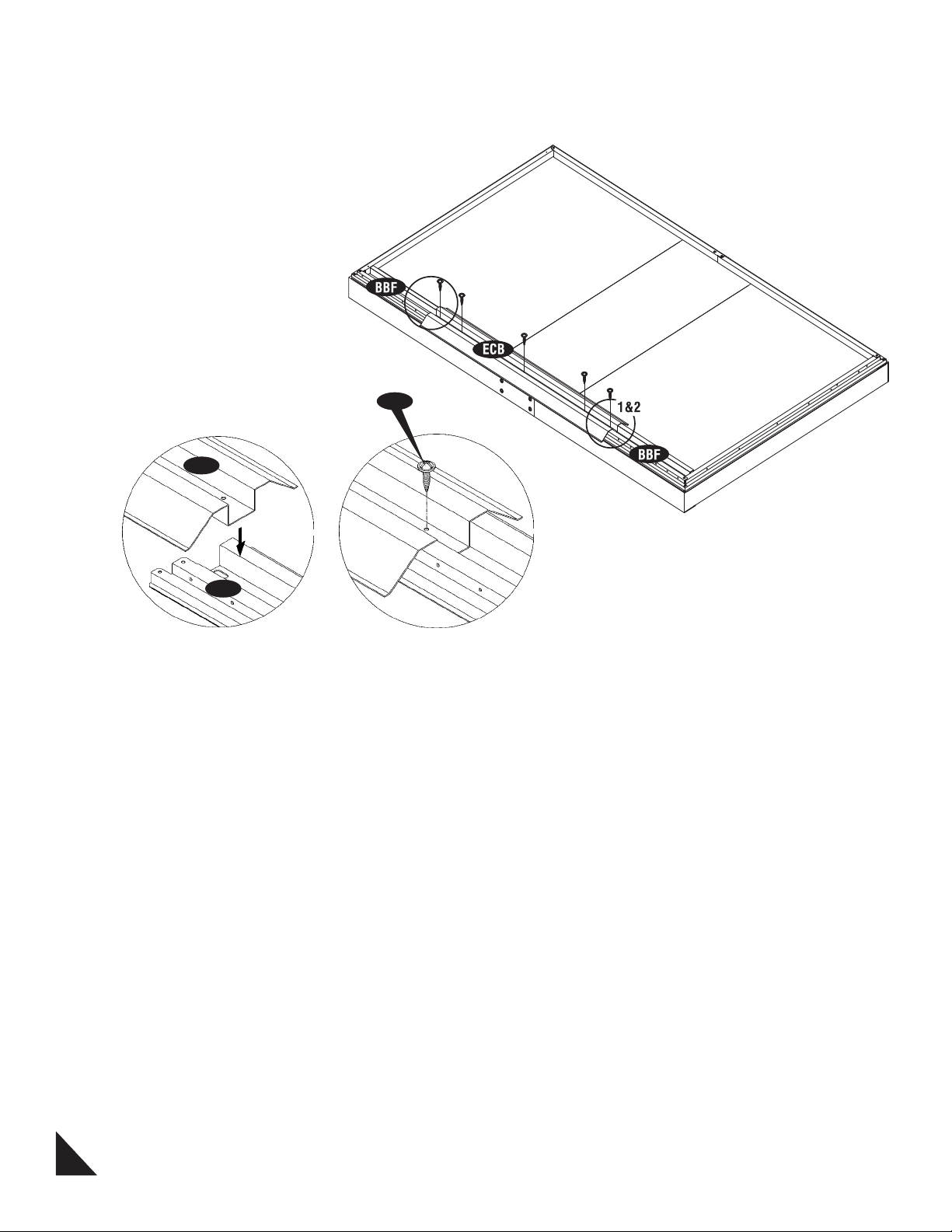

13. Place the entrance taper channel (ECB) on

top of the (BBF). Secure with (S2) screws to the

foundation. See fig. 1 & 2.

Fig.1 Fig.2

ECB

BBF

Step 1 Step 2

OPTION - 2

U.S. Polymers, Inc.

1057 S. Vail Ave

Montebello, CA 90640,

United States of America RD-1.0 2015-07-07

SKU#---------
