Ubiquiti US-XG-6POE User manual

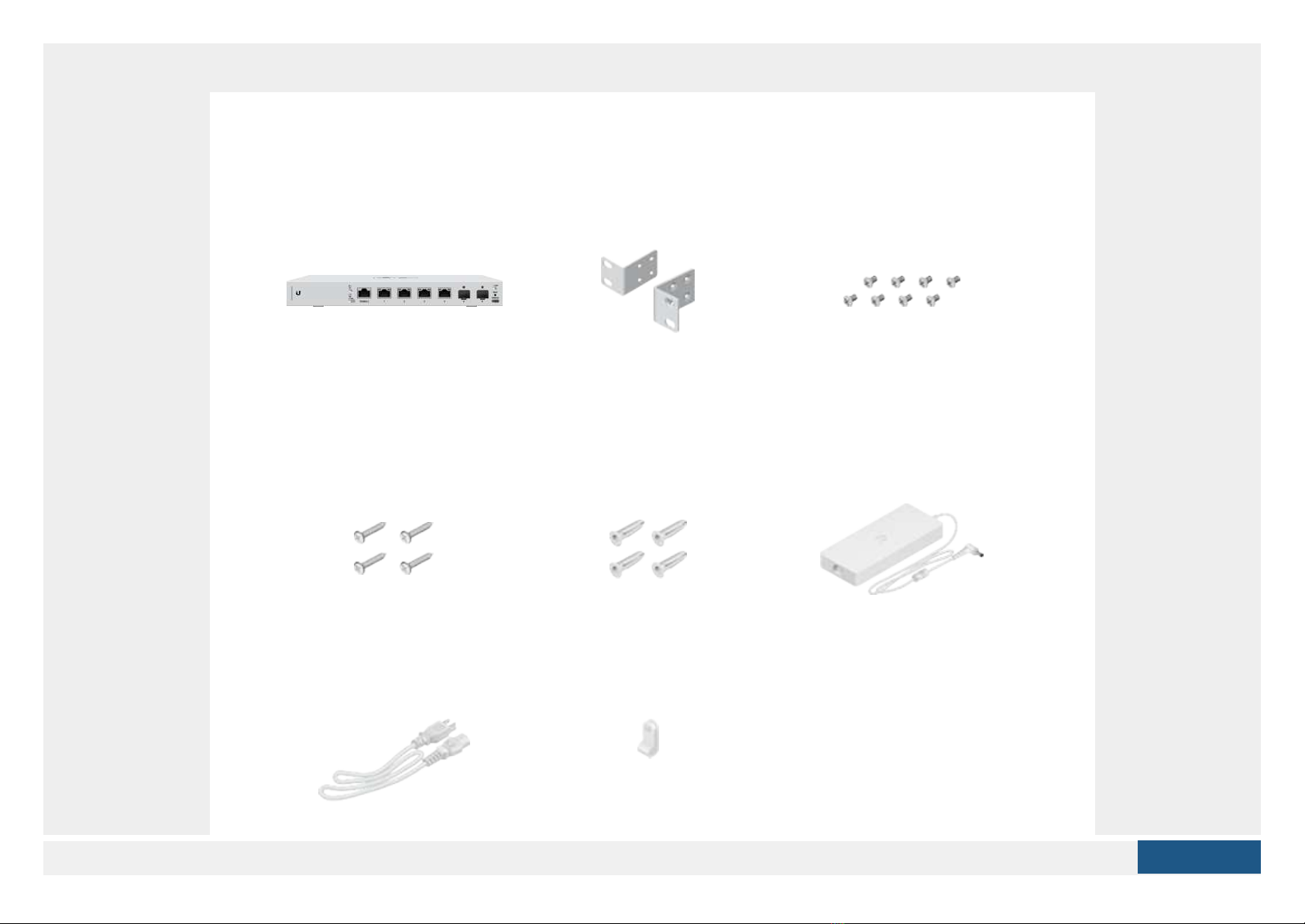

UniFi Switch Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Screw Anchors (Qty. 4) Power Adapter

Package Contents

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Power Cord Cable Clip

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.8.x (or newer), available at: ui.com/download/unifi

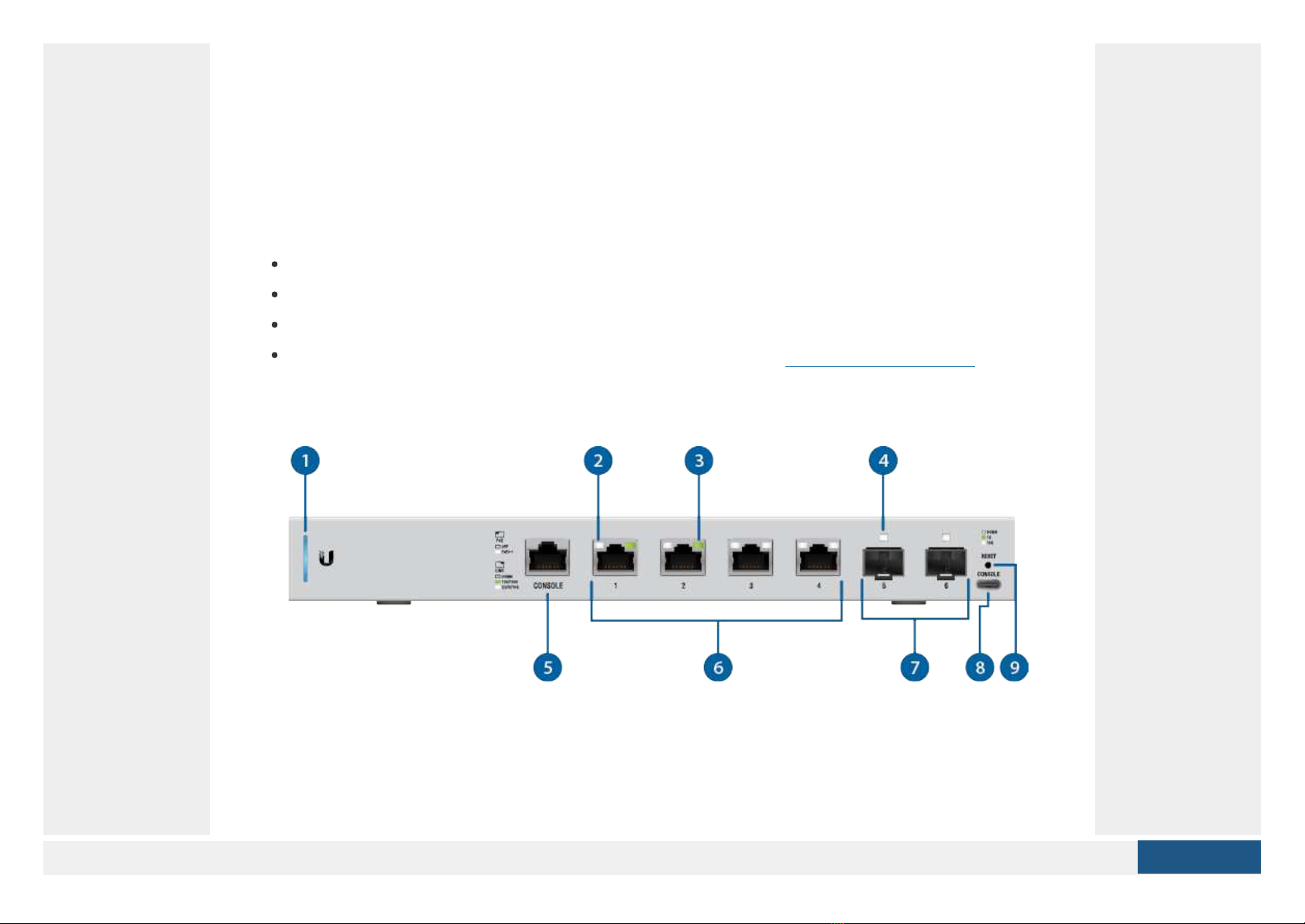

Hardware Overview

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

System LED

RJ45 PoE LED (Ports 1 - 4)

Flashing White Initializing.

Steady White Factory defaults, waiting for adoption.

Alternating White/Blue

Device is busy; do not touch or unplug it. This usually

indicates that a process such as a firmware upgrade

is taking place.

Steady Blue Successfully adopted by a network and working

properly.

Flashing Blue

This is used to locate a device.

When you click Locate in the UniFi Controller

software, the System LED will flash blue. The

software will also display the location of the UniFi

Switch on the map.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RJ45 Link/Speed/Activity LED (Ports 1 - 4)

SFP+ Link/Speed/Activity LED (Ports 5 - 6)

RJ45 Console Port

Off PoE Disabled

White 802.3af/at/bt PoE

Off No Link

Green

Link Established at 1 Gbps

Flashing Indicates Activity

White

Link Established at 10 Gbps

Flashing Indicates Activity

Off No Link

Green

Link Established at 1 Gbps

Flashing Indicates Activity

White

Link Established at 10 Gbps

Flashing Indicates Activity

RJ45 serial console port for Command Line Interface (CLI) management. Use an

RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the

Console port to your computer. Then configure the following settings as needed:

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

RJ45 (Ports 1 - 4)

SFP+ (Ports 5 - 6)

USB Console Port

Reset Button

DC Input

Baud rate 115200

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

RJ45 ports support 100 Mbps or 1/2.5/5/10 Gbps Ethernet connections and

802.3af/at/bt PoE output.

Hot-swappable SFP+ ports support 1/10 Gbps connections.

USB Type C console port for Command Line Interface (CLI) management.

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds.

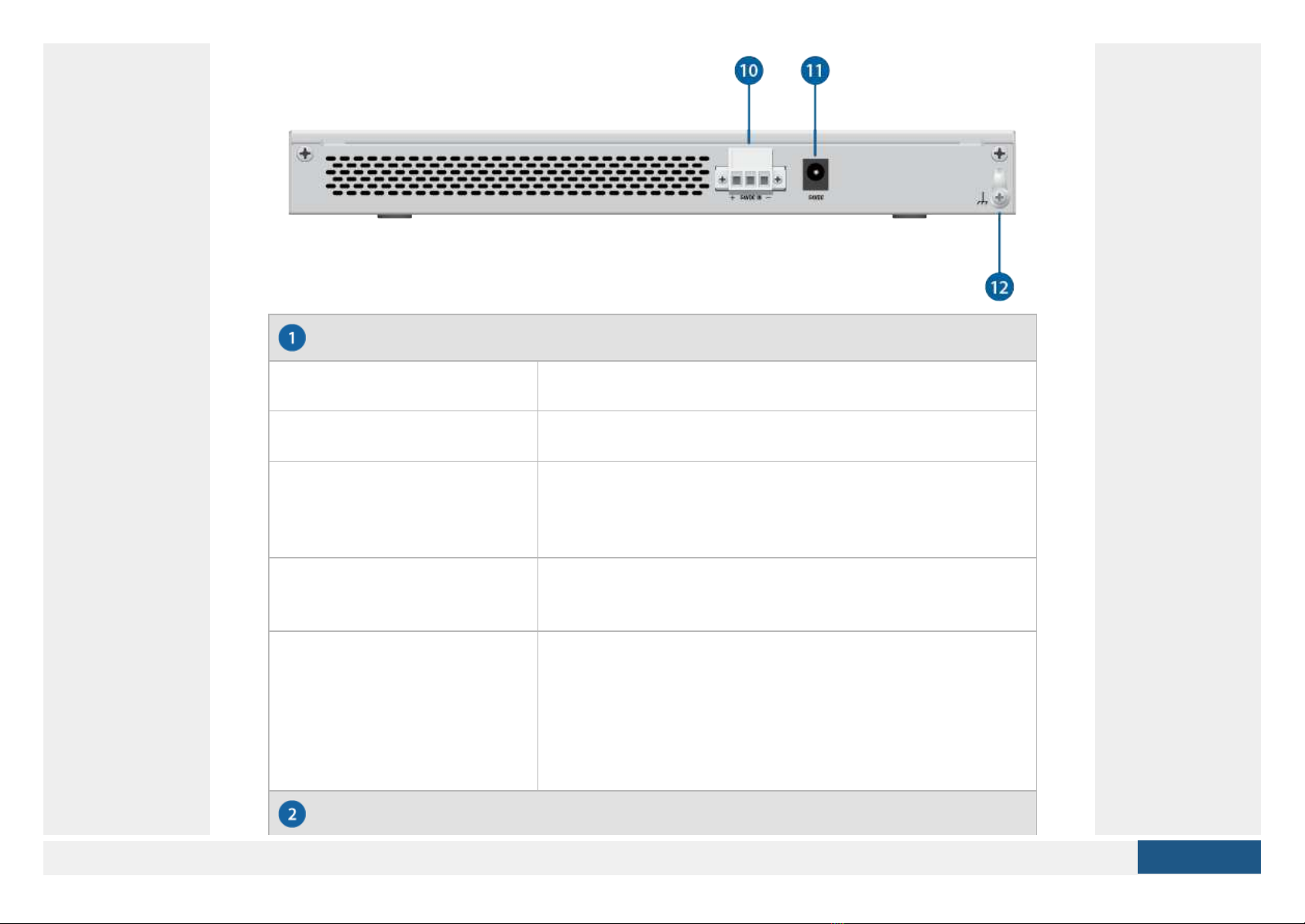

Optional DC input for connecting a stand-alone or redundant DC power source (not

included) with minimum power: 40W, 44 to 57VDC.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Power Port

Ground

Note: Ensure the polarity is correct: red is positive (+) and black is negative

(-).

You can use the redundant DC power source as a hot spare; if there is no longer

power through the Power port, the UniFi Switch will switch to the DC power source

without interrupting its operation.

Connect the included Power Adapter to the Power port.

Ancillary grounding point for enhanced ESD protection.

Hardware Installation

The UniFi Switch can be mounted on a horizontal or vertical surface.

WARNING: The US-XG-6POE must not be stacked. Do not place it on top of

another switch. Do not place anything on top of the US-XG-6POE.

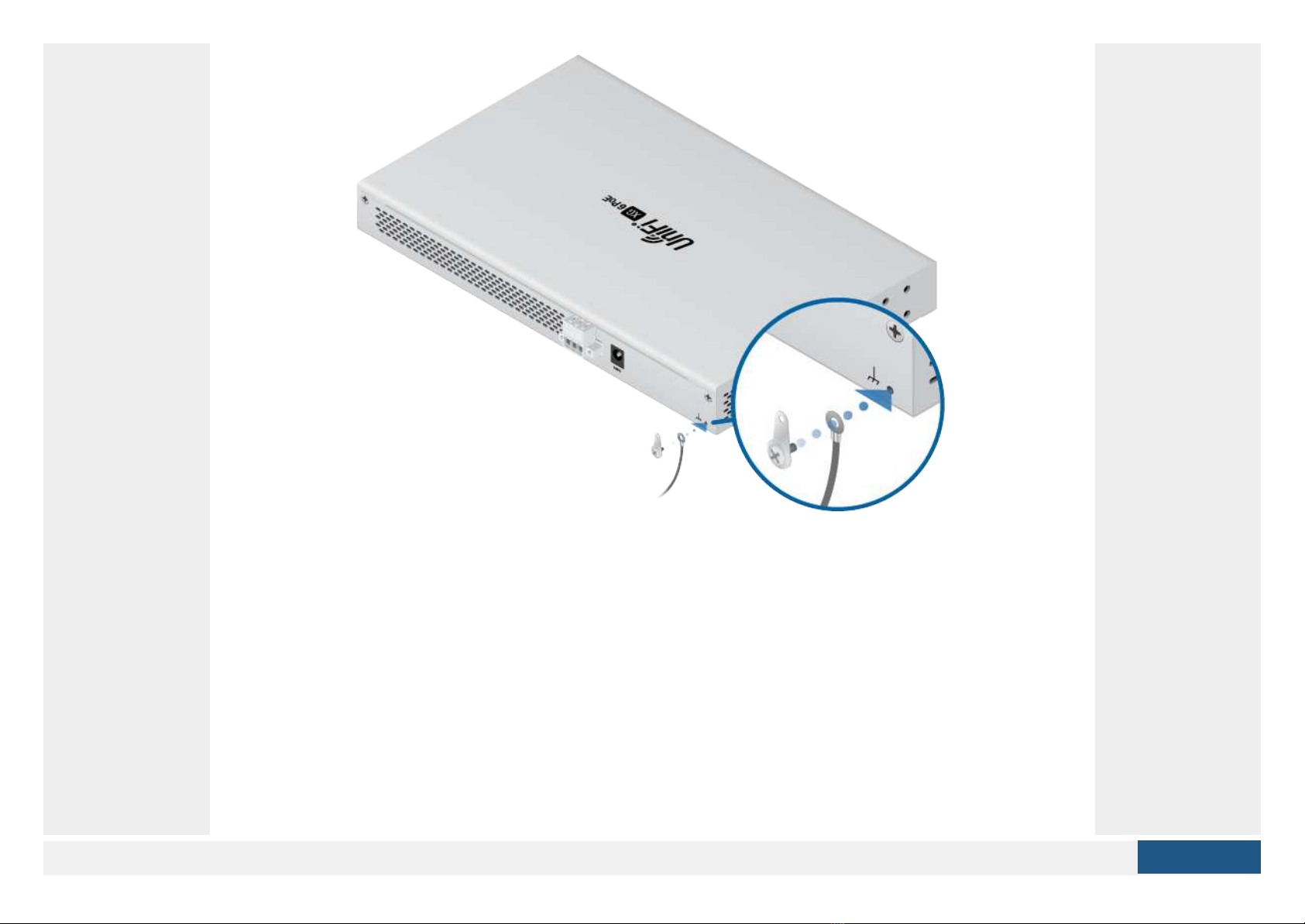

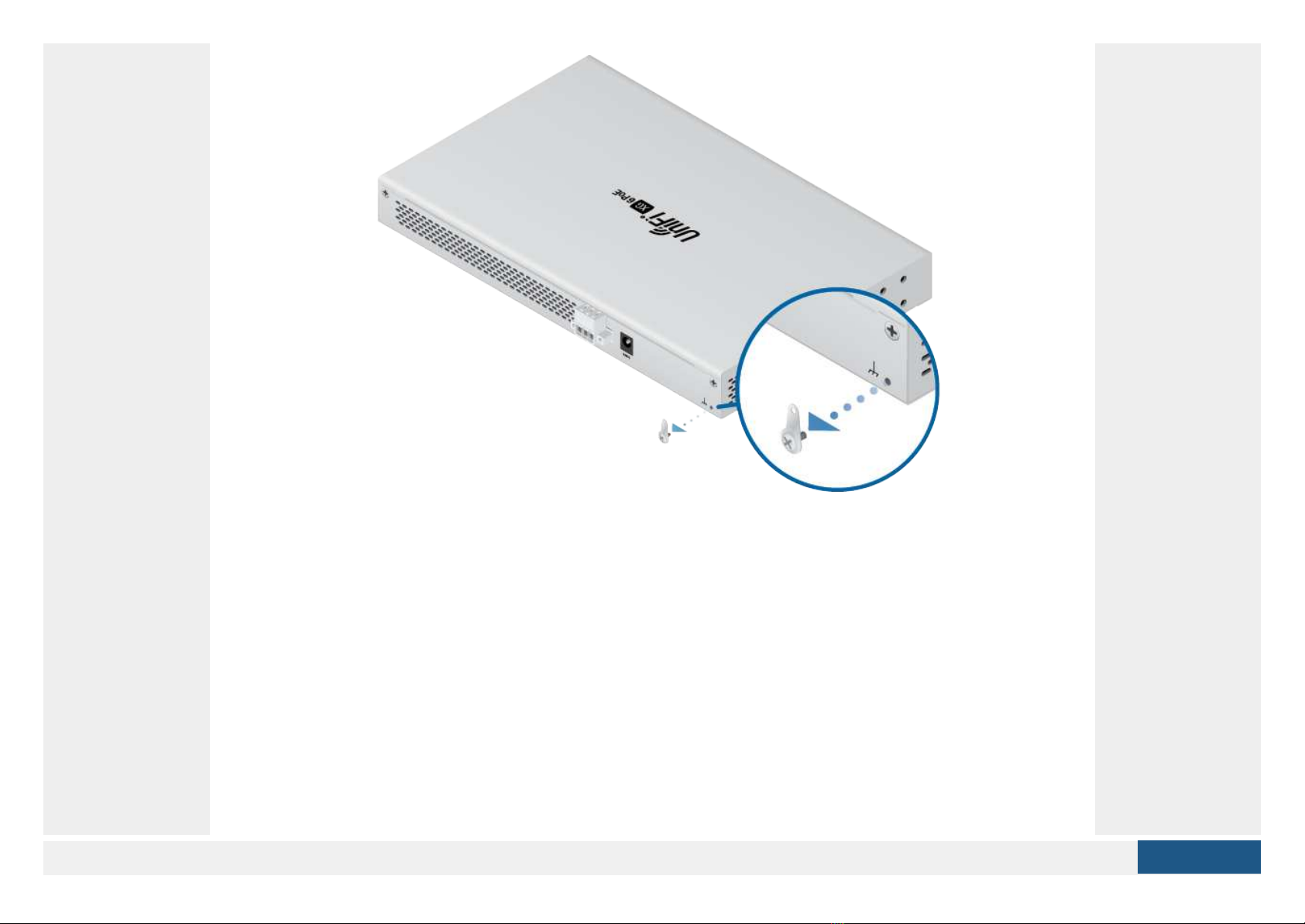

Grounding (Recommended)

The UniFi Switch is grounded through the Power Adapter; however, you can add

optional ESD grounding for enhanced ESD protection.

Note: You also have the option to use the Cable Clip to secure the cord of the

Power Adapter. For instructions, proceed to "Using the Cable Clip (Optional)".

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

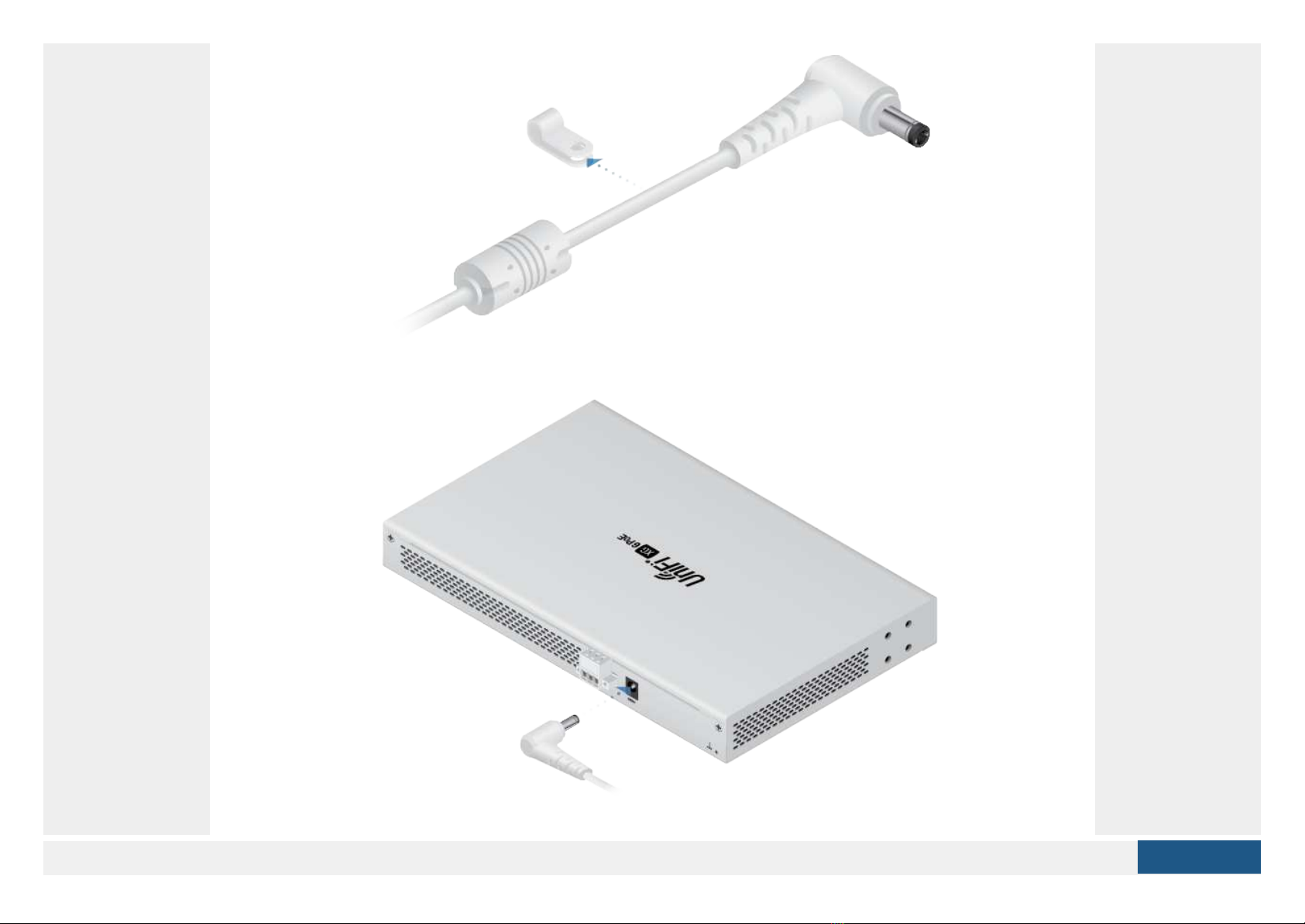

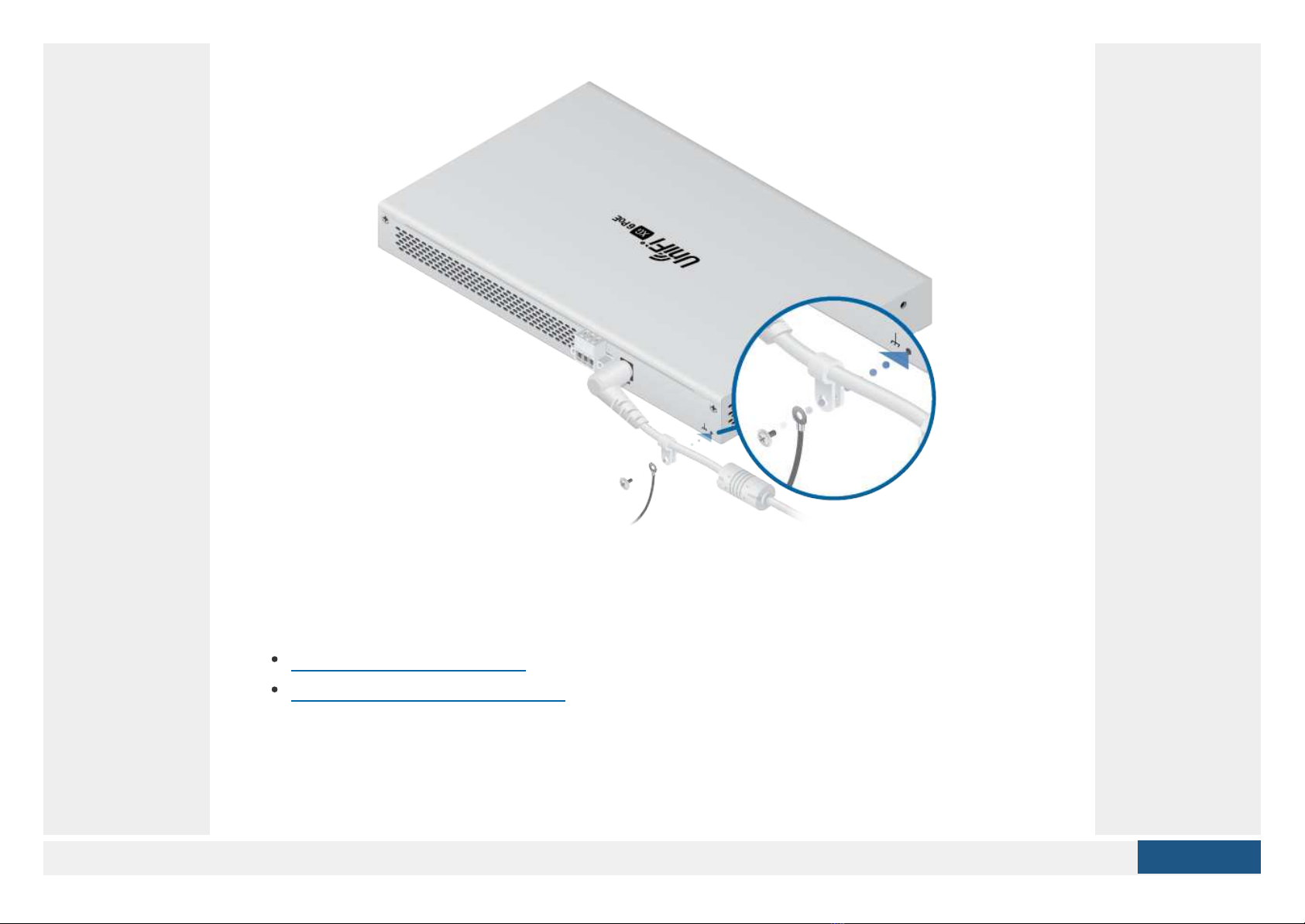

Using the Cable Clip (Optional)

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Connecting Power

You have two options:

"Using the Power Adapter"

"Using the DC Input (Optional)"

Using the Power Adapter
