Ubiquiti ES-24-250W User manual

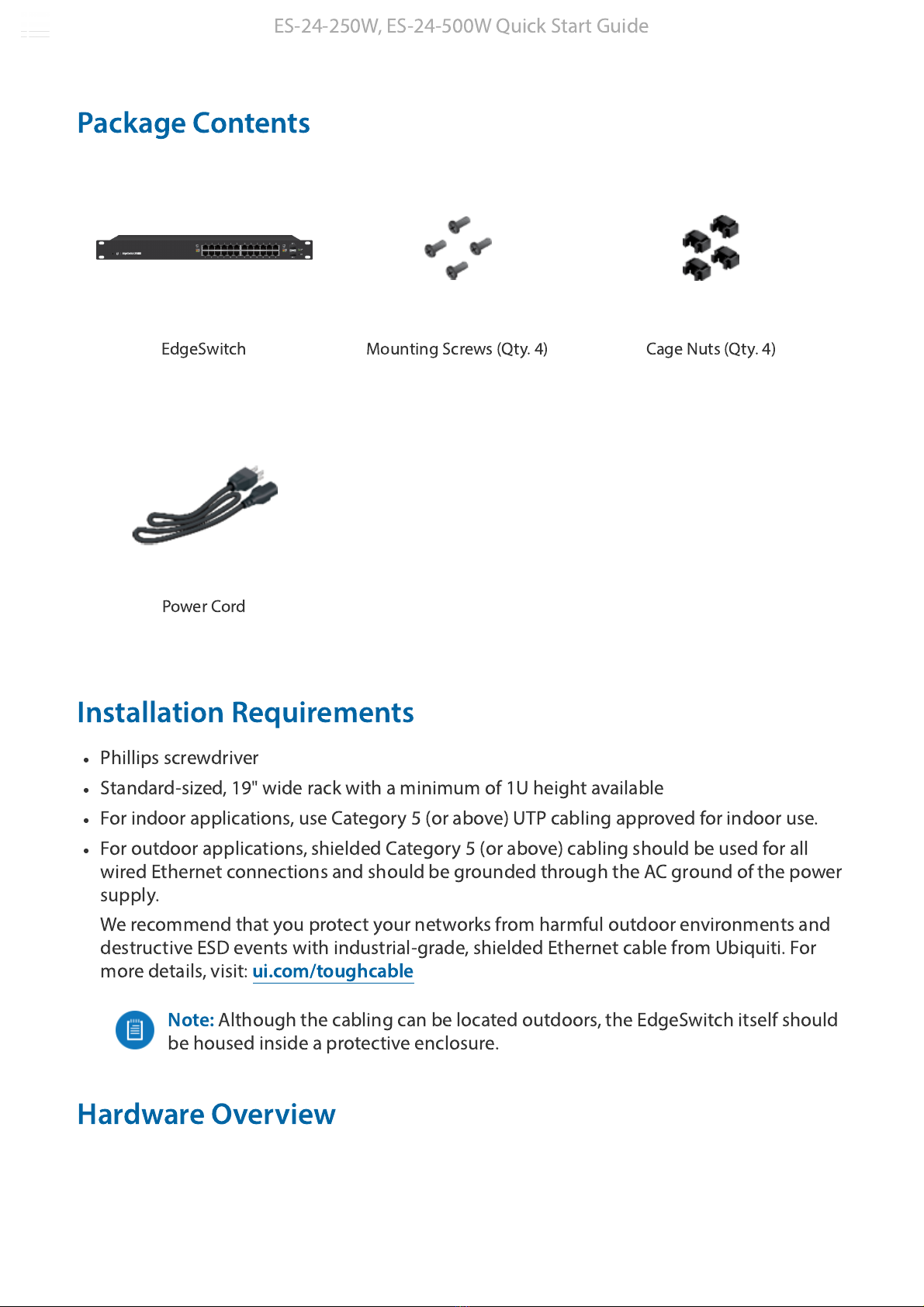

EdgeSwitch Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)

Power Cord

Package Contents

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the power

supply.

We recommend that you protect your networks from harmful outdoor environments and

destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For

more details, visit:

ui.com/toughcable

Note:

Although the cabling can be located outdoors, the EdgeSwitch itself should

be housed inside a protective enclosure.

Hardware Overview

ES-24-250W, ES-24-500W Quick Start Guide

System LED

RJ45 PoE LED (Ports 1 - 24)

RJ45 Speed/Link/Activity LED (Ports 1 - 24)

Note:

The System LED functionality has been updated with rmware v1.8.0. We

recommend that you update the EdgeSwitch to the latest rmware.

Flashing White Bootup in progress.

White Ready for use, not connected to Ubiquiti® Network

Management System (UNMS™). See

“UNMS

Management”

Blue Ready for use, connected to UNMS.

Steady Blue with Occasional

Flashing Ready for use, unable to connect to UNMS, check

connection to UNMS server.

Quickly Flashing Blue Used to locate a device in UNMS.

Alternating

Blue/White Firmware upgrade in progress.

Oﬀ No PoE

Amber IEEE 802.3af/802.3at

Green 24V Passive

Oﬀ No Link

Amber Link Established at 10/100 Mbps

ES-24-250W, ES-24-500W Quick Start Guide

SFP Speed/Link/Activity LED (Ports 1 - 2)

RJ45 (Ports 1 - 24)

SFP (Ports 1 - 2)

Reset Button

Console Port

Power Port

Flashing Indicates Activity

Green Link Established at 1000 Mbps (1 Gbps)

Flashing Indicates Activity

Oﬀ No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

RJ45 ports support Power over Ethernet (PoE) and 10/100/1000 Ethernet connections.

Hot-swappable SFP ports support 1 Gbps connections.

Click here

to learn how to reset an EdgeSwitch to factory defaults.

RJ45 serial console port for Command Line Interface (CLI) management.

Connect the included Power Cord to the Power port.

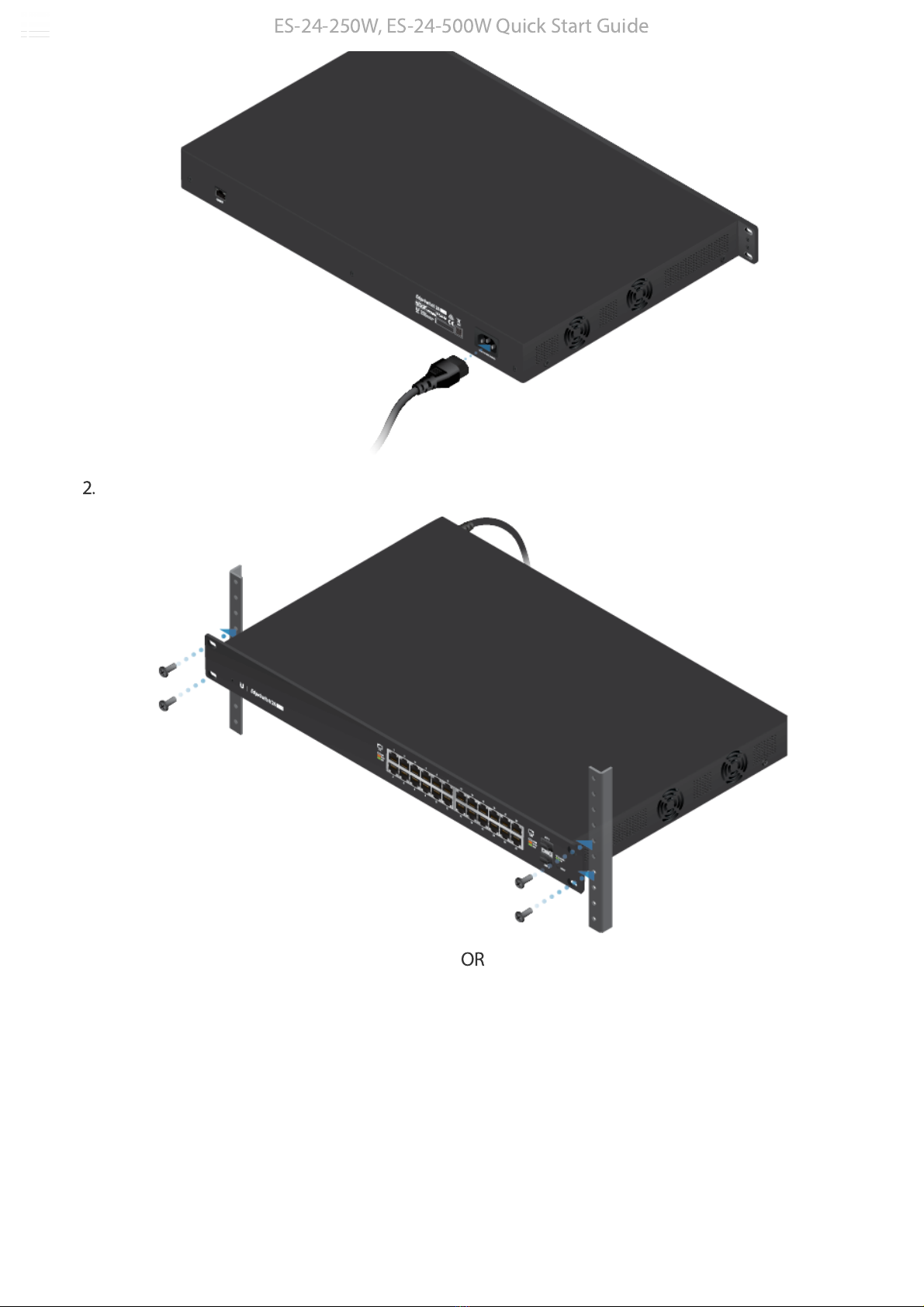

Hardware Installation

ES-24-250W, ES-24-500W Quick Start Guide



ES-24-250W, ES-24-500W Quick Start Guide

Connecting Ethernet

Note:

The PoE settings for ports 1-24 are set to PoE+ auto by default, so 802.3af/at

devices can be plugged in and automatically receive PoE. For instructions on how to

enable 24V passive PoE, refer to

“Conguring PoE Settings”

Connecting SFP

ES-24-250W, ES-24-500W Quick Start Guide

For information about compatible ber SFP modules, visit:

ubnt.link/SFP_DAC_Compatibility

Accessing the Conguration Interface

The EdgeSwitch is set to DHCP by default, so it will try to automatically obtain an IP address. If

that fails, then it will use the default fallback IP address, 192.168.1.2. Proceed to the

appropriate section, DHCP or

“Fallback IP Address”

DHCP

Use one of the following methods:

ES-24-250W, ES-24-500W Quick Start Guide

Set up the DHCP server to provide a specic IP address to the EdgeSwitch based on its

MAC address (on the label).

Let the EdgeSwitch obtain an IP address and then check the DHCP server to see which IP

address was assigned.

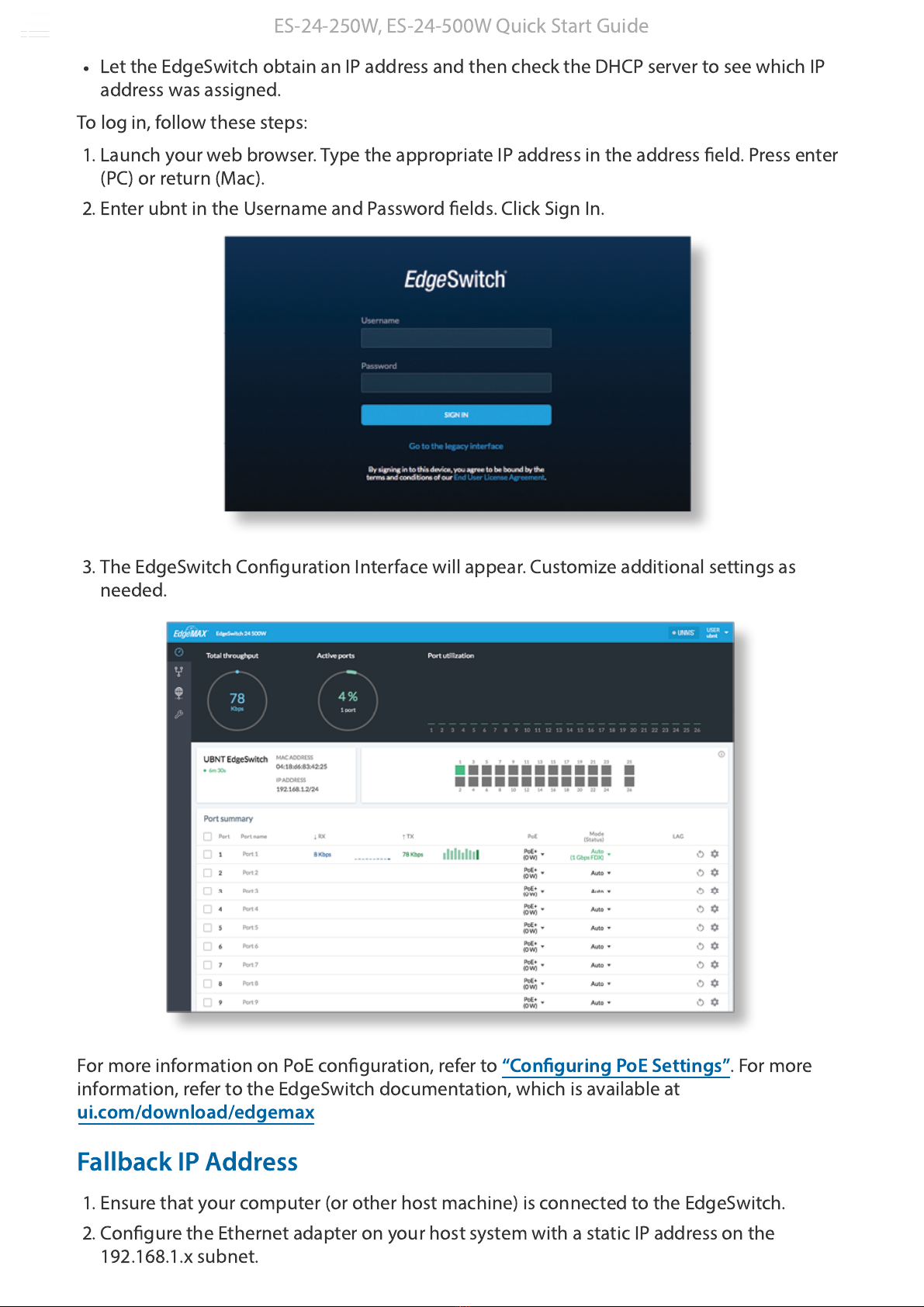

To log in, follow these steps:

1. Launch your web browser. Type the appropriate IP address in the address eld. Press enter

(PC) or return (Mac).

2. Enter ubnt in the Username and Password elds. Click Sign In.

3. The EdgeSwitch Conguration Interface will appear. Customize additional settings as

needed.

For more information on PoE conguration, refer to

“Conguring PoE Settings”

. For more

information, refer to the EdgeSwitch documentation, which is available at

ui.com/download/edgemax

Fallback IP Address

1. Ensure that your computer (or other host machine) is connected to the EdgeSwitch.

2. Congure the Ethernet adapter on your host system with a static IP address on the

192.168.1.x subnet.

ES-24-250W, ES-24-500W Quick Start Guide

3. Launch your web browser. Type the appropriate IP address in the address eld (192.168.1.2

is the default fallback IP address). Press enter (PC) or return (Mac).

4. Enter ubnt in the Username and Password elds. Click Sign In.

5. The EdgeSwitch Conguration Interface will appear. Go to Settings .

6. Change the IP Address to a unique IP address. Click Apply.

ES-24-250W, ES-24-500W Quick Start Guide

Note:

If you change the IP settings, then the session will be cut oﬀ, and you will need

to reconnect to the EdgeSwitch using the new IP address.

Customize additional settings as needed. For more information on PoE conguration, refer to

“Conguring PoE Settings”

UNMS Management

You can manage your device using UNMS, which lets you congure, monitor, upgrade, and

back up your devices using a single application. Get started at

www.unms.com

Conguring PoE Settings

The PoE settings for ports 1-24 are set to PoE+ by default, so 802.3af/at devices can be

plugged in and automatically receive PoE.

WARNING:

Before activating 24V passive PoE, ensure that the connected device

supports PoE and the supplied voltage.

1. Go to Dashboard .

2. For the Ethernet port you want to congure, click the PoE drop-down menu.

ES-24-250W, ES-24-500W Quick Start Guide
