Trinity Basics THA-0307 User manual

OWNER’S MANUAL

Important / Important / Importante

DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE| DESCARGUE LAAPLICACIÓN GRATUITA

Directives intelligentes

Instrucciones Inteligentes

FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS

POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES

PARA INSTRUCCIONES DE ENSAMBLAJE RAPIDAS Y SENCILLAS EN 3D

TRINITY BASICS STAINLESS STEEL UTILITY SINK W/ FAUCET

Model # THA-0307

Your TRINITY Basics Stainless Steel Utility Sink w/Faucet should include the following parts. Please

inspect box contents to ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY

Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online

via our “Contact Us” section at www.trinityii.com.

A Phillips head screwdriver is required for assembly, and a pipe wrench is recommended.

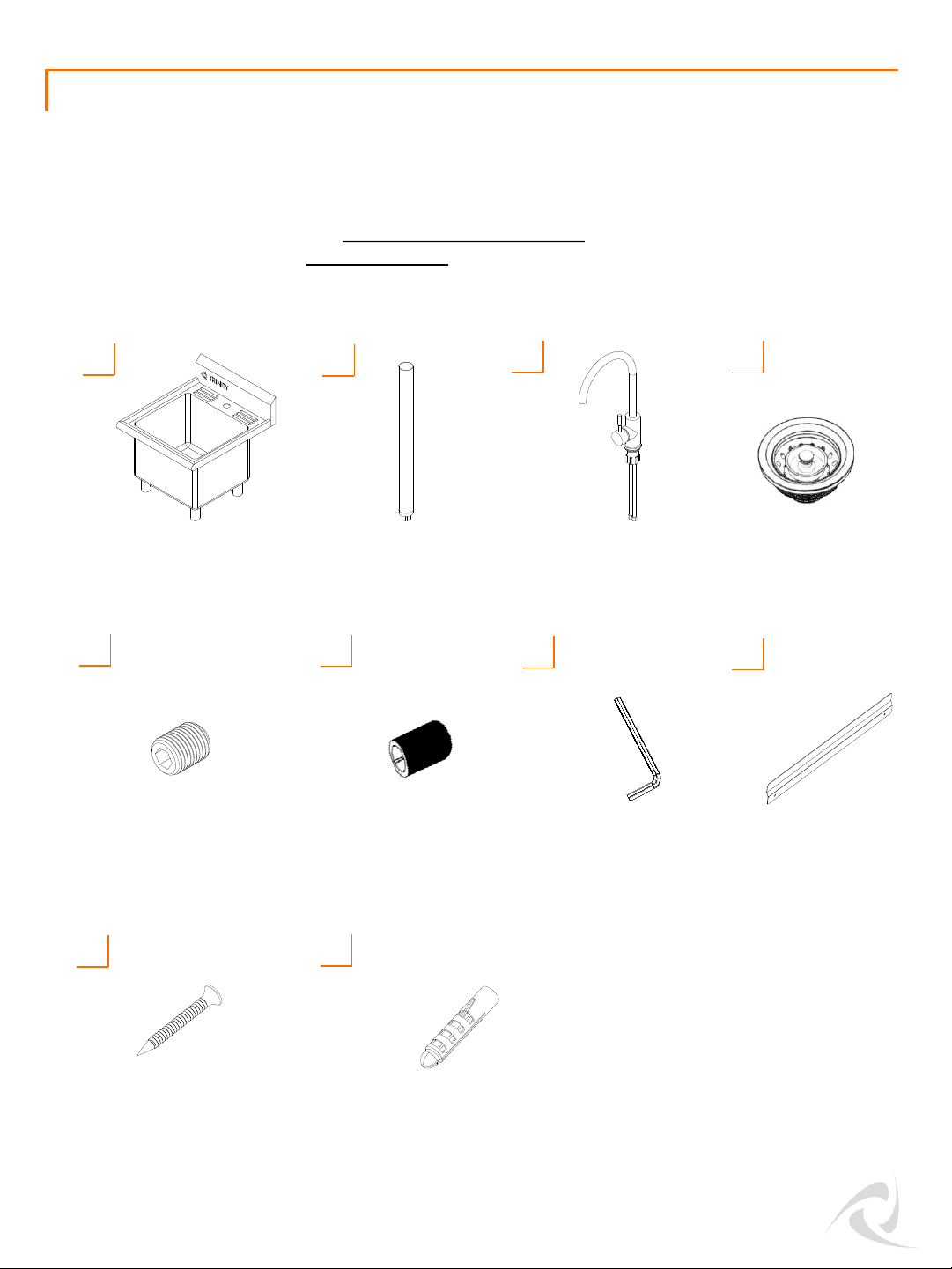

SINK (1)

LEG (4)

W/ FEET LEVELER

HEX KEY (1)

FAUCET ASSEMBLY (1)

W/ HOSES

DRAIN ASSEMBLY (1)

HEX SCREW (8) + (2) extra

(8) are pre-installed on sink,

(2) extras are packed in the hardware bag

BRACKET (1)

MOUNTING SCREW (2) ANCHOR (2)

PARTS LIST

SCREW CAP (8)

ASSEMBLY INSTRUCTIONS

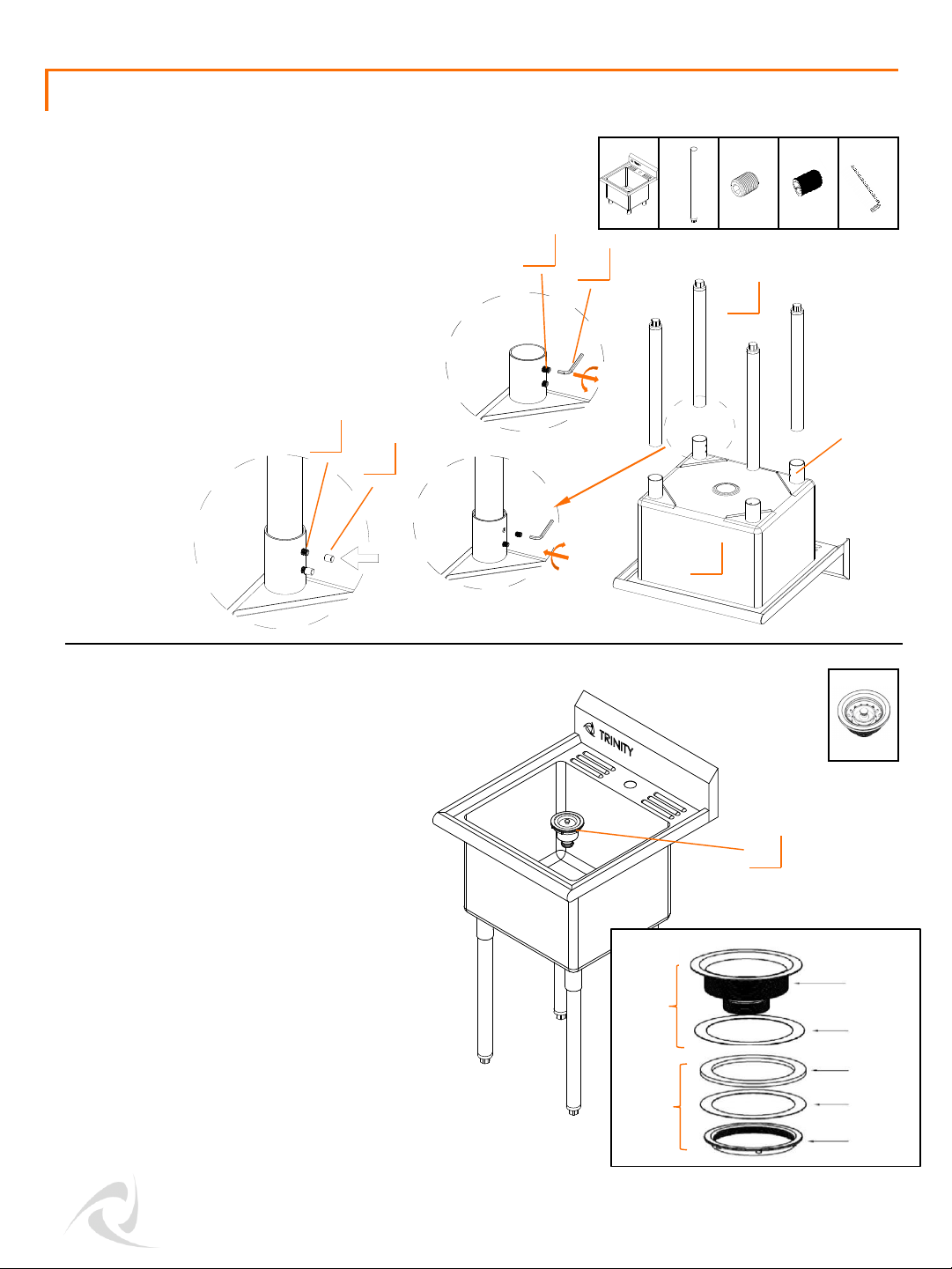

Carefully turn sink right-side up, standing it

upright.

Unscrew large 3-3/8” Nut from bottom of

DRAIN ASSEMBLY (D). From inside SINK (A),

insert Drain through White Seal and opening

at bottom.

From under SINK (A), first slide on Black

Gasket and Paper Washer then screw large

3-3/8” Nut back on tightly. If necessary, use

a pipe wrench to tighten.

Note: P-trap NOT included.

Lay SINK (A) upside-down. Unscrew HEX

SCREWS (E) that are pre-installed on Leg

Collars on bottom of SINK (A) until LEGS (B)

can be fully inserted.

Insert LEGS (B) into Leg Collars. Tighten both

HEX SCREWS (E) on each Leg Collar with HEX

KEY (G). Place a SCREW CAP (F) over each

HEX SCREW (E).

STEP 1

STEP 2

E (8) G (1)

B (4)

A (1)

D (1)

Leg Collar

Drain Assembly (D)

F (8)

Inside

the sink

Under

the sink

Drain

Black

Gasket

Paper

Washer

3-3/8”

Nut

White

Seal

ASSEMBLY INSTRUCTIONS

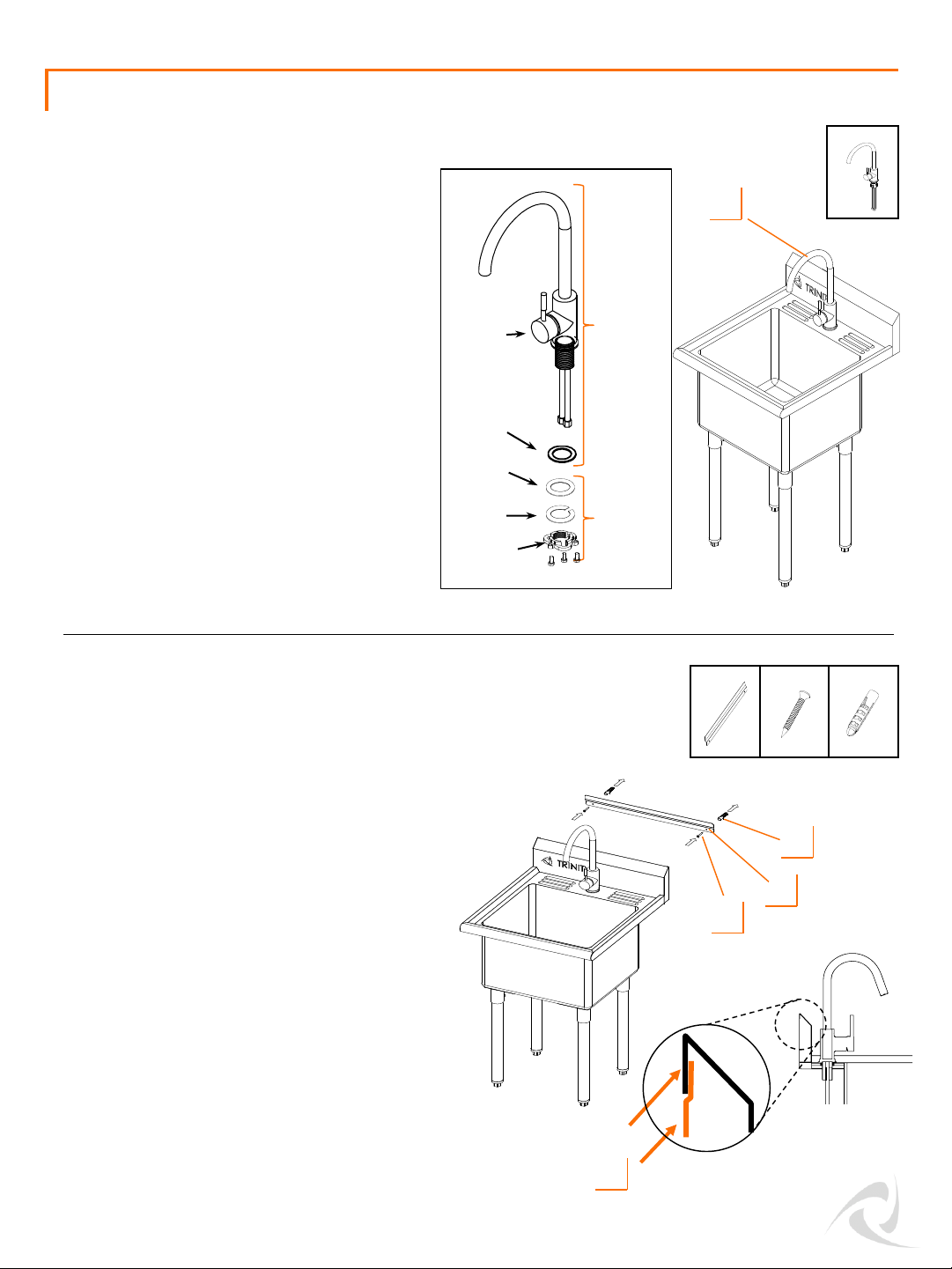

Unscrew each screw securing Lock Nut to

bottom of FAUCET ASSEMBLY (C) and remove

Lock Nut w/Screws, Metal Washer and

Rubber Gasket.

From top side, insert FAUCET ASSEMBLY (C)

through hole. Make sure Metal Base is on top

of SINK (A). Align faucet handle facing

towards front of SINK (A). From under SINK

(A), first slide on Rubber Gasket, then Metal

Washer, and lastly, screw on Lock Nut

w/Screws pointed upward. Tighten Lock Nut

as much as you can by hand and tighten

screws with a screw driver.

STEP 3

C (1)

On top of

the sink

Under

the sink

Faucet

Metal

Base

Rubber

Gasket

Lock Nut

w/ Screws

Carefully move sink against wall at your desired

location. If needed, use a pencil to mark off

mounting height of BRACKET (H).

Position BRACKET (H) on wall, marking off

fastening location on wall through holes on

BRACKET (H). Drill holes in marked locations.

Insert ANCHOR (J) completely into each drilled

hole. Fasten MOUNTING SCREWS (I) through

these holes into wall or anchors tightly with

a screwdriver.

Slightly lift sink and hook flange of sink over

BRACKET (H). Adjust Feet Levelers to ensure sink

is stable and level. Connect Hoses and Drain to

plumbing system.

Note: Bracket is to prevent sink tipping, NOT for

mounting sink to a wall. Do NOT mount sink to a

wall without legs.

STEP 4

H (1) I (2) J (2)

flange

Faucet Assembly (C)

Metal

Washer

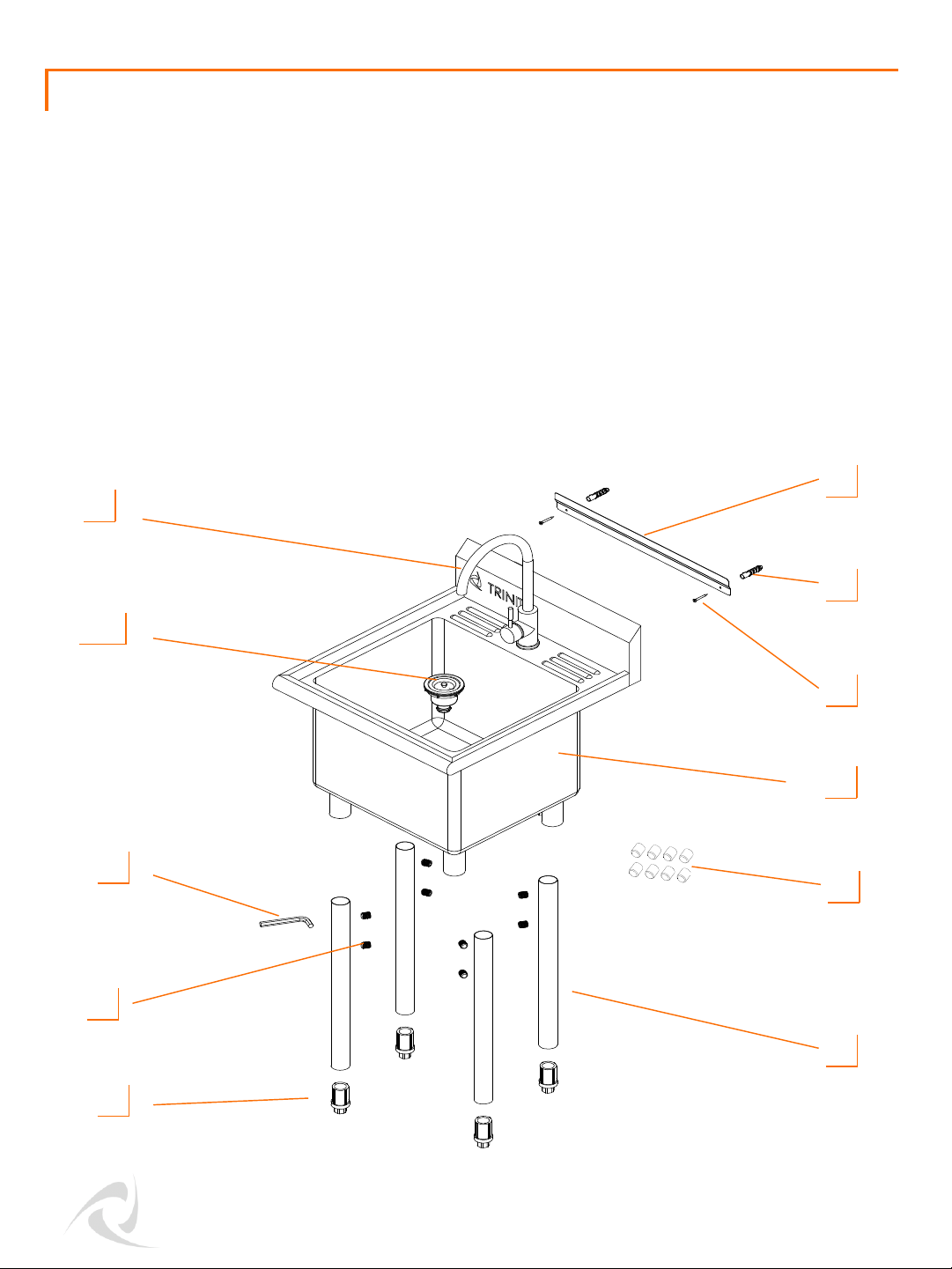

SERVICE PARTS LIST

Part Number Description Part Number Description

1) XBS-19-007-1600 Bracket 7) XGR-98-005-3775 Feet Leveler

2) XGR-01-032-0440 Anchor 8) XSV-01-034-0808 Hex Screw

3) XSV-01-033-0440 Mounting Screw 9) XXX-97-001-0001 Hex Key

4) XBS-18-023-1816 Sink 10) XGL-02-003-0002 Drain Assembly

5) XBK-23-005-0815 Screw Cap 11) CGL-02-009-0003 Faucet Assembly

XGL-04-045-1950 Leg

TRINITY Customer Service provides the following replacement parts:

WARNINGS

1. Read and understand all instructions. Failure to follow all instructions may result in injury

and/or damage.

2. The warnings, cautions, and instructions discussed in this manual cannot cover all

possible conditions or situations that may occur. The user must always be aware of their

environment and ensure that they use the product in a safe and responsible manner.

3. Do NOT modify the product in any way. Unauthorized modification may impair the

function and/or safety of the product, and may affect the life of the product. Any

modifications will void product warranty.

4. Check for damaged parts. Before using this product, carefully check that all parts are in

good condition, and that the product will operate properly and perform its intended

function. Check for damaged parts and any other conditions that may affect the operation

of this product. Replace damaged or worn parts, and never use this product with a damaged

part.

5. Do NOT overload the product.

6. Ensure backflow prevention compliance. Equipment is to be installed with adequate

backflow prevention to comply with applicable federal, state and local codes.

7. Do NOT let children climb on or in Utility Sink.

8. Ensure to install the wall bracket. Failure to do so may result in tipping.

9. Do NOT mount the sink to a wall without legs. The wall bracket is to prevent tipping, NOT

for mounting the sink to a wall.

10. Ensure plumbing connections are tightened fully. Failure to tighten may result in leakage.

11. Strongly recommended for professional installers to perform installation. Observe local

plumbing and building codes.

Total weight capacity 300 lb

CARE AND MAINTENANCE

•Avoid harsh, abrasive cleaners, and other corrosive chemicals. Do not leave salt in sink or

near saltwater environment.

•Rinse surface thoroughly with hot water after using soaps and detergents containing

chlorides to prevent corrosion.

•Do not use scouring pad, carbon steel brushes, or steel wool for cleaning. Iron particles left

behind can lead to rust.

•Avoid the use of oily rags or greasy cloths when wiping the surface. Wipe dry after use so

that water does not leave water spots.

•Use a quality stainless steel cleaner and follow instructions that come with the cleaner.

Wipe ALONG the grain (NOT against).

Thank you for purchasing a TRINITY Basics Stainless Steel Utility Sink w/Faucet. In order to register

your product and receive streamlined customer service, please fill out the following Product

Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form

online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com. Include a

copy of your original receipt with your submission.

First Name: Last Name:

Address:

City: State: Zip Code:

Email Address: Phone:

Product Model #: THA-0307 Purchase Date: / /

Location of Purchase:

Please rate the importance of each feature (1=least important; 10=most important)

Quality Price Size/Capacity Appearance Other

How did you hear about our product?

Magazine Ad Catalog Salesperson Word of Mouth

Internet Store Display Other

Marital Status: Single Married

Household Income: Below $50,000 $50,000-$150,000 $150,000+

Education: High School College Graduate School

Primary Residence: Own Rent

Comments/Suggestions:

PRODUCT REGISTRATION
