TRENDnet TV-IP300 User manual

TRENDnet's TV-IP300 Internet Camera Server is the perfect device

for remote monitoring and transmitting real-time events over the

Internet. The TV-IP300 functions as a video/audio/surveillance

camera allowing you to view live events with your web browser via

Internet or Intranet. Up to 4 cameras can be remotely managed with

the bundled IPViewSP software. This Internet Camera Server has

MPEG4 quality streaming video, automatic image capture, and

event notification via e-mail, making it the ideal solution for Internet

video broadcasting applications.

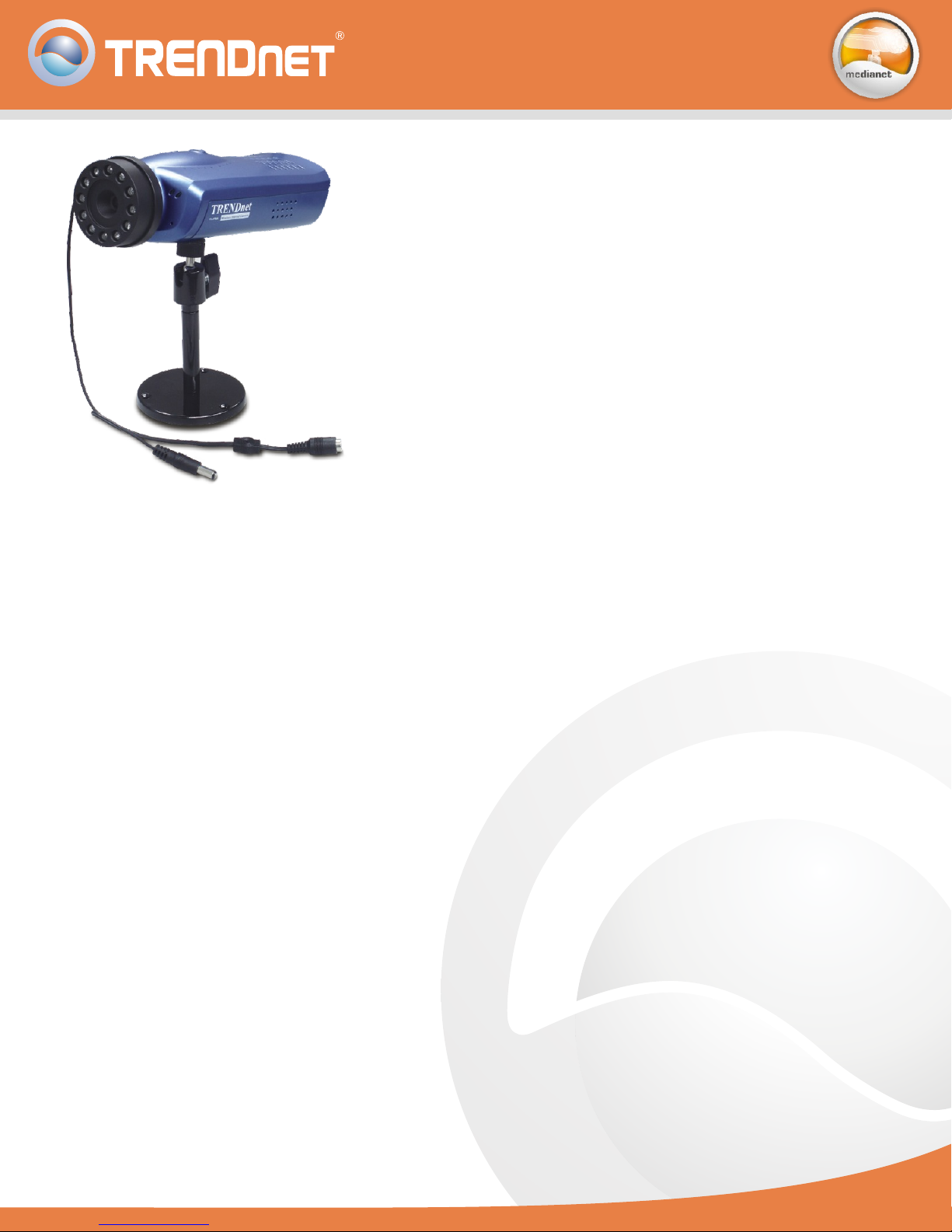

TV-IP300

Advanced Day/Night Internet Camera Server

TEW-503PI (07-28-2005) TV-IP300

rev:02.02.2007

• Supports High Quality MPEG4 Compression

• Supports Night Vision with IR Lens

• Supports Audio Monitoring and RS-485 Port for PAN & TILT Control

• Supports CCD Image Sensor and DC-Iris Control

• Supports DirectX 9.0 Control for Internet Explorer

• Allows for Remote Access from Web Browser for Live Image Viewing

• Supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols

• Supports Web configuration with password protection

• Powerful Windows IPView SP Application Software for multiple cameras monitoring, image capturing, and video recording

(Windows 98/ME/2000/XP)

• Built-in I/O Ports to Trigger Alarm and Email Notification

• Broad Range of Applications for Monitoring Homes, Offices, Banks, Hospitals, and a Variety of Private and Public Monitoring

• 3-Year Warranty

FEATURES

BENEFITS

Integration Friendly:

Connects to 10Mbps or 100Mbps network

Economical:

Built-in web server; does not require additional computer and software

Flexible:

Install it in local area network or connect it to Internet for remote monitoring

Performance:

Color 640x480 pixels resolution with up to 30 frames per second video frame rate

Resolution

Lens

MIC Input

Speed

Up/Down Reversal

Left/Right Reversal

Quality Selection

Brightness Control

Saturation Control

Flicker Reduction

Contrast Control

Bit Rate Selection

Max Frame Rate Selection

• Sharp 1/4” type CCD

• CIF(350x240NTSC, 352x288PAL) • QCIF(176x120NTSC, 176x144PAL)

• 512 x 480(NTSC), 512 x 576(PAL)

• Yes

•

• Yes

• Built-in f 6.0mm F1.8 IR Lens (CS-Mount Standard, Replaceable)

• Internal MIC (mono) • S/N ratio: More than 60dB • Frequency: 50 ~ 16000Hz

• 24Kbps bit Rate • 8K Sampling Rate

• 8 Levels

• 30fps@CIF(NTSC) • 25fps@CIF(PAL)

• 9 Levels

• 5 Levels

• Yes

• Automatic

• Yes

Frame Rate

Compression

Audio

Video

Sensor

Image Sensor

SPECIFICATIONS

• MPEG4 short header mode compression

Gain/Exposure/White Balanced Control

Motion Detection

Iris Level

Lux

• Yes

• Adjustable • VR for Iris Control Adjustment

• IR on : 0 lux ; IR Off: 1 lux

Hue Control

RELATED PRODUCTS

PACKAGE CONTENTS

TV-IP200W

TPH-5000

TV-IP300W Advanced Wireless Day/Night Internet Camera Server

• Utility CD-ROM

• Metal Camera Stand

Wireless Internet Camera Server

• TV-IP300

• Power Adapter(12V DC, 1.5A)

Outdoor Camera Housing

• Quick Installation Guide

• 1 x RJ-45 Network Cable

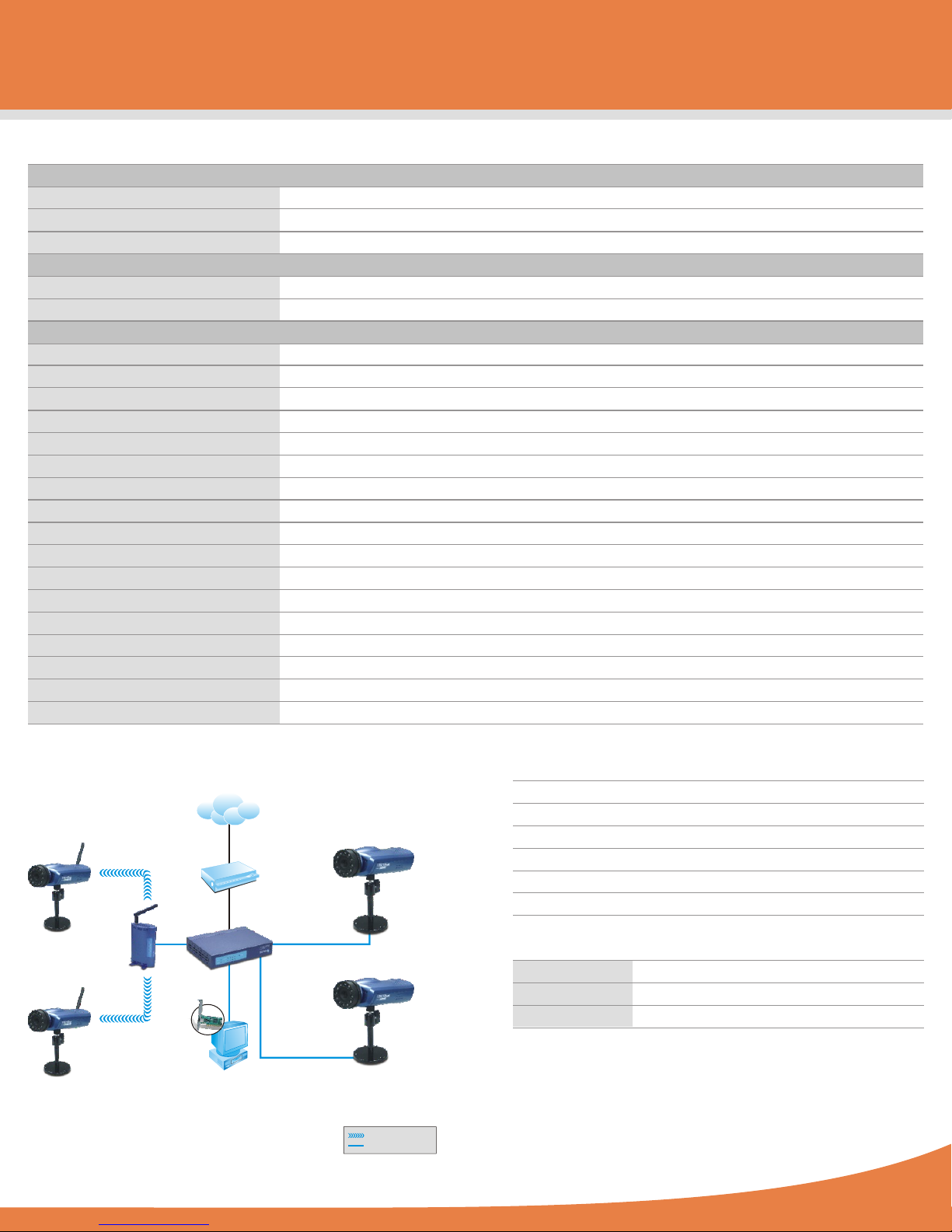

NETWORKING SOLUTIONS

Internet

Cable/DSL

Modem

Office Monitoring

(TV-IP300)

Front Gate Monitoring

(TV-IP300)

Parking

Monitoring

(TV-IP300W)

Warehouse

Monitoring

(TV-IP300W)

Wireless

Access Point

(TEW-230APB)

100Mbps

11Mbps Wireless

Firewall Router

(TW100-BRF114)

Workstation with

PCI Adapter

(TE100-PCIWN)

Advanced Day/Night Internet Camera Server

TV-IP300

rev:02.02.2007

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

Advanced Day/Night Internet Camera Server

TV-IP300

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

SPECIFICATIONS

System

Generic Output

RAM/Flash ROM

Generic Input

RS-485

Memory Size

Weight

Application

LED

Power

Certifications

LAN

Consumption

Protocol

Dimension

Browser

Temperature

Stand Height

OS Support

Humidity

• xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

• 2 pin (Half Duplex)

• 128M (256 Recommended)

• 270 grams (9.5 oz)

• IPView SP Software

• Power: Blue • Link/Active: Red

• 7 watt ( 580mA x 12V), max

• HTTP, SMTP, FTP, Telnet, NTP, DNS, DHCP, TCP/IP, DDNS, UPnP

• Pentium III, 450 MHz or above • VGA card resolution: 800 x 600 or above

• 16Mbytes/2Mbytes

• 1 set, 2 pin (photo coupler, 12V DC 50mA max)

• Philips Trimedia • PNX1300 VLIW DSP

• Linux

• 120 mm (4.7 inches)

• Windows 98SE, ME, NT4, 2000,XP

• 5% ~ 95% Non-Condensing

• 195x90x50 mm (7.7x3.5x2 inches)

• IE 5.0 or above

• Operating: 5°C ~ 40°C (41°F ~ 104°F) • Storage: -25°C ~ 50°C (-13°F ~ 122°F)

• 12V DC, 1.5A External Adapter

• FCC. CE, VCCI Class B

• 10/100Mbps Ethernet, Auto-Sensing

CPU

I/O & Control

Requirements

Physical/Environmental

Software

Communication

• 1 set, 2 pin (relay, 24V DC 1A/125V AC 0.5A)

* NTSC: US Version; PAL: AU/EU/UK Version

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com
