How to Update Firmware on a Symbio 700

Controller

Table of Contents

Introduction ..................................................................................................................................................2

Warnings, Cautions, and Notices..............................................................................................................2

Copyright...............................................................................................................................................3

Trademarks ...........................................................................................................................................3

Required Items..............................................................................................................................................4

Get Symbio 700 Firmware ............................................................................................................................4

Download Phone App ...................................................................................................................................4

Connect to Symbio 700.................................................................................................................................5

Update Firmware ..........................................................................................................................................5

Introduction

Warnings, Cautions, and Notices

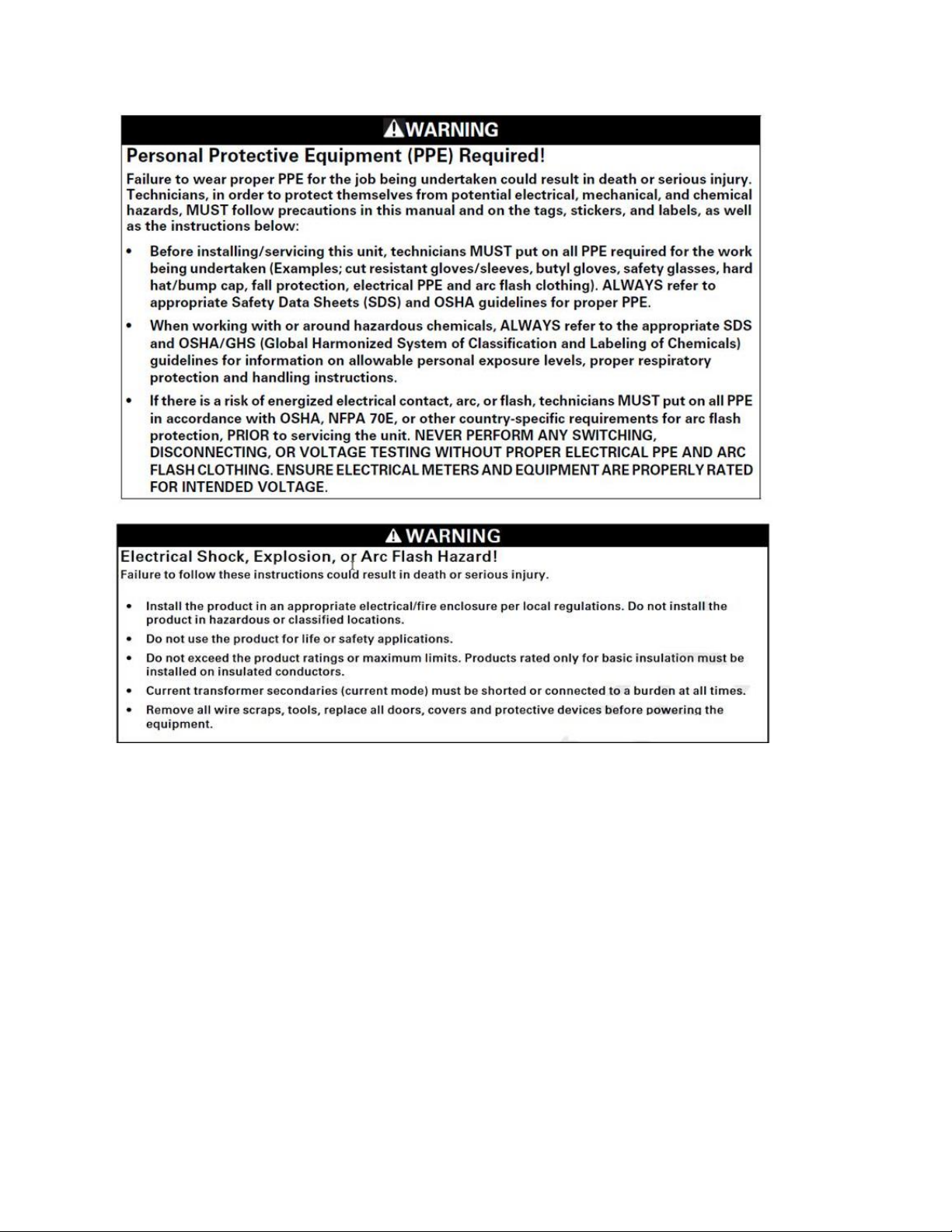

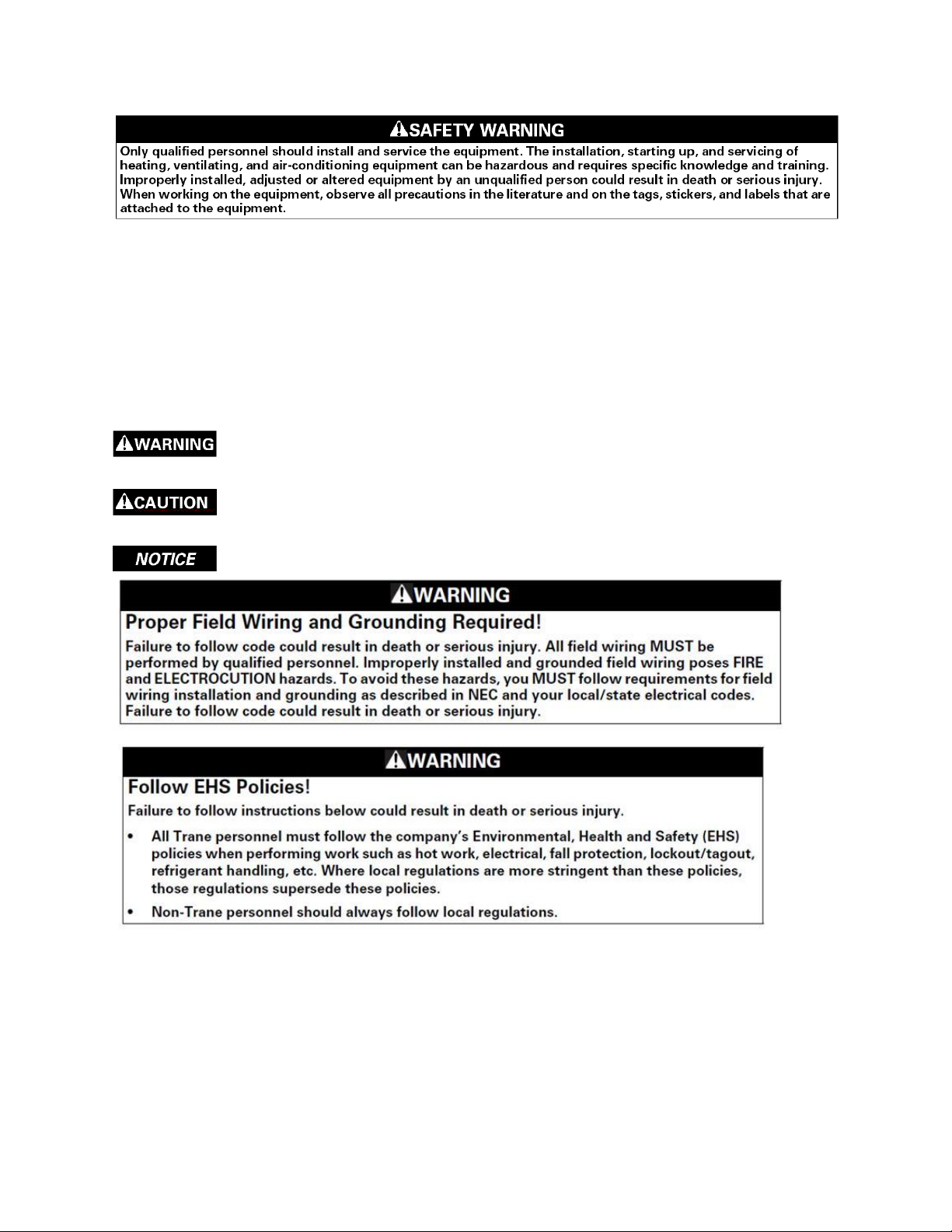

Safety advisories appear throughout this manual as required. Your personal safety and the proper

operation of this machine depend upon the strict observance of these precautions.

The three types of advisories are defined as follows:

Indicates a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in minor

or moderate injury. It could also be used to alert against unsafe practices.

Indicates a situation that could result in equipment or property-damage only accidents.

This document and the information in it are the property of Trane, and may not be used or reproduced

in whole or in part without written permission. Trane reserves the right to revise this publication at any

time, and to make changes to its content without obligation to notify any person of such revision or

change.

Trademarks

All trademarks referenced in this document are the trademarks of their respective owners.

Required Items

To update the firmware on a Symbio® 700 controller the following items will be needed.

•Computer

•Apple® or Android mobile phone

•USB Drive

Get Symbio 700 Firmware

The latest firmware for the Symbio® 700 controller must be downloaded from Trane.com. If you already

have the correct firmware for the controller on a USB drive skip ahead to the next section.

1. Visit the Trane Software Download page and download the latest version of the Symbio 700

firmware.

2. Copy the downloaded firmware to the USB drive. Make sure to name the firmware file

appropriately so you can easily find it later. The firmware file can’t be placed in a subfolder on

the USB drive.

3. Place the USB drive with the firmware in the USB port on the Symbio 700 controller.

Download Phone App

The Symbio Installation and Service tool is required to update the firmware on the Symbio 700

controller. If you already have the app on your phone skip ahead to the next section.

To see a step-by-step video of how to get the Symbio Service and Installation App on your phone and

how to connect to the Symbio 700 controller refer to the video link below.

Trane® Tips: Connecting Your Trane® Odyssey™ with the Symbio® App

1. Use the camera on your mobile phone to scan the QR code below. Follow the prompt to

navigate to the Apple App Store or Google Play®Store and download and install the Symbio

Service & Installation application on your mobile phone.

2. If you are viewing this document on your mobile phone, select one of the links below to

navigate to the Apple App Store or Google Play Store. Download and install the Symbio Service

& Installation application on your mobile phone.

Apple Download Link

Android Download Link

3. Alternatively, navigate to the Apple App Store or Google Play Store on your mobile phone and

search for “Trane Symbio” to locate the Symbio Service & Installation App in the store. Once

located download and install the app on your mobile phone.

Connect to Symbio 700

With the Symbio Service and Installation App installed on your phone connect via Bluetooth to the

Symbio 700. For more detailed information on the Symbio Service and Installation Mobile Application,

refer to Quick Start Guide for Symbio Service and Installation (BAS-SVN043).

1. Access the Symbio 700 controller in the low voltage portion of the equipment.

2. Press the Bluetooth button on the Symbio 700 keyboard/display to turn on Bluetooth.

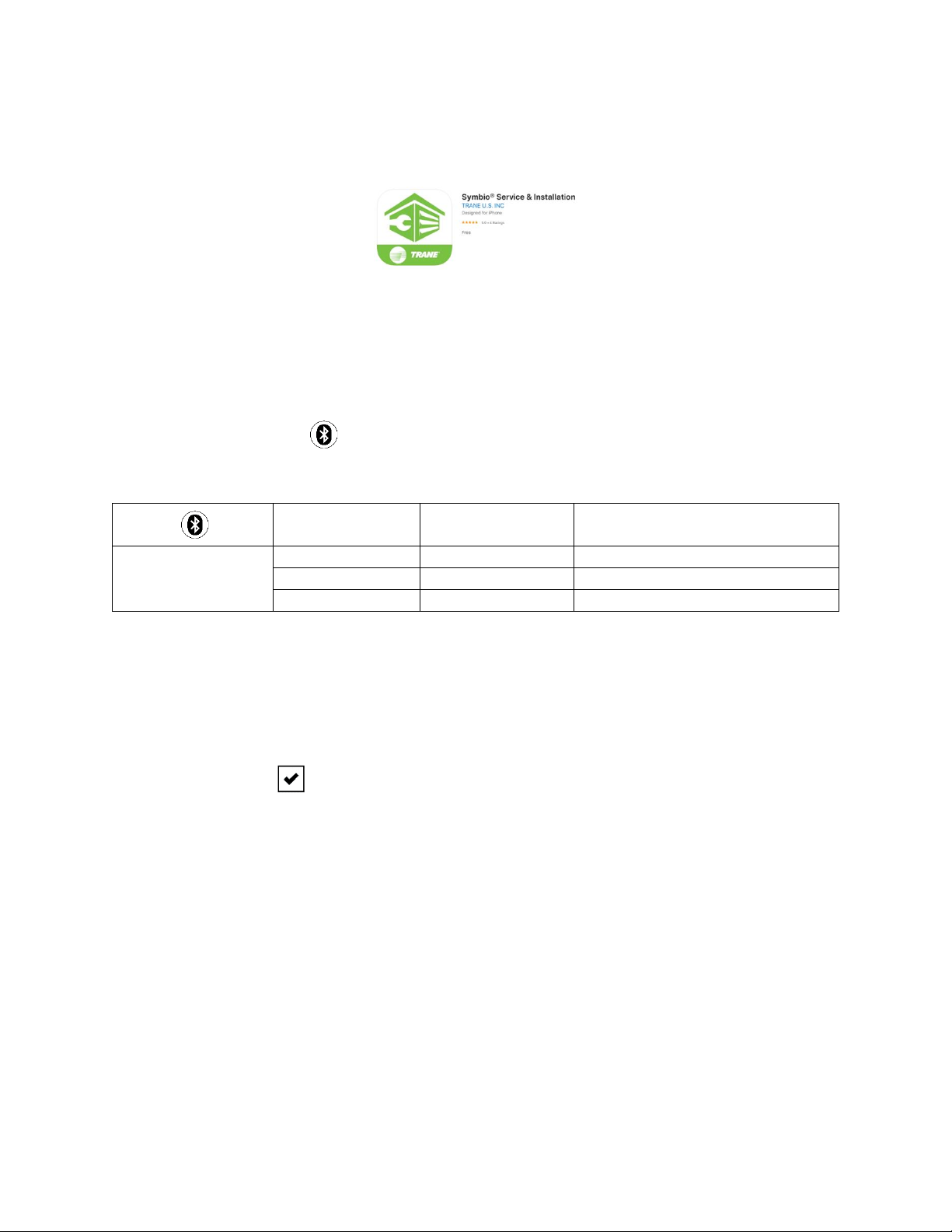

3. Confirm the status of Bluetooth communications by verifying the blue LED status. The LED

should be blinking.

Blue LED

Display

Description

Press to turn

Bluetooth on/off

Off

NOT CONNECTED

Bluetooth Off

Blinking

WAITING…

Bluetooth On –Not Paired

On Solid

CONNECTED

Bluetooth On –Connected/Paired

4. Open the Symbio Service and Installation App on your mobile phone.

5. On the startup screen press Skip in the lower left-hand corner of the screen.

6. On the Unit List screen, select the Symbio 700 controller to pair with. If the controller is not

listed, press the refresh arrow in the upper right-hand corner of the screen.

7. When prompted, pair the app to the Symbio 700 controller. A popup message displays a 6-digit

random number. The same number is shown on the display of the Symbio 700 controller until

the pairing is complete, allowing the user to confirm connection to the intended controller.

8. Press the Enter button on the Symbio 700 keyboard/display to complete the pairing. When

the LED light is a solid blue, and the display reads CONNECTED the Bluetooth pairing, and

connection is complete.

Update Firmware

1. In the Symbio Service and Installation app navigate to the Tools Page.

2. On the Tools page scroll down and select Update Firmware.

3. Verify that the name of the correct firmware is showing as the selected firmware. To change the

firmware, select the green name of the firmware and select the proper firmware file.

4. Press the Update Firmware button at the bottom of the page and select Update on the

confirmation pop up. This will initiate the firmware update process.

5. The Bluetooth connection will be lost when the controller reboots during the firmware update.

The equipment will be stopped and restarted during the update process.

6. The Symbio 700 keyboard/display will show Update Success when the process is complete.

7. Reconnect the Symbio App to the Symbio 700 controller.

8. The Symbio App will display a Previous Operation Succeeded message that shows the new

firmware version when re-connecting to the controller after finishing the update. The firmware

version displayed in the message should match the desired firmware version from the selected

firmware file.

9. This completes the Firmware Update process.
