Trane 4TTZ0 series Assembly instructions
18-BC53D2-6
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service informa-
tion pack upon completion of work.
Air Conditioner/Heat Pumps
These instructions do not cover all variations in systems or provide for every possible contingency to be met in connection with
the installation. Should further information be desired or should particular problems arise which are not covered sufficiently for the
purchaser’s purposes, the matter should be referred to your installing dealer or local distributor.
NOTE: The manufacturer recommends installing only approved matched indoor and outdoor systems. All of the manufacture’s split
systems are A.H.R.I. rated only with TXV/EEV indoor systems. Some of the benefits of installing approved matched indoor and
outdoor split systems are maximum efficiency, optimum performance and the best overall system reliability.
4TTZ0/4TWZ0 with ComfortLinkTM II and Charge AssistTM
Installer’s Guide
Table of Contents
Section 1. Safety..................................................................................... 2
Section 2. Unit Location Considerations.............................................. 3
Section 3. Unit Preparation.................................................................... 5
Section 4. Setting the Unit ..................................................................... 5
Section 5. Refrigerant Line Considerations......................................... 6
Section 6. Refrigerant Line Routing ..................................................... 7
Section 7. Refrigerant Line Brazing...................................................... 8
Section 8. Refrigerant Line Leak Check ............................................. 10
Section 9. Evacuation........................................................................... 11
Section 10. Service Valves ................................................................... 11
Section 11. Electrical - Low Voltage.................................................... 12
Section 12. Electrical - High Voltage ................................................... 17
Section 13. Start Up.............................................................................. 18
Section 14. System Charge Adjustment............................................. 19
Section 15. Checkout Procedures and Troubleshooting................... 30
2 18-BC53D2-6
Section 1. Safety
▲
WARNING
!
This information is intended for use by individuals
possessing adequate backgrounds of electrical and
mechanical experience. Any attempt to repair a central
air conditioning product may result in personal injury
and/or property damage. The manufacture or seller
cannot be responsible for the interpretation of this
information, nor can it assume any liability in connec-
tion with its use.
These units use R-410A refrigerant which operates
at 50 to 70% higher pressures than R-22. Use only
R-410A approved service equipment. Refrigerant
cylinders are painted a “Rose” color to indicate the
type of refrigerant and may contain a “dip” tube to
allow for charging of liquid refrigerant into the sys-
tem. All R-410A systems use a POE oil that readily
absorbs moisture from the atmosphere. To limit this
“hygroscopic” action, the system should remain sealed
whenever possible. If a system has been open to the
atmosphere for more than 4 hours, the compressor oil
must be replaced. Never break a vacuum with air and
always change the driers when opening the system
for component replacement. For specific handling
concerns with R-410A and POE oil, reference Retrofit
Bulletin SS-APG006-EN and APP-APG011-EN or
APP-APG012-EN.
Extreme caution should be exercised when opening
the Liquid Line Service Valve. Turn counterclockwise
until the valve stem just touches the rolled edge. No
torque is required. Failure to follow this warning will
result in abrupt release of system charge and may
result in personal injury and /or property damage.
UNIT CONTAINS R-410A REFRIGERANT!
R-410A operating pressures exceed the limit of R-22.
Proper service equipment is required. Failure to use
proper service tools may result in equipment damage
or personal injury.
SERVICE
USE ONLY R-410A REFRIGERANT AND AP-
PROVED POE COMPRESSOR OIL.
▲
WARNING
!
▲
WARNING
!
LIVE ELECTRICAL COMPONENTS!
During installation, testing, servicing, and trouble-
shooting of this product, it may be necessary to work
with live electrical components. Failure to follow all
electrical safety precautions when exposed to live
electrical components could result in death or serious
injury.
▲
WARNING
!
If using existing refrigerant lines make certain that all
joints are brazed, not soldered.
▲CAUTION
!
Scroll compressor dome temperatures may be hot. Do
not touch the top of compressor; it may cause minor to
severe burning.
▲CAUTION
!
▲
WARNING
!
NOTE: It is recommended to install manufacturer ap-
proved matched indoor and outdoor systems.
NOTE: All approved split systems are AHRI rated with only
TXV indoor systems.
NOTE: The benefits of installing approved indoor and
outdoor split systems are maximum efficiency, optimum
performance and the best overall system reliability.
18-BC53D2-6 3
When mounting the outdoor unit on a roof, be
sure the roof will support the unit’s weight.
Properly selected isolation is recommended to
alleviate sound or vibration transmission to the
building structure.
Section 2. Unit Location Considerations

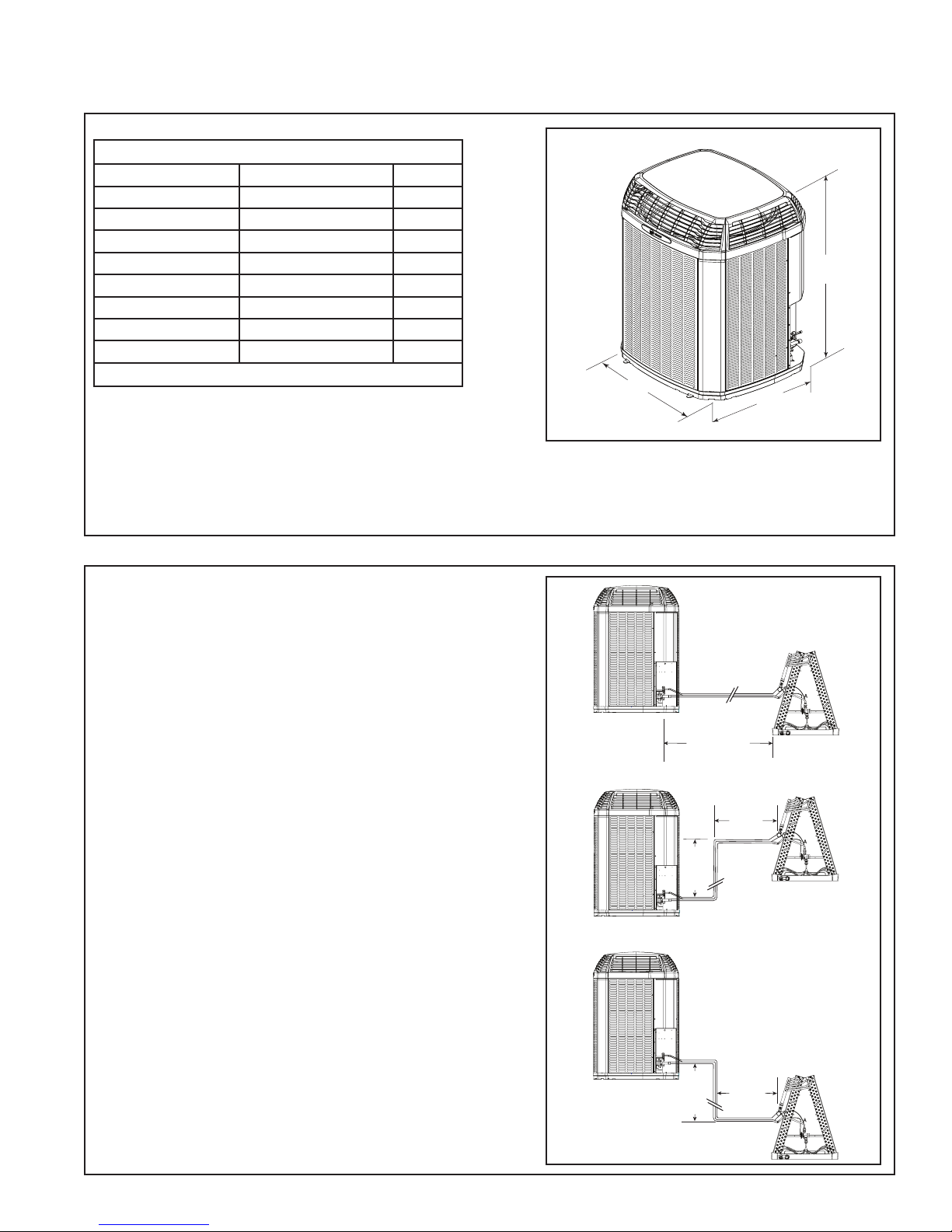

2.1 Unit Dimensions and Weight
2.2 Refrigerant Piping Limits
D
H
W
Unit Dimensions and Weight
Models H x D x W (in)
Weight* (lb)
4TTZ0024A
54 x 34 x 37 335
4TTZ0036B
54 x 34 x 37 335
4TTZ0048A/B
54 x 34 x 37 420
4TTZ0060A
54 x 34 x 37 420
4TWZ0024A
54 x 34 x 37 340
4TWZ0036B
54 x 34 x 37 345
4TWZ0048A/B
54 x 34 x 37 430
4TWZ0060A
54 x 34 x 37 430
* Weight values are estimated (uncrated).
25’
Max
Line
Lift
Standard
Line Set
60’ Max
Line Length
25’
Max
Line
Lift
35’ Max
Line
Length
35’ Max
Line
Length
1. The maximum length of refrigerant lines
from outdoor to indoor unit should NOT
exceed sixty (60) feet.
2. The maximum vertical change should not
exceed twenty five (25) feet*.
3. Service valve connection diameters are
shown in Table 5.1.
NOTE: For line lengths greater than sixty (60)
feet, Refer to Refrigerant Piping Application
Guide, SS-APG006-EN or Refrigerant Piping
Software Program, 32-3312-03 (or latest revi-
sion).
Table 2.1
*
*
*
Restricted to maximum vertical change of 25 ft.
4 18-BC53D2-6
Min. 12” to
Shrubbery
Avoid Install
Near Bedrooms
Min 5’ Unrestricted
Access Panel
Min 3’
Unrestricted
2.3 Suggested Locations for Best Reliability
2.4 Cold Climate Considerations (Heat Pump only)
Ensure the top discharge area is unrestricted for
at least five (5) feet above the unit.
Three (3) feet clearance must be provided in
front of the control box (access panels) and any
other side requiring service.
Do not locate close to bedrooms as operational
sounds may be objectionable.
Avoid locations such as near windows where
condensation and freezing defrost vapor can
annoy a customer.
Min. 12” to
Shrubbery Min. 12”
to Wall
Position the outdoor unit a minimum of 12” from
any wall or surrounding shrubbery to ensure
adequate airflow.
Outdoor unit location must be far enough away
from any structure to prevent excess roof runoff
water or icicles from falling directly on the unit.
NOTE: It is recommended that these precau-
tions be taken for units being installed in areas
where snow accumulation and prolonged below
freezing temperatures occur.
• Units should be elevated 3-12 inches above
the pad or rooftop, depending on local
weather. This additional height will allow
drainage of snow and ice melted during
defrost cycle prior to its refreezing. Ensure
that drain holes in unit base pan are not
obstructed preventing draining of defrost
water.
• If possible, avoid locations that are likely to
accumulate snow drifts. If not possible, a
snow drift barrier should be installed around
the unit to prevent a build-up of snow on the
sides of the unit.
Min. 12”
Snow
Barrier
3-12” Elevation
Snow Legs
Pad
18-BC53D2-6 5
2.5 Coastal Considerations

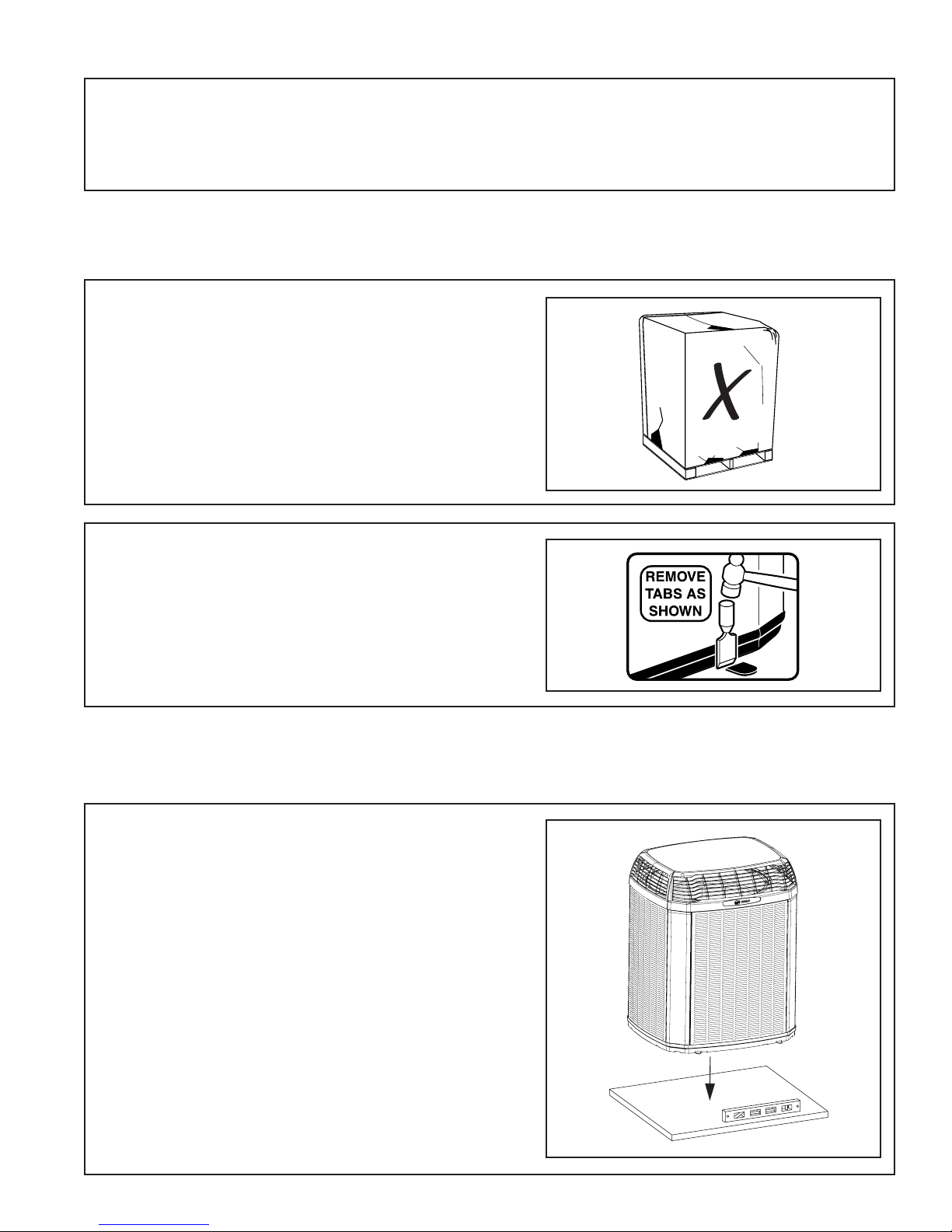

STEP 2 - To remove the unit from the pallet,
remove tabs by cutting with a sharp tool.
Section 3. Unit Preparation
3.1 Prepare The Unit For Installation
STEP 1 - Check for damage and report prompt-
ly to the carrier any damage found to the unit.
Section 4. Setting the Unit
4.1 Pad Installation
When installing the unit on a support pad, such
as a concrete slab, consider the following:
• The pad should be at least 1” larger than the
unit on all sides.
• The pad must be separate from any structure.
• The pad must be level.
• The pad should be high enough above grade
to allow for drainage.
• The pad location must comply with National,
State, and Local codes.
If installed within one mile of salt water, including seacoasts and inland waterways, models without factory sup-
plied Seacoast Salt Shields require the addition of BAYSEAC001 (Seacoast Kit) at installation time.
6 18-BC53D2-6
Section 5. Refrigerant Line Considerations

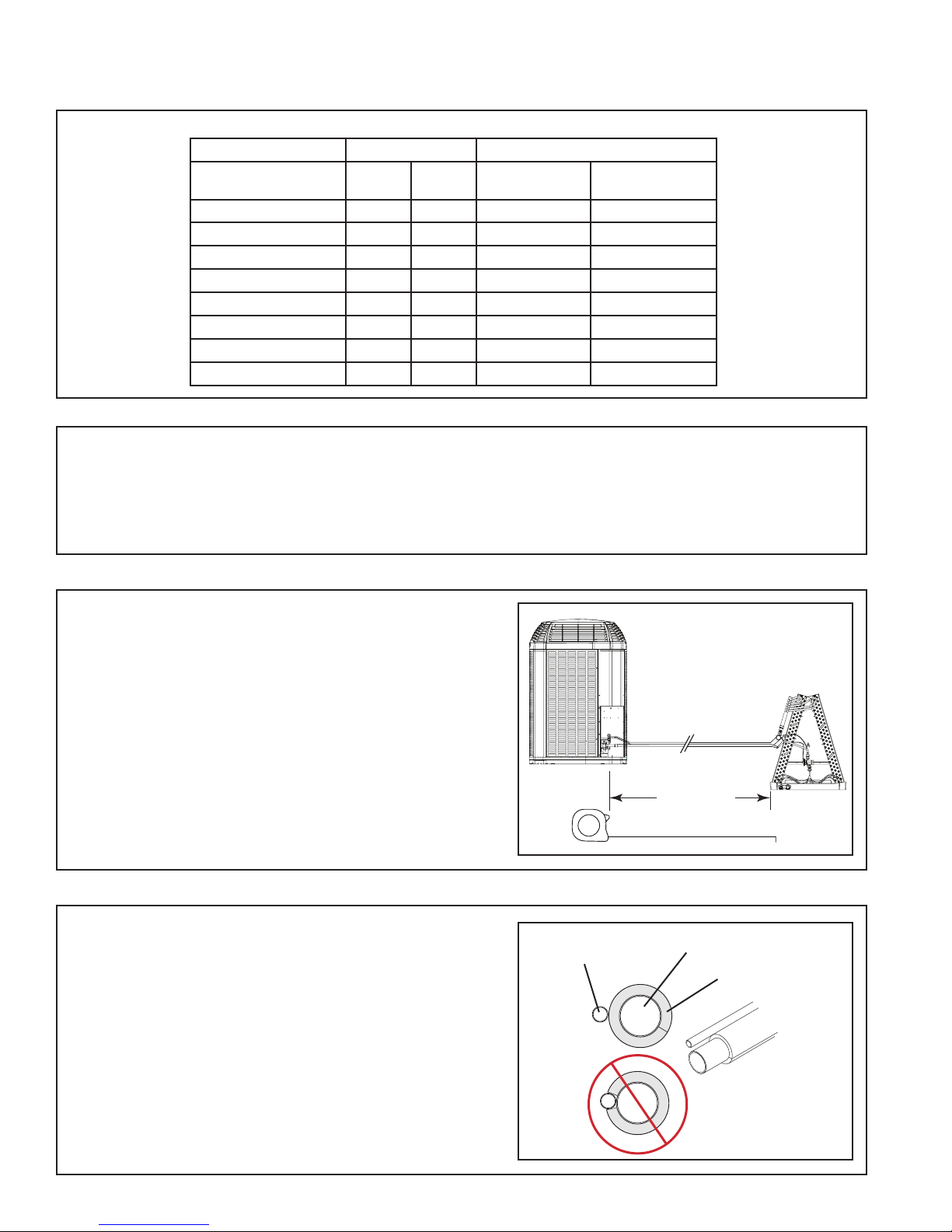

5.1 Refrigerant Line and Service Valve Connection Sizes
5.3 Required Refrigerant Line Length
5.2 Factory Charge
Line Sizes Service Valve Connection Sizes
Model Vapor
Line
Liquid
Line
Vapor Line
Connection
Liquid Line
Connection
4TTZ0024A
3/4 3/8 5/8 3/8
4TTZ0036B
3/4 3/8 3/4 3/8
4TTZ0048A/B
7/8 3/8 3/4 3/8
4TTZ0060A
7/8 3/8 3/4 3/8
4TWZ0024A
5/8 3/8 5/8 3/8
4TWZ0036B
3/4 3/8 3/4 3/8
4TWZ0048A/B
3/4 3/8 3/4 3/8
4TWZ0060A
3/4 3/8 3/4 3/8
Table 5.1
Line Length
5.4 Refrigerant Line Insulation
Important: The Vapor Line must always be
insulated. DO NOT allow the Liquid Line and
Vapor Line to come in direct (metal to metal)
contact.
Vapor Line
Liquid Line
Insulation
Determine required line length and lift. You will
need this later in STEP 2 of Section 14.
Total Line Length = __________ Ft.
Total Vertical Change (lift) = __________ Ft.
Trane outdoor condensing units are factory charged with the system charge required for the outdoor condens-
ing unit, fifteen (15) feet of tested connecting line, and the smallest indoor evaporative coil match. See unit
nameplate. If connecting line length exceeds fifteen (15) feet and/or a larger indoor evaporative coil is
installed, then final refrigerant charge adjustment is necessary. Use Charge Assist™ or the Manual Charg-
ing procedure found in the outdoor unit Service Facts. Charge level can always be verified with the Refrigerant
Charging Chart found in the Service Facts.
18-BC53D2-6 7
5.5 Reuse Existing Refrigerant Lines
For retrofit applications, where the existing
indoor evaporator coil and/or refrigerant lines
will be used, the following precautions should
be taken:
• Ensure that the indoor evaporator coil and
refrigerant lines are the correct size.
• Ensure that the refrigerant lines are free of
leaks, acid, and oil.
Important: For more information see publica-
tion number SS-APG006-EN.
▲CAUTION
!
If using existing refrigerant lines make certain
that all joints are brazed, not soldered.

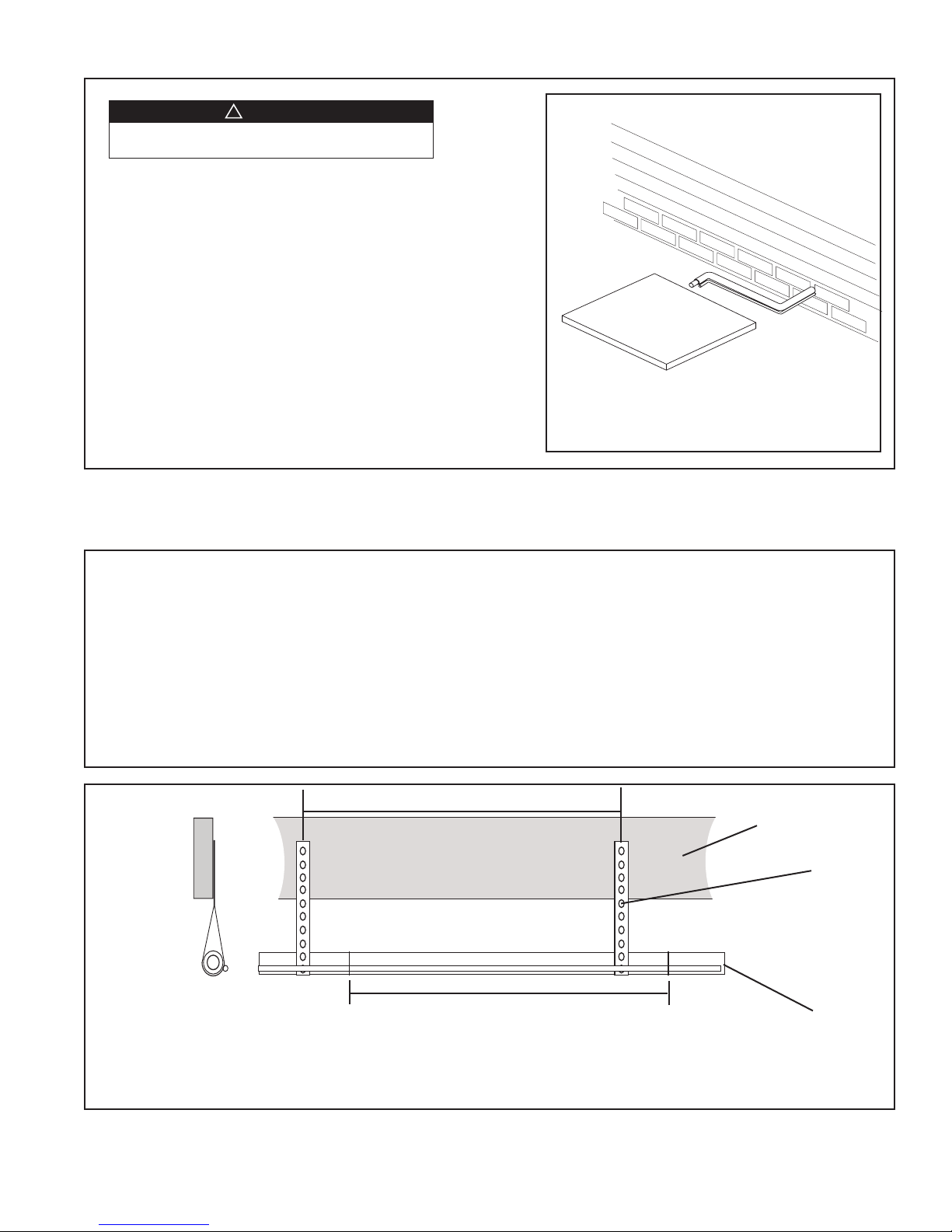

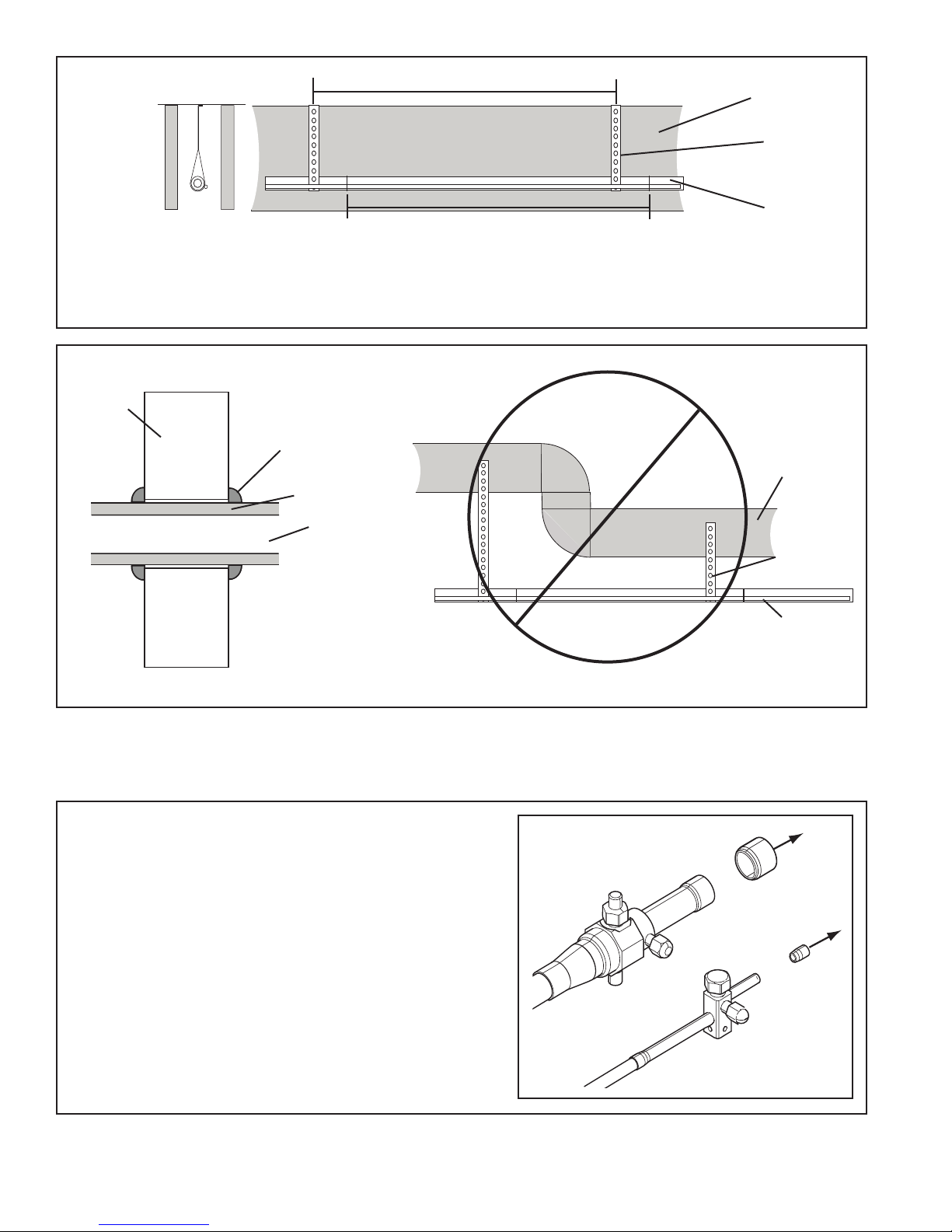

Section 6. Refrigerant Line Routing
6.1 Precautions
Important: Take precautions to prevent noise
within the building structure due to vibration
transmission from the refrigerant lines.
For Example:
• When the refrigerant lines have to be fastened to floor joists or other framing in a structure, use isolation type
hangers.
• Isolation hangers should also be used when refrigerant lines are run in stud spaces or enclosed ceilings.
• Where the refrigerant lines run through a wall or sill, they should be insulated and isolated.
• Isolate the lines from all ductwork.
• Minimize the number of 90º turns.
Comply with National, State, and Local Codes when
isolating line sets from joists, rafters, walls, or other
structural elements.
Isolation From Joist/Rafter
Side View
8 Feet Maximum
Secure Vapor line from joists using isolators every 8 ft. Secure
Liquid Line directly to Vapor line using tape, wire, or other appro-
priate method every 8 ft.
Joist/Rafter
Isolator
Line Set
8 Feet Maximum
8 18-BC53D2-6
Isolation In Wall Spaces
Side View
Wall
Isolator
Line Set
8 Feet Maximum
Secure Vapor Line using isolators every 8 ft. Secure Liquid Line
directly to Vapor Line using tape, wire, or other appropriate
method every 8 ft.
8 Feet Maximum
Isolation Through Wall DO NOT hang line sets from ductwork
Sealant
Insulation
Vapor Line
Wall
Ductwork
Isolator
Line Set
Section 7. Refrigerant Line Brazing
7.1 Braze The Refrigerant Lines
STEP 1 - Remove caps or plugs. Use a deburr-
ing tool to debur the pipe ends. Clean both
internal and external surfaces of the tubing
using an emery cloth.
18-BC53D2-6 9

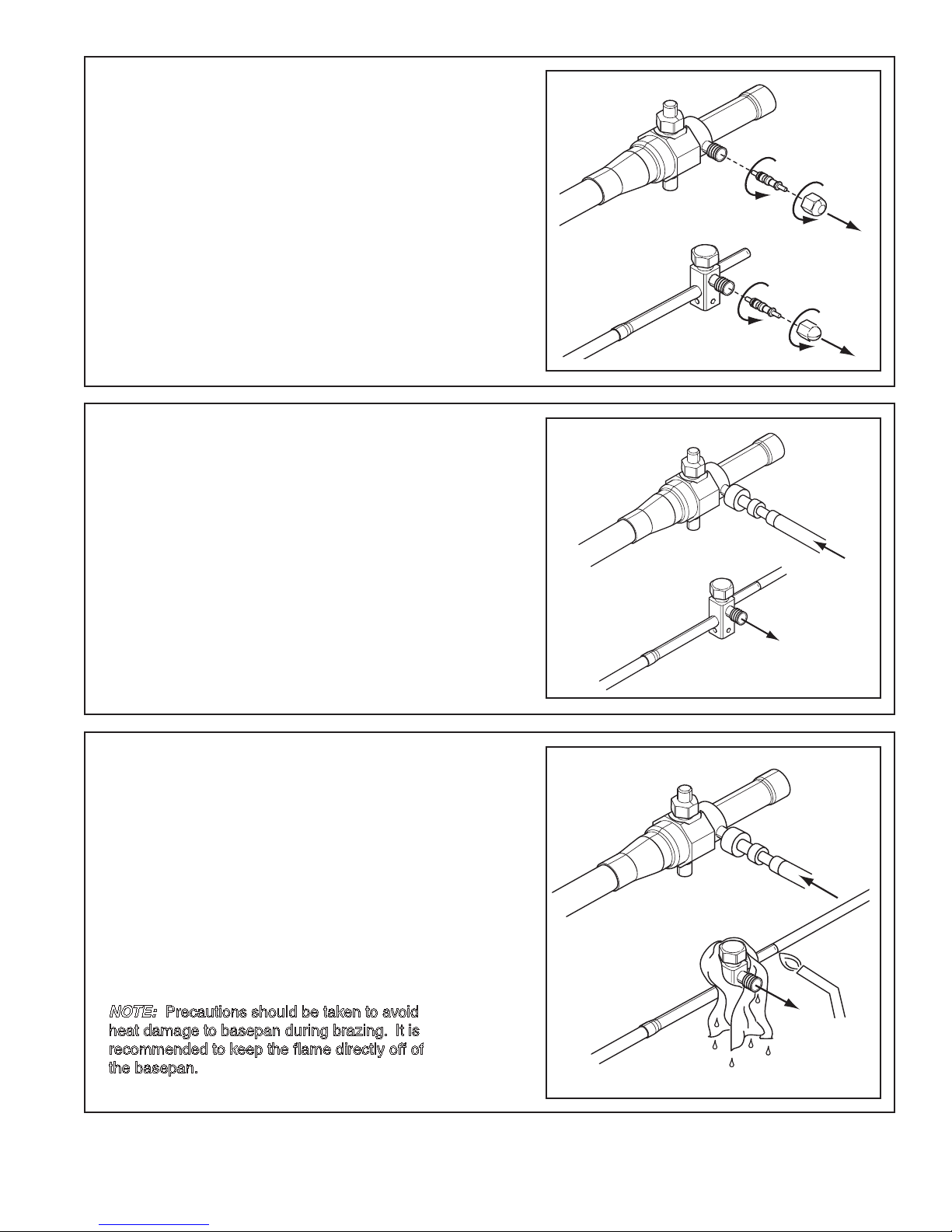

STEP 2 - Remove the pressure tap cap and
valve cores from both service valves.
STEP 3 - Purge the refrigerant lines and indoor
coil with dry nitrogen.
STEP 4 - Wrap a wet rag around the valve
body to avoid heat damage and continue the
dry nitrogen purge.
Braze the refrigerant lines to the service
valves.
Continue the dry nitrogen purge. Do not re-
move the wet rag until all brazing is completed.
Important: Remove the wet rag before stopping
the dry nitrogen purge.
NOTE: Precautions should be taken to avoid
heat damage to basepan during brazing. It is
recommended to keep the flame directly off of
the basepan.
10 18-BC53D2-6

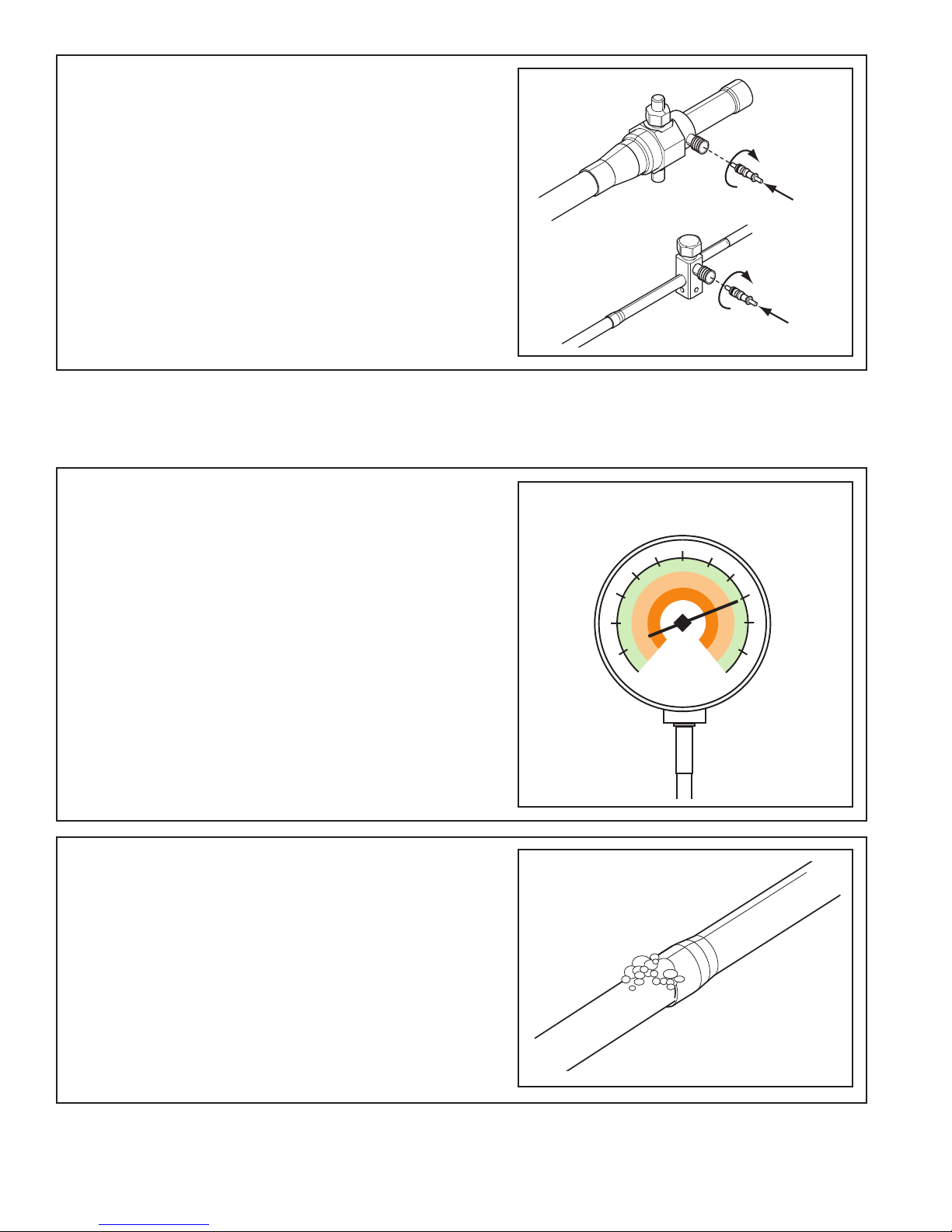

STEP 5 - Replace the pressure tap valve cores
after the service valves have cooled.
STEP 2 - Check for leaks by using a soapy solu-
tion or bubbles at each brazed location.
Remove nitrogen pressure and repair any leaks
before continuing.
Section 8. Refrigerant Line Leak Check
8.1 Check For Leaks
STEP 1 - Pressurize the refrigerant lines and
evaporator coil to 150 PSIG using dry nitrogen.
150 PSIG
This manual suits for next models
1
Table of contents
Other Trane Air Conditioner manuals
Trane
Trane SRUB Owner's manual
Trane
Trane 4TXCA002DS3HCB Assembly instructions
Trane
Trane 4TTA3030A4000C Service manual
Trane
Trane CXPA Series Owner's manual
Trane
Trane IntelliPak SAHL Series Installation and operating instructions
Trane
Trane RAU-SVX01B-E4 Owner's manual
Trane
Trane Foundation BAYENTH321 Series User manual
Trane
Trane YSJ072A Installation and operating instructions
Trane
Trane DX User guide
Trane
Trane TMM5B0A24M21SAA Assembly instructions
Trane
Trane IntelliPak 1 Installation and operating instructions
Trane
Trane MITSUBISHI ELECTRIC NTXWMT09A111A Series User manual
Trane
Trane 4DCL4024 Assembly instructions
Trane
Trane 190 User manual
Trane
Trane 23 Series User guide
Trane
Trane RunTru 17 Series Assembly instructions
Trane
Trane Mitsubishi Electric NTXMMX20A122A Series User manual
Trane
Trane YSC036G Installation and operating instructions
Trane
Trane Genius PKG-PRC007-EN User manual
Trane
Trane TXUM524 Owner's manual
Popular Air Conditioner manuals by other brands
Fujitsu
Fujitsu Inverter ASBA30JFC operating manual
Toshiba
Toshiba RAS-M10SMUV-E installation manual
Daikin
Daikin FXLQ20MAVE Operation manual
Hitachi
Hitachi RAS-E24CAK instruction manual
CIAT
CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance
Bestron
Bestron AAC6000 instruction manual
