Toto TX445SEC User manual

"EGO II" CROSS HANDLE COMBINATION BATH & SHOWER SET TX445SEC

199.5 0

-7

Ø66

55°

187 0

-7

Ø8

G½

150±10

199.5 0

-7

Ø66

187 0

-7

G½

150±10

G½

Rain Spray

Button

Massage

Spray Button

PROBLEM CHECK

POINT SOLUTION

Water leaks around the handle

Clean

Tighten

Unsatisfactory spray

Remove & Clean

Flow rate unsatisfactory

3. CERAMIC

HEAD WORK

2. AERATOR

2 X Ø8 Holes

TX445SECM

"EGO" Cross Handle Combination Bath& Shower Set

TX445SECV1BR

"EGO" Cross Handle Combination Bath& Shower Mixer w/o Hand ShowerSet

O-Ring

Flow Regulator Inside

(Don t remove)

1. NOZZLES

Watersupply pressure : 0.05 ~ 0.75 MPa

Ensure that water supply is clean( No Sand,Dirt, Etc.).

MOUNT CONNECTORS PARALLEL WITH THE WALL

Cover

Packing

Body

Hot

Water

Supply

Cold

Water

Supply

Leg

HandShower

Flexible Hose

150

150±10

Packing

Hanger

Screw

Sleeve Anchor

Nut *

* Tighten thenut

Use Seal tape

(Not Include)

SPECIFICATIONS

S06465MS R7

INSTALLATION TROUBLESHOOTING

OPERATING CONDITIONS ATTENTION

MAINTENANCE

All Finishes: Clean the finish with mild soapand warm water. Wipe

entire surface completely drywith clean soft cloth. Manycleaners may

contain chemicals, such asammonia, chlorine, toilet cleaner etc.

which could adversely affect the finish and are not recommended for

cleaning

Don t use abrasive cleaners orsolvents on faucets and fittings.

FlowRegulator should not be remove because it could damage

the system

As the product model is constantly updated, the actual product

maynot lookthe same as it shown in the diagram, but the basic

installation principles are the same.

The hot watersupply side of the faucets is ina condition of high

temperature.Do not allow skin to contact with the hardware

surface directly. Otherwise,

scalding may occur.

PENYELESAIAN MASALAH

MASALAH POIN

PERIKSA SOLUSI

Air bocor disekitar handle

Bersihkan

Kencangkan

Pacaran tidak memuaskan Lepas & Bersihkan2

Aliran tidak memuaskan

"EGO II" CROSS HANDLE COMBINATION BATH & SHOWER SET TX445SEC

199.5 0

-7

Ø66

55°

187 0

-7

Ø8

G½

150±10

199.5 0

-7

Ø66

187 0

-7

G½

150±10

G½

Rain Spray

Button

Massage

Spray Button

3. CERAMIC

HEAD WORK

2. AERATOR

2 X Ø8 Holes

TX445SECM

"EGO" Cross Handle Combination Bath& Shower Set

TX445SECV1BR

"EGO" Cross Handle Combination Bath& Shower Mixer w/o Hand ShowerSet

O-Ring

1. NOZZLES

Cover

Packing

Body

HandShower

Flexible Hose

Packing

Hanger

Screw

Sleeve Anchor

Nut *

S06465MS R7

SPESIFIKASI PEMASANGAN

KONDISI OPERASIONAL

PEMELIHARAAN

Leg

150

150±10

Sumber

Air Panas Sumber

Air Dingin

1. Tekanan sumber air: 0.05 ~ 0.75 MPa.

2. Pastikan kondisi sumberairadalah bersih (tidakada pasir, kotoran

dan lain lain)

Gunakan Seal tape

(Tak disertakan)

PEMASANGAN KONEKTOR SEJAJAR DENGAN DINDING

* Kencangkan nut

Seluruh lapisan: Bersihkan lapisan akhir dengan sabun lembut dan

air hangat. Lap seluruh permukaanhinggabenar-benarkering

dengan kain lembut yang bersih. Kebanyakanbahan pembersih

mungkin mengandung bahan kimia, seperti amonia, klorin, pembersih

toilet,dll. yang dapat mempengaruhi hasil akhir dan tidak disarankan

untuk membersihkan

Flow Regulator didalam

(Jangan dilepas)

PERHATIAN

Jangan gunakan pembersih atau pelarut abrasif pada faucet dan

fitting.

FlowRegulator tidak boleh dilepas karena dapat merusak sistem

Karena model produk terus mengalami pembaharuan, aktual

produk mungkin tidaksamadengan gambar, tapi prinsip dasar

pemasangan adalah sama.

Sisi pasokanairpanaspada kran faucet berada dalam kondisi

suhu tinggi. Janganbiarkankulit menyentuh permukaanbenda

secara langsung. Kalautidak, bisaterjadi kepanasan.

This manual suits for next models

Table of contents

Languages:

Other Toto Plumbing Product manuals

Toto

Toto TLP02309 User manual

Toto

Toto WENZAL TX445SWCV3Z User manual

Toto

Toto REI - R User manual

Toto

Toto DM359CF Operation and maintenance manual

Toto

Toto MONO TX447SM User manual

Toto

Toto TLP01701J User manual

Toto

Toto washlet User manual

Toto

Toto MONO TX116LMN User manual

Toto

Toto TBV01801U Installation instructions

Toto

Toto MERCER TL756DD User manual

Toto

Toto Washlet SG User manual

Toto

Toto ALISEI THX118SX User manual

Toto

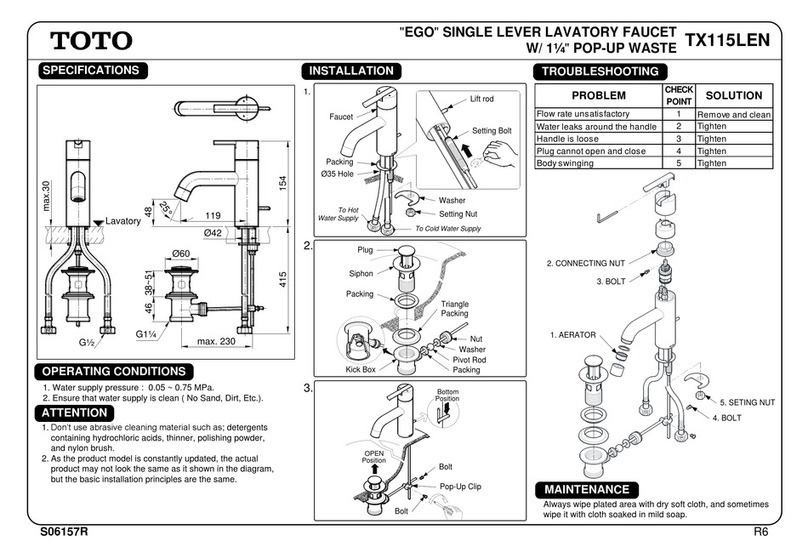

Toto EGO TX115LEN User manual
