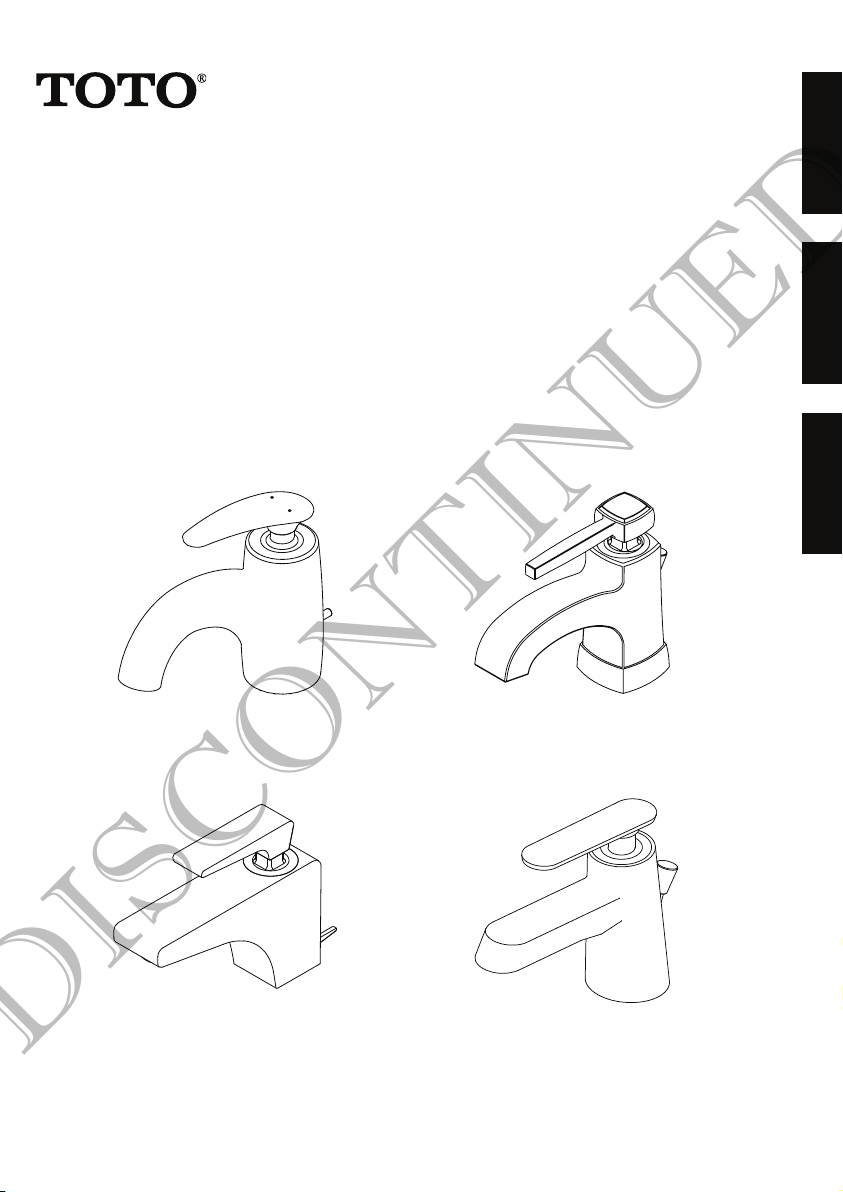

Toto ETHOS Series Installation instructions
ENGLISH ESPAÑOL FRANÇAIS
Single Handle lavatory Faucet 1.5gpm [ 5.7lpm ]
griFo de lavabo individual 1.5gpm [ 5.7lpm ]
robinet de lavabo àpoignée unique 1.5gpm [ 5.7lpm ]
TL660SDL
DeSign L
eThoS CoLLeCTion®
TL680SDL
DeSign C
TL690SDL
DeSign nii
TL670SDL
DeSign ni
Installation and Owner’s Manual
Manual de Instrucciones y del Propietario
Manuel d’Installation et d’Utilisation
DISCONTINUED
2
ENGLISH
TabLe of ConTenTS
THANKS FOR CHOOSING TOTO®! .................................................................. .........2
CARE AND CLEANING...................................................................................... .........2
CAUTION.............................................................................................................. .........2
BEFORE INSTALLATION................................................................................... .........3
TOOLS YOU WILL NEED................................................................................... .........3
INSTALLATION PROCEDURE .......................................................................... .........4
TROUBLESHOOTING......................................................................................... .........6
ROUGH IN ........................................................................................................... .........7
REPLACEMENT PARTS.................................................................................... .........11
WARRANTY....................................................................................................... .........15
ThankS for ChooSing ToTo®!
TOTO’s®mission is to provide the world with healthy, hygienic and
more comfortable lifestyles. We design every product with the balance
of form and function as a guiding principle. Congratulations on your
choice.
Care anD CLeaning
Your new faucet is designed for years of trouble-free performance.
Keep it looking new by cleaning it periodically with mild soap, rinse
thoroughly with warm water and dry with a clean, soft cloth. Do not
use abrasive cleaners, steel wool or harsh chemicals as these will dull
the nish. Failure to follow these instructions may void your warranty.
CauTion
For safe operation of the faucet, please observe the following:
Operating pressure:
Minimum Pressure……..7psi [0.05MPa] (owing pressure)
Maximum Pressure…….108psi [0.75MPa] (non-owing pressure)
Do not reverse the hot and cold-water inlets
Hot water supply temperature must not exceed 185°F [85°C]
Do not use steam for hot water supply
Do not use the product at ambient temperature below 32°F (0°C).
Do not disassemble the ceramic valve
To ensure the product maintains its specied ow rate to meet EPA
standard, always use the manufacturer’s specied aerator for that faucet
DISCONTINUED
3
ENGLISH

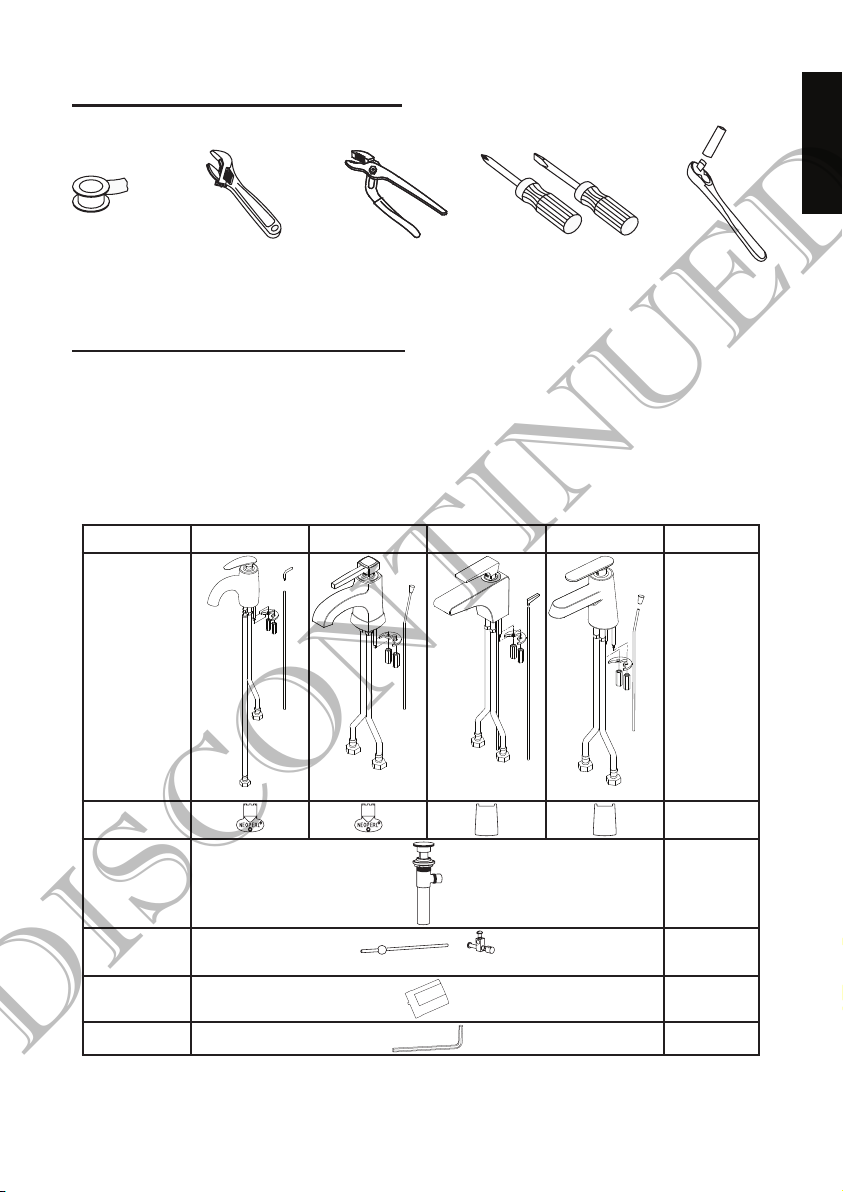

TooLS you wiLL neeD
Pipe Tape Adjustable
Wrench
Adjustable
Pliers
Screwdrivers
before inSTaLLaTion
Observe all local plumbing codes
Make sure water supply is shut off
Read these instructions carefully to ensure proper installation
TOTO®reserves the right to update product design without notice
Check to make sure you have the following parts indicated below
TL660SDL TL670SDL TL680SDL TL690SDL
Spout Unit 1 piece
Aerator Key 1 piece
Drain
Assembly 1 piece
Pivot Rod &
Connection
Block 1 piece each
Repair Tool 1 piece
Hex Wrench 1 piece
Socket
Wrench
DISCONTINUED
4
ENGLISH

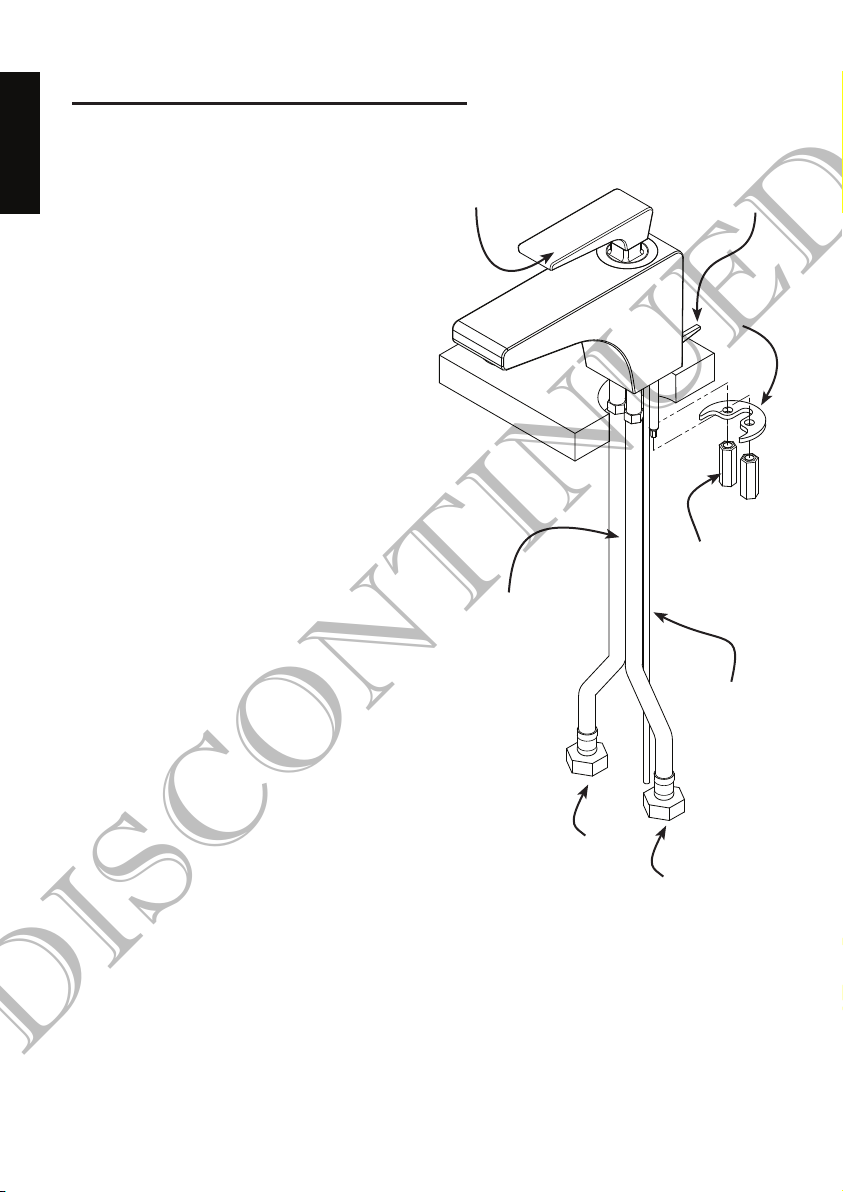

inSTaLLaTion ProCeDure
1. Faucet body inStallation
Insert exible hoses and
lift rod through the hole
on deck one at a time
If lift rod is not yet
installed, insert the lift
rod from underside of the
faucet and thread it into
the lift knob.
Slide the bracket into
place and secure the spout
with locknuts
Adjust the spout to face
forward. Hold the spout
in place. Tighten locknuts
Connect ex hoses to
supply lines. Make sure
the left hose connects to
the hot supply line and the
right hose connects to the
cold supply line
Bracket
Flex Hose
Locknut
Handle
Lift Rod
Lift Knob
Hot
Inlet Cold
Inlet
DISCONTINUED
5
ENGLISH
inSTaLLaTion ProCeDure

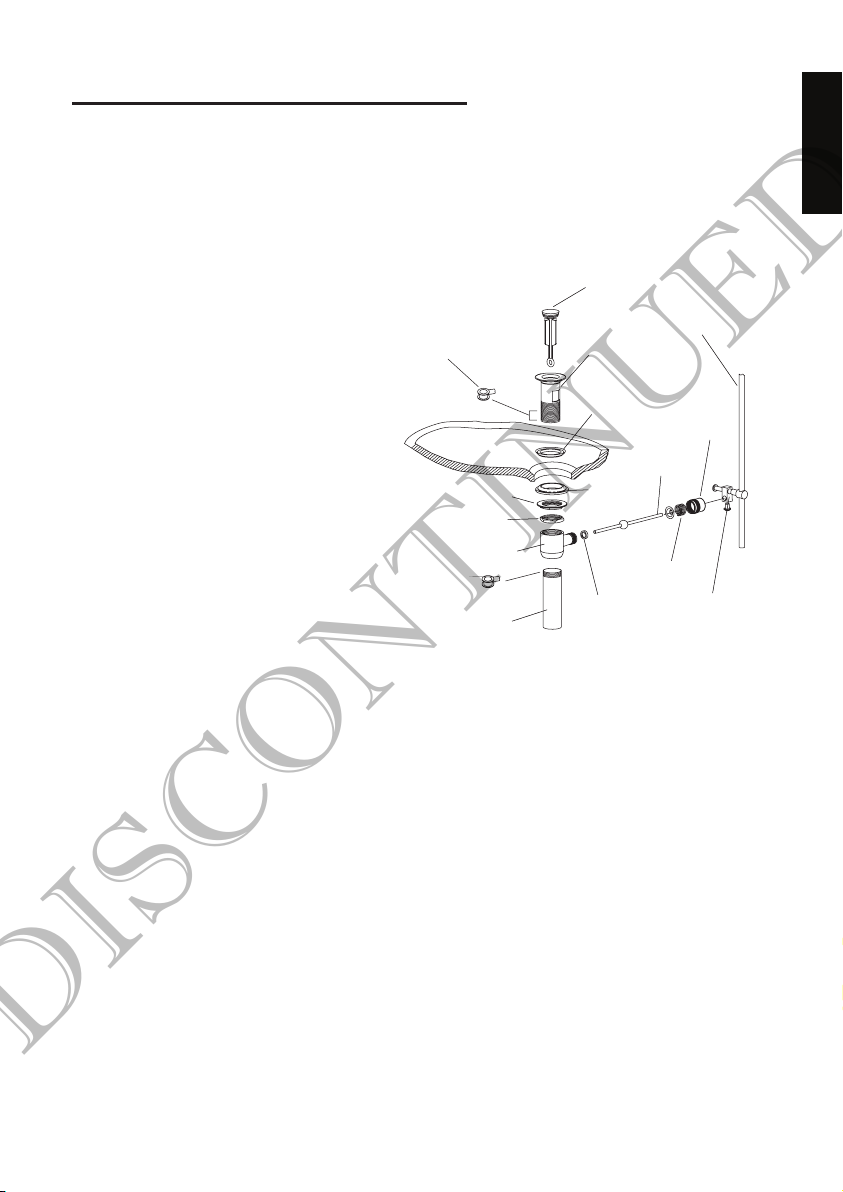

2. drain inStallation
Apply pipe tape to the
ange threads
Insert ange into the
drain hole
Assemble the gasket,
ange nut, and lock
nut
Install the drain body
onto the ange
Secure the drain
assembly by tightening
the ange nut and
locknut
Apply pipe tape to
the threads of the tail
piece and install the
tail piece to the drain
body
Insert the drain stopper
into the ange
Assemble the pivot
rod as shown in the
diagram
Insert the pivot rod
into the drain stopper
hole. Tighten the lock
nut
Insert the lift rod and
pivot rod into the
connecting block.
Tighten both rods with
screwdriver
Pipe Tape
Drain Stopper
Flange
Lift Rod
Gasket
Nut
Pivot Rod
Gasket
Flange Nut
Locknut
Drain Body
Tail Piece Seal
Spring
Connecting
Block
DISCONTINUED
6
ENGLISH

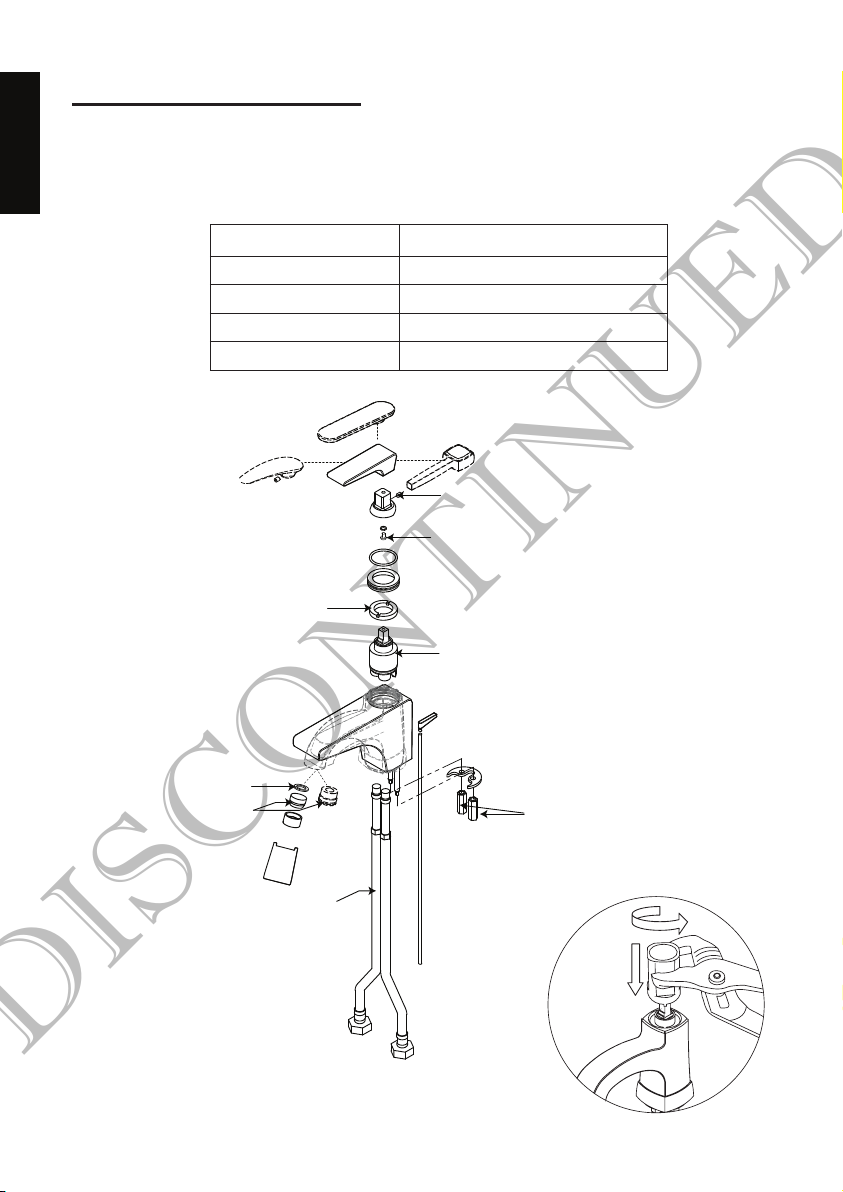

TroubLeShooTing
If you have followed the instructions carefully and your
faucet still does not work properly, take these corrective
action steps
Problem AreA to InsPect
low wAter Flow 6
loose HAndle 1, 2, 3
loose sPout 7
leAkAge 3, 4, 5, 8,
1. Set Screw
Is it properly tightened?
3. Valve lock nut
Is it properly tightened? 4. Cartridge
Is it damaged or dirty
5.Gasket/O-ring
Is it damaged or dirty Locknuts
7. Is it properly tightened?
8. Flex hose
Is it properly tightened?
2. Screw
Is it properly tightened?
6. Aerator
Is it damaged or dirty
1
2
To access cartridge with
valve lock nut removal tool
DISCONTINUED
7
ENGLISH

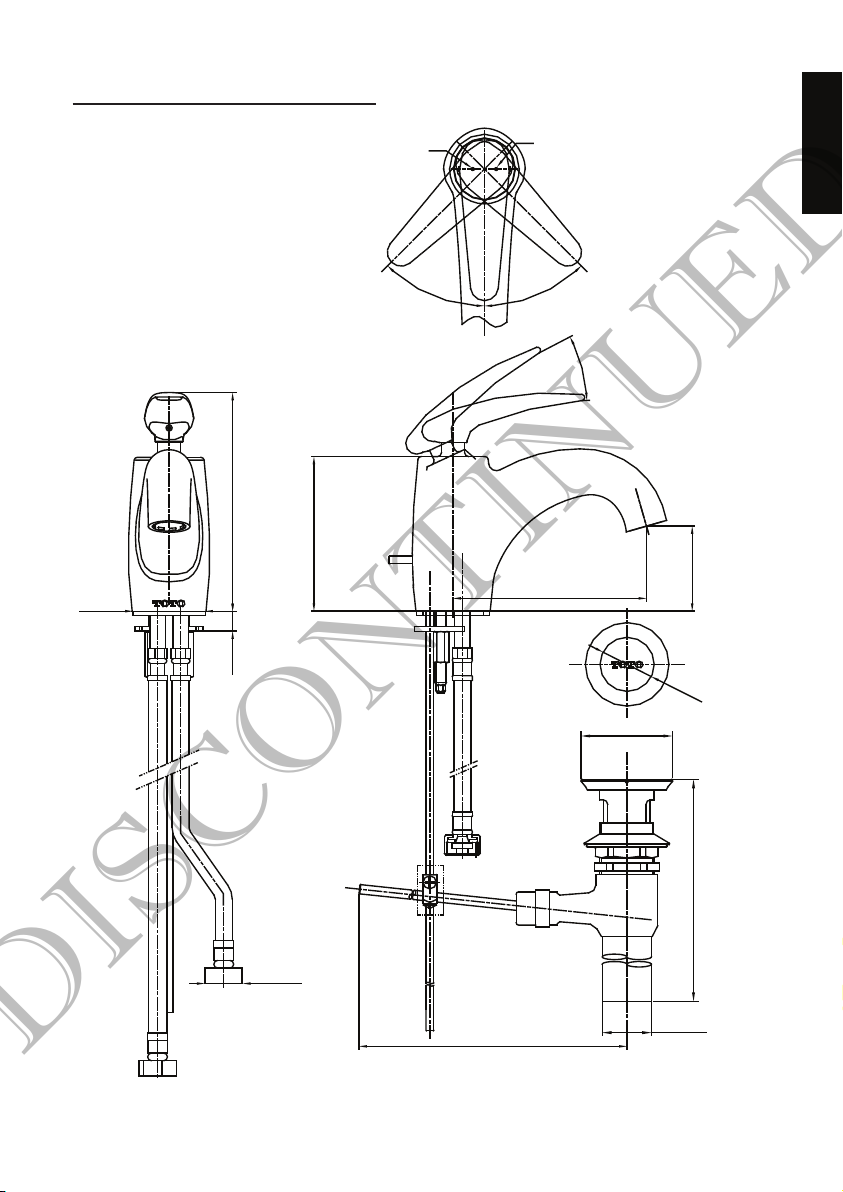

rough in (TL660SDL)
3/8" Comp
1-15/16”
(50 mm)
(25 mm)
1” (max)
(141 mm)
3-7/8”
(99 mm)
5-1/2”
2-3/16”
(55 mm)
(130 mm)
5-1/8”
Off
25º
On
45º
Cold
Hot
45º
Red Blue
ø1-5/16”
(ø34 mm)
ø2-1/8”
(ø54 mm)
7-3/8”
(187 mm)
ø1-1/4”
ø31 mm (T=1)
(265 mm)
10-7/16”
DISCONTINUED
8
ENGLISH

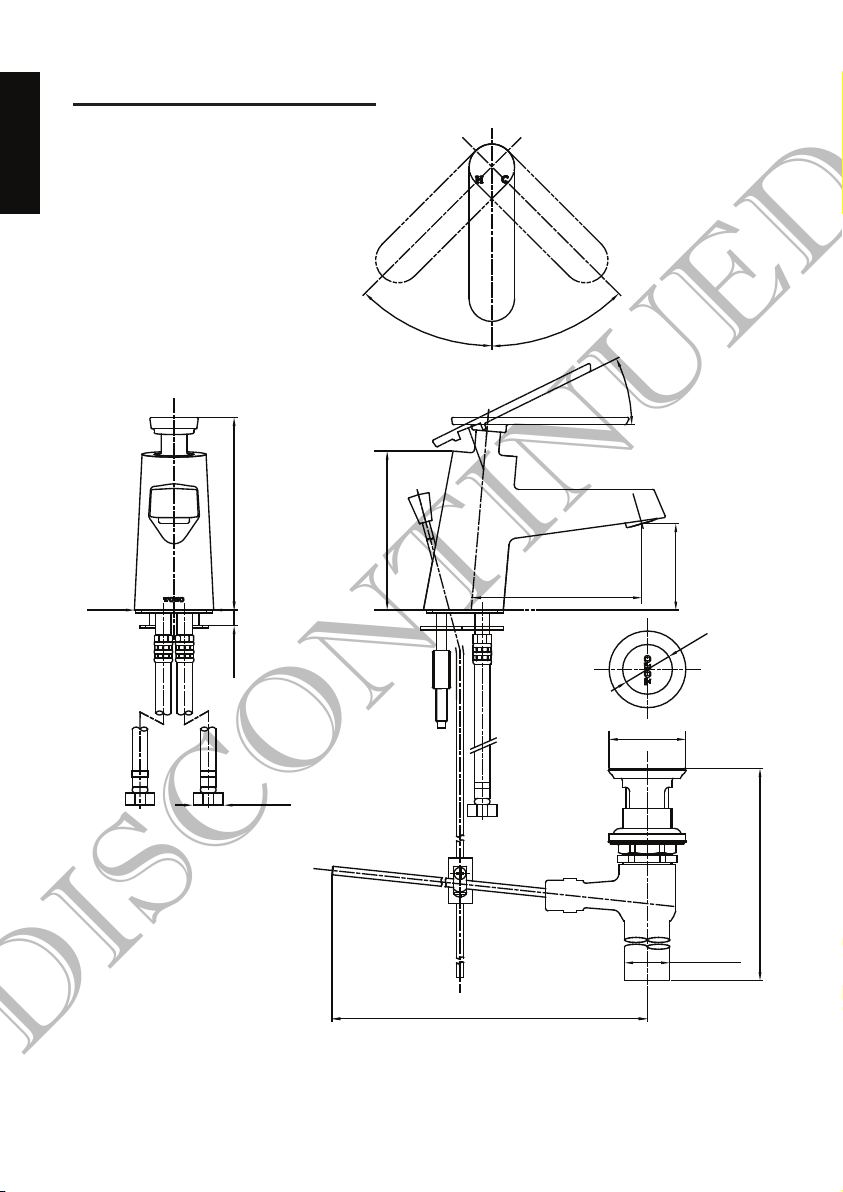

rough in (TL670SDL)
3/8” Comp
(25 mm)
1” (max)
2-3/16”
(56 mm)
5-9/16”
(141 mm)
45º
Cold
45º
Hot
On
Off
25º
2-3/8”
(60 mm)
4-7/8”
(125 mm)
(109 mm)
4-5/16”
ø1-5/16”
(ø34 mm)
ø2-1/8”
(ø54 mm)
(187 mm)
7-3/8”
ø1-1/4” (T=1.0)
ø31 mm (T=1.0)
(265 mm)
10-7/16”
DISCONTINUED
9
ENGLISH

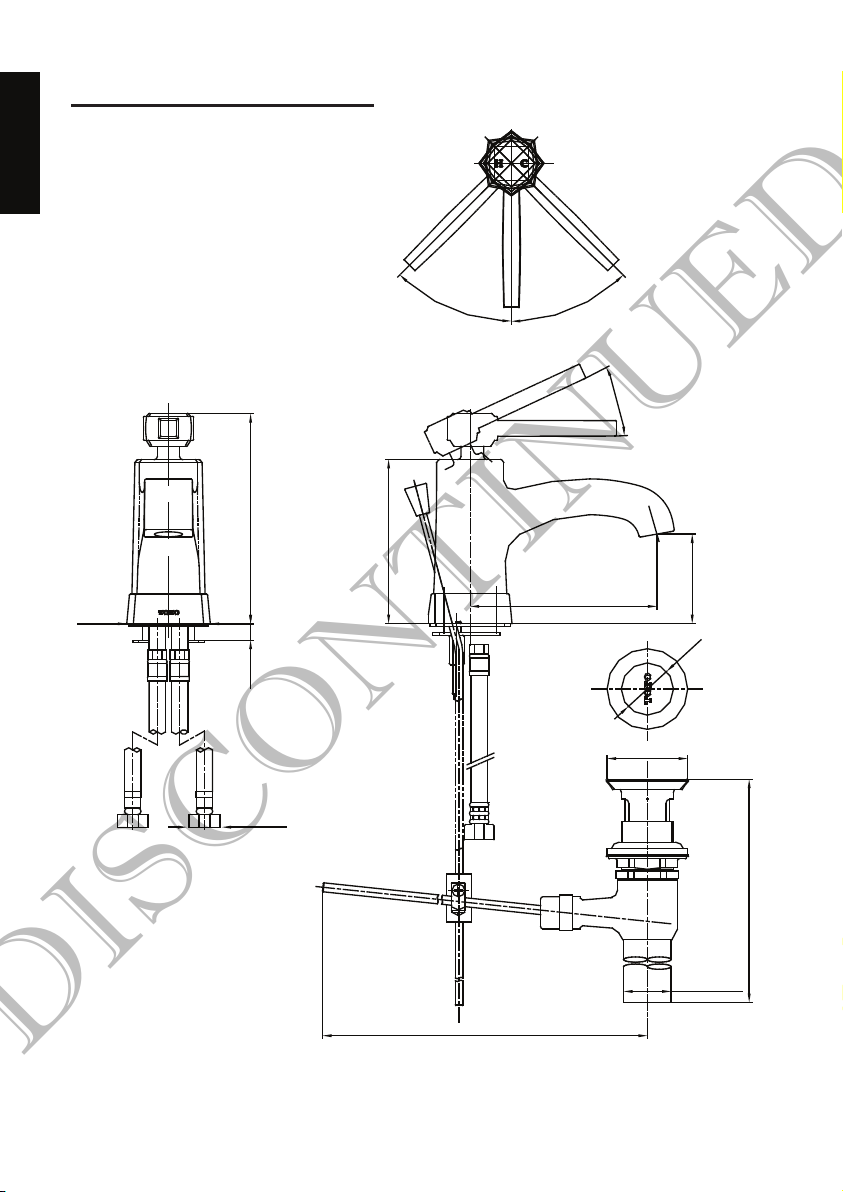

rough in (TL680SDL)
3/8” Comp
1” (max)
(125 mm) (134 mm)
5-1/4”
1-3/4"
(45 mm)
3-3/4”
(95 mm)
(67 mm)
2-5/8”
7-3/8”
(187 mm)
(265 mm)
10-7/16" ø31 mm (T=1)
ø1-1/4” (T=1)
ø2-1/8” (ø54 mm)
(ø34 mm)
ø1-5/16”
4-5/8”
(118 mm)
20º
Off
On
25º
50º
50º
Cold
Hot
DISCONTINUED
10
ENGLISH

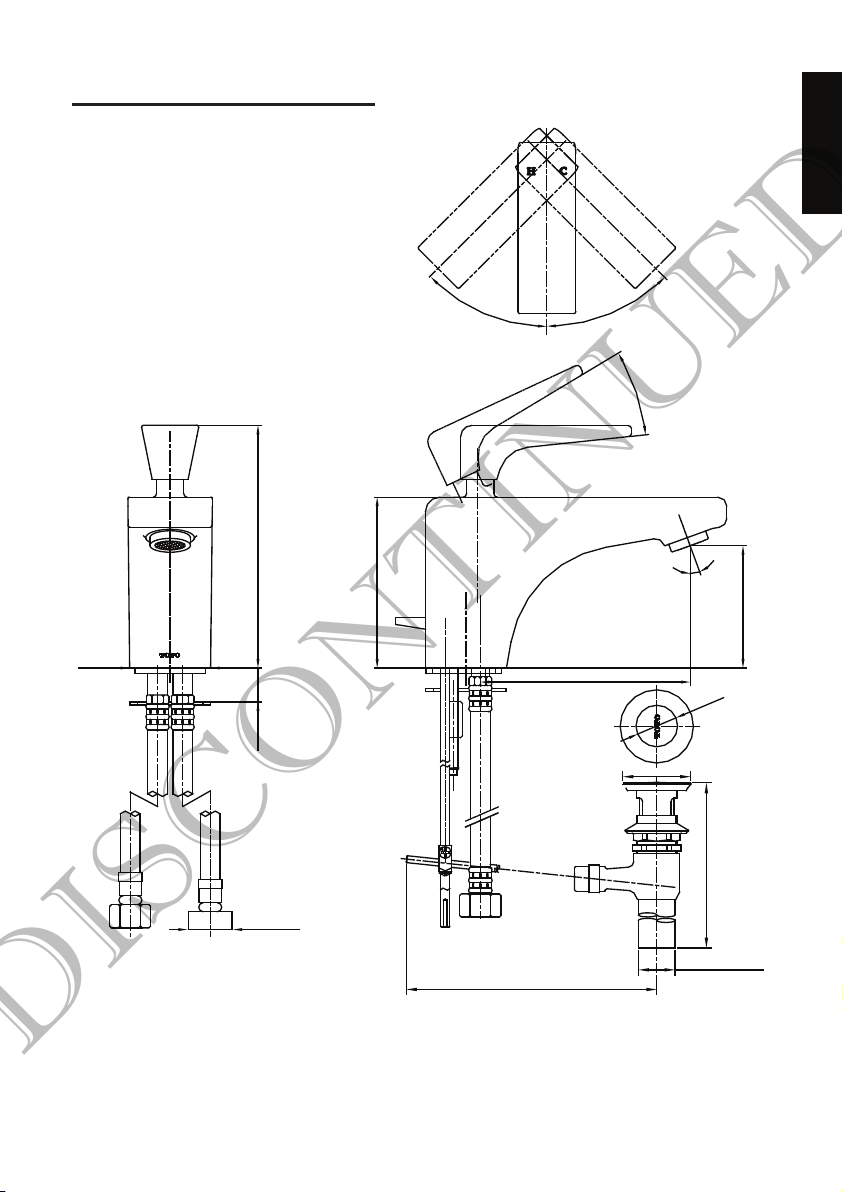

rough in (TL690SDL)
1” (max)
(25.5 mm)
2-1/4”
(56.2 mm)
5-9/16”
(136 mm)
45º
45º
Cold
Hot
On
Off
25º
(60 mm)
2-1/4”
(121 mm)
4-3/4”
(112 mm)
4-7/16”
(ø34 mm)
ø1-5/16”
(ø54 mm)
ø2-1/8”
7-3/8”
(187 mm)
ø31 mm (T=1.0)
ø1-1/4”
(265 mm)
10-7/16”
3/8” Comp
DISCONTINUED
