TOTALINE Easy Stat User manual
Programmable
Digital Thermostat
Carrier Corporation 10/01
Easy To Read Display
Thermoglow Backlight
Remote Sensor Ready
Multi-Stage, One for All
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
*
TOTALINE
TOTALINE
7:00
68
72
Am
WAKE
HEAT
Easy
STAT
OWNER'S MANUAL
P374-1100EZ
Table Of Contents
Page 1
CAUTION
Follow Installation Instructions before proceeding.
SET THERMOSTAT TO MODE “OFF” PRIOR TO
CHANGING SETTINGS IN SETUP OR RESTORING
FACTORY DEFAULTS.
Carrier Corporation 10/01
FRONT PANEL
DISPLAY
QUICK START Set the clock and go
BASIC OPERATION
PROGRAMMING 2 Time Periods
ADVANCED SETUP
ABOUT ADVANCED OPERATION
WARRANTY
2
3
4
5
7
9
12
16
P374-1100EZ
Front Panel
Backlit LCD Display
Warmer or + Button
Cooler or - Button
Mode/ Next Button
Heat or Cool Indicator
Red = Heat, Green = Cool
TOTALINE
12:00
74
72
Pm
:
WAKE
HEAT
PROGRAM
ON/OFF
SET
PROGRAM
FAN
PROGRAM
ON/OFF
SET
CLOCK
SET
PROGRAM
FAN
SET
CLOCK MODE/NEXT
OUTSIDE
o
OUTSIDE
12:00
74
Pm
:
WAKE
HEAT
72
EasySTAT
RESIDENTIAL
Page 2
This Big Letter label is also available
for easy identification of the thermostat
buttons.
OUTSIDE FAN SET
PROGRAM
PROGRAM
ON/OFF
SET
CLOCK
MODE/
NEXT
o
MODE/
NEXT
1
2
4
3
Mode Indicators
Selects the operation mode of the equipment.
WAKE/SLEEP - indicates the stored program
is running.
HEAT - indicates the heat mode.
COOL - indicates the air conditioning mode.
OFF - indicates the entire system is turned off.
Clock Display
Indicates the current time of day. Page 4.
Room Temperature Display
Indicates the current room temperature.
Desired Set Temperature
Indicates desired room temperature. Page 7.
Outside Indication
Indicates the temperature displayed is from
the optional outside sensor.
Fan Operation Indication
Fan On - indicates constant, continuous fan operation
When Fan On is not lit - indicates the fan will
only operate when necessary to heat or
to cool.
Display
Page 3
2
1
3
6
4
5
12:00
88
I88
88
OFF
Am
Pm
:
ON
FAN
WAKE
SLEEP
OUT
SIDE
1
1
5
6
COOL
HEAT
During Setup & Programming:
.
(Represented in dark black)
Pressing the Up and Down
buttons will modify the flashing
selection.
Press the SET CLOCK
button.
Press the SET CLOCK button as above to
return to normal operation, after setting the clock.
Quick Start Set the Clock and Go
Page 4
This thermostat is preprogrammed from the
factory to operate 1 or 2 Stage equipment without
the need for further programming. To optimize the
installation of this thermostat follow the instructions
in the Advanced Setup section.
buttons.
To adjust the
clock use
Am
12:00
:
SET CLOCK
SET CLOCK
To adjust just the Hours;
hold the Fan button in
pressing the Up or
Down buttons.
while
buttons.
In any mode, adjust the
desired Set Temperature
with
Pressing the up/down buttons in Heat or Cool modes will adjust only the
heat or cool set temperature.
Select Desired Temperature
Page 5
Basic Operation
Press
FAN
Fan
Operation
Fan On indicates constant fan operation.
This feature is active even if the thermostat
is set to Off.
12:00
70
69
Am
:
HEAT
12:00
65
OFF
Am
:
ON
FAN
Basic Operation
Page 6
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
Select Mode
OFF indicates both heating
and air conditioning
systems are turned off.
Press
Press
MODE/NEXT
12:00
72
74
Am
:
COOL
12:00
72
72
Am
:
HEAT
12:00
72
OFF
Am
:
MODE/NEXT
NOTE: WHEN THE THERMOSTAT IS IN THE OFF MODE, YOU MAY
TURN THE THERMOSTAT BACK ON BY PRESSING THE MODE/NEXT,
UP, OR DOWN BUTTONS.
Page 7
NOTE: If no buttons are pressed the thermostat will leave
setup and return to normal operation after 60 seconds.

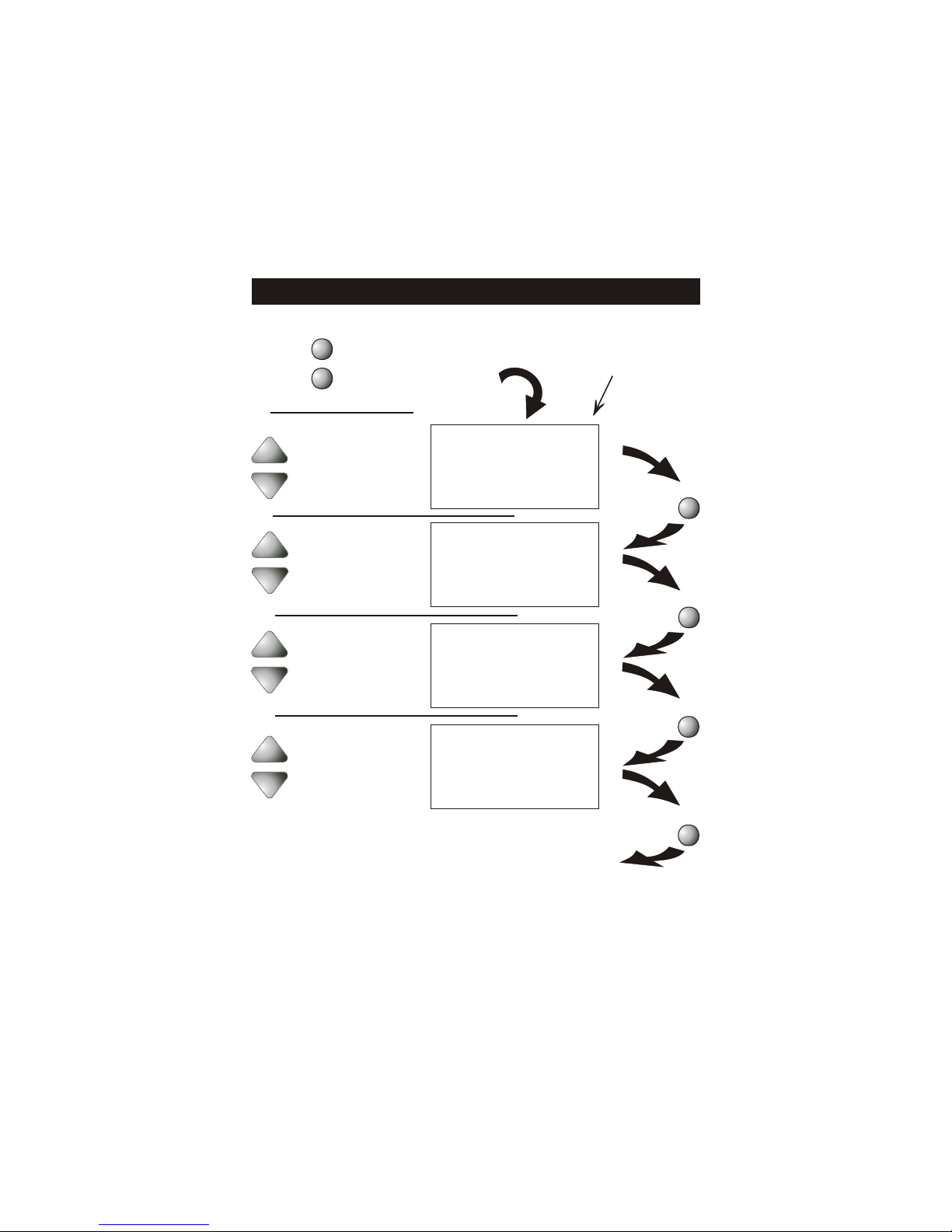

Programming Heat Schedule
Adjust the heating
setpoint for Wake.
Select the start time for Wake.
Select the start time for Sleep.
(35 - 99 )
Adjust the heating
setpoint for Sleep.
(35 - 99 )
Press the Set Program button.
SET
PROGRAM
72
74
HEAT
COOL
OCCUPIED1
AUTO
o
o
Am
6:03
68
TOTALINE
The thermostat must be in the Heat mode to access these setup steps.
7:00
Am
WAKE
7:00
68
Am
WAKE
HEAT
I0:00
Pm
:
SLEEP
I0:00
65
Pm
:
SLEEP
HEAT
Press
Press
Press
Press
MODE/NEXT
MODE/NEXT
MODE/NEXT
Press the Program Set or
Mode/Next button to leave setup
and return to normal operation
SET
PROGRAM
OR
Press the Program On / Off button to leave
setup and start running the updated program.
MODE/
NEXT
OR
PROGRAM
ON / OFF
Page 8
Programming HEAT-COOL
Press
Press
Press
Press
Adjust the cooling
setpoint for Wake.
Select the start time for Wake.
Select the start time for Sleep.
(35 - 99 )
Adjust the cooling
setpoint for Sleep.
(35 - 99 )
72
74
HEAT
COOL
OCCUPIED1
AUTO
o
o
Am
6:03
68
TOTALINE
The thermostat must be in the Cool mode to access these setup steps.
7:00
Am
WAKE
7:00
74
Am
WAKE
COOL
I0:00
Pm
:
SLEEP
I0:00
78
Pm
:
SLEEP
COOL
MODE/NEXT
MODE/NEXT
MODE/NEXT
NOTE: If no buttons are pressed the thermostat will leave
setup and return to normal operation after 60 seconds.
Press the Program Set or
Mode/Next button to leave setup
and return to normal operation
SET
PROGRAM
OR
Press the Program On / Off button to leave
setup and start running the updated program.
MODE/
NEXT
OR
PROGRAM
ON / OFF
Press the Set Program button.
SET
PROGRAM
Advanced Setup
Page 9
Continued
NOTE: Each step # is located at
the bottom right corner of the
display for easy reference.
Select whether the thermostat
will be straight heat, or
straight cool, or both heat
and cool.
Press the Mode/Next button.
While holding the Mode/Next,
press the Program On / Off
button to enter Setup
screens.
PROGRAM
ON / OFF
MODE/NEXT
Yes
2
L I
3
COOL
No
4
HP
Select Yes to have the
backlight always on, No
to have the backlight turn
off after 8 seconds after a
key press.
Yes
No
Select Yes if the thermostat
is controlling a heatpump,
No for all other types of
equipment.
Yes
No
O
5
Select the reversing
valve polarity for
Heat Pump, O or B.
(Step 5 only appears if
step 4 is Yes for heat pump).
Press
Press
Press
Press
MODE/NEXT
MODE/NEXT
MODE/NEXT
MODE/NEXT
HEAT
