Toshiba B-EX4 T1 Series Manual

Toshiba - B-EX4T1 Printer SetupToshiba - B-EX4T1 Printer Setup

B-EX4T1 Printer Setup for Auto Labeling

EasyEasy 20 20 minute(s)minute(s)

Difculty Duration

ContentsContents

Step 1 - Inner & Outer

Step 2 - Rewind Spool

Step 3 - Printhead access

Step 4 - Setting Rewinder

Step 5 - Label Guides

Step 6 - Sensor Position

Step 7 - Closing Label Head

Step 8 - Connecting printer to PC

Step 9 - Initial Power up

Step 10 - Using BCP to setup the printer

Step 11 - Change Settings

Step 12 - Power printer off and On

Step 13 - Testing

Step 14 - Set the IP Address for the Customers network

Comments

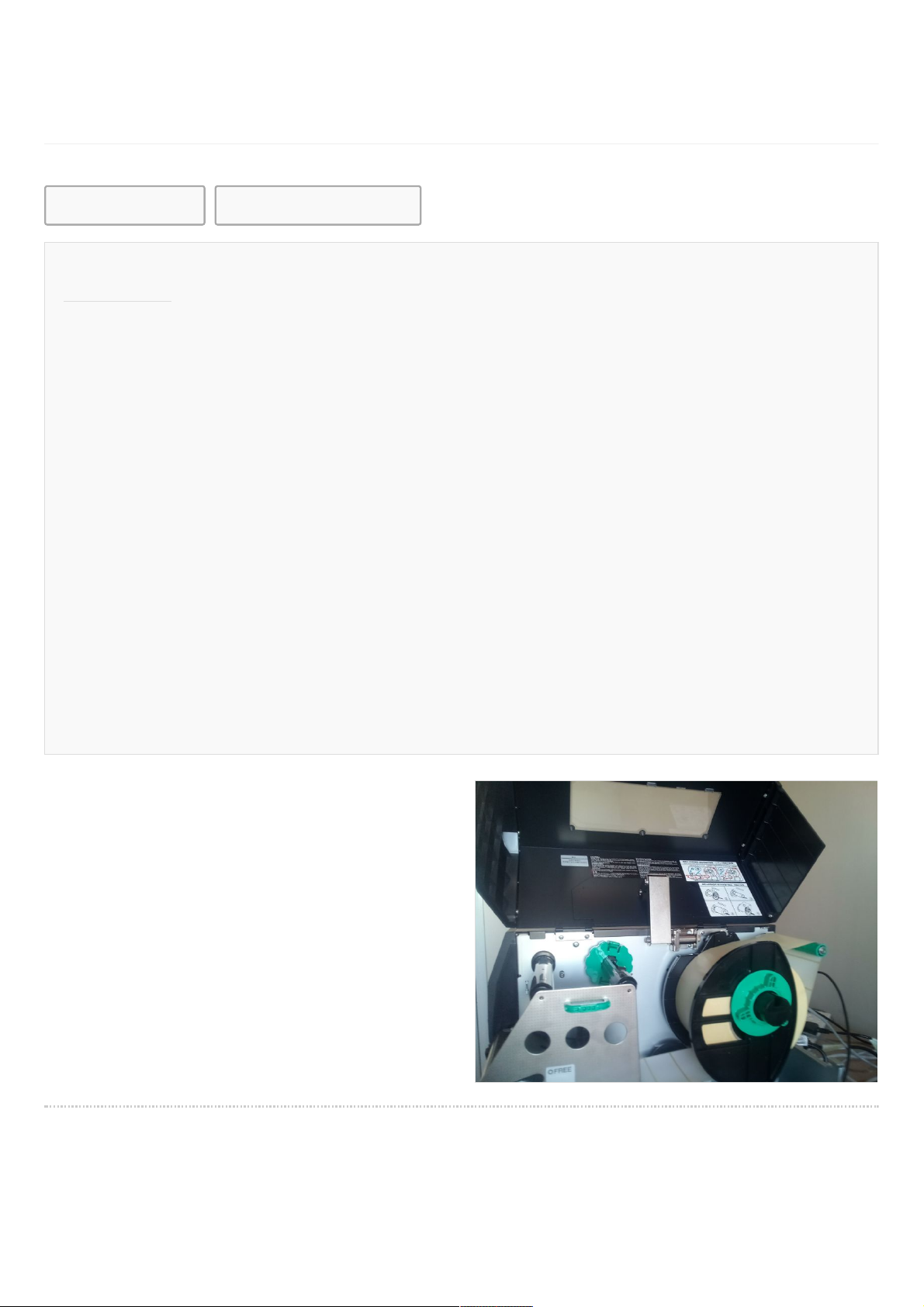

Step 1 - Inner & Outer

The instructions for both the Inner & Outer wound labels are on the

inside of the open lid.

Page 1 / 6

Step 2 - Rewind Spool

There will be no ribbon and as the settings will be for Peel Off a

length of blank backing needs to be fed onto the Rewind spool

Step 3 - Printhead access

To gain access turn the green knob to FREE. You can then pull the

front plate down and lift the printer head up.

Step 4 - Setting Rewinder

Ensure the switch is set to REWINDER

Page 2 / 6

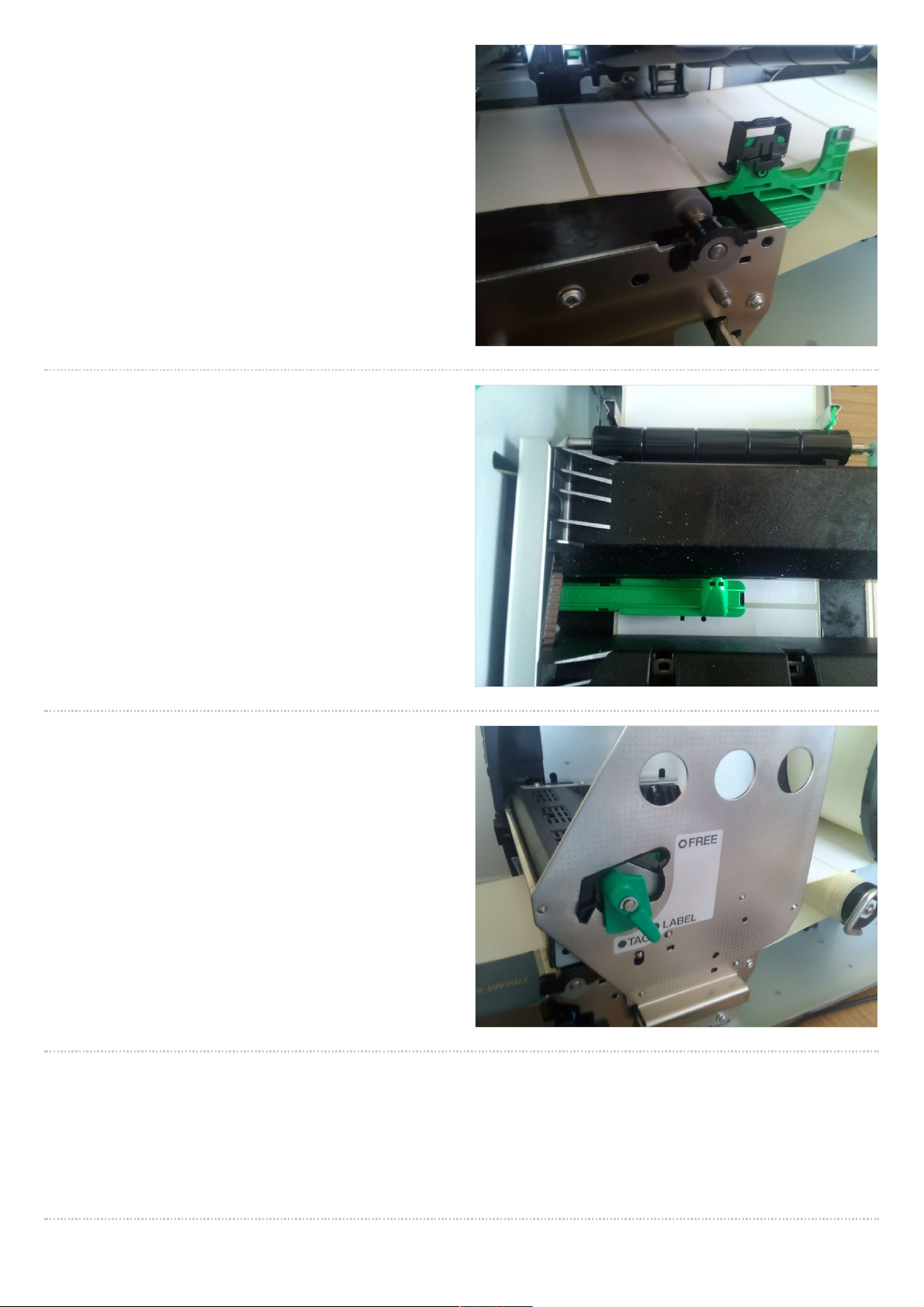

Step 5 - Label Guides

With the Printhead open ensure that the labels are under the small

black sprung guides. Slide the green guide to the width of the label.

Step 6 - Sensor Position

Ensure that the sensor head is in the middle of the label

Step 7 - Closing Label Head

When loaded close the Printhead down, lift the front plate up and

turn the green knob to LABEL.

Step 8 - Connecting printer to PC

For easy setup use a USB cable (Alternatively everything can be done via the network web interface)

1) Connect a USB cable to the PC

2) Connect a Network cable to a live DHCP network to obtain an IP address.

3) Download and install the BCP setup software: https://www.toshibatec.com/download_overseas/printer/setting_tool/BCP_Series/ [1]

Page 3 / 6

Step 9 - Initial Power up

If the labels have been tted properly on power up the calibration

process will eject several labels.

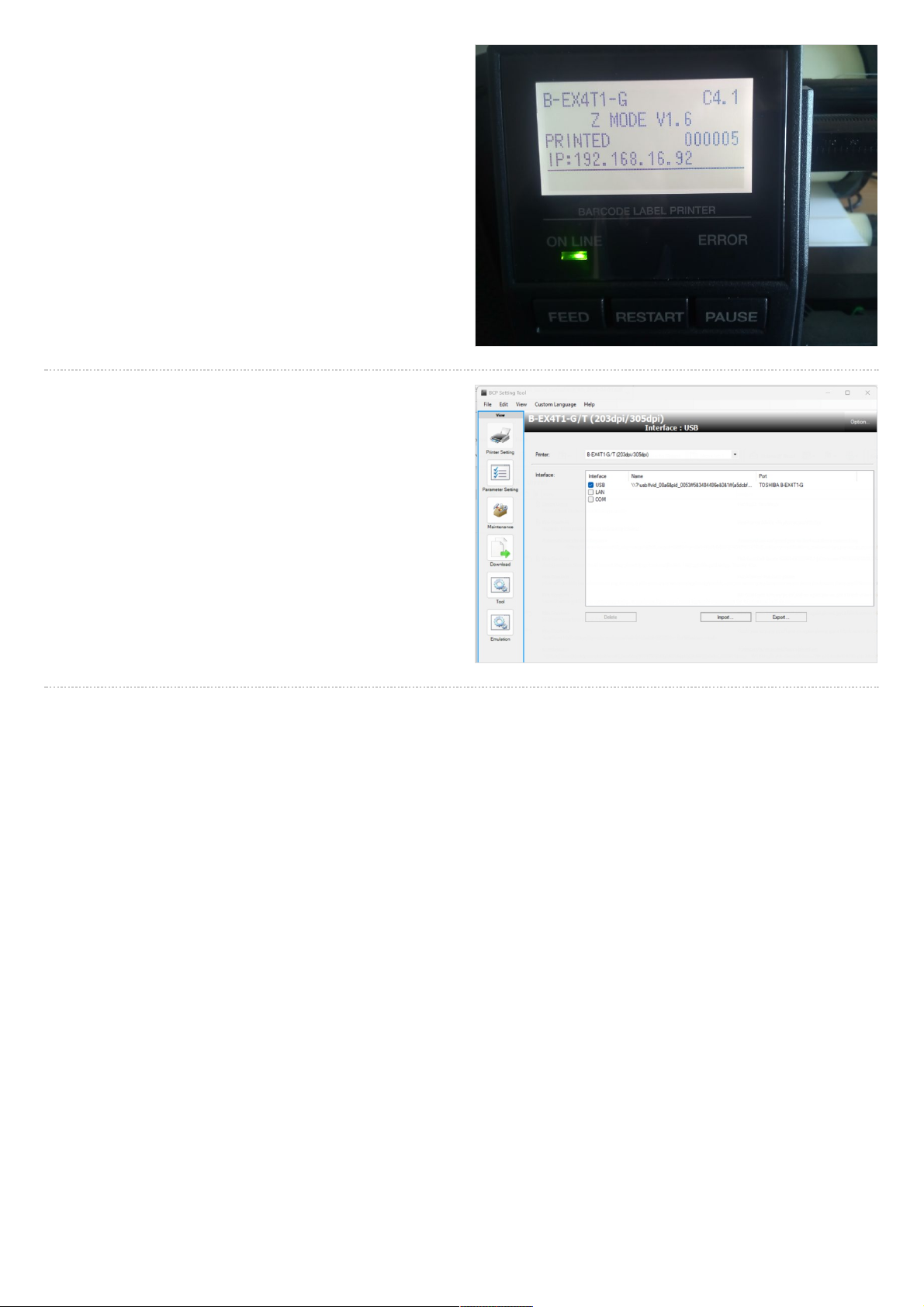

Take a note of the IP address given to the printer on the front panel.

Step 10 - Using BCP to setup the

printer

When you start BCP you should see as picture

Select USB if not Selected

Page 4 / 6

Step 11 - Change Settings

Press the Emulation Button and take the top option "Zmode System Parameter Settings"

Then Make the changes

Label Length 38mm38mm (after calibration this will be reset to 41.3)

Label Width 98mm98mm

Ribbon WITHOUT RIBBONWITHOUT RIBBON

Print mode PEEL OFFPEEL OFF

Sensor TRANS PREPRINTTRANS PREPRINT

Max Label Length (for calibration) 200mm200mm (this just saves on labels)

Press the DOWNLOADDOWNLOAD button and check that there are no errors.

Now on the Toshiba side:

Select Paraeter Settings

Select Standard 2 (General 2 on BCP TOOL)

Adjust Cut Adjust to -2.0

Press the submit button

The screen shows the Web version. The adjustment brings the label forward out of the printer to allow collection by the Picking Arm.



Step 12 - Power printer off and On

...This is often necessary to make sure the printer returns in emulation mode properly

Step 13 - Testing

1) Pressing "Feed" should push out another label regardless.

2) Send a label to the printer via the network (or via the Test - Send

le within BCP).

3) Send more than one le and make sure that each time you

remove a label from the output the next one is presented.

Page 5 / 6

Step 14 - Set the IP Address for the

Customers network

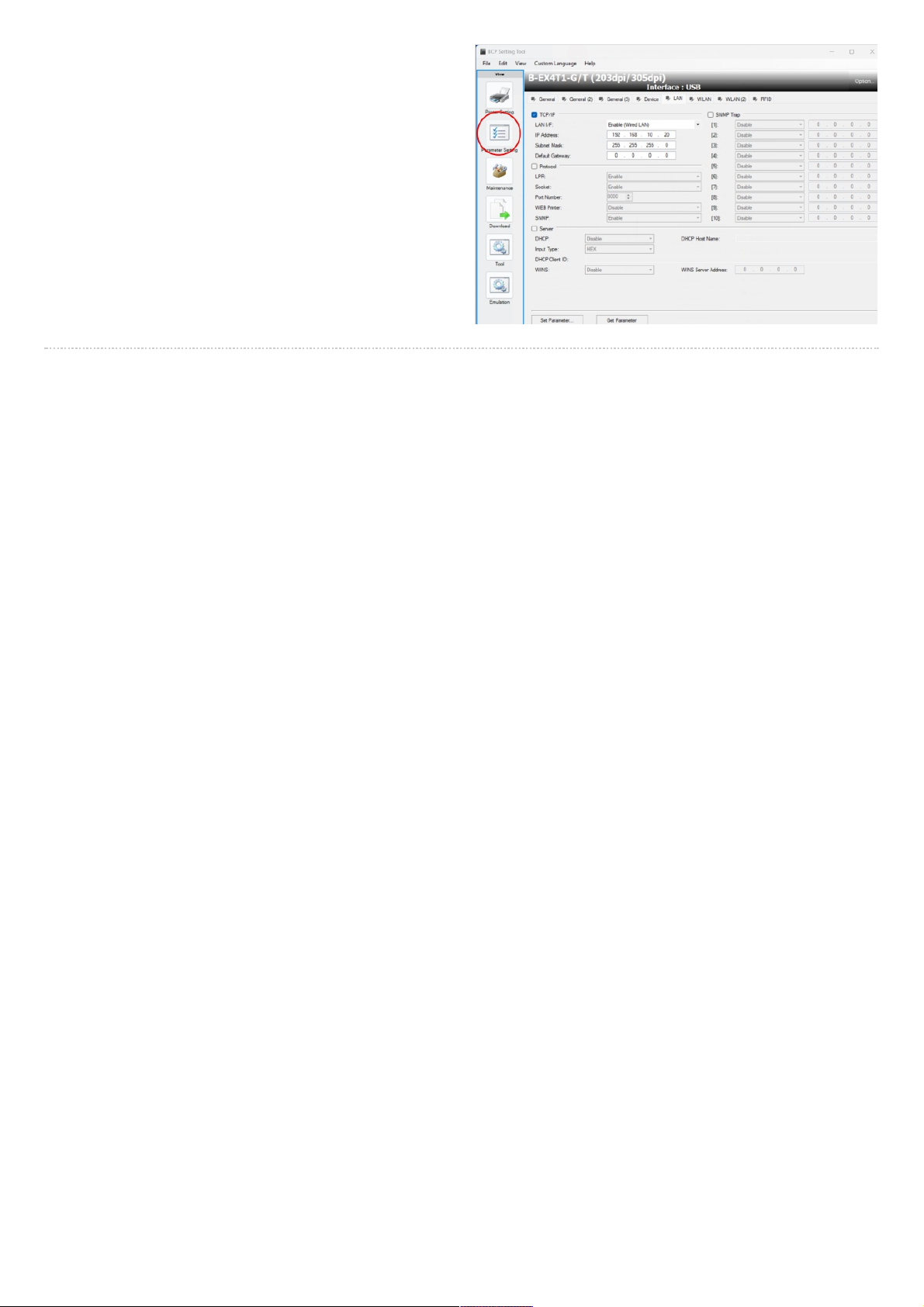

1. Within BCP choose "Parameter Settings"

2. Select the LAN tab

3. Enable TCP/IP

4. Enable Wired LAN

5. Set IP Address and Sub Net Mask

6. Press the Set Parameter at the bottom.

Page 6 / 6
