Topfield TF 6000 PVR User manual

TOPFIELD

TF 6000 PVR

User Guide

Digital Satellite Receiver

Personal Video Recorder

iii

Contents

Contents iii

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

1.3 What is common interface? .................... 7

2 Setup 8

2.1 Unpacking .............................. 8

2.2 Safety precautions ......................... 8

2.3 Rear panel connections ....................... 9

2.4 Connecting up your digital receiver ............... 11

2.4.1 Connecting to the antenna ................ 11

2.4.2 Connecting to your television .............. 12

2.4.3 Connecting to your video cassette recorder ....... 15

2.4.4 Inserting batteries in the remote control ......... 15

3 Preference Settings 17

3.1 Language settings .......................... 17

3.2 Video and audio settings ...................... 18

iv CONTENTS

3.2.1 Television standard .................... 19

3.2.2 Color model ......................... 19

3.2.3 Video cassette recorder .................. 20

3.2.4 Television aspect ratio ................... 20

3.2.5 Sound mode ........................ 21

3.3 Local time setting .......................... 22

3.4 Parental control ........................... 24

3.5 Adjusting the on-screen display .................. 25

3.6 To use the time shift feature .................... 25

3.7 Setting for MediaHighway program guide ........... 26

4 Service Search 27

4.1 Searching broadcasting services .................. 27

4.1.1 Conﬁguring LNB settings ................. 27

4.1.2 Conﬁguring DiSEqC 1.2 settings ............. 30

4.1.3 Conﬁguring USALS settings ............... 31

4.1.4 Searching services ..................... 33

4.2 Copying services .......................... 35

4.3 Resetting to factory settings .................... 35

5 Daily Usage 37

5.1 Volume control ........................... 37

5.2 Watching television ......................... 37

5.2.1 Watching favorite services ................ 40

5.2.2 Viewing program information .............. 40

5.2.3 Selecting audio tracks ................... 41

5.2.4 Selecting subtitle tracks .................. 42

5.2.5 Viewing teletext ...................... 42

5.3 Viewing electronic program guide ................ 42

5.4 Watching multifeed program ................... 43

5.5 Using time shift ........................... 44

5.6 Using picture in picture ...................... 45

6 Listing Services 47

6.1 Editing the service list ....................... 47

6.2 Editing the favorite list ....................... 49

6.3 Transferring receiver data ..................... 50

6.4 Editing channel data on your computer ............. 51

6.4.1 Editing satellite and transponder list .......... 53

6.4.2 Editing television and radio service list ......... 54

6.4.3 Editing favorite list ..................... 55

7 Recording and Playing 58

7.1 Recording a program ........................ 59

7.1.1 Instant recording ...................... 59

7.1.2 Timer recording ...................... 60

7.1.3 Scheduling a recording using the program guide . . . 63

7.1.4 Recording a time-shifted program ............ 63

7.1.5 Recording a pay service program ............ 64

7.2 File archive ............................. 65

7.3 Playing back a recording ...................... 67

7.3.1 To play in slow motion .................. 68

7.3.2 To play in fast motion ................... 68

7.3.3 To make a bookmark .................... 68

7.3.4 To play back a recording repeatedly ........... 69

7.3.5 To play back recordings in sequence ........... 69

7.3.6 To play back a scrambled recording ........... 70

7.4 Editing a recording ......................... 70

7.5 Copying a recording ........................ 71

7.6 MP3 playback ............................ 71

7.7 Transferring recording ﬁles .................... 72

7.8 Formatting the hard disk ...................... 74

8 Topﬁeld Application Program 75

vi CONTENTS

9 Accessing The Digital Receiver 77

9.1 Conﬁguring the router ....................... 78

9.1.1 To access indoors ...................... 78

9.1.2 To access from outdoors .................. 78

9.2 Conﬁguring the digital receiver .................. 80

9.3 Accessing the web server ..................... 84

9.4 Accessing the FTP server ...................... 86

10 Firmware Update 88

10.1 Over the air ............................. 89

10.2 From your computer via USB port ................ 89

10.3 From your computer via RS-232 port ............... 90

10.4 From another digital receiver via RS-232 port .......... 91

Index 93

Chapter 1

Introduction

The TF 6000 PVR digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

can receive digital broadcasts. For its operation, you need an

antenna, which must be installed appropriately.

NOTE

In general we equate a channel with a frequency. However,

unlike analog broadcasts, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

and radio broadcasts are transmitted through a single fre-

quency. The frequency in digital broadcasting is usually called

transponder. To reduce confusion, the word service is prefer-

ably used than channel as service indicates one television or

radio broadcast in this manual.

1.1 Features

The TF 6000 PVR digital receiver has the following features:

• Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS.

2 Introduction

• Can store up to 5000 television and radio services.

• Has an electronic program guide that provides an overview

of program schedules for next few hours.

• You can edit the service list.

• You can make a favorite list with your favorite channels.

• You can view the information of the current television or

radio program.

• You can update the ﬁrmware of the digital receiver to

the latest version, which will be provided by the manu-

facturer.

• You can record one broadcasting service while you are

currently watching another.

• The large storage capacity of the built-in hard disk drive

allows you to record up to 80 hours of program—in case

of 160 gigabytes—in excellent picture and sound quality.

• Time shift is a special technical feature available on the

TF 6000 PVR. You can pause the program you are watch-

ing and resume it again at a later time. You can also

quickly go to whatever part of the current program by

fast foward and rewind search.

1.2 Controlling the digital receiver

The digital receiver can be operated with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged to a wall outlet,

we say that it is in standby mode; on the other hand, when

it is on, it is in operation mode. You should keep the digital

receiver plugged to a wall outlet on standby mode so as it can

run timer events at any time.

1.2 Controlling the digital receiver 3

1.2.1 The front panel

The front panel of the digital receiver has buttons to control

the digital receiver, and speciﬁc lamps and a display to indi-

cate its status. The following indicates what they mean:

STANDBY button switches the digital receiver between standby

mode and operation mode. (On/Off)

CHANNEL

buttons move to the next or previous ser-

vice. They are also used to navigate in the menus and

interactive screens.

VOLUME

buttons increase and decrease the volume.

They are also used to change options for a menu item.

Front display displays the current time in standby mode,

and displays the current service and status of the dig-

ital receiver in operation mode.

4 Introduction

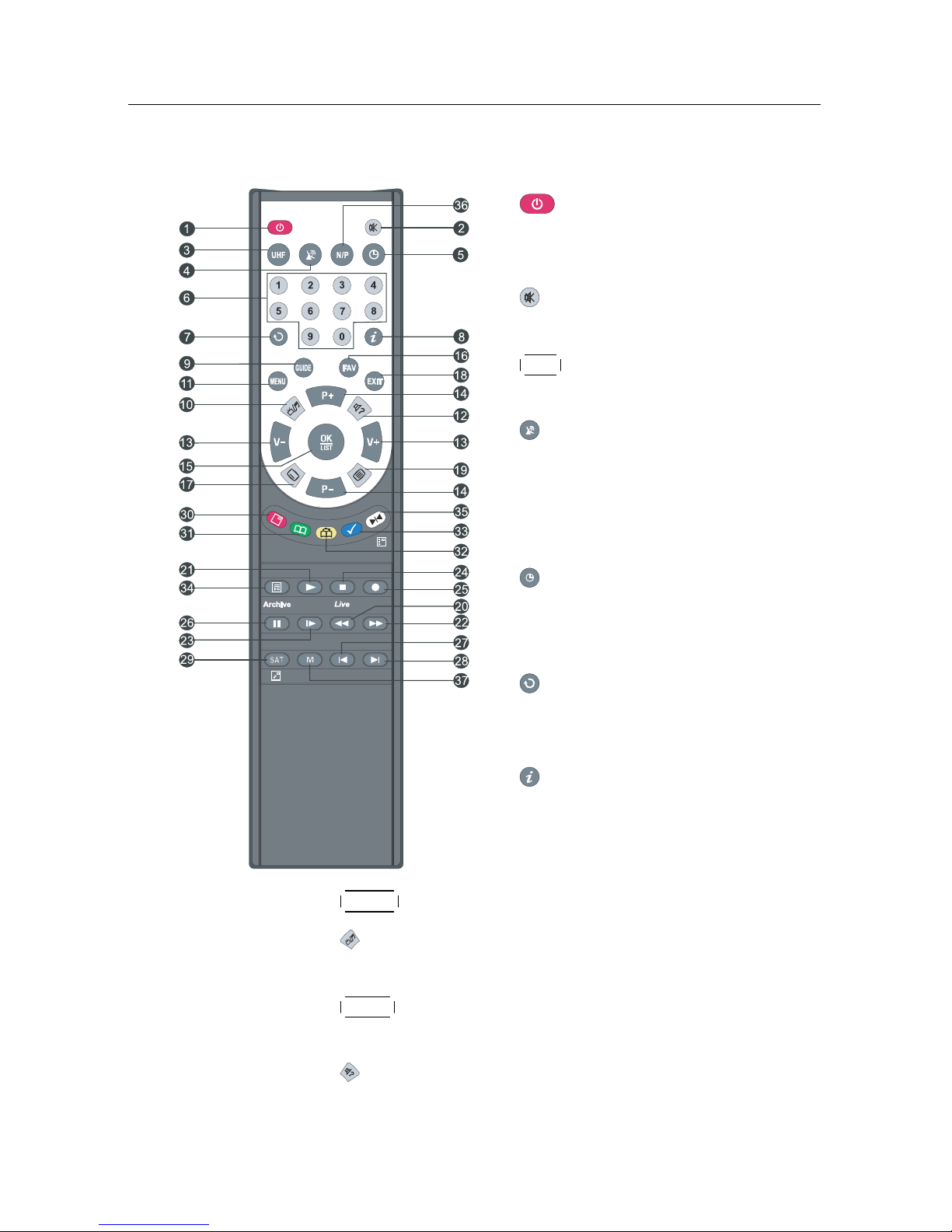

1.2.2 The remote control

button switches the digital re-

ceiver between standby mode and

operation mode. (On/Off)

button mutes the sound. Press

again to switch it back on.









UHF button is not used in this

model.

button switches the output of

the TV SCART socket between the

digital receiver and the device con-

nected to the VCR SCART socket.

See § 3.2.3 for more description.

button sets a sleep timer.

Numeric buttons are used to enter

service numbers and menu options.

button switches between the

current service and the previously

viewed one.

button displays more informa-

tion about the current program or

a program highlighted in the elec-

tronic program guide.









GUIDE button displays the electronic program guide. (EPG)

button switches between television services and ra-

dio services.









MENU button displays the main menu. It is also used to

return to the previous menu from a submenu.

button is used to select an audio track and sound

mode, or a video track of multifeed program.
