Topfield TF 400 PVRt User manual

TOPFIELD

TF 400 PVRt

User Guide

Digital Terrestrial Receiver

Personal Video Recorder

CONAX

Contents iii

Contents

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

1.3 What is common interface? .................... 7

2 Setup 8

2.1 Unpacking .............................. 8

2.2 Safety precautions ......................... 8

2.3 Rear panel connections ....................... 10

2.4 Connecting up your digital receiver ............... 11

2.4.1 Connecting the antenna .................. 12

2.4.2 Connecting to your television .............. 12

2.4.3 Connecting to your video cassette recorder ....... 14

2.5 Switching on for the ﬁrst time ................... 14

2.5.1 Inserting batteries in the remote control ......... 15

2.5.2 Powering on and checking picture ............ 15

iv Contents

3 Preference Settings 16

3.1 Language settings .......................... 16

3.2 Video and audio settings ...................... 18

3.2.1 Television standard .................... 18

3.2.2 Colour model ........................ 18

3.2.3 Video cassette recorder .................. 19

3.2.4 Television aspect ratio ................... 19

3.2.5 Audio mode ........................ 20

3.3 Local time setting .......................... 20

3.4 Parental control ........................... 21

3.5 Adjusting the on-screen display .................. 24

3.6 To turn on the time shift feature .................. 24

4 Service Search 25

4.1 Searching broadcasting services .................. 25

4.2 Resetting to factory settings .................... 26

5 Daily Usage 27

5.1 Volume control ........................... 27

5.2 Watching television ......................... 27

5.2.1 The services list ....................... 27

5.2.2 The favourite services list ................. 29

5.2.3 Viewing programme information ............ 30

5.2.4 Selecting audio tracks ................... 31

5.2.5 Selecting subtitle tracks .................. 31

5.2.6 Viewing teletext ...................... 31

5.3 Viewing electronic programme guide .............. 32

5.4 Watching multifeed programme ................. 32

5.5 Using time shift ........................... 33

5.6 Using picture in picture ...................... 34

Contents v

6 Listing Services 36

6.1 Editing the favourite list ...................... 36

6.2 How to use on-screen keyboard .................. 38

6.3 Transferring receiver data ..................... 38

7 Recording and Playing 40

7.1 Recording a programme ...................... 41

7.1.1 Instant recording ...................... 41

7.1.2 Current programme recording .............. 43

7.1.3 Timer recording ...................... 44

7.1.4 Scheduling recordings using the programme guide . . 47

7.1.5 Recording a time-shifted programme .......... 47

7.1.6 Recording a pay service programme ........... 48

7.2 File archive ............................. 49

7.2.1 To delete a recording .................... 49

7.2.2 To sort recordings ..................... 49

7.2.3 To lock a recording ..................... 50

7.2.4 To rename a recording ................... 50

7.2.5 To make a new folder ................... 50

7.2.6 To move a recording to another folder .......... 50

7.3 Playing back a recording ...................... 51

7.3.1 To navigate using the progress bar ............ 51

7.3.2 To play in slow motion .................. 52

7.3.3 To play in fast motion ................... 52

7.3.4 To make a bookmark .................... 53

7.3.5 To play back a recording repeatedly ........... 53

7.3.6 To play back recordings in sequence ........... 54

7.3.7 To play back a scrambled recording ........... 54

7.4 Editing a recording ......................... 55

7.5 Copying a recording ........................ 55

7.6 Formatting the hard disk ...................... 56

vi Contents

8 Firmware Update 57

8.1 Checking the ﬁrmware information ............... 57

8.2 From your computer via RS-232 port ............... 58

8.3 From another digital receiver via RS-232 port .......... 59

8.4 Over the air ............................. 59

Index 60

Chapter 1

Introduction

The TF 400 PVRt digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

thus is able to receive digital broadcasts of that standard. For

its operation you need an antenna, which must be installed

appropriately.

NOTE

In general we equate a channel with a frequency. Unlike ana-

logue broadcasts, however, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The TF 400 PVRt digital receiver has the following features:

• Can store up to 2000 television and radio services.

2 Introduction

• You can create favourite lists of your favourite services.

•

You can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

•

You can update the ﬁrmware of the digital receiver to the

latest version which would be provided by the manufac-

turer.

•

You can record one broadcasting service while you are

currently watching another.

•

The large storage capacity of the built-in hard disk drive

allows you to record up to about 60 hours of television

—in case of 250 gigabytes— in excellent picture and sound

quality.

•

Time shift is a special technical feature available on the TF

400 PVRt. You can pause the programme you are watch-

ing and resume it again at a later time. Then you can

quickly go to whatever part of the current programme by

fast foward and backward search.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

1.2.1 The front panel

The front panel of the digital receiver has buttons to control the

digital receiver, and speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

MENU OKCHANNEL VOLUME

TV/STB

STANDBY

button switches the digital receiver between

standby mode and operation mode.

TV/STB

lamp lights up while your video recorder operates

instead of the digital receiver. See

3.2.3 for more

details.

lamp lights up whenever you press a button on the

remote control.

STANDBY

lamp lights up while the digital receiver is in

standby mode.

Front display

displays the current time in standby mode,

and displays the current service in operation mode.

CHANNEL

buttons switch to previous or next service.

They are also used to navigate in menus and interactive

screens.

button displays the main menu. It is also used to

return to the previous menu from a submenu.

button displays the services list. See

5.2.1 for more

details. It is also used to select a menu item.

VOLUME

buttons decrease or increase the volume.

They are also used to change values for menu options.

4 Introduction

1.2.2 The remote control

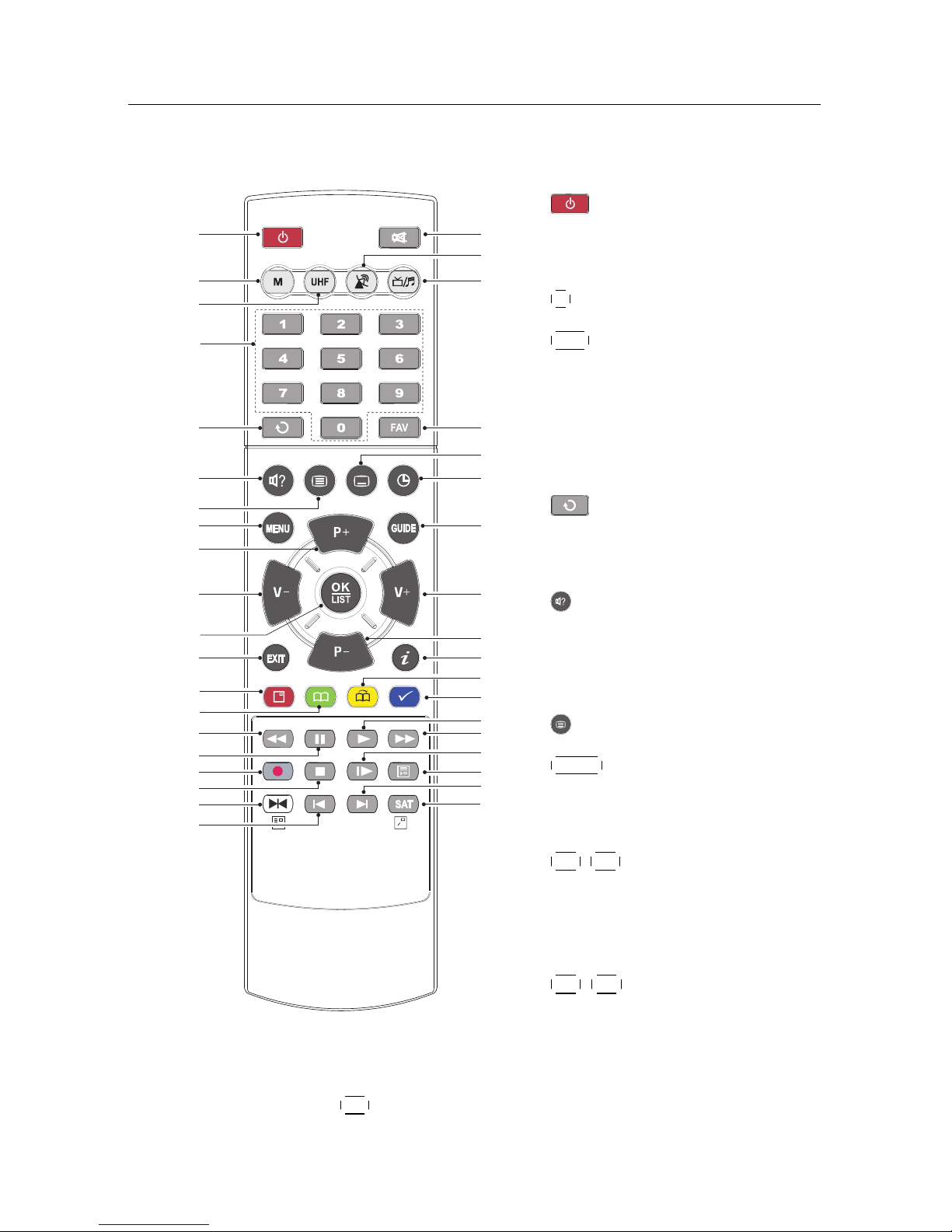

121



button switches the digital

receiver between standby mode

and operation mode.









Mis not used in this model.









UHF is not used in this model.



Numeric buttons are used to en-

ter a service number for service

change or to specify values for

menu options.



switches between the cur-

rent service and the previously

viewed one.



is used to select an audio

track and a sound mode, or a

video track of multifeed pro-

gramme.

displays teletext.









displays the main menu.

It is also used to return to the

previous menu from a submenu.









P+,







P−buttons switch to previ-

ous or next service. They are also

used to navigate in menus and

interactive screens.









V−









V+

buttons decrease or in-

crease the volume. They are also

used to change values for menu

options.









displays the services list. See

5.2.1 for more details.
