Teledyne SDC10 User manual

User Manual

SDC10

Topside processing computer for HydroPACT systems

B933640 - SDC10

The information in this manual is subject to change without notice and does not represent a

commitment on the part of Teledyne Ltd. All drawings, technical content and the intellectual

property associated with this manual is property of Teledyne Ltd.No content should be copied or

distributed in any way without the express permission of the company.

Document Part Number: 060221

Issue: 1.3

Date: January 2019

Teledyne Marine

International Avenue, ABZ Business Park,

Dyce, Aberdeen AB21 0BH UK

Tel: +44 (0)1224 772345

Email: [email protected]

Contents

DPN 060221 Issue 1.3 © Teledyne Limited i

Contents

Contents ............................................................................................................................................ i

List of Figures.................................................................................................................................. ii

List of Tables .................................................................................................................................. iii

Revision History ............................................................................................................................. iv

1 Introduction ............................................................................................................................... 1-1

1.1 Conventions used ............................................................................................................... 1-1

1.2 Warranty ............................................................................................................................. 1-1

1.3 Product Support ................................................................................................................. 1-2

2 Installation ................................................................................................................................. 2-1

2.1 Unpacking and Inspection ..................................................................................................2-1

2.1.1 Scope of supply .......................................................................................................... 2-1

2.2 Physical Installation ............................................................................................................ 2-1

2.2.1 Operation from transit case ........................................................................................ 2-2

2.2.2 Installation in a 19” rack ............................................................................................. 2-2

2.3 Electrical Installation ........................................................................................................... 2-3

2.3.1 Power Connection ...................................................................................................... 2-4

2.3.2 Communication ports ................................................................................................. 2-4

2.3.3 Communication link to Subsea Electronics Pod (SEP) .............................................. 2-5

2.3.4 Subsea Altimeter ........................................................................................................2-7

2.3.5 Interface to Data Logger ............................................................................................. 2-7

2.3.6 Interface to Video ....................................................................................................... 2-8

2.3.7 Interface to analogue outputs ..................................................................................... 2-8

2.3.7.1 Analogue output overview ................................................................................... 2-8

2.3.7.2 Analogue output DIP switch settings................................................................... 2-9

3 Operating Software .................................................................................................................. 3-1

3.1 Initialisation ......................................................................................................................... 3-1

3.2 System Recovery Procedure .............................................................................................. 3-1

3.2.1 Required equipment ................................................................................................... 3-2

3.2.2 Recovery procedure steps ......................................................................................... 3-2

3.3 Reinstall DeepView for Windows Procedure ...................................................................... 3-7

3.4 PC Software Installation ..................................................................................................... 3-7

4 System Specifications ............................................................................................................. 4-1

List of Figures

ii © Teledyne Limited DPN 060221 Issue 1.3

List of Figures

Figure 2-1: SDC dimensions .......................................................................................................... 2-3

Figure 2-2: SDC rear comms module with key to ports.................................................................. 2-4

Figure 2-3: Removing the rear enclosure fixings............................................................................ 2-9

Figure 3-4: Power On-Off button .................................................................................................... 3-3

Figure 3-5: Boot Menu.................................................................................................................... 3-3

Figure 3-6: Windows Setup in progress ......................................................................................... 3-4

Figure 3-7: Automated recovery screen ......................................................................................... 3-4

Figure 3-8: Select Start Recovery command.................................................................................. 3-5

Figure 3-9: Confirm recovery.......................................................................................................... 3-6

Figure 3-10: Recovery in progress ................................................................................................. 3-6

Figure 3-11: Recovery complete before reboot .............................................................................. 3-7

List of Tables

DPN 060221 Issue 1.3 © Teledyne Limited iii

List of Tables

Table 2-1: Ideal twisted pair characteristics for successful communication ................................... 2-5

Table 2-2: Power and Communications cable - 2-wire current loop connections........................... 2-6

Table 2-3: Power and Communications cable - 4-wire current loop connections........................... 2-6

Table 2-4: Power and Communications cable - RS232 connections ............................................. 2-6

Table 2-5: RS232 connections for the altimeter (9-way D-type female cable) ............................... 2-7

Table 2-6: RS232 connection to SDC ‘COM3 (EXT O/P)............................................................... 2-8

Table 2.7: Analogue output DIP switch settings ............................................................................. 2-9

Revision History

iv © Teledyne Limited DPN 060221 Issue 1.3

Revision History

Issue No. Date Details

1.3 January 2019 Service/support details and legal entity updated

1.2 November 2018 Scope of supply added

1.1 September 2018 Tables in section 2.3.3 updated with d.c. pin connections

1.0 November 2017 First Issue

1 – Introduction

DPN 060221 Issue 1.3 © Teledyne Limited 1- 1

1 Introduction

The Surface Display Computer (SDC) is a topside user interface for Teledyne TSS’s range of subsea

cable and pipeline detection systems. It is a touch screen panel PC that can be operated from its

portable transit case or mounted in a 19” rack, and provides a selection of standard and legacy

interfaces for communicating with the subsea installation, as well as coming pre-installed with Teledyne

TSS’s proprietary DeepView for Windows software.

1.1 Conventions used

This manual uses the following conventions that signal important Warnings, Cautions and Notes:

WARNING

A Warning indicates the risk of death or serious injury to personnel.

CAUTION

A Caution indicates the risk of injury to personnel, or damage to equipment, or

loss of data.

NOTE

A Note emphasises important information about the use of the product.

Throughout this Manual, unless stated otherwise, all measurements conform to the SI standard of

units.

1.2 Warranty

Please refer to your sales agreement with Teledyne Limited for information about the terms and

duration of the warranty for this product.

NOTE

Retain the original packaging to use when shipping this product between installa-

tion sites or when returning it to Teledyne Limited or an authorised distributor for

repair. The use of improper packaging for shipping any part of this equipment may

invalidate the warranty. For information about the proper return location and pro-

cedure, contact Teledyne Limited or an authorised distributor.

1 – Introduction

1-2 © Teledyne Limited DPN 060221 Issue 1.3

1.3 Product Support

For questions about installing your product or any other product operating enquiry contact our technical

support. See our website at www.teledynemarine.com/tss for more information.

2 – Installation

DPN 060221 Issue 1.3 © Teledyne Limited 2- 1

2 Installation

2.1 Unpacking and Inspection

Upon receipt of the SDC, check all items against the shipping documents and inspect them for damage

that might have occurred during transportation.

Notify Teledyne Limited immediately if there are parts or sub-assemblies missing from your shipment. If

you see any damage to the system, file a claim with the insurers and inform Teledyne Limited. The title

page of this manual lists the contact details for Teledyne Limited. Teledyne Limited also operates a

24-hour emergency telephone support line managed by trained and experienced technicians.

To avoid loss or damage to any components of the system, store all sub-assemblies safely in their

transit cases until you need to install them.

2.1.1 Scope of supply

Case: SDC10

❐1 x SDC10 industrial panel PC

❐1 x Mains lead (UK)

❐1 x Mains lead (EU)

❐1 x Mains lead (US)

❐1 x Coax phono lead

❐1 x Current loop data cable

❐1 x Allen key 2.5mm

❐1 x Allen key 3mm

❐1 x USB drive (DeepView)

❐1 x USB drive (Recovery)

2.2 Physical Installation

WARNING

You must take precautions to secure the SDC when you store and operate this

unit in its transit case. Protect personnel from the hazard of falling equipment and

protect the unit from damage when the survey vessel moves due to the action of

waves. Install cables away from walkways and secure them so they do not

present a hazard to personnel.

CAUTION

To avoid potential damage to the SDC, make certain it has sufficient ventilation to

dissipate the heat that it generates during normal operation. You might damage

the SDC if you allow it to overheat. To operate the SDC inside its transit case,

2 – Installation

2-2 © Teledyne Limited DPN 060221 Issue 1.3

release and remove the lid of the transit case to allow effective ventilation and

heat dissipation.

If you mount the SDC in a 19” instrument rack you must allow a minimum 30mm

clearance between the top of the SDC and any other equipment mounted directly

above it in the rack. Also, allow a minimum 100mm space between the SDC rear

panel and the rear of the instrument rack to allow for connectors and cable

routing.

NOTE

Throughout this manual any references to the SDC refer to the SDC10. Earlier

versions may not support the same feature set.

Although the SDC uses solid state electronics, the hard-disk drive and parts of the display panel are

susceptible to damage through shock or sustained vibration. You must therefore exercise some care

when you select a suitable location for this unit:

❐Install the SDC where you have easy access to the controls. Choose a position for the SDC

that allows you to see the screen easily while you operate the ROV.

❐If you do not mount the SDC in an instrument rack, use the original SDC transit case to provide

shock protection for the unit. Secure the transit case so that it cannot slide or fall with move-

ments of the vessel.

❐Make certain there is sufficient ventilation space above the SDC to remove the heat that it gen-

erates during normal operation. If necessary, use an electric fan to provide additional ventila-

tion.

❐Do not subject the SDC to extremes of temperature or humidity, or to severe vibration or elec-

trical noise. Never allow the SDC to become wet.

2.2.1 Operation from transit case

1. Open the four latches located on the front and rear of the transit case.

2. Remove the transit case lid and set aside.

3. Secure the transit case base so that it cannot slide or fall with movements of the vessel.

2.2.2 Installation in a 19” rack

1. Open the four latches located on the front and rear of the transit case.

2. Remove the transit case lid and set aside.

3. Remove the 8 x fixing screws securing the SDC to the angled brackets fixed to the transit case

base.

4. Fit SDC into rack and secure with fixing screws.

2 – Installation

NOTE

If you intend to change the analogue output configuration make the necessary

changes to the SDC before you install it into the instrument rack. Refer to section

2.3.7 for instructions to change the analogue output settings.

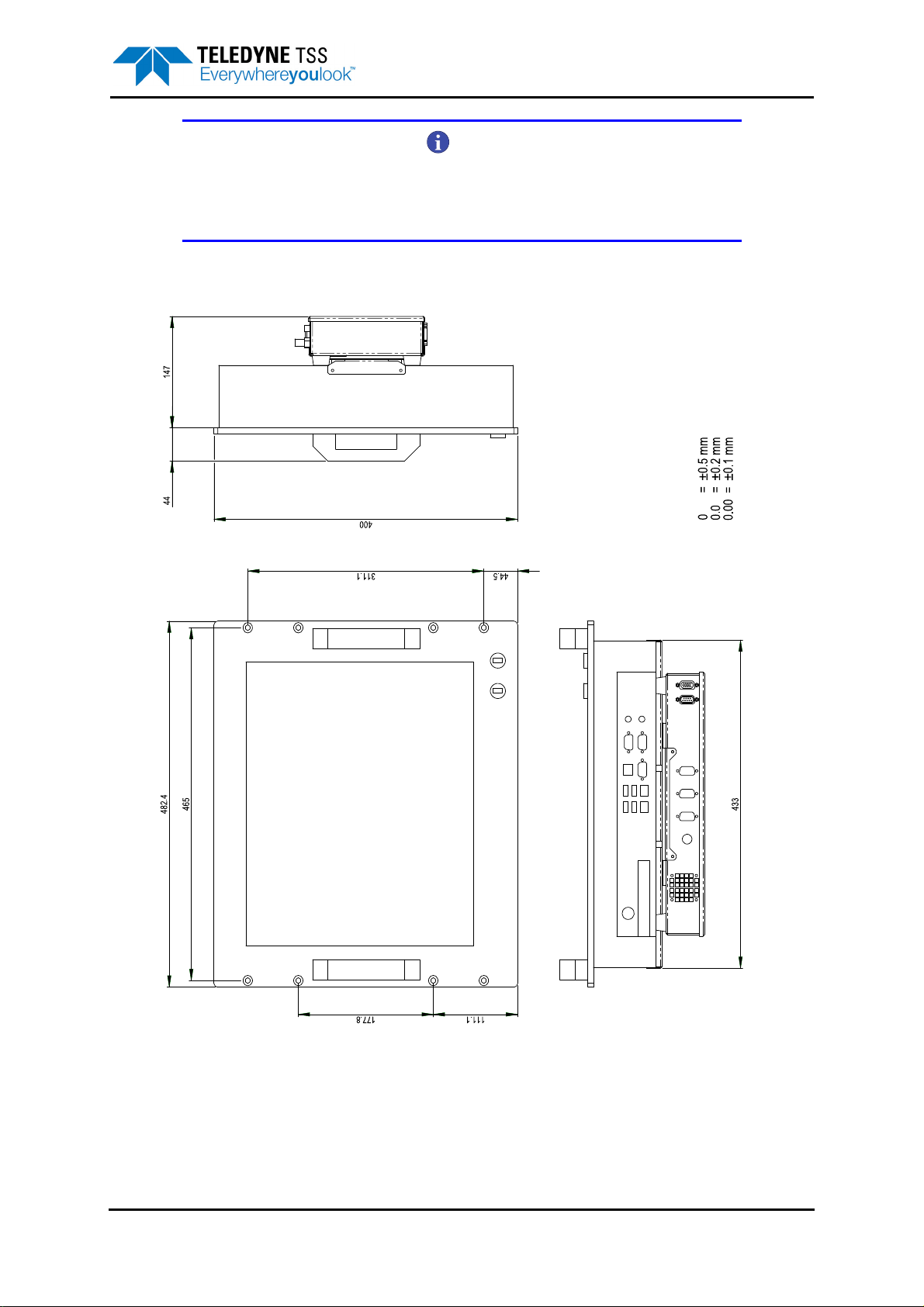

Figure 2-1: SDC dimensions

2.3 Electrical Installation

All connections to the SDC are through the VESA-mounted comms module attached to the rear of the

Panel PC. They are located on the top face of the comms module.
