Tally T9114 User manual

T9114

Maintenance manual Laser printer

5-1

5. Exploded Views and Parts List

5-1 Main Assembly Exploded view ................................................................................................................. page(5-2)

5-2 Top Assembly Exploded view ................................................................................................................... page(5-4)

5-3 Frame Assembly Exploded view .............................................................................................................. page(5-6)

5-4 Exit Assembly Exploded view .................................................................................................................. page(5-9)

5-5 Fuser Assembly Exploded view ............................................................................................................... page(5-11)

5-6 Rack-MPF Assembly Exploded view ....................................................................................................... page(5-13)

5-7 Drive Assembly Exploded view ................................................................................................................ page(5-15)

5-8 Pick-Up Assembly Exploded view ............................................................................................................ page(5-17)

5-9 Cassette Assembly Exploded view .......................................................................................................... page(5-19)

5-2

Exploded Views and Parts List

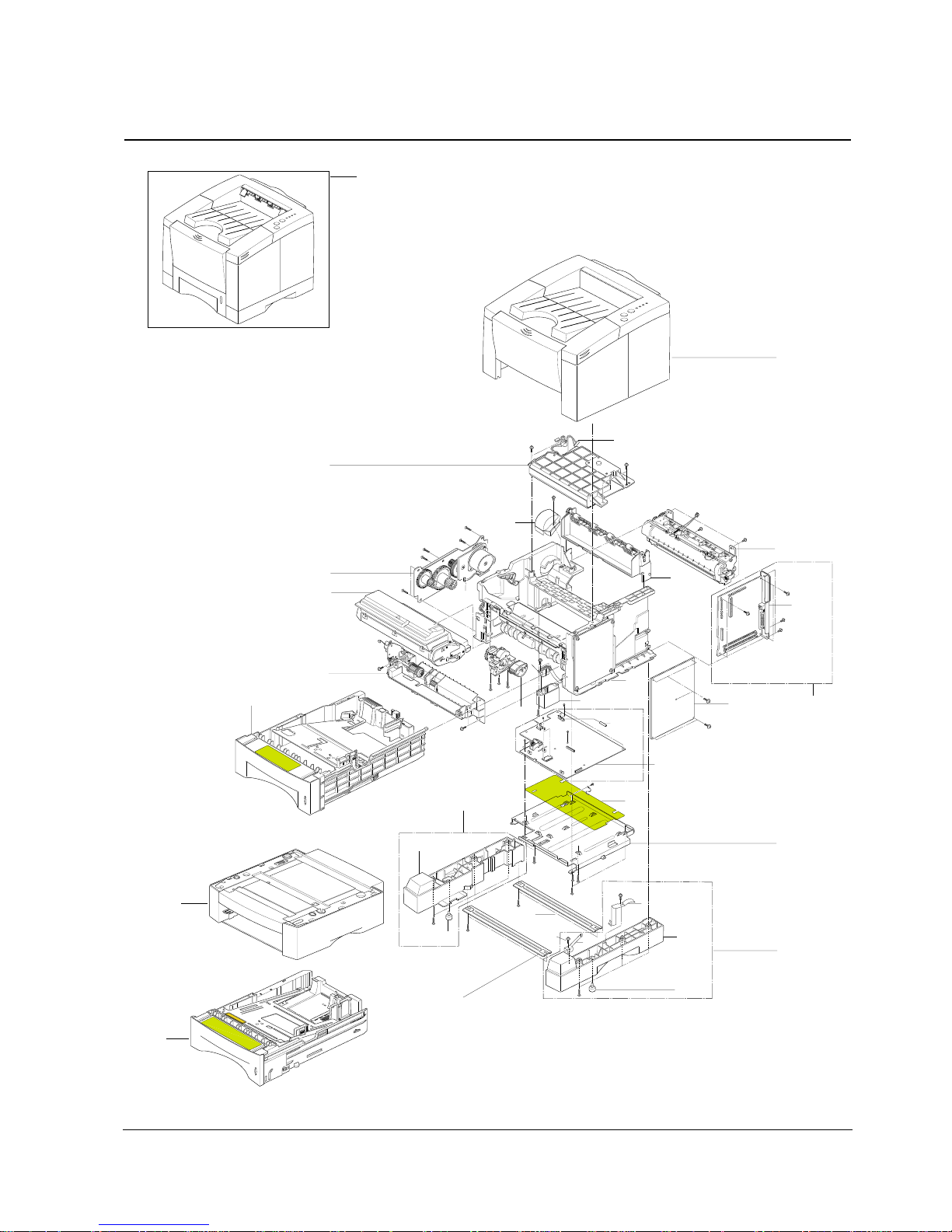

5-1 Main Assembly Exploded view

11-1

11-2

16-1

13-1

13-2

13-3

13-4

13-5

18-1

1821

5-3

Exploded Views and Parts List

< Main Assembly Parts List >

Location No. Description Id. No. Q’ty

1ELA HOU-COVER MAIN 396 296 1

2UNIT-LSU 398 425 1

3ELA UNIT-MOTOR 396 295 1

4ELA UNIT-DEVE 043 118 1

5ELA HOU-MPF 398 461 1

6MEA RACK-FEEDER CST 396 297 1

7CBF-HARNESS-MOTOR 1

8MEA UNIT-FEEDER 398 427 1

9CBF HARNESS-ENG SCF 1

10 PMO-SUPPORT SCF 1

11 MEA UNIT-BRKT BOTTOM(L) 1

11-1 FOOT-RUBBER 1

11-2 PMO-BRKT BASE L 1

12 IPR-BAR CROSS BOTTOM 2

13 MEA UNIT-BRKT BOTTOM(R) 1

13-1 FOOT-RUBBER 1

13-2 IPR-PLATE CST GUIDE 1

13-3 PMO-BRKT BASE R 1

13-4 SCREW-TAPTITE 3

13-5 IPR-GROUND SCF BASE 1

14 SHIELD-PCU 1

15 PCT-INSULATOR PCU 1

16 PBA MAIN-ENGINE_V2(220V) 396 293 1

16-1 FUSER(V2) 250V AC T5A 396 403 1

17 ELA UNIT-FRAME BASE_V2(220V) 1

18 ELA HOU-CONTROLLER 1

18-1 PBA MAIN CONTROLLER 396 292 1

19 AS-FUSER ASSY_V2(220V) 398 456 1

20 CBF HARNESS-LSU 1

21 PBA PWR-HVPS_HAWK 396 291 1

22 MEA RACK-HOU EXIT 396 298 1

23 PMO-DUCT FAN 1

24 MEA RACK-CAST,SCF 1

25 ELA HOU-SCF 1

5-4

Exploded Views and Parts List

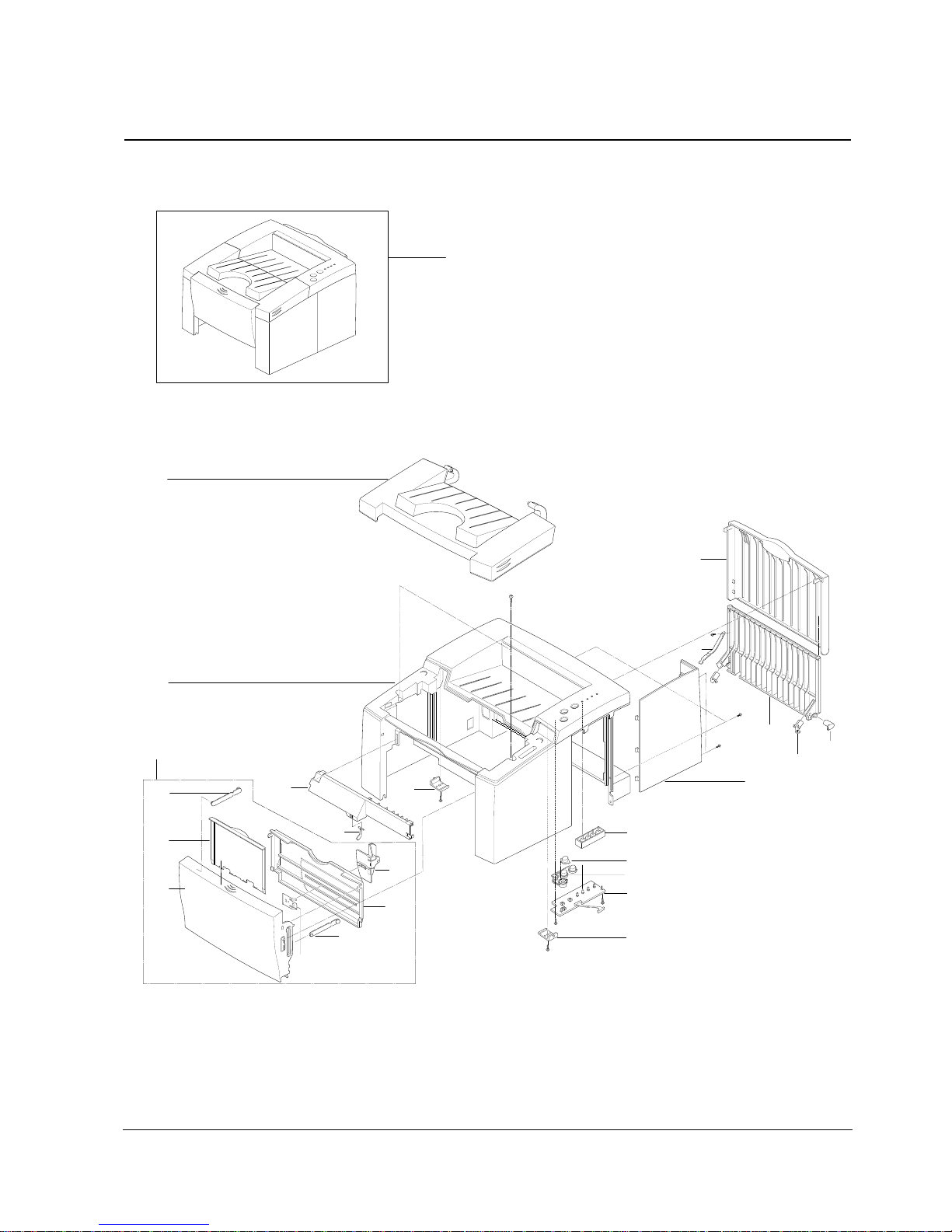

5-2 Top Assembly Exploded view

3-1

3-3

3-2

3-4

3-5

3-6

13 15

5-5

Exploded Views and Parts List

< Top Assembly Parts List >

Location No. Description Id. No. Q’ty

0ELA HOU-COVER MAIN 396 296 1

1PMO-COVER OPEN 1

2PMO-COVER MAIN 1

3MEA UNIT-MP TRAY 398 438 1

3-1 PMO-COVER-MP 1

3-2 PMO-TRAY LINK MP 2

3-3 PMO-TRAY EXTENSION MP 1

3-4 PMO-TRAY HOLDER MP 1

3-5 IPR-GUIDE LATCH 1

3-6 PMO-ADJUSTER_P SIDE 1

4STOPPER HINGE OPEN 2

5PMO-LENS LED 1

6PMO-KEY BUTTON 1

7PMO-KEY SAVE MODE 1

8PBA LED PANEL-II 399 454 1

9PMO-LEVER_EMPTY, MP 1

10 PMO-STOPPER_EXIT,P 1

11 PMO-COVER REAR 398 439 1

12 PMO-STACKER REAR 398 440 1

13 IPR-SPRING LOCKER REAR 398 441 2

14 PMO-COVER CONTROLLER 398 442 1

15 PMO-CAP REAR 398 443 1

16 PMO-SUPPORT MAIN 1

S1 SCREW-TAPTITE 12

5-6

Exploded Views and Parts List

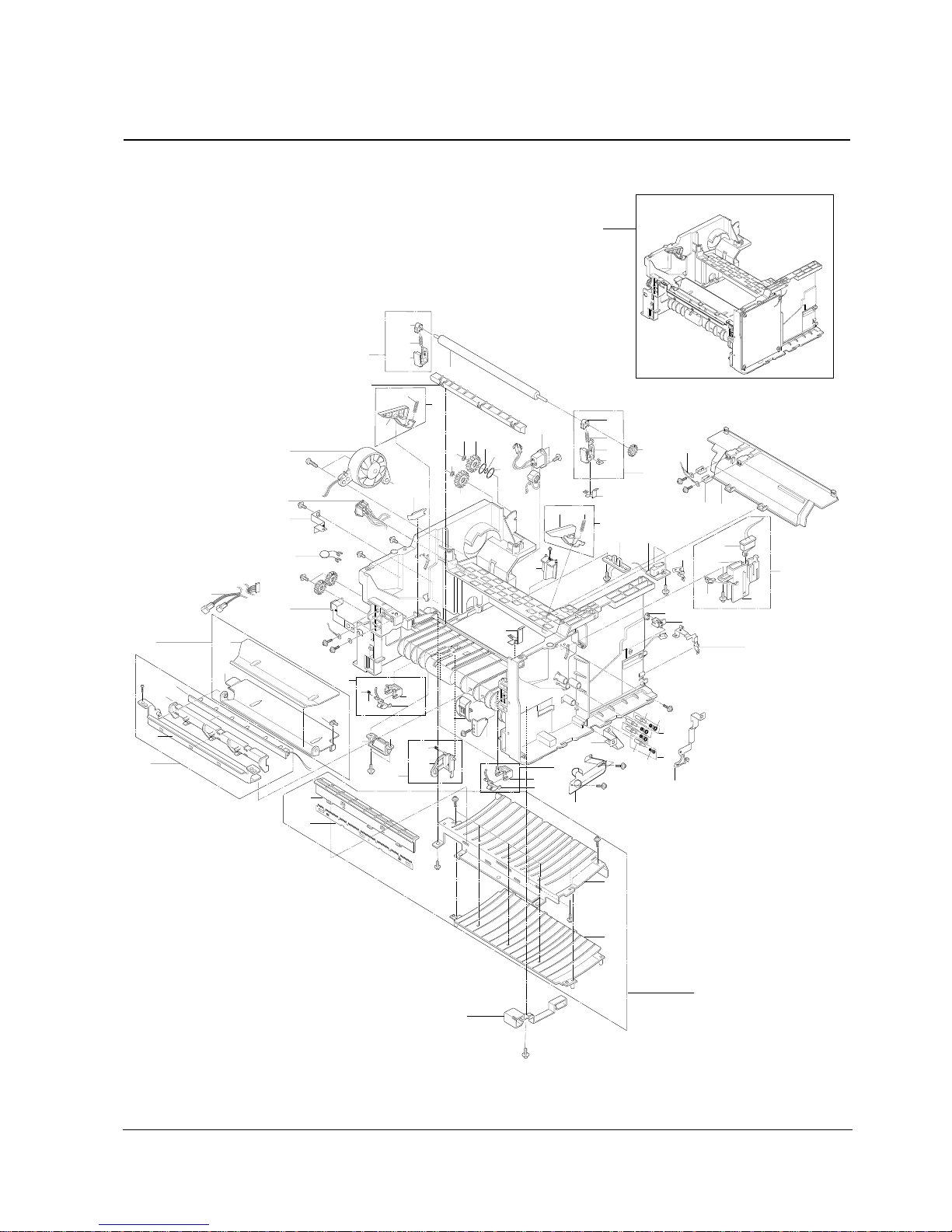

5-3 Frame Assembly Exploded view

29-4

29-1

29-2

29-3

25-125-2

24-2

24-1

22-1

22-3

22-2

22-4

14 13

16-1

16-2

16-3

16-4

45 47

19-2

18-218-1

19-1

15-1

15-2

15-3

244

30-3

30-2

30-1

31-2

31-3

31-1

32-1

32-2

28-1

28-2

49-1

49-3 49-2

5-7

Exploded Views and Parts List

< Frame Assembly Parts List >

Location No. Description Id. No. Q’ty

0 ELA UNIT-FRAME BASE 1

1 FAN-DC-HAWK 398 444 1

2 PMO-GUIDE RIB 1

3 CBF HARNESS-INLET ASS’Y 1

4 PMO-HOLDER WIRE 1

5 KEY DEVE 1

6 GEAR-EXIT /U ID 1

7 CBF-HARNESS_FUSER 1

8 PBA SUB-EXIT SENSOR 398 445 1

9 CBF-HARNESS-THERMISTOR JOINT 1

10 CBF-HARNESS-MP_CLUTCH ENG 1

11 PBASUB-FUSER SW 398 446 1

13 PMO-FRAME COVER 1

14 IPR-TERMINALFU 2

15 ELA-UNIT-HOLDER TR L 398 447 1

15-1 PMO-BUSHING TR 1

15-2 SPRING TR L 1

15-3 PMO-TRANSFER HOLDER 1

16 ELA-UNIT-HOLDER TR R 398 448 1

16-1 PMO-BUSHING TR 1

16-2 SPRING TR R 1

16-3 PMO-TRANSFER HOLDER 1

16-4 IPR-PLATE TR 1

17 GEAR-TR 29 398 449 1

18 ELA UNIT-GUIDE DEVE L 398 450 1

18-1 PMO-GUIDE DEVE L 1

18-2 SPRING GUIDE DEVE 1

19 ELA UNIT-GUIDE DEVE R 398 451 1

19-1 PMO-GUIDE DEVE R 1

19-2 SPRING GUIDE DEVE 1

20 ELA HOU-VARISTOR 1

21 IPR-TERMINALTR 1

22 ELA UNIT-SENSOR DEVE 1

22-1 PBA SUB-SWITCH 398 452 1

22-2 PMO-HOLDER ACTUATOR 1

22-3 PMO-ACTUATOR DEVE 1

23 GROUND FU 1

24 ELA UNIT-TERMINAL TR S 398 456 3

24-1 ICT-SHAFT HV LARGE 3

24-2 SPRING-HV LARGE 3

25 ELA UNIT-TERMINAL TR L 398 455 1

25-1 ICT-SHAFT HV LARGE 1

25-2 SPRING-HV SMALL 1

5-8

Exploded Views and Parts List

< Frame Assembly Parts List Cont.>

Location No. Description Id. No. Q’ty

26 GROUND-HVPS 1

27 IPR-REMOVE KEY 1

28 ELA UNIT-ACTUATOR FEED 399 457 1

28-1 PMO-ACTUATOR FEED 1

28-2 PMO-HOLDER ACTUATOR 1

29 ELA UNIT-GUIDE TRANSFER 1

29-1 PMO-HADER SAW PLATE 1

29-2 IPR-PLATE SAW 1

29-3 IPR-GUIDE TRANSFER 1

29-4 PMO-GUIDE RIB TR 1

30 ELA UNIT-GUIDE FEED HAWK16 398 453 1

30-1 PMO-GUIDE OPTIC 1

30-2 GUIDE FEED 1

30-3 PMO-HOLDER G/PAPER 1

31 ELA UNIT-PTL 398 454 1

31-1 GUIDE PLATE FEED 1

31-2 PMO-HOLDER PTL 1

31-3 PBASUB-PTL 1

32 ELA UNIT-EMPTY ACT. HAWK 399 458 1

32-1 PMO-ACTUATOR EMPTY HAWK 1

32-2 SPRING EMPTY 1

33 PMO-HINGE GUIDE FEED 1

34 IPR-GND ICU 2 1

35 PMO-CAP SENSOR 1

36 GND MP 1

37 GEAR P/UP DRIVE 1

38 GROUND MOTOR 1

39 IPR-GUIDE DUST 1

41 IPR-OPC-HAWK 1

42 CAP CONNECTOR L 1

43 CAP CONNECTOR U 1

44 MEC-ROLLER TRANSFER 398 455 1

45 GEAR-IDLE 27 1

46 RING-CS 2

47 WASHER-PLAIN 2

48 IPR-WASHER SPRING SU 1

49 ELA UNIT-ACTUATOR FEED HAWK14 1

49-1 PMO-ACTUATOR FEED 1

49-2 PMO-HOLDER ACTUATOR 1

49-3 SPRING ETC-FEED HAWK14 1

50 PMO-GUIDE_SKEW(12) 1

51 IPR-TERMINAL TR HAWK 1

5-9

Exploded Views and Parts List

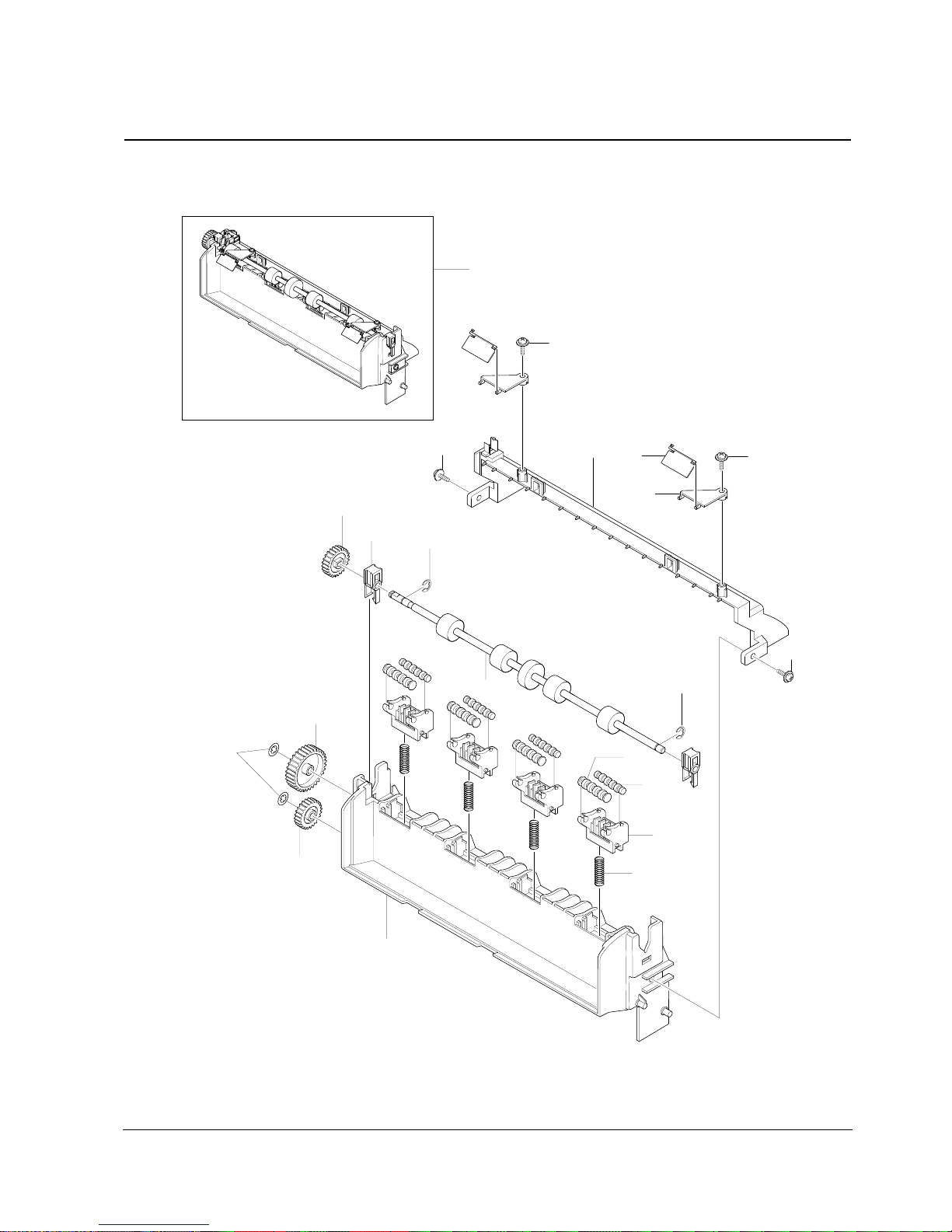

5-4 Exit Assembly Exploded view
