Symmons Unity Trim Series Installation instructions

Unity®

Model Numbers

Unity Trim Series

Unity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly

Installation & Operation Instructions

TRIM ONLY

S-6600-TRM

Shower Valve Trim

S-6601-TRM

Shower Trim

S-6602-TRM

Tub/Shower Trim

S-6603-TRM

Hand Shower Trim

S-6604-TRM

Tub/Hand Shower Trim

S6608TRM

Shower/Hand Shower Trim

TRIM, TA-10, T-12A

S6600TRMTC

Shower Valve Trim

S6601TRMTC

Shower Trim

S6602TRMTC

Tub/Shower Trim

S6603TRMTC

Hand Shower Trim

S6604TRMTC

Tub/Hand Shower Trim

S6608TRMTC

Shower/Hand Shower Trim

S-6600-TRM

S6600TRMTC

S-6601-TRM

S6601TRMTC

S-6602-TRM

S6602TRMTC

S6608TRM

S6608TRMTC

S-6604-TRM

S6604TRMTC

TA-10T-12A

Compliance

• ASME A112.18.1/CSA B125.1

Limited Lifetime - to the original end purchaser in

consumer/residential installations.

5 Years - for industrial/commercial installations.

Refer to www.symmons.com/warranty for complete

warranty information.

Go to www.symmons.com/register to register your

Symmons product.

Warranty

S-6603-TRM

S6603TRMTC

1. Recommended Tools

FLOORFLOOR

AA KK

FIGURE 2

Notes:

1) Valve body and piping not included and shown as reference only.

2) Plaster shield (p/n T-176) for dry wall, plaster or other type walls 1/2" or greater.

3) All dimensions measured from nominal rough-in (see G as reference).

4) Dimensions subject to change without notice.

Phillips Screwdriver

Adjustable Wrench Safety Glasses Thread Seal TapeDrill

Allen Wrench (3mm)

FIGURE 1

2. Dimensions

Measurements

A 6-3/8", 162 mm

Male 1/2" NPT ﬁtting must

be recessed 1/4" (6 mm)

from ﬁnished wall

C 3-1/2", 89 mm

D Ref. 77", 1956 mm

Shower Valve Hole Size

Min. Ø 3", 76 mm

Max. Ø 4", 102 mm

F 3-3/4", 95 mm

GRough-in

2-3/8" ± 1/2", 60 mm ± 13 mm

Trim with tub spout:

Ref. 32", 813 mm

Trim without tub spout:

Ref. 42", 1067 mm

Male 1/2" NPT ﬁtting must

protrude 4" from

ﬁnished wall

J 5-1/2", 140 mm

K Ø 2-1/2", 64 mm

L Ø 2-3/4", 70 mm

M 2-1/8", 54 mm

N Ø 6-3/8", 162 mm

O 3-1/2", 89 mm

P Ø 2-1/2", 64 mm

3. Parts Breakdown (Model Numbers Ending in TRMTC)

5. Installation - Adjust Packing Nut (Model Numbers Ending in TRMTC)

1) Turn hot and cold supplies on. Valve will not operate unless both hot and cold water supply pressures are on.

2) Place handle over ﬂow control spindle.

3) Tighten packing nut for positive frictional resistance as handle is rotated from shut-o position across adjustment range.

6. Installation - Setting Limit Stop Screw (Model Numbers Ending in TRMTC)

1) Turn hot and cold supplies on. Valve will not operate unless both hot and cold water supply pressures are on.

2) Place handle on ﬂow control spindle and open valve to maximum desired temperature.

3) Turn limit stop screw clockwise until it seats.

WARNING: Failure to adjust limit stop screw properly may result in serious scalding.

The temperature limit stop screw limits valve handle from being turned to maximum position resulting in excessive hot

water discharge temperatures.

4. Installation - Remove Test Cap (Model Numbers Ending in TRMTC)

1) Check for leaks around the valve assembly and all pipe

ﬁttings.

Flow control spindle (TA-10) and cap assembly (T-12A) will

come factory assembled for all model numbers ending in

TRMTC. When ready to remove Test Cap and install trim,

follow the instructions below:

2) Remove test cap from valve (FIGURE 4.1).

3) If system is dirty, ﬂush valve.

4) Thread ﬂow control spindle and cap assembly into valve

body. Turn clockwise to secure to valve (FIGURE 4.2).

FIGURE 4.1 FIGURE 4.2

LIMIT STOP

SCREW

PACKING

NUT

FIGURE 3

Replacement Parts

Item Description Part Number

1 Cap Assy. T-12A

2 Flow Control Spindle TA-10

IMPORTANT: Model numbers ending in TRMTC

coordinate with Temptrol pressure balancing valves

ordered with Test Cap. The Test Cap is used to

allow pressurization of system. Do not remove

test cap from valve during wall construction,

installation of valve or pressurization of system.

WARNINGS:

1. Test cap rated for pressure testing up to 200

psi maximum. DO NOT exceed 200 psi while

pressure testing valve body.

2. Do not expose valve with test cap to heat

for longer than 2 minutes when soldering

copper tubing. Doing so may damage the

internal components of the valve and will

void the product warranty.

3. Ensure test cap is re-torqued to 30 lb-ft after

soldering valve body.

Notes:

1) Append appropriate sux for premium ﬁnish.

2) Append appropriate ﬂow rate to showerhead

or hand shower for low ﬂow.

3) Apply a bead of silicone around the perimeter

of all shower trim installed ﬂush to the

ﬁnished wall. Leave opening on bottom of

escutcheons for weep hole.

4) Apply plumber tape to all threaded

connections.

FIGURE 7

EF-109*

*Order in-line vacuum breaker (EF-109) for

hand shower systems without dual checks.

7. Parts Breakdown

Replacement Parts

Item Description Part Number

A Showerhead 4-141

Shower Arm

Flange 300S

D Handle Assy. RTS-064

E Dome Cover T-19

Shower Escutcheon

Screws

Mounting Plate

S-6600-ESC

IDiverter/Volume

Control Handle RTS-066

J Tub Spout 060

Wall Cradle

Screws

Mounting Plate

EF-106

N Hand Shower EF-100

O Wall Elbow EF-105

P 60" Hose RTS-045

FIGURE 8.4

8. Installation - Shower Valve Trim

2) Place diverter/volume control handle into slot in shower

escutcheon (FIGURE 8.2).

3) Secure large shower escutcheon to mounting plate.

Guide handle into control port on valve body. Tabs

should snap in place (FIGURE 8.3).

4) Install dome cover by turning clockwise (FIGURE 8.4).

5) Install handle to shower valve. Secure with set screw

(FIGURE 8.5).

FIGURE 8.1 FIGURE 8.2

FIGURE 8.3

1) Attach arm and ﬂange to shower pipe. Turn clockwise

to tighten (FIGURE 9.1).

2) Install showerhead to shower arm. Turn clockwise to

tighten (FIGURE 9.2).

9. Installation - Showerhead & Tub Spout

FIGURE 8.5

1) Secure large mounting plate to Temptrol

pressure balancing valve using mounting screws

(FIGURE 8.1).

3) Install tub spout to stub out pipe. Turn clockwise to

tighten (FIGURE 9.3).

FIGURE 9.1 FIGURE 9.2

FIGURE 9.3

10. Installation - Slide Bar Assembly

3) Install wall elbow to stub out pipe. Tighten set screw to

secure (FIGURE 10.3).

4) Attach small end of hand shower hose to wall elbow.

Turn clockwise to tighten (FIGURE 10.4).

5) Attach large end of hand shower hose to hand shower

wand. Turn clockwise to tighten (FIGURE 10.5).

1) Place mounting plate in position. Mark and drill 3/16"

holes for tile anchors, 5/16" holes for drywall anchors.

Install anchors (FIGURE 10.1).

Note: For dry wall 1/2" thick or less, insert anchor tool

into drywall anchor to secure behind wall prior to

installing wall cradle.

2) Remove cover of hand shower cradle. Install cradle

and mounting plate. Secure with three screws. Replace

cover on hand shower cradle (FIGURE 10.2).

FIGURE 10.1

TILE ANCHOR

DRY WALL ANCHOR

ANCHOR TOOL

FIGURE 10.3 FIGURE 10.4

FIGURE 10.5

FIGURE 10.2

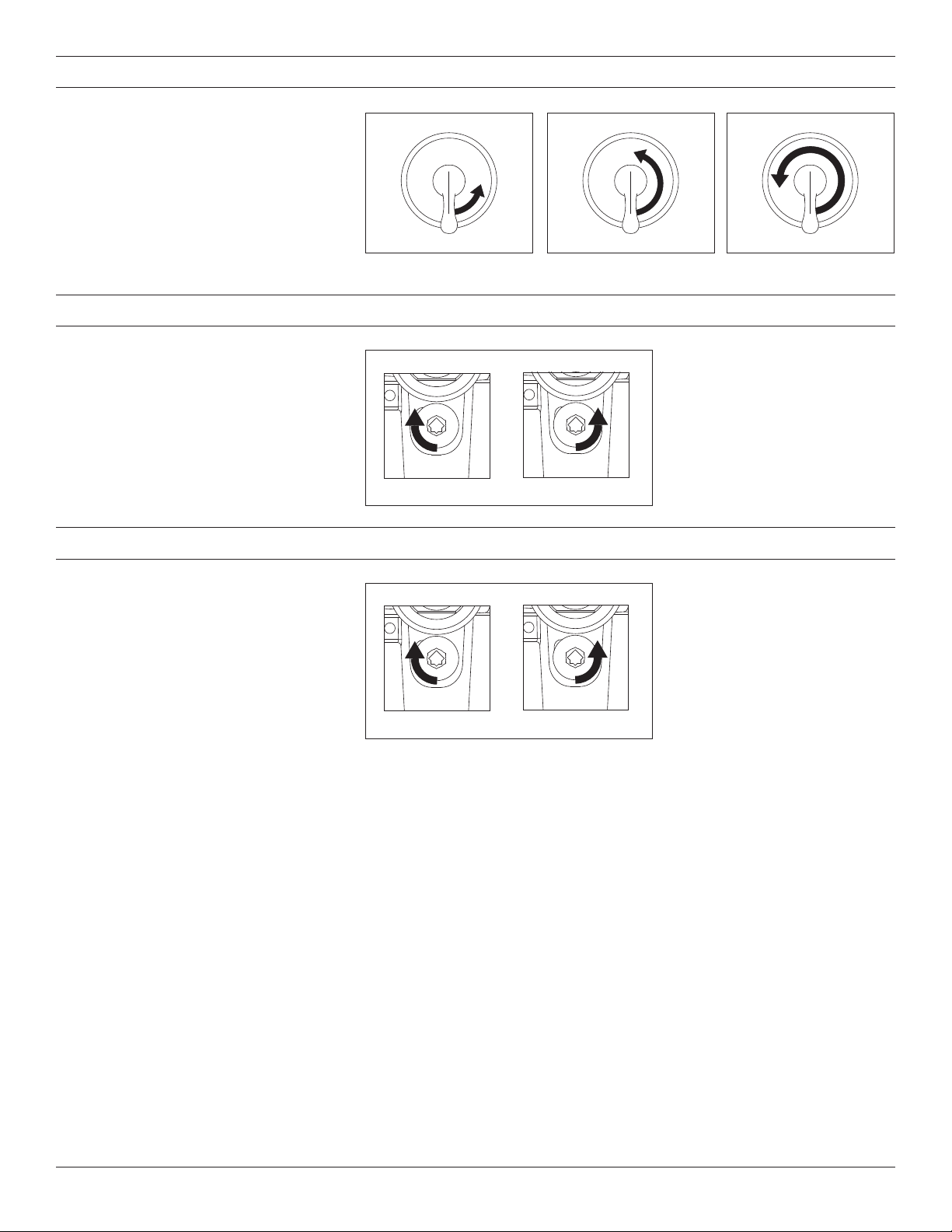

11. Operation (Temperature Control)

1) Turn shower handle counter-clockwise

approximately 1/4 turn to put valve in

cold position (FIGURE 11.1).

2) Turn shower handle counter- clockwise

approximately 1/2 turn to put valve in

warm position (FIGURE 11.2).

3) Turn shower handle counter- clockwise

approximately 3/4 turn to put valve in

hot position (FIGURE 11.3).

FIGURE 11.1 FIGURE 11.2 FIGURE 11.3

12. Operation (VersaFlex™ Diverter Control)

Turn volume control handle

clockwise to increase volume.

Turn volume control handle

counterclockwise to decrease volume.

FIGURE 12.1

TUB/ACCESSORY SHOWER/ACCESSORY

13. Operation (Volume Control)

Turn diverter control handle

clockwise to divert to tub spout or

other Symmons accessory.

Turn diverter control handle

counterclockwise to divert to shower

or other Symmons accessory.

FIGURE 13.1

INCREASE DECREASE

Symmons Industries, Inc. ■31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth

defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

14. Troubleshooting Chart

Problem Cause Solution

Finish is spotting. Elements in water supply may cause

water staining on nish.

Clean nished trim area with a soft

cloth using mild soap and water or a

non-abrasive cleaner and then quickly

rinse with water.
