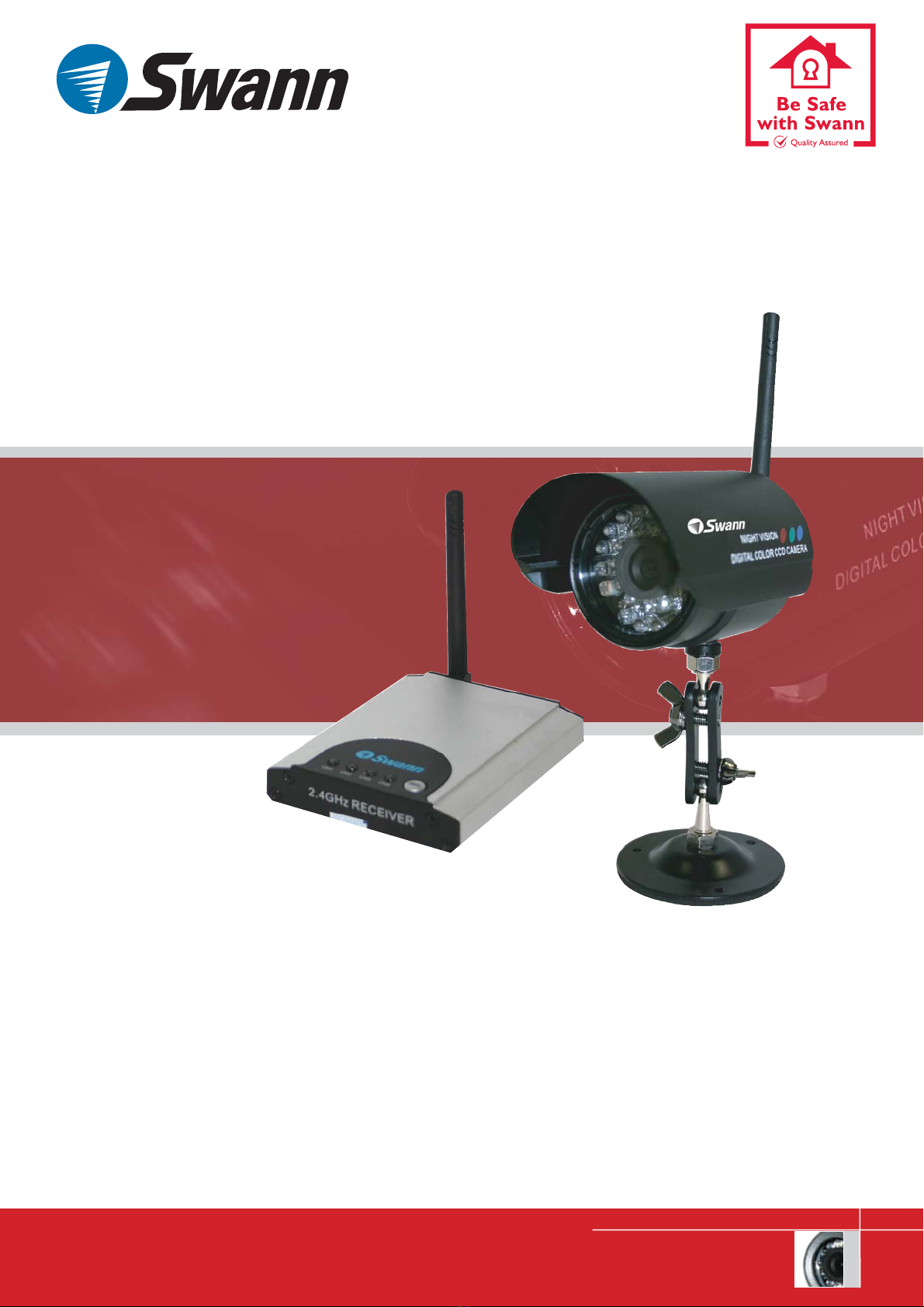

Swann Black Knight User manual

Wireless Surveillance

• Powerful & clear CCD 420TV lines picture display

• 27 Powerful infra-red LEDs for night vision

• Sliding hood and weatherproof protection for outdoor use

• Easy 5 minutes installation with adaptive mounting bracket

• Long wireless transmission range of up to 330ft/100m

• Built in microphone

www.swannsecurity.com

Enquiries: [email protected]

Product Code: SW-C-BLACKK

Black Knight

Wireless Weather Color Camera

Your day & night security protector

Black Knight

Wireless Weather Color Camera

Your day & night security protector

Technical Specifications

Black Knight Specifications

Imaging Sensor: 1

/4” Sharp CCD

Horizontal Resolution: 420 TV Lines

Minimum Illumination: 1.0 Lux/F1.2 & 0 Lux (IR ON)

Gain Control: Automatic

Modulation Mode: FM

Unobstructed

Effective Range: Up to 100m/332ft

Operating Temperature: -10°C~+50°C / 14°F~122°F

Dimensions (WxLxH): 22/5” x 33/4” x 22/5”

61mm x 96mm x 62mm

Power Supply: +12V DC

View Angle: 39°

Weight: 12.3oz / 350g

Receiver Specifications

Receiving Frequency: ISM 2400MHz

~2483MHz 4CH*

Antenna: 50 Ohm with SMA connection

Local Leakage

at Input Terminal: <-55dBm

Receiving Sensitivity: <-85dBm

Video Output Level: 1V @75, S/N>38dB

Audio Output Level: 1V@600

Power Supply: +12V DC

Consumption Current: 250mA

Operating Temperature: -10°C~+50°C / 14°F~122°F

Operating Humidity: 85%RH

Dimensions (WxLxH): 31

/16” x 35/8” x 7/8”

78mm x 92mm x 23mm

Weight: 7oz / 200g

Package Contents

Black Knight

Receiver 2.4GHz

AV Cable

Power Adapter (for camera)

Power Adapter (for receiver)

Pictures used on brochure are for illustration purposes only

The Swann Black Knight is the color security camera you have been

looking for. Within a sleek black finish, it combines day & night vision

and a sturdy metal exterior for all-weather monitoring. The Black

Knight is the perfect security protector for your home, business,

office or retail premises.

You can have a total of 4 of these cameras working together with

one receiver.

www.swannsecurity.com

Please note that the information

contained within this document is

subject to change without notification.
