SVAT CV502-4CH User manual

CV502-4CH 1

SVAT ELECTRONICS

now you can see

QUICK START GUIDE

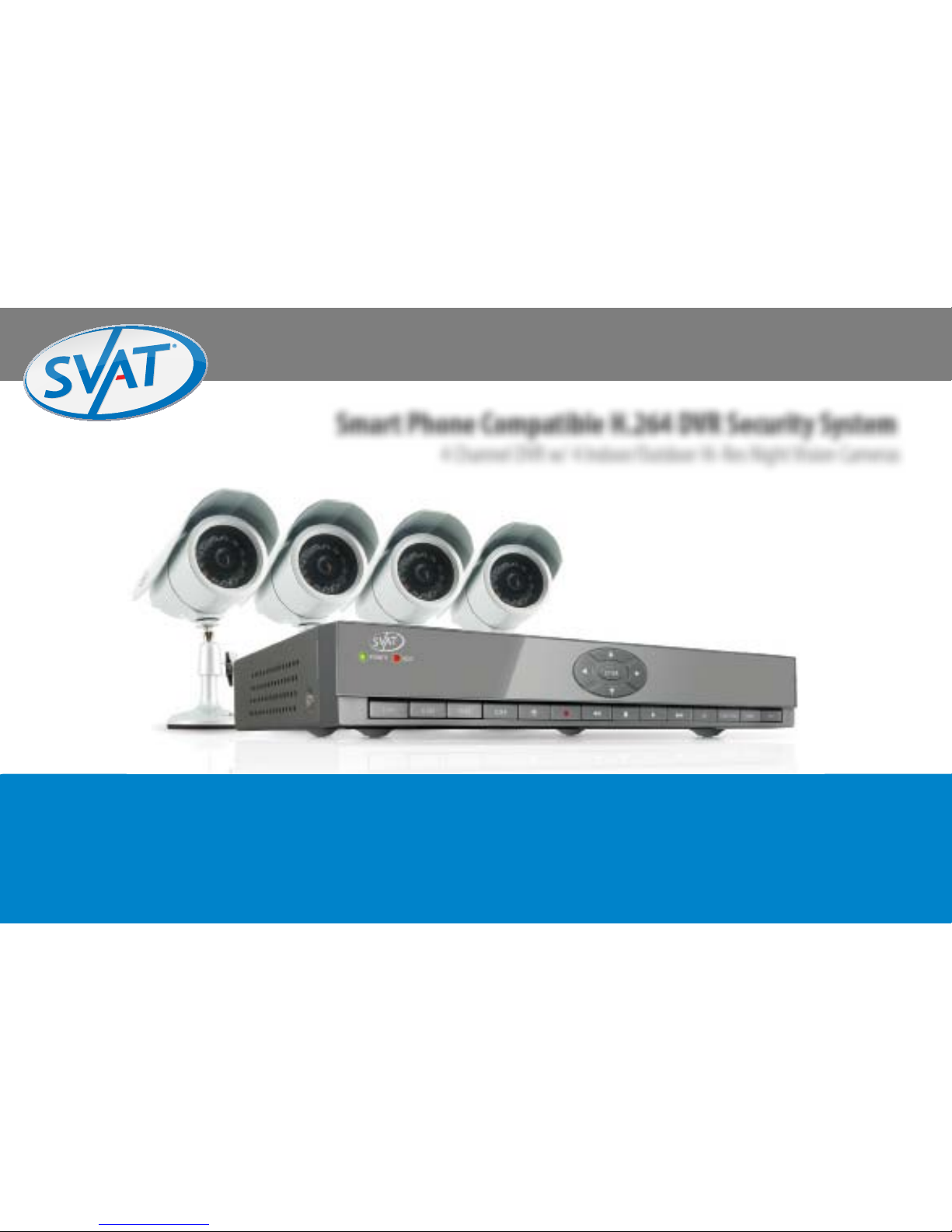

Smart Phone Compatible H.264 DVR Security System

4 Channel DVR w/ 4 Indoor/Outdoor Hi-Res Night Vision Cameras

Congratulations on your purchase of the CV502-4CH! This user friendly system will allow you to monitor and protect your home or business. The coaching iMenu makes setting

up and using your DVR very easy with helpful information bubbles that appear to assist you. The CV502-4CH comes equipped with H.264 compression which allows you to record

and store more footage using less space, so you will never miss an important event. This manual was written to ensure that you get the most out of your CV502-4CH DVR.

QUICK START GUIDE

CV502-4CH 2

SVAT ELECTRONICS

now you can see

BASIC SETUP

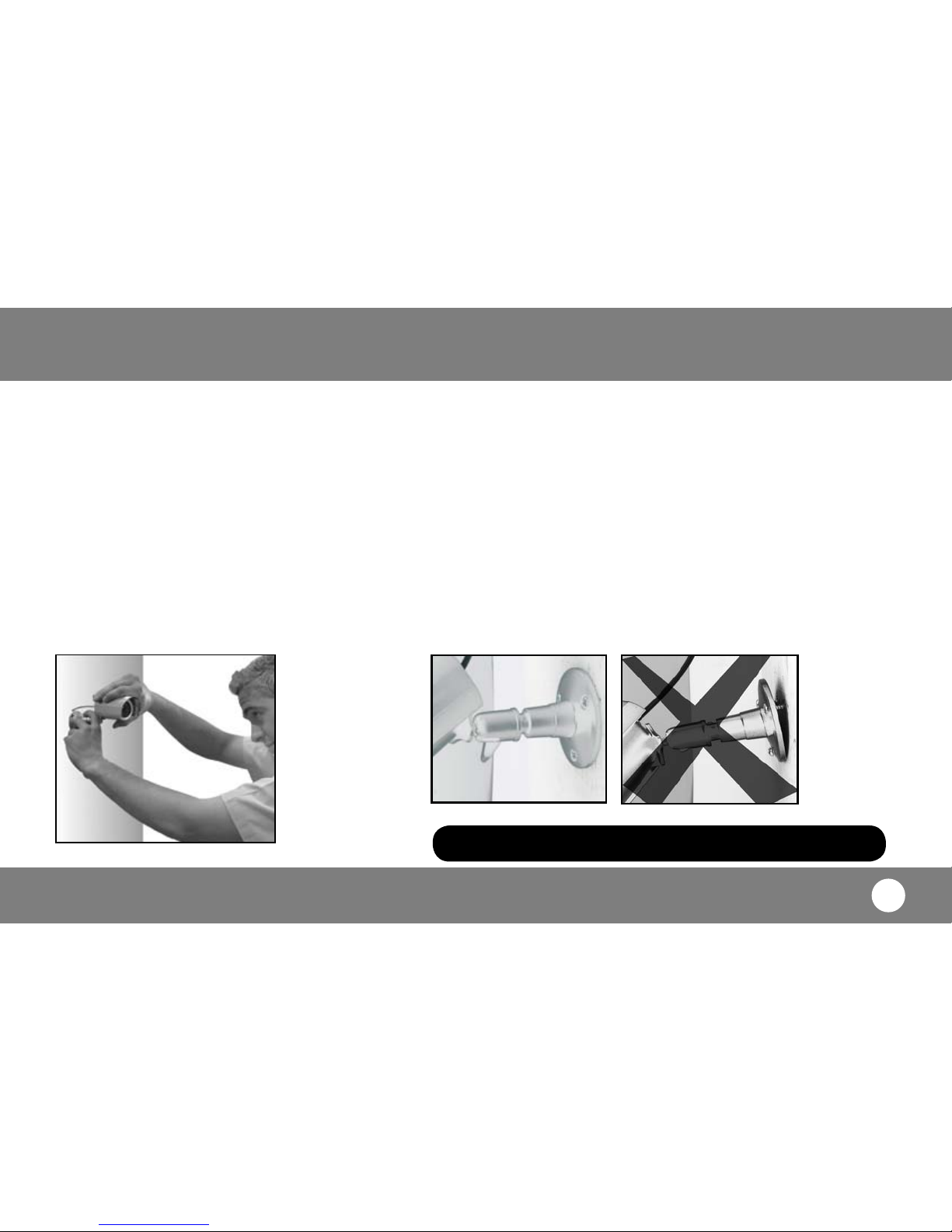

MOUNTING THE CAMERAS

Adjust camera to desired viewing angle Ensure the camera is secured into place

For more information on camera mounting, please see Pg. 8 and 84 of the manual

1. Decide if the camera will be wall-mounted or sit on a desk/tabletop. The camera can be adjusted for either mounting scenario by rotating it to the

required position.

2. Screw the mounting bracket into the camera’s mounting hole, turning it clockwise.

3. Mount the camera in the desired location no more than 60 ft from the DVR unless you have purchased additional wiring. You may mount the cameras on a

wall, ceiling or desk.

4. Ensure that the cameras are strongly secured into the wall.

5. Adjust cameras to the desired viewing angles.

6. For additional help on mounting the cameras, please see the drilling template, located at the back of the users manual.

CV502-4CH 3

SVAT ELECTRONICS

now you can see

ABC

BASIC SETUP

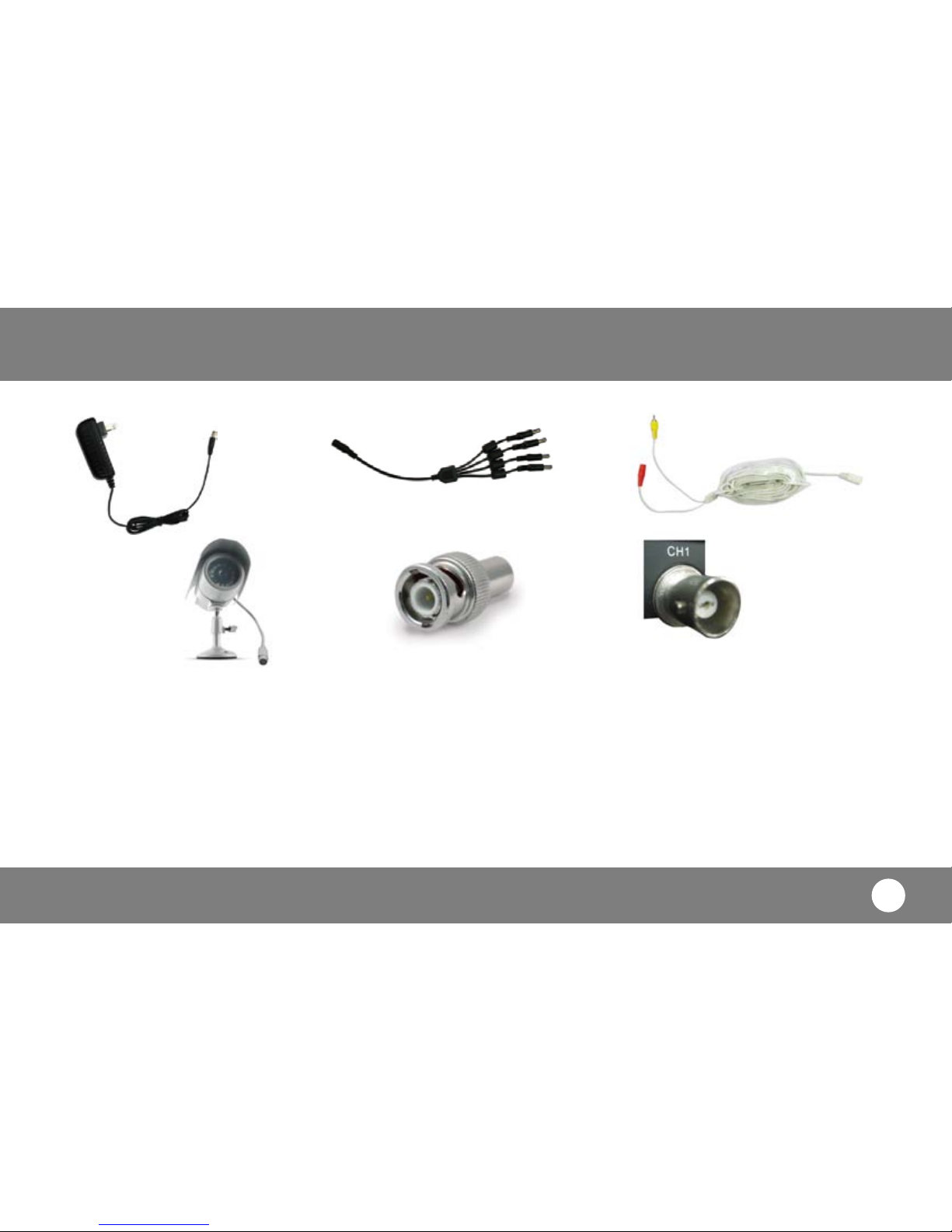

INSTRUCTIONS

1. Plug 12V adapter (A) into electrical wall outlet or surge protecting power bar.

2. Plug the single end of the four port power supply (C) into the male end of the 12V adapter (B).

3. Connect the 4PIN DIN female connection on the camera (E) into the 4PIN DIN male connection on the 60ft video power wire (F).

4. Plug the power jack (G) from the 60ft video/power wire into one of the ports of the four port power supply (D).

5. Attach the BNC to RCA connector (L) to the video inputs (J) on the back of the DVR.

6. Connect the yellow male RCA plug (H) from the 60 ft cable to the BNC to RCA (K) connector on your DVR.

7. Repeat the above steps for all of the included cameras.

CV502-4CH 4

SVAT ELECTRONICS

now you can see

CONNECTING A USB MOUSE

It is recommended to connect the included

USB mouse before powering on the DVR. This

will speed up the initializing process as well

as make the DVR easier to use.

1. Plug the USB connection on the mouse

into the top USB connection on the back

of the DVR.

Plug Mouse into rst USB port

BASIC SETUP

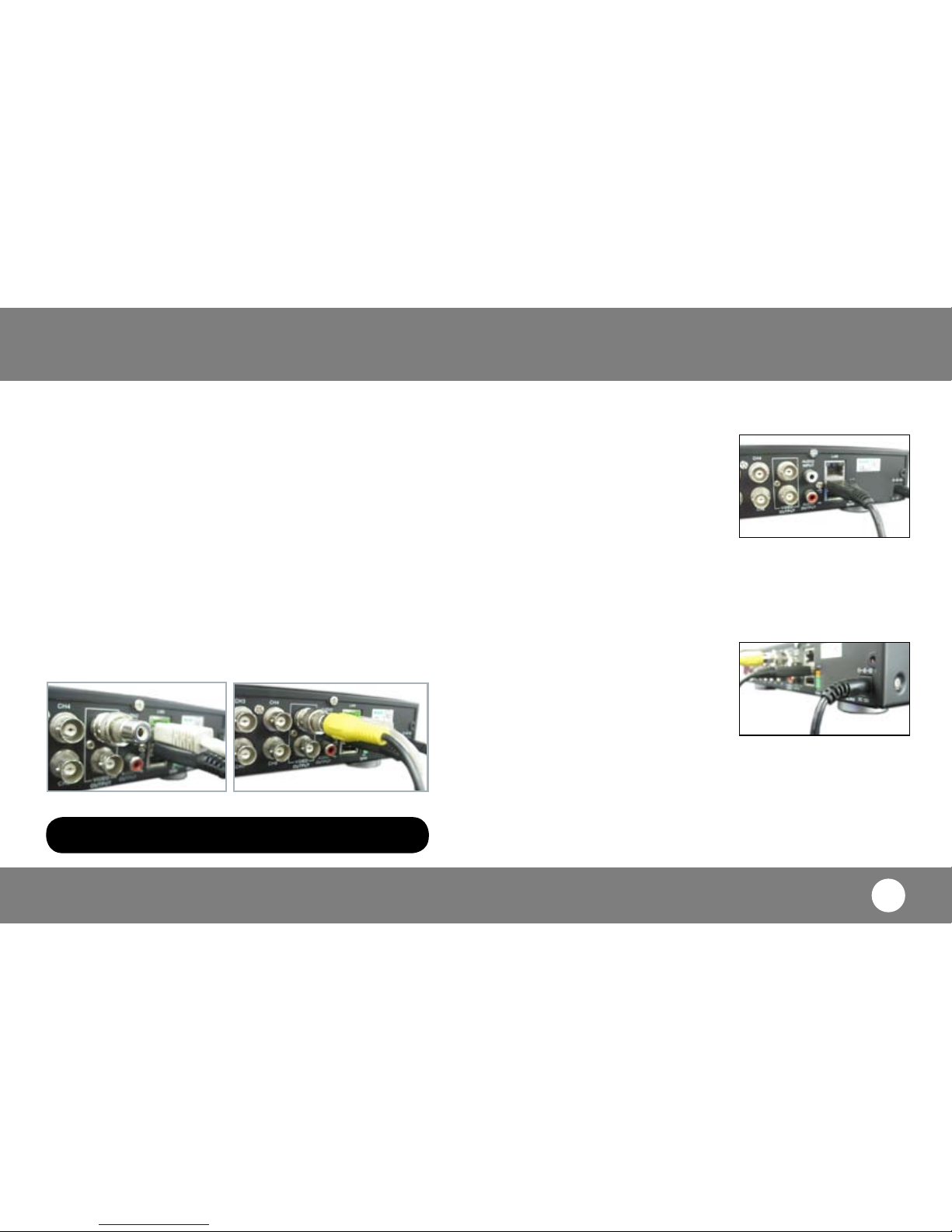

Plug in BNC to RCA connector Plug RCA cable to BNC

POWERING ON DVR

1. Insert the included power cord into the

included power supply.

2. Plug the power cord into a power

outlet (surge protected power outlet

recommended).

3. Insert the power supply wire into the rear

DC 12V port on the DVR.

• After a few seconds the splash screen

will appear and the DVR will start up.

Connect to a power source

For more information on basic setup please see Pg. 9-10 of manual

CONNECTING A MONITOR

1. Connect a BNC to RCA connector to the top VIDEO OUT connection on the

back of the DVR.

2. Plug the RCA cable into the BNC connector.

3. Attach the other end of the RCA cable to a yellow RCA video input on your

TV/monitor.

4. Switch the TV/Monitor source to view the DVR. (Consult the TV/Monitor

manual for instructions on how to switch the video source)

5. The bottom video out is for a second monitor. Plugging an RCA cable into

this video out would be the same as plugging it into the top video output.

CV502-4CH 5

SVAT ELECTRONICS

now you can see

GETTING STARTED

Now that you have powered up the DVR and properly connected it to a TV or monitor you are ready to begin setting up and using the DVR. This DVR is designed to

be user friendly. You will notice the coaching iMenu information bubbles describing settings that you will nd in the menu. As an added convenience the DVR will

automatically begin recording once it is powered on as long as at least one camera is properly connected.

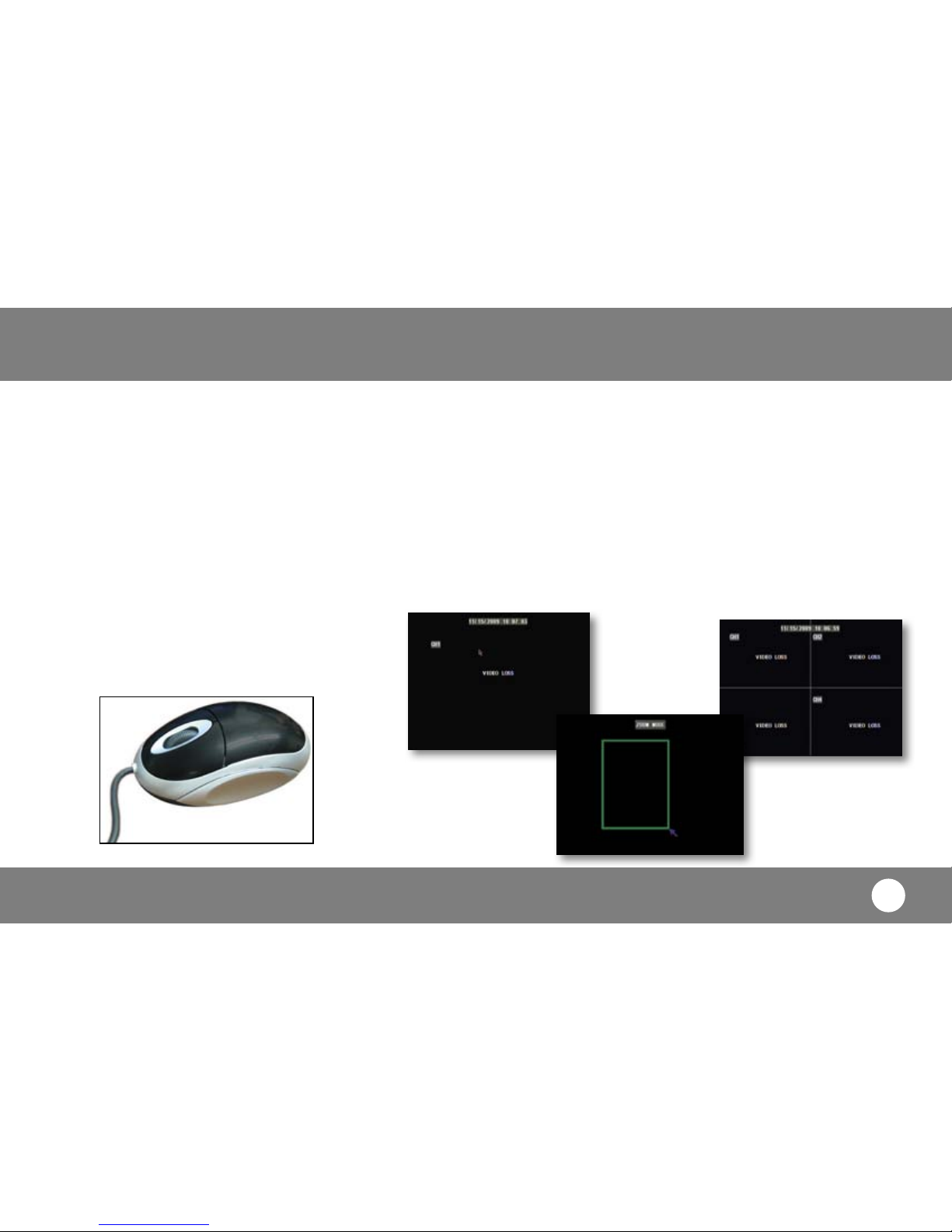

USING THE MOUSE

• The included USB mouse makes using the CV502-

4CH simple and ecient. Using the mouse will

make controlling the DVR very similar to using a

computer. It will allow you to easily click on items

to select them and make desired changes. The

mouse is not necessary for operation

Make sure that the mouse is connected to the top USB port

on the back of the DVR before powering on.

Full Screen Quad Screen

VIEWING YOUR CAMERAS

By double clicking one of the four camera screens, the viewing mode will switch to full screen

mode. Double clicking again will bring you to quad screen. From full screen mode you can

zoom into an area of the screen. For more information on zooming in, please see “zoom” on

page 15 of the Manual.

Zooming in

CV502-4CH 6

SVAT ELECTRONICS

now you can see

When you access any sub-menu there are a few options that may be

available on the bottom of the page.

The options include:

1. Default

2. Apply

3. Exit

GETTING STARTED

For more

information on the

main menu please

see Pg. 15 of the

manual

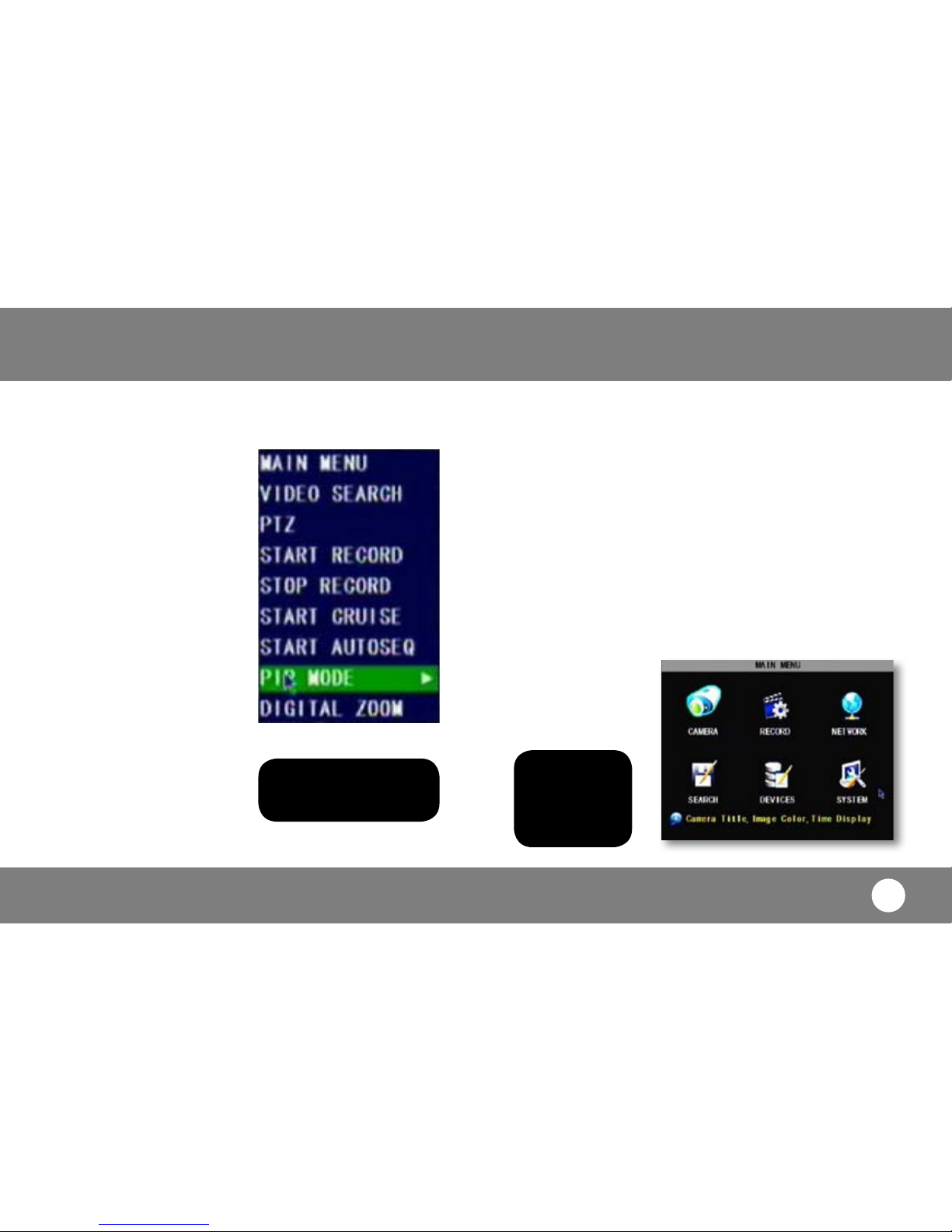

The main menu can be accessed by pressing the menu button on the

front of the DVR or by selecting it from the function menu.

To access the main menu with the mouse, right click and select main

menu from the function menu. On the DVR front panel and remote,

press the “menu” button.

To select anything from the main menu, left click the mouse, press select

on the remote or press “enter” on the front of the DVR.

MAIN MENU

For more information on the

function menu please see Pg.

12 of the manual.

FUNCTION MENU

1. By right clicking the mouse.

To access items on this menu

with the mouse move the mouse

pointer over the option to

highlight it and left click. To exit,

move the pointer o the menu

and left click.

2. Pressing select on the remote.

To access items on this menu with

the remote, use the arrow keys

to move and when the option is

highlighted, press select. To exit,

press the menu button.

3. Pressing the function button

To access items on this menu

with the front of the DVR use the

navigational key pad on the front

of the DVR to move and when the

option is highlighted, press enter.

To exit, press the menu button.

The Function Menu can be accessed 3

dierent ways:

Function Menu

CV502-4CH 7

SVAT ELECTRONICS

now you can see

NETWORKING GUIDE

REQUIREMENTS

You will need to have:

⁪ The DVR connected to a router

⁪ Your computer hooked up to the same network/router as the DVR

⁪ A PC or laptop that is connected to the same router that the DVR

is connected to. The PC can be connected by a wired or wireless

connection

⁪ Internet Explorer 6.0 or higher (to check your version of Internet

Explorer open I.E. In the top Menu bar select “Help” and then select

About Internet Explorer. The version of I.E. will be displayed.)

⁪ A genuine and fully updated version of Windows XP, Vista or newer

⁪ The brand and model number of your router (this is usually located on

the back or bottom of the router)

⁪ The port, web port and IP address that the DVR is programmed to

run o of. To view what ports are being used with your DVR see the

network setup menu on your DVR.

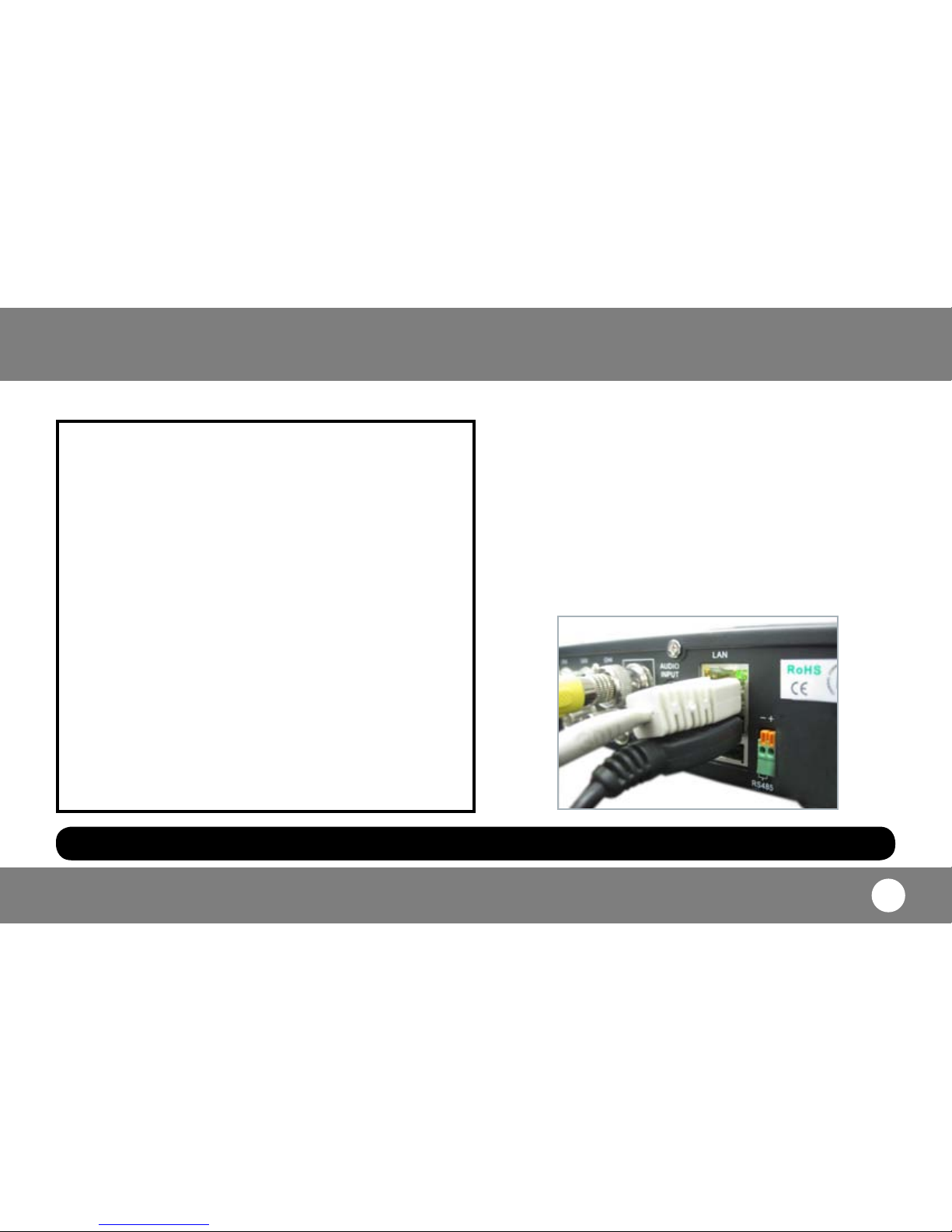

1. Power o the DVR by removing the power cable from the back of

the DVR.

2. Connect the included network cable to the back of the DVR in the

Ethernet port (LAN).

3. Connect the other end of the network cable to an available port on

the router.

4. Power on the DVR by reconnecting the power cable to the back of

the DVR.

CONNECTING DVR TO A ROUTER

Note: The computer and DVR need to be connected to the same router for initial setup. A computer will not always be necessary at the location to view the DVR.

CV502-4CH 8

SVAT ELECTRONICS

now you can see

1. Press Menu.

2. Enter password if prompted. The default password is 123456.

3. Select NETWORK SETUP.

4. Make sure the “IP Mode” is set to DHCP. This setting is acceptable for

most users.

• If the IP mode is not set to DHCP, use the drop down list next to

type and change the type so that it is set to DHCP. You must hit

“apply” and “exit” for the DVR to restart and retrieve an IP address

5. Write down your IP address, port and DNS. This information will be

used in the next few steps to view the DVR on your computer as well

viewing the DVR over the Internet.

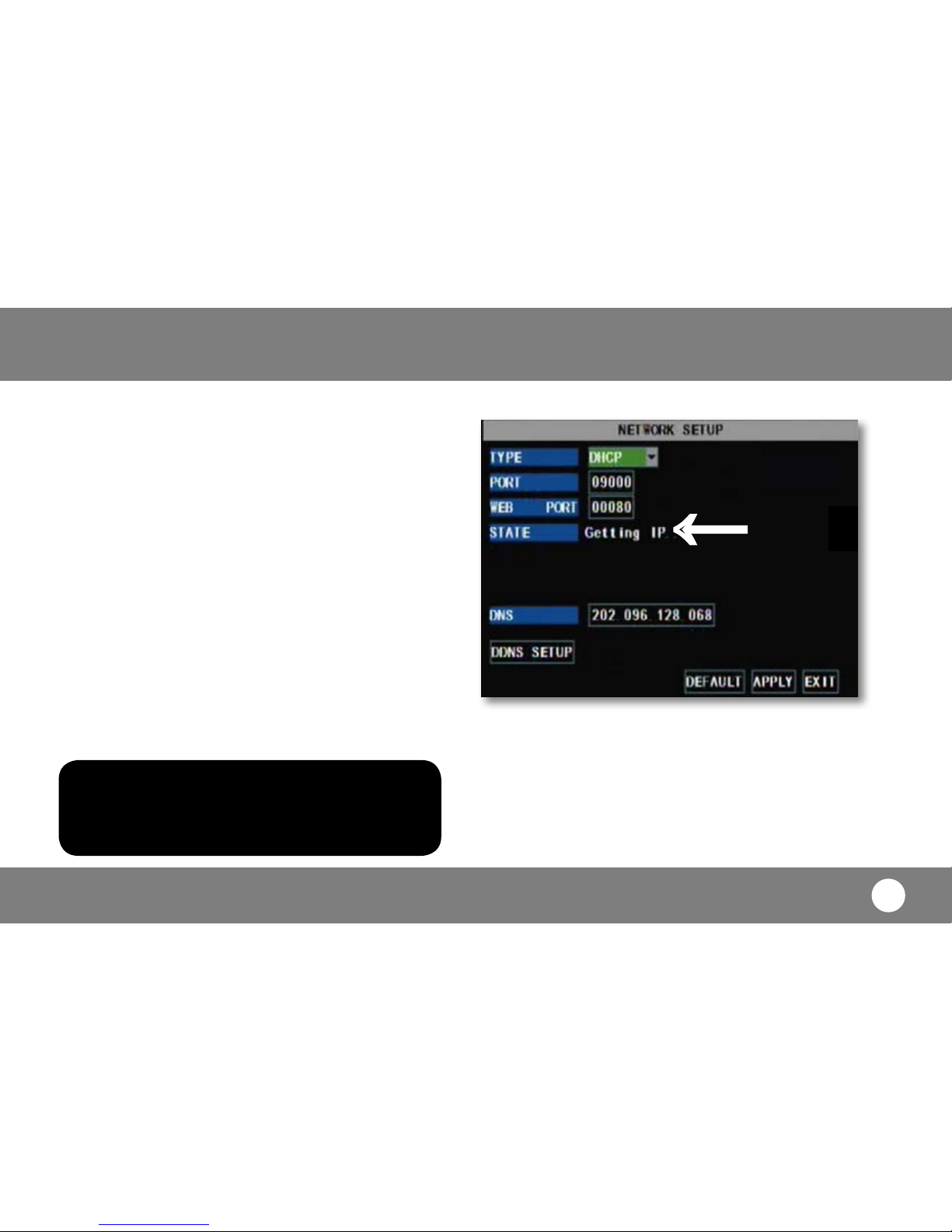

Finding your DVR’s IP Address

By default, the DVR IP mode is set to DHCP. This means the DVR will

automatically retrieve an IP address from the router that it is connected

to. Unless your network requires a static IP address leave the DVR IP mode

set as DHCP.

→

ONCE ACQUIRED,

YOUR IP ADDRESS

WILL APPEAR HERE

Note: If your router does not support DHCP, contact your

network administrator to supply you with the proper IP

information. If the DVR needs to store PPPoE (DSL/ADSL)

settings contact your ISP (Internet Service Provider) for the

proper IP address settings.

Preparing Your Computer for Viewing the DVR:

NETWORKING GUIDE

Every computer that is accessing the DVR will need to be congured to

download and run ActiveX controls. This change only needs to be made one

time on the computer that is accessing the DVR. This can be done by following

either of the two methods below. Method 2 only aects web sites that you

specically add to the trusted sites list. To change for all web sites, use

Method 1. (Methods on following pages)

CV502-4CH 9

SVAT ELECTRONICS

now you can see

Method 1:

5. Change the ActiveX Settings listed below.

• Download signed ActiveX controls:

PROMPT or ENABLED

• Download unsigned ActiveX controls:

PROMPT

• Initialize and script ActiveX controls not

marked as safe: PROMPT

• Run ActiveX controls and plug-ins: ENABLE

• Script ActiveX controls marked safe for

scripting: ENABLE

If this is an option:

• Allow automatic prompting for le and

code downloads: ENABLE

1. Open up Internet Explorer.

2. Click on TOOLS.

3. Click on INTERNET OPTIONS.

4. Click on the SECURITY tab, then click on the

CUSTOM LEVEL button in this tab.

6. Click OK.

7. Click “Apply”.

8. Close out of the Options window.

NETWORKING GUIDE

CV502-4CH 10

SVAT ELECTRONICS

now you can see

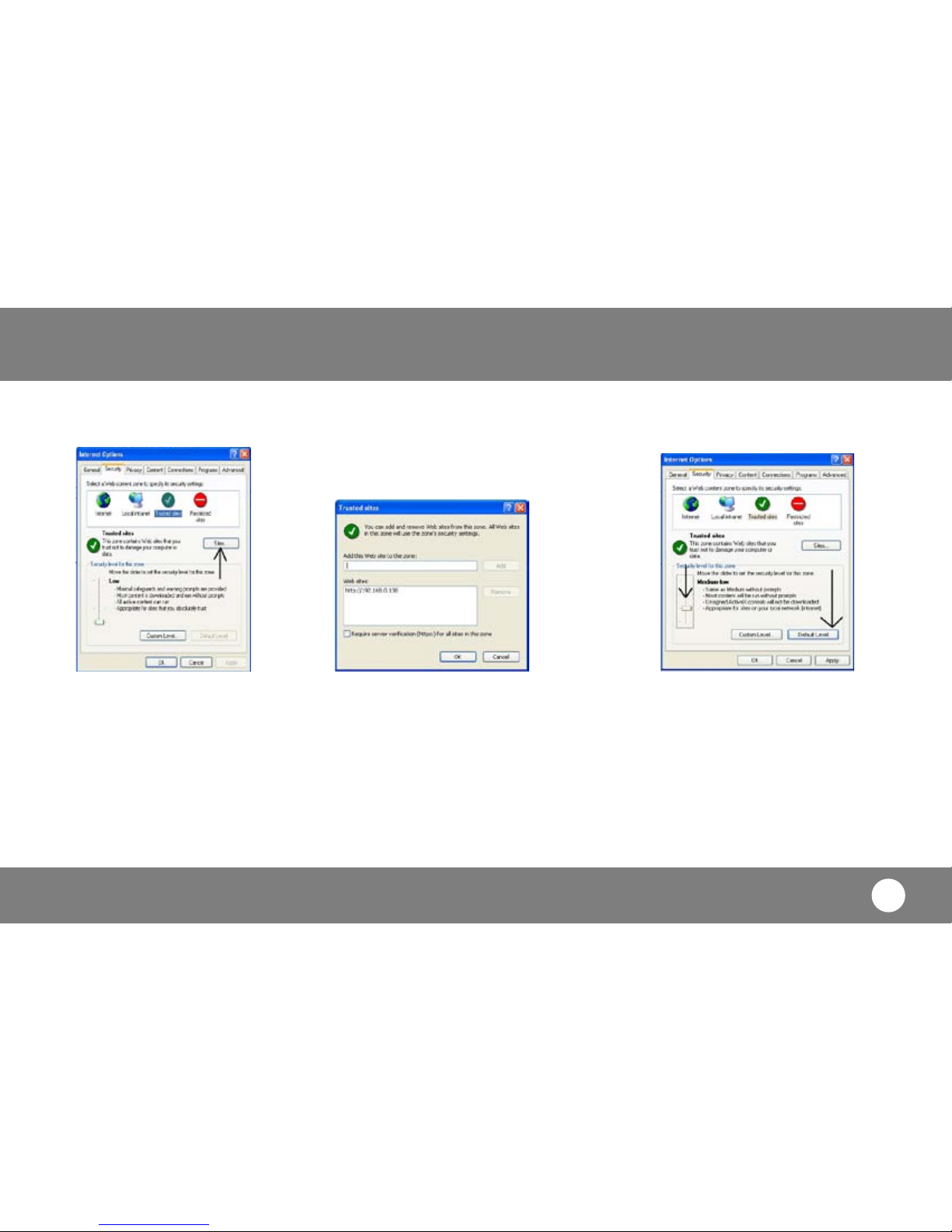

Method 2:

1. Open up Internet Explorer.

2. Click on TOOLS.

3. Click on INTERNET OPTIONS.

4. Click on the SECURITY Tab.

5. Click on TRUSTED SITES.

6. Click on the SITES button.

7. Type in the IP address of the DVR in the following

format: http://192.168.0.108 and click ADD.

8. If “Require server verication (https:) for all sites...” is

selected you will need to uncheck the selection box.

The IP address used in the example above is for internal

network viewing. If you are trying to access the DVR from a

remote location you will add the “External IP Address” to the

trusted sites list. See “Testing Port Forwarding” Pg. 15

9. Change the default settings for the TRUSTED SITES

zone to low. Click on DEFAULT LEVEL and change

the security level of the zone to “low”. This can

be done by sliding the slider to the bottom. This

will allow ActiveX controls from the DVR to be

downloaded and the DVR to be viewed on

the computer.

10. Click “Apply”.

11. Click OK.

NETWORKING GUIDE

Other manuals for CV502-4CH

Table of contents

Popular Security System manuals by other brands

Inner Range

Inner Range Concept 2000 user manual

Climax

Climax Mobile Lite R32 Installer's guide

CADDX

CADDX NX-6 user manual

FBII

FBII XL-31 Series installation instructions

Johnson Controls

Johnson Controls PENN Connected PC10 Install and Commissioning Guide

Aeotec

Aeotec Siren Gen5 quick start guide

Blaupunkt

Blaupunkt SA 2700 quick start guide

IDEAL

IDEAL Accenta Engineering information

AJAX

AJAX DoubleButton user manual

Swann

Swann SW-P-MC2 Specifications

Ecolink

Ecolink Siren+Chime user manual

Digital Monitoring Products

Digital Monitoring Products XR150 user guide

EDM

EDM Solution 6+6 Wireless-AE installation manual

Highway Safety Group

Highway Safety Group EA401 user manual

Siren

Siren LED GSM operating manual

Detection Systems

Detection Systems 7090i Installation and programming manual

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 instructions

Siemens

Siemens FDM273 manual
