SUMERAIN S1247CM User manual

MODEL: S1247CM

Version: 2.0

WIDESPREAD LED WATERFALL BASIN FAUCET

Dear Valued Customer,

SUMERAIN would like to take this opportunity to thank you for

purchasing SUMERAIN products. It is our sincere hope that you are

completely satisfied with your new purchase. We welcome any

questions or comments you may have and look forward to assisting you

in the future.

Sincerely,

SUMERAIN customer service department

1. Unpack your new product and ensure that all the parts are contained

in the packaging. Keep the product in its original box until you ready

to install it.

2. Shut off the water supply if replacing a previously-installed faucet.

3. Observe all plumbing and building codes in your area.

4. It is recommended that installation of the product be done by a

professional plumber.

5. SUMERAIN reserves the right to make revisions in the design of

faucets without notice, as specified with the price book.

Tools you may need when installing the faucet

Specification

Function Bathroom Sink Faucets

Feature LED, Waterfall, Widespread

Style Contemporary

Finish Chrome

Installation Holes Three Holes

Number of Handles Two knobs

Faucet Total Height 90mm [3.54 Inch]

Spout Spread 85mm [3.35 Inch]

Spout Width 81mm [3.19 Inch]

Spout Height 86mm [3.39 Inch]

Valve Type Ceramic Valve

Faucet Body Material Brass

Faucet Spout Material Stainless steel

SPOUT Net Weight 0.6 KG

Gross Weight 2.2 KG

Working water press 0.2 ~0.8 Mpa

LED power supply Water flow generator

LED Color changing

Water temperature < 28 ℃Blue color

Water temperature 28 ℃~ 38 ℃Green color

Water temperature > 38 ℃Red color

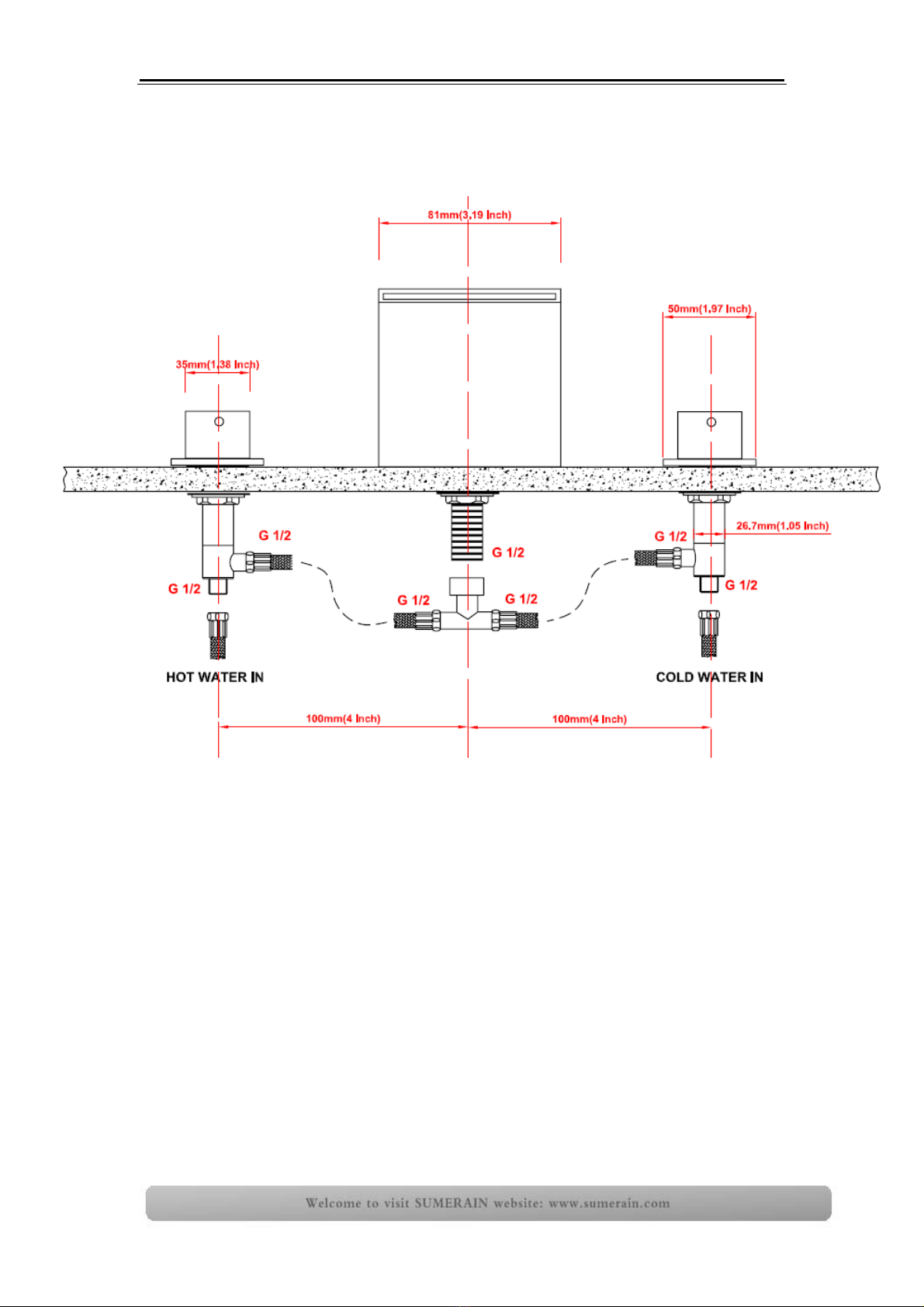

Dimension

CODE ITEM NAME QTY CODE ITEM NAME QTY

A Faucet Body 1PCS Q Valve body (Cold) 1PCS

C Foam gasket 2PCS D Knob 2PCS

E Escutcheon 2PCS F Rubber gasket 1PCS

G Nut 1PCS H Shank 1PCS

I Rubber gasket 1PCS J Rubber gasket 2PCS

K Nut 2PCS L Valve body(Hot) 1PCS

M T-pipe 1PCS N G1/2” Hoses 2PCS

O Hex wrenches 1PCS

P Hot/cold sign 2PCS

Step 1:

Screw the Shank ”H” with the faucet body “A” on the table ,screw

nut ”K” and Rubber gasket “F”.

Step 2:

Screw nut ”K” and put Rubber gasket “J” on Valve body “L”, fixing the

Escutcheon “E” with Foam gasket “C” and knob “D” on the table

use the hex wrench “O” screw the knob “D” and then put the hot sign

“P” on.

Install another cold valve body with the same way.

Step 3:

Connecting the flexible hoses “N” to the cold and hot water inlet (“L”

and “Q”), the other end of the hoses connect to the cold and hot water

supply system

Step 4:

Connecting the other connection pipes according to above diagram

Clean the faucets and showers as and when required. Regular■

cleaning can prevent calcification.

Never use cleaning materials contain hydrochloric■, formic,

phosphoric or acetic acid, which may cause considerable damage.

Never use cleaning materials or appliances with an abrasive effect,■

such as unsuitable cleaning powders, sponge pads, or micro fiber

cloths.

After cleaning, rinse thoroughly■the faucet with clean water to

remove any cleaner residue.

■Unscrew and clean the aerator regularly.

TROUBLESHOOTING

Symptom Solution

Faucet leaks from

the handle

A. Tighten the packing nut

B. Replace the "O" ring or packing

The water

pressure is too

low

A. Make sure the water supply valves under the sink are

turned on all the way

B. Clean or replace the aerator

C. Check plumbing system for water pressure problems

The spout sprays

water all over A. Clean or replace the aerator

B. Replace the aerator washer

Water is leaking

from the faucet

under the sink

A. Check the water supply connections to the faucet

B. Inspect the water supply lines or hoses for leaks

Handle is loose

A. Remove the cap and tighten the screw

B. Locate and tighten the hex set screw

C. Remove the handle and check for stripped teeth on the

stem.

LED does not

illuminate A. Increase the water press

B. Clean the strainer of hot and cold water inlet

HONGKONG SUMERAIN SANITARY INDUSTRY CO..LIMITED

Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL

Factory Address: Shuikou Industrial Park, Kaiping City, Guangdong Province,

China (Mainland)

Tel: +86-750-2731579

Toll Free: 400-0999-075 (China mainland)

Fax: +86-750-2715258

E-mail:[email protected]

SUMERAIN INTERNATIONAL GROUP – AMERICA Branch

Address: 13455 Harper Dr.

Saratoga, CA 95070

USA

Tel: +1-408-867-8884

FAX: +1-408-867-4272

E-mail:[email protected]
