StarTech.com SV431DHD4KU User manual

Manual Revision: 03/29/2019

User Manual

For the latest information and specications visit

www.startech.com/SV431DHD4KU

4-Port Dual HDMI KVM

Switch|4K 30Hz

Actual product may vary from photos

SKU#: SV431DHD4KU

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Compliance Statements

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void

the user’s authority to operate the equipment.

Industry Canada Statement

This Class A digital apparatus complies with Canadian ICES-003.

CAN ICES-3 (A)/NMB-3(A)

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and

other protected names and/or symbols of third-party companies not related in

any way to StarTech.com. Where they occur these references are for illustrative

purposes only and do not represent an endorsement of a product or service

by StarTech.com, or an endorsement of the product(s) to which this manual

applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com

hereby acknowledges that all trademarks, registered trademarks, service marks,

and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Safety Statements

Safety Measures

• Wiring terminations should not be made with the product and/or electric

lines under power.

• Product installation and/or mounting should be completed by a certied

professional as per the local safety and building code guidelines.

• Cables (including power and charging cables) should be placed and routed

to avoid creating electric, tripping or safety hazards.

Mesures de sécurité

• Les terminaisons de câblâge ne doivent pas être eectuées lorsque le produit

et/ou les câbles électriques sont sous tension.

• L’installation et/ou le montage du produit doit être réalisé par un

professionnel certié et dans le respect des normes locales et du code de

construction local.

• Les câbles (y compris les câbles d’alimentation et de chargement) doivent

être placés et acheminés de façon à éviter tout risque électrique, de chute ou

de sécurité

安全対策

• 電源が入っている状態の製品または電線の終端処理を行わないでくださ

い。

• 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に

従い、有資格の専門業者が行うようにしてください。

• ケーブル（電源ケーブルと充電ケーブルを含む）は、適切な配置と引き回し

を行い、電気障害やつまづきの危険性など、安全上のリスクを回避するよう

にしてください。

Misure di sicurezza

• I terminiali dei li elettrici non devono essere realizzate con il prodotto e/o le

linee elettriche sotto tensione.

• L’installazione e/o il montaggio dei prodotti devono essere eseguiti da un

tecnico professionale certicato che conosca le linee guida locali sulle norme

edilizie e sulla sicurezza.

• I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati

e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o

pericoli per la sicurezza.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Säkerhetsåtgärder

• Montering av kabelavslutningar får inte göras när produkten och/eller

elledningarna är strömförda.

• Installation och/eller montering får endast göras av behöriga yrkespersoner

och enligt gällande lokala förordningar för säkerhet och byggnormer.

• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så

sätt att risk för snubblingsolyckor och andra olyckor kan undvikas.

Warning Statements

• Make sure to assemble this product according to the instructions. Failure to

do so might result in personal injury or property damage.

• Never use this product if parts are missing or damaged.

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Table of Contents

Compliance Statements........................................................................1

Safety Statements..................................................................................2

Warning Statements ..............................................................................3

Product Diagram ....................................................................................6

Front View.................................................................................................................................................... 6

Rear View...................................................................................................................................................... 7

Product Information ..............................................................................8

Package Contents ..................................................................................................................................... 8

Requirements ............................................................................................................................................. 8

Installation ..............................................................................................9

Connect the Console to the KVM Switch.......................................................................................... 9

Connect a Computer to the KVM Switch.......................................................................................... 10

Installing the Feet ..................................................................................................................................... 11

Operation ................................................................................................11

Hotkey Commands................................................................................................................................... 11

Push Button Control................................................................................................................................. 13

EDID Copy................................................................................................14

Copying EDID Settings............................................................................................................................ 14

Auto Learning EDID Settings ................................................................................................................ 14

Resetting EDID Settings.......................................................................................................................... 15

About the LED indicators......................................................................16

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Troubleshooting.....................................................................................17

PC BIOS Change......................................................................................................................................... 17

EDID ............................................................................................................................................................... 18

Keyboard and Mouse............................................................................................................................... 19

Connected USB Device ........................................................................................................................... 19

Functionality............................................................................................................................................... 20

Display Device............................................................................................................................................ 21

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Diagram

Actual product may vary from photos.

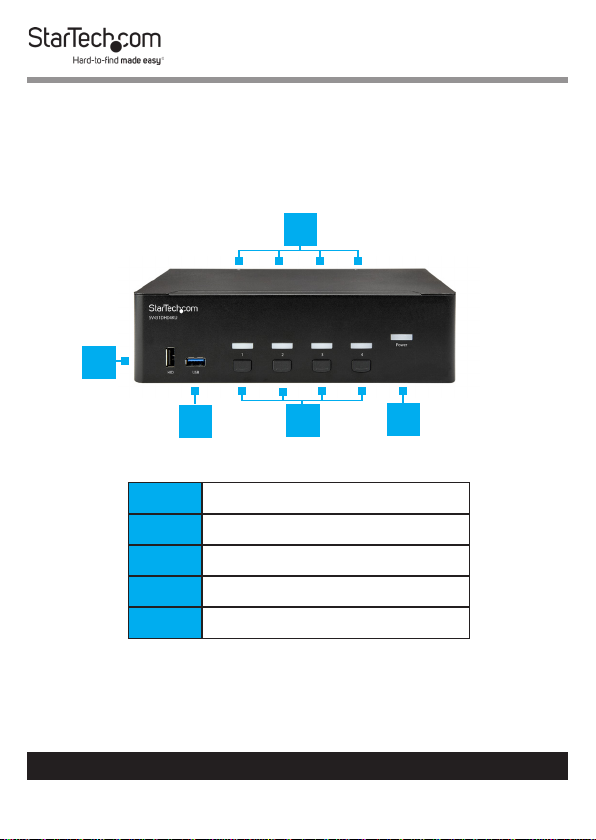

Front View

1USB HID Port

2Port LEDs

3USB 3.0 Hub Port

4Port Selection Buttons

5Power LED

345

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Rear View

1Power Adapter Port

2Console HDMI Ports (2)

3EDID Copy Buttons (2)

4PC HDMI Ports (8)

5USB HID Ports (3)

6Console Audio Port

7PC USB Ports (4)

8PC Audio Port (4)

9USB 3.0 Hub Port

2 3 4

567 98

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Product Information

Package Contents

• KVM Switch x 1

• Universal Power Adapter (NA/JP, EU, UK, ANZ) x 1

• Rubber Feet x 4

• Quick-Start Guide x 1

Requirements

Requirements are subject to change. For the latest

requirements, please visit www.StarTech.com/SV431DHD4KU.

• HDMI cables

• USB-A to USB-B or USB-C to USB-B cables

• 3.5 mm audio cables

• Computer system or video card enabled with HDMI

• Computer system enabled with USB

• Display device (e.g. monitor, projector, TV, and so on) enabled

with HDMI

• Standard USB keyboard and mouse (wired or wireless)

To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

Installation

Connect the Console to the KVM Switch

1. Turn o your Computer and any connected devices or

peripherals (e.g. printers, external hard drives, etc.).

2. Connect an HDMI Cable to the Console HDMI Port on the

KVM Switch and to a Display Device.

Note: Repeat step 2 to connect additional Display Devices.

3. Connect a Keyboard’s USB Connector to a USB HID Port

on the KVM Switch.

4. Connect a Mouse’s USB Connector to a USB HID Port on

the KVM Switch.

5. The following are optional connections:

• Connect a Speaker’s 3.5 mm Connector to the Console

Audio Port on the KVM Switch.

• Connect a USB peripheral’s Connector to the USB Hub

Port on the KVM Switch.

• Connect additional HID Devices (touch pads,

touchscreens, number pads, etc.) to an available HID Port

on the KVM Switch.
