StarTech.com SV431DVIUA User manual

Manual Revision: 10/01/2012

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SV431DVIUA

4 Port DVI USB KVM Switch with Audio

and USB 2.0 Hub

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use ofTrademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction ...........................................................................................1

Features ........................................................................................................................................................ 1

Before You Begin ....................................................................................................................................... 1

Package Contents ..................................................................................................................................... 1

Installation ..............................................................................................2

Console Connections............................................................................................................................... 2

Connecting Slave Computers............................................................................................................... 3

Operation ................................................................................................4

Rack Mount Kit (Optional) ....................................................................6

Troubleshooting.....................................................................................7

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com 4 Port StarView DVI USB KVM Switch. This

product oers a cost-eective way to operate up to four computers or servers from a

single keyboard, monitor and mouse peripheral set, while saving valuable deskspace.

Featuring USB peripheral sharing, audio switching and astounding video resolutions of

up to 1920 x 1200 (@60/70Hz), this is the perfect combination of computer control and

multimedia quality.

Features

• Convenient audio selection and video signal adjustment

• Allows up to four computers to share up to 4 dierent USB peripherals

• Front panel push buttons provide easy computer selection

• Requires no drivers for keyboard or mouse operation

• No software requirements

Before You Begin

System Requirements - Console Side

• 1 x DVI monitor

• 1 x USB keyboard

• 1 x USB Mouse

System Requirements - Computer Side

• 1 x DVI-I (Single Link) Cable

• 1 x USB A-B Cable

Package Contents

• 1 x Instruction Manual

• 1 x DVI USB KVM Switch

• 1 x Rubber Foot Pad Set

• 1 x Power Adapter

Instruction Manual

Installation

PC BIOS Notice: The following BIOS setup changes are necessary for PC users but are not

required for Mac users:

1. In STANDARD CMOS, set HALT ON ERROR to ALL BUT KEYBOARD.

2. In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set the USB

IRQ to ENABLED.

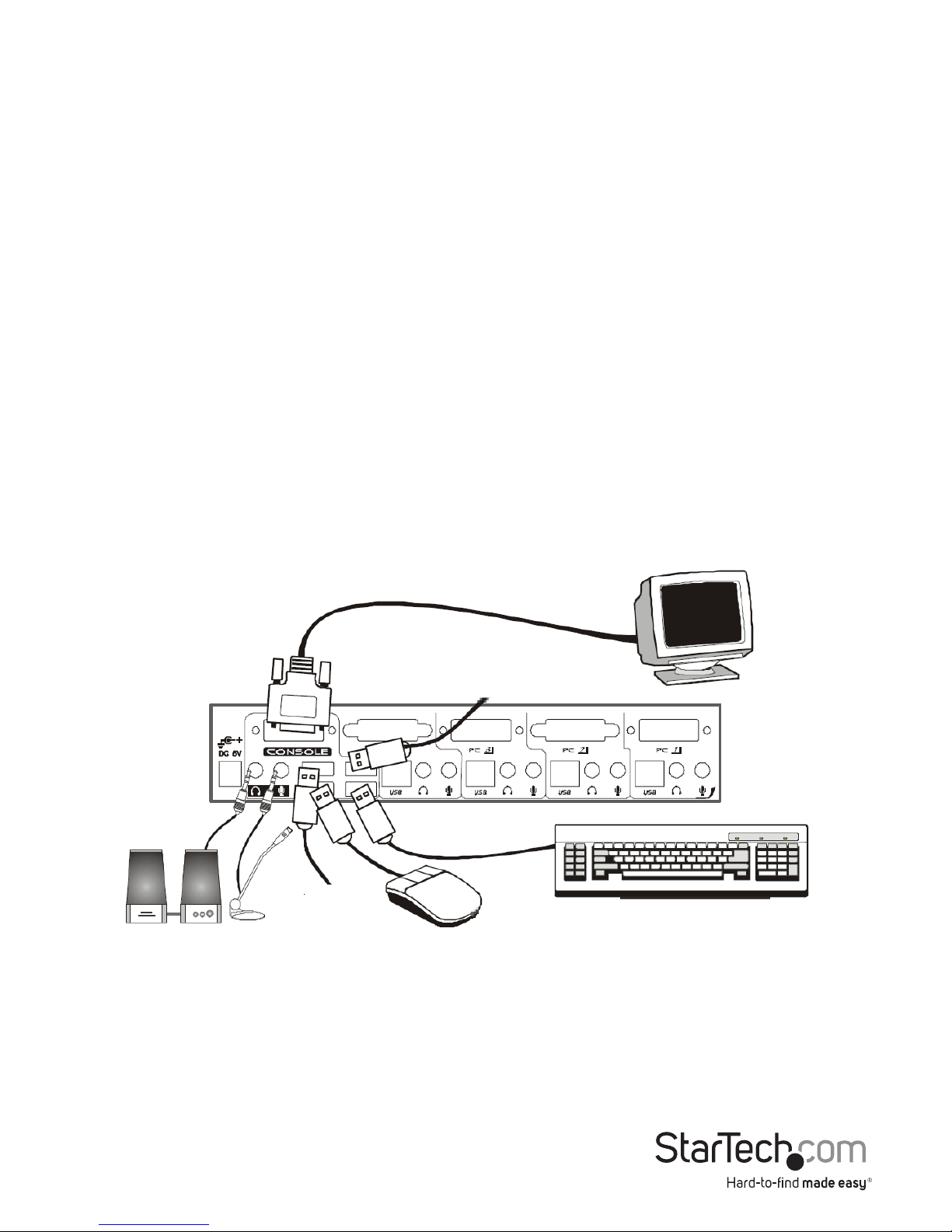

Console Connections

Before installation, please ensure that all devices and computers to be connected to

the KVM Switch have been turned o.

1. Connect the monitor that will be used to the Console DVI port on the rear panel

of SV431DVIUA

2. Connect a USB keyboard and a USB mouse to any two of the Console USB ports as

shown below:

USB Device

USB Mouse

USB Keyboard

Instruction Manual

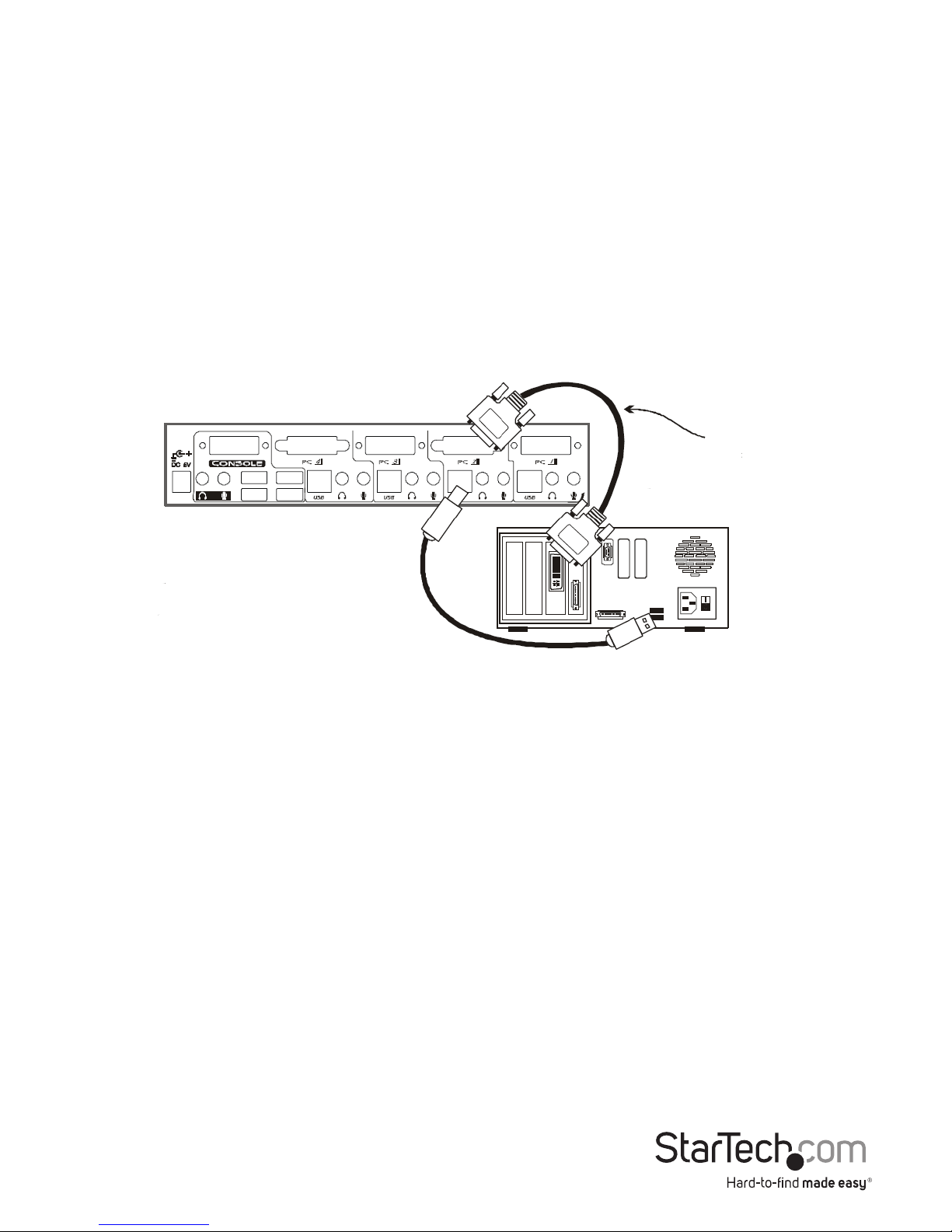

Connecting Slave Computers

There are two options for connecting slave computers to SV431DVIUA:

1. a) Using a Male to Male DVI-D (Single Link) cable, connect the computer’s DVI port

to one of the four available PC ports (PC 1, PC 2, PC 3, PC 4) as shown below.

b) Using a USB A-B Cable, connect the USB port that corresponds with the PC port

used in step 1, to the USB port on the corresponding computer, as shown below.

2. Use a 4-in-1 USB, DVI, Audio and Microphone KVM Switch cable, such as

USBDVI4N1A15 to connect each computer to the desired port. For more

information, please see Accessory Products from StarTech.com.

Repeat steps 1a and 1b or and 2 to connect the remaining computers to the available

ports. Devices and computers that are connected to SV431DVIUA can now be

turned on.

Male to Male DVI

One USB patch cable

for both keyboard and

mouse

Instruction Manual

Operation

Please note: SV431DVIUA can be used with a VGA connection to controlled (slave)

computers, however an adapter must be used to make the connection (please see

Accessory Products from StarTech.com - DVIVGAMF).

Also note: Analog and digital connections cannot be used concurrently. To

successfully connect SV431DVIUA to the slave computers, all connections must be

either digital or analog.

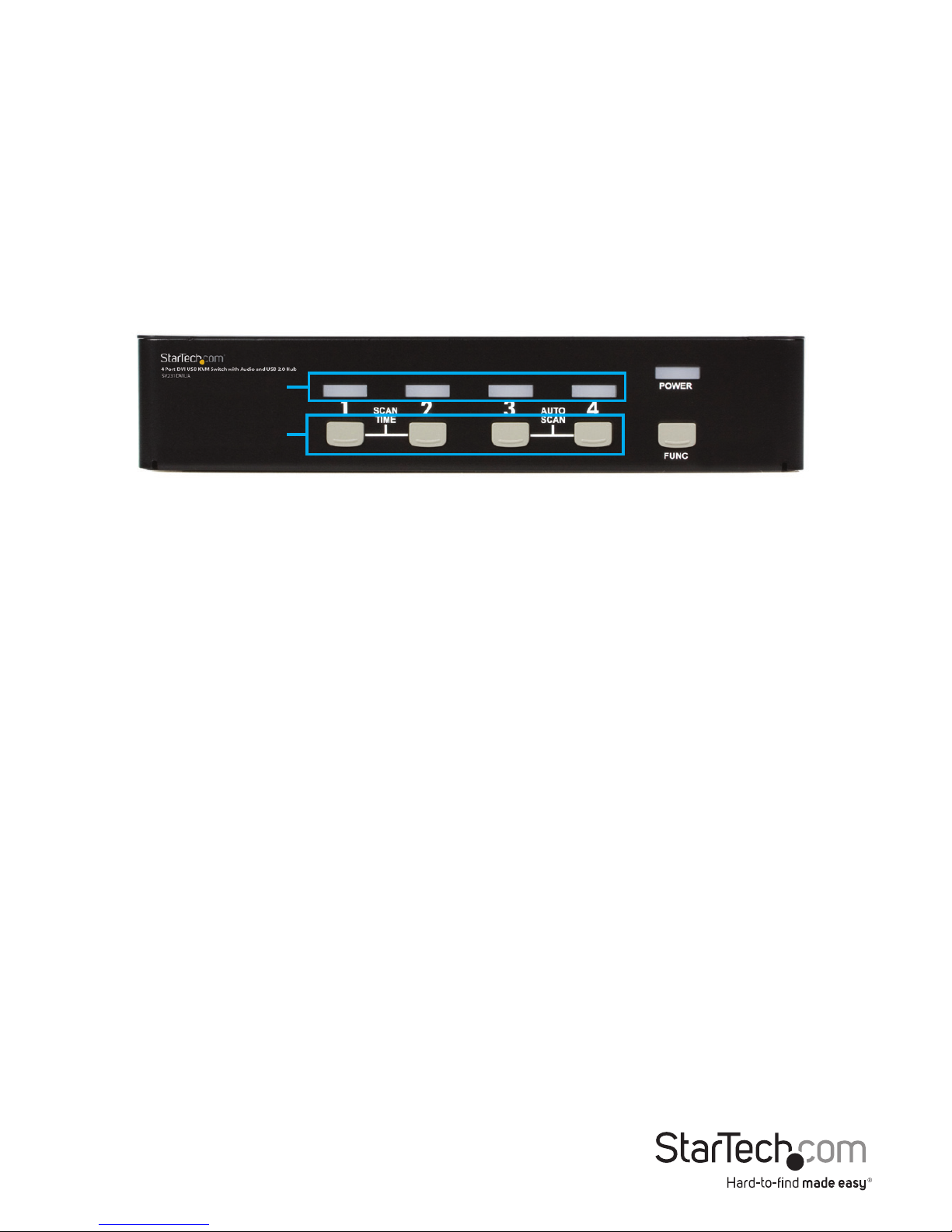

1. Online/Selected LEDs

When the LED turns green, the computer connected to the corresponding port is

powered-on. When a computer is selected, its corresponding red LED illuminates.

2. Pushbuttons

Each computer has a button associated with it on the front panel for selection. For

example, to switch to computer 2, press the 2 button.

Auto Scan

Auto Scan automatically scans through computers one at a time, in a xed interval.

Please note: keyboard and mouse are not operable during Auto Scan. To activate

Auto Scan, press down front panel push buttons 3 and 4 simultaneously. The port LED

ashes during Auto Scan. Auto Scan is eective for powered-on computers only. To exit

the Auto Scan mode, just tap any one of the front panel pushbuttons.

Scan Time

This selection sets the scan interval for the Auto Scan feature. The Scan Time options

are 3, 8, 15 and 30 seconds. Please note: Scan Time is automatically set to a default of 3

seconds, in the event that SV431DVIUA loses power. To change the Scan Time interval,

press both front panel buttons 1 and 2 simultaneously. SV431DVIUA will beep 1, 2, 3 or

4 times for scan time of 3, 8, 15 or 30 seconds respectively.

Instruction Manual

“FUNC” Button

To adjust the optimal video signal strength corresponding to the length or quality of

DVI cable being used, use the FUNC button in combination with the other front

panel pushbuttons.

1. Press the FUNC button three times. The POWER LED will ash once per second.

2. To adjust equalization of the selected port input video strength, press button 1 once

or twice; SV431DVIUA will beep once (normal) or twice (enhanced) respectively.

To adjust the output current of a selected port, press button 3 once or twice ;

SV431DVIUA will beep once (normal) or twice (enhanced) respectively.

To adjust the output emphasis of the selected port, press button 4 once, twice,

three or four times; SV431DVIUA will beep once (no pre-emphasis), twice (low

preemphasis), three times (medium pre-emphasis), or four times (high pre-

emphasis), respectively.

3. Once you have entered the desired settings, press the FUNC button once to save

and exit function settings.

To select the audio signal from any port of 4 connected computers, press the FUNC

button in combination with the other pushbuttons.

1. Press and hold the FUNC button.

If all four green LEDs illuminate: The audio port and the selected COM port are the

same - this is referred to as “tracking mode”.

If just one green LED illuminates (indicating the selected audio port): The audio port

is dierent from the selected computer port - this is referred to as

“non-tracking mode”.

2. While still pressing the FUNC button:

Press the button that corresponds numerically with the desired audio port. e.g if

you wish to select the signal from port 3, press the 3 button while still holding the

“FUNC” button.

Press buttons 1 and 2 to enter tracking mode.

3. Once you have entered the desired settings, press the FUNC button once to save

and exit function settings

Instruction Manual

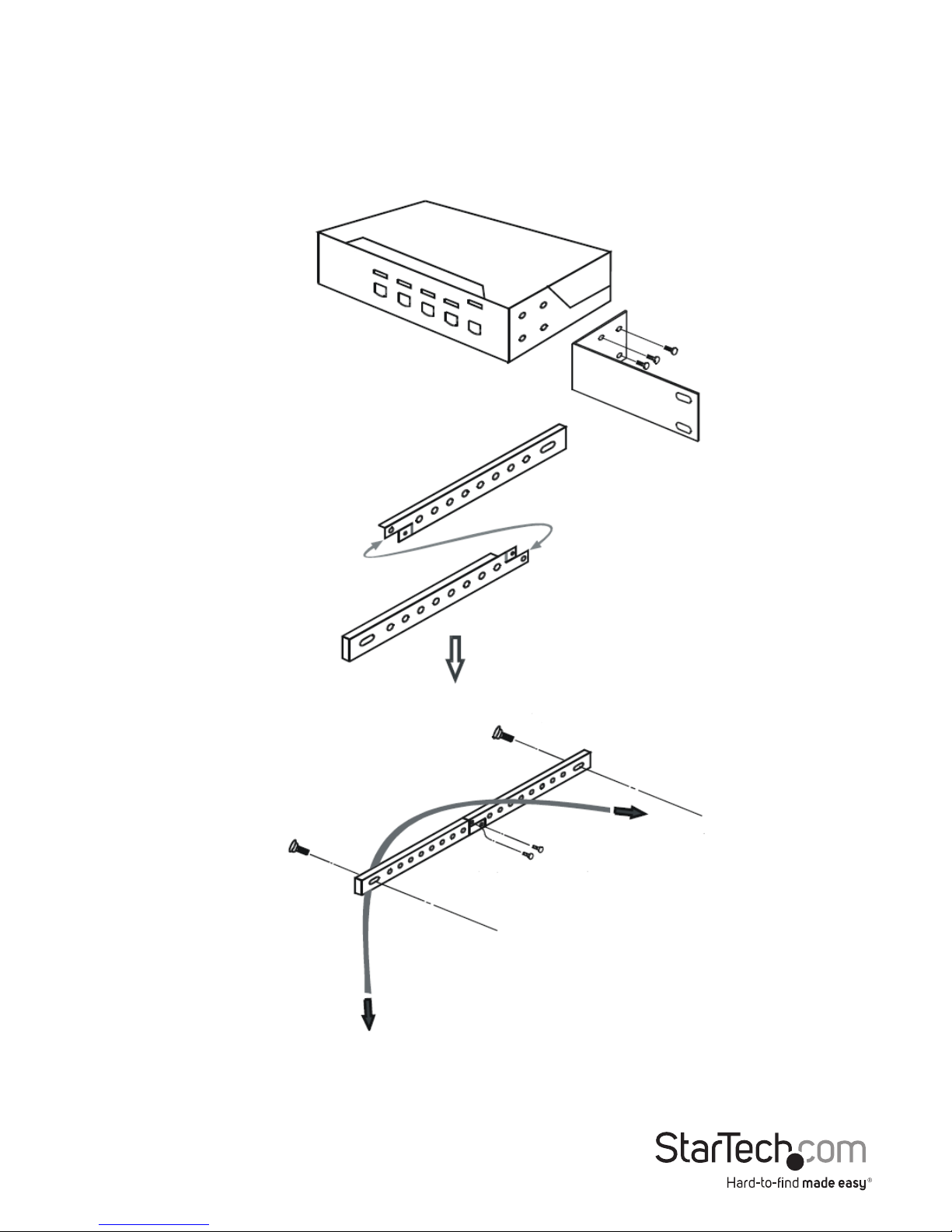

Rack Mount Kit (Optional)

The gure below shows how to attach optional mounting brackets and cable support

(SV431RACK) to SV431DVIUA for use with a standard 19” rack cabinet:

To Rack Cabinet Back Post

USB to monitor cables to

the switch

To Rack Cabinet

Back Post

USB or monitor

cables to a

computer

Two screws

secure the

cable support

Instruction Manual

Troubleshooting

Symptom Causes Solution

Keyboard or mouse does

not work

In Auto Scan mode, the

keyboard and mouse

are not operable.

Press any front panel

button to select a

computer, then use the

keyboard and mouse.

Newly installed USB device

does not work

Improper device driver

Device consumes too

much power.

Improper device

initialization

Re-install device driver.

The device should be

self-powered; add a

power adapter to the

device.

Be sure the USB cable

is well seated to ensure

communication

Computer hangs while

switching computers

Device initialization

takes too much time

Wait at least 5

seconds before

computer switching

to ensure proper USB

communication.

Turn o device

driver (not keyboard

nor mouse) before

switching.

Auto Scan does not switch

PC automatically and

SV431DVIUA beeps

All PCs are o or only

one PC is turned on.

Scan mode works for

power-on computers

only.

Turn computers on.

Poor video resolution Improper video settings

To adjust the optimal

video signal strength

corresponding to the

length or quality of DVI

cable, press the FUNC

button combined with

the other buttons.

Table of contents

Other StarTech.com Switch manuals

StarTech.com

StarTech.com SV831DUSBA User manual

StarTech.com

StarTech.com ST3300G3UA User manual

StarTech.com

StarTech.com SV211KDVI User manual

StarTech.com

StarTech.com DuraView RACKCONS1708 User manual

StarTech.com

StarTech.com ST7300USBME User manual

StarTech.com

StarTech.com DisplayPort MSTDP124DP User manual

StarTech.com

StarTech.com CAB831HD User manual

StarTech.com

StarTech.com 4PORT-8K-HDMI-SWITCH User manual

StarTech.com

StarTech.com ST4200MINI User manual

StarTech.com

StarTech.com DS152M System manual

StarTech.com

StarTech.com SV1654DX4I User manual

StarTech.com

StarTech.com SV211KUSB User manual

StarTech.com

StarTech.com 5G7AINDRM-USB-A-HUB User manual

StarTech.com

StarTech.com ICUSB23216FD User manual

StarTech.com

StarTech.com ST4300USB3 User manual

StarTech.com

StarTech.com SV215MICDVIA User manual

StarTech.com

StarTech.com SV431HDU3A2 User manual

StarTech.com

StarTech.com C2-H46-UAC-CBL-KVM User manual

StarTech.com

StarTech.com DS52000 User manual

StarTech.com

StarTech.com ST7CU35122 User manual

StarTech.com

StarTech.com SV431DPU3A2 User manual

StarTech.com

StarTech.com SV231HU34K6 User manual

StarTech.com

StarTech.com SV211KT Manual

StarTech.com

StarTech.com DH5102E User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
