StarTech.com SV231DD2DUA User manual

Dual DVI USB KVM Switch

2/4-Port Dual DVI, USB

KVM Switch with Audio and

USB 2.0 Hub

SV231DD2DUA

SV431DD2DUA

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 1

Hardware Installation...................................................................2

Driver Installation.........................................................................4

Operation......................................................................... 4

Front Panel ..................................................................................4

Rear Panel (SV431DD2DUA only) ..............................................5

HotKey Control ............................................................................6

Alternative Hotkey Commands ....................................................8

Speciﬁcations.................................................................. 9

Technical Support........................................................... 10

Warranty Information...................................................... 10

Introduction

Packaging Contents

1 x SV231DD2DUA or SV431DD2DUA KVM switch•

1 x Power Adapter•

1 x Instruction Manual•

System Requirements

A standard 104-key USB keyboard•

A standard 3-button USB mouse•

DVI capable computer video card and DVI capable monitor/display•

Installation

NOTE: Prior to the installation, please power off all devices that will be

connected to this system.

Ensure that all devices you will connect are properly grounded.

Place cables away from ﬂuorescent lights, air conditioners, and

machines that are likely to generate electrical noise.

If you experience any problems using a USB KVM switch, the

following BIOS setup changes may be necessary for PC users and not

necessary for Mac users:

Set HALT ON ERROR to ALL BUT KEYBOARD.•

In PNP AND PCI SETUP, set PNP OS INSTALLED to YES and set•

USB IRQ to ENABLED.

Different systems may use different naming, so contact your system

manufacturer for further assistance with these settings.

Hardware Installation

Link/Selection

LED Power LED

Selection

Button

Front View (SV431DD2DUA shown)

Rear View (SV431DD2DUA shown)

FUNC

button

power

input

headphone/

mic ports

mouse/

keyboard

USB ports

USB hub

DVI output to

display/monitor

PC1

connectors

to computer

PC2

connectors

to computer

PC3

connectors

to computer

PC4

connectors

to computer

* installation pictures are representation only

Plug 1 or 2 monitor(s) into the Console side DVI connector(s); plug a1.

USB keyboard and a USB mouse into the dedicated USB keyboard

and mouse ports on the KVM switch.

Use a male-to-male DVI video cable to connect the DVI connector(s)2.

on the computer’s video card, to one of the KVM’s PC ports

(ie. PC1). A dedicated DVI, USB and audio 4-in-1 KVM cable can be

used (ie. StarTech.com ID: USBDVI4N1A6).

Use a USB type A-B Cable to connect the KVM’s USB port (type B,3.

square connector) for the PC port used in Step 2, and the USB port

on the computer (type A, ﬂat connector).

Repeat for Steps 2 and 3 for each PC port on the KVM switch, or4.

each computer you wish to use on the KVM.

NOTE: Make sure that you have connected monitor(s) into the

Console’s DVI port(s) before plugging/unplugging the PC’s video

connector(s).

Driver Installation

No driver installation is required for the KVM switch, as the keyboard

and mouse uses native USB keyboard/mouse drivers that are already

installed on all operating systems that fully support USB.

Operation

Front Panel

PC Link/Selection LED

The LED turns green when the connected computer is powered-on.

The corresponding LED will also illuminate red when that PC port is

currently selected.

Port Selection Button

Pushing the front panel “Select” button toggles between the PC ports

on the KVM switch.

Auto Scan

The KVM automatically scans through the powered-on computers in

sequence on a ﬁxed time interval (see Scan Time below).

To activate Auto Scan, press down front panel push buttons “3” and “4”

simultaneously. The port LED ﬂashes during Auto Scan. Auto Scan is

effective for powered-on computers only. To exit the Auto Scan mode,

just tap any one of the push buttons. (SV431DD2DUA only)

NOTE: When Auto Scan detects any keyboard activity, it suspends the

scanning until the activity stops; it then resumes with the next computer

in sequence. The length of the Auto Scan interval (Scan Rate) is

adjustable, see below.

Scan Time

Four options are available for users to set the Scan Time duration,

which includes 3, 8, 15 and 30 seconds.

To change the Scan Time interval, press both front panel buttons “1”

and “2” simultaneously. The unit beeps 1, 2, 3 or 4 times for Scan Time

of 3, 8, 15 or 30 seconds respectively. (SV431DD2DUA only)

NOTE: Scan Time is automatically set to the default of 3 seconds when

the units loses power.

Rear Panel (SV431DD2DUA only)

To adjust the video signal strength/equalization settings for the length

or quality of DVI cable being used, the “FUNC” button combined with

the front panel push buttons can be used.

Press “FUNC” button three times, and the LED for “POWER” will1.

start to ﬂash once per second.

2. Press front panel push button “1” one or two times to adjust the

signal equalization with one beep (normal) or two beeps (enhance)

respectively.

Press front panel push button “3” one or two times to adjust the

video signal output current with one beep (normal) or two beeps

(enhance) respectively.

Press front panel push button “4” one, two, three, or four times to

adjust the output emphasis with one beep (no pre-emphasis), two

beeps (low pre-emphasis), three beeps (medium pre-emphasis), or

four beeps (high pre-emphasis).

Once the settings have been adjusted, press the “FUNC” button one2.

time to exit this mode.

HotKey Control

A Hotkey command is a short keyboard sequence for selecting a

computer, activating computer scan, etc. A hotkey sequence starts

with two left Ctrl keystrokes ( successively within 0.2 seconds ) followed

by one or two more keystrokes. A high-pitch beep will be generated

for each correct hotkey command; otherwise, one low-pitch beep is

generated for errors and the bad key sequence will not be forwarded to

the selected computer.

NOTE: Press and hold Left Shift and press NumLock twice, then

release Shift followed by pressing left Ctrl once, which will enable /

disable the hotkey feature.

To select a computer:

Left Ctrl + Left Ctrl + 1

(Example: Selects the computer at port 1.)

Left Ctrl + Left Ctrl + 2

(Example: Selects the computer at port 2.)

NOTE: Do not use the keypad on the right-side of the keyboard.

Auto Scan

The KVM automatically scans through the powered-on computers in

sequence on a ﬁxed time interval (see Scan Time below).

To start Auto Scan:

Left Ctrl + Left Ctrl + F1

To abort the Auto Scan mode, press the left Ctrl key twice.

NOTE: When Auto Scan detects any keyboard activity, it suspends the

scanning until the activity stops; it then resumes with the next computer

in sequence. The length of the Auto Scan interval (Scan Rate) is

adjustable, see below.

Manual Scan allows users to manually switch back and forth between

power-on computers.

Left Ctrl + Left Ctrl + F2

To select the previous or the next computer, press <UP> or <DOWN>

arrow keys. To abort the Manual Scan, press any other key.

Scan Time

Four options are available for users to set the Scan Time duration, it

Includes 3, 8, 15 and 30 seconds.

Note: Scan Time is set to 3 seconds by default.

To adjust Scan Rate, set the scan time of duration before switching to

the next computer:

Left Ctrl + Left Ctrl + F3

The KVM Switch generates 1 to 4 beeps indicating a scan time

duration for 3, 8, 15 or 30 seconds respectively.

USB-Port Rule

There are two settings for USB-Port Rule: ON or OFF.

When set to ‘ON’, the USB Hub port follows computer selection.

When set to ‘OFF’, the USB Hub port stays on the currently selected

PC port.

USB 1: pressing the hotkey below to turn ON/OFF the USB-Port Rule:

Left Ctrl + Left Ctrl + F7

USB 2: pressing the hotkey below to turn ON/OFF the USB-Port Rule:

Left Ctrl + Left Ctrl + F8 (SV431DD2DUA only)

Enforce the USB following with the selected computer by pressing the

following hotkey:

Left Ctrl + Left Ctrl + U

NOTE: Please make sure that the linking procedure of the USB

device(s) has been completed before switching to the next computer.

Other manuals for SV231DD2DUA

This manual suits for next models

Table of contents

Other StarTech.com Switch manuals

StarTech.com

StarTech.com SV841HDI User manual

StarTech.com

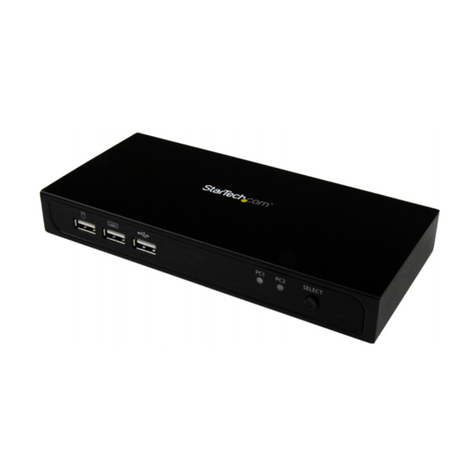

StarTech.com SV231DPU2 User manual

StarTech.com

StarTech.com ST4200USBM User manual

StarTech.com

StarTech.com StarView SV231USB User manual

StarTech.com

StarTech.com RACKCONS17HD User manual

StarTech.com

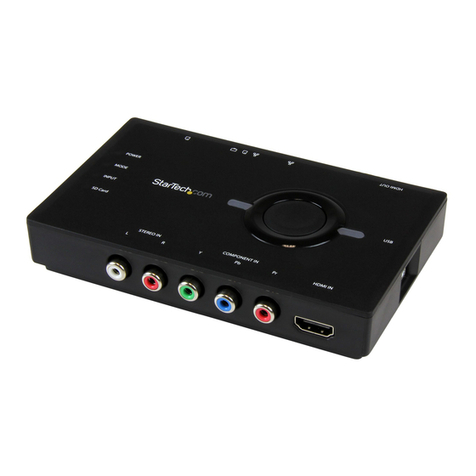

StarTech.com USB2HDCAPS User manual

StarTech.com

StarTech.com 129N-USBC-KVM-DOCK User manual

StarTech.com

StarTech.com IES101002SFP User manual

StarTech.com

StarTech.com DisplayPort MSTDP124DP User manual

StarTech.com

StarTech.com HB30C3A1CST User manual

StarTech.com

StarTech.com HB30A3A1CST User manual

StarTech.com

StarTech.com SV211DPUA4K User manual

StarTech.com

StarTech.com VS410RVGAA User manual

StarTech.com

StarTech.com SV831DUSBUK User manual

StarTech.com

StarTech.com SV831DUSBGB User manual

StarTech.com

StarTech.com SV221MICRA Manual

StarTech.com

StarTech.com SV231HU34K6 User manual

StarTech.com

StarTech.com STARVIEW SV231DDUSB User manual

StarTech.com

StarTech.com MSTCDP122DP User manual

StarTech.com

StarTech.com VS410DVIR User manual

StarTech.com

StarTech.com IESC1G80UP User manual

StarTech.com

StarTech.com ST3300U3S Installation instructions

StarTech.com

StarTech.com MSTCDP122HD User manual

StarTech.com

StarTech.com HB30C1A1CPD User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
