Speed Queen ADE3LR User manual

Keep these instructions for future reference.

(If this machine changes ownership, this manual must accompany machine.)

www.speedqueen.com

Installation Instructions

for Dryers

Dimensions........................................................................ 3

Before You Start................................................................ 4

Installing the Dryer............................................................ 5

Installer Checklist................................................ Back Cover

Date Purchased ______________________

Model Number ______________________

Serial Number ______________________

Part No. 512061R5

October 2009

Inside.......................................

21.

The following information applies to the state of Massachusetts, USA.

•This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.

•This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.

•A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance.

•This appliance must not be installed in a bedroom or bathroom.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the gas

supplier. W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage, personal injury or death. W033

WARNING

· Installation of unit must be performed by a qualified installer.

· Install clothes dryer according to manufacturer’s instructions and local codes.

· DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil

type) duct is installed, it must be of a specific type identified by the appliance manufacturer

as suitable for use with clothes dryers. Refer to section on connecting exhaust system.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These

conditions will obstruct clothes dryer airflow and increase the risk of fire. W729R1

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance. W053

means without the expressed written consent of the publisher.

512061

Dimensions

DRY2203N

* With leveling legs turned into base.

DRY2203N

23.5 in.

(59.7 cm) 28 in.

(71.1 cm)

0.4 in.

(1.1 cm)

8.0 in.

(20.3 cm)

*4.5 in.

(11.4 cm)

*36in.(91.4cm)

*43 in. (109.2 cm)

*4.0 in.

(10.2 cm)

15.4 in.

(39.1 cm)

26.9 in.

(68.3 cm)

ELECTRIC DRYERS

22.38 in.

(56.85 cm)

*40.25 in. (102.24 cm)

*15.44 in.

(39.2 cm)

DRY2293N

*With leveling legs turned into base.

13/8 in. NPT Gas Connection

DRY2293N

23.5 in.

(59.7 cm) 28 in.

(71.1 cm)

0.4 in.

(1.1 cm)

*4.5 in.

(11.4 cm)

8.0 in.

(20.3 cm)

*36 in. (91.4 cm)

*43 in. (109.2 cm)

*4.0 in.

(10.2 cm)

15.4 in.

(39.1 cm)

26.9 in.

(68.3 cm) *2.8 in.

(7 cm)

2.3 in.

(6 cm) 1

GAS DRYERS

22.38 in.

(56.85 cm)

*40.25 in. (102.24 cm)

*15.44 in. (39.2 cm)

Before You Start

Supplies

For most installations, the basic supplies you will need

are:

Figure 1

Parts Included

An accessories bag has been shipped inside your dryer.

It includes:

•Installation Instructions

•User’s Guide

•Product Registration Card

•Dryer Rack Reply Card

•Warranty Bond

•Three screws (electric dryers only). Refer to

Connecting Power Cord sections in Step 4 of

Installation.

DRY2023N

1Safety Glasses

2Power Cord (Electric Models)

3Wrench

4Screwdriver

5Level

65/16 Inch Socket Wrench

7Duct Tape

8Teflon Tape (Gas Models)

Any disassembly requiring the use of

tools must be performed by a suitably

qualified service person. W299

WARNING

512061

Installing the Dryer

Step 1: Position and Level the Dryer

Install dryer before washer. This allows room for

attaching exhaust duct.

Select a location with a solid floor. Dryers installed in

residential garages must be elevated 18 inches (46 cm)

above the floor.

No other fuel burning appliance should be installed in

the same closet with the dryer.

The dryer must not be installed or stored in an area

where it will be exposed to water and/or weather.

The dryers needs sufficient clearance and an adequate

air supply for proper operation and ventilation, and for

easier installation and servicing. (Minimum clearances

are shown below).

Figure 2

D823I

1Closet Door

2Centered Air Openings (G) (2 Openings

minimum)

3Outer Wall of Enclosure

**NOTE: For new installations, locate top of wall vent 42 inches (106.7 cm) above floor to make venting

easier to connect.

2 (G)

**42 in.

(106.7 cm)

AAC

FRONT VIEW

(w/o Closet Door) SIDE VIEW

(Closet Door) FRONT VIEW

(Closet Door)

Area Description Free Standing/Alcove

Installation Closet Installation

ADryer sides and rear clearance 0 in. (0 cm) 0 in. (0 cm)

BDryer top clearance 12 in. (30.5 cm) 12 in. (30.5 cm)

CDryer front clearance Not Applicable 2 in. (5.1 cm)

DExhaust duct clearance to

combustible material 2 in. (5.1 cm) 2 in. (5.1 cm)

EWeather hood to ground clearance 12 in. (30.5 cm) 12 in. (30.5 cm)

FDistance from floor or ceiling to

hole edge Not Applicable 3 in. (7.6 cm)

G* Area of centered air openings in

closet door Not Applicable 40 sq. in./open (260 sq. cm)

*Louvered door with equivalent air openings is acceptable. (Minimum clearances are shown.)

Place the dryer in position, and adjust the legs until the

dryer is level from side to side and front to back. The

dryer must not rock.

Figure 3

IMPORTANT: In mobile home installations, gas

dryers MUST be permanently attached to the floor

at the time of installation. Order No. 526P3 Dryer

Installation Kit (available at extra cost) for a

manufactured (mobile) home installation. Follow

the instructions supplied with the kit.

Step 2: Connect Dryer Exhaust System

•DO NOT use plastic or thin foil ducting. Rigid

metal duct is recommended.

•Locate dryer so exhaust duct is as short as

possible.

•Be certain old ducts are cleaned before installing

your new dryer.

•Use 4 inch (102 mm) diameter rigid or flexible

metal duct.

•The male end of each section of duct must point

away from the dryer.

•Use as few elbows as possible.

•Use duct tape or pop-rivets on all duct joints. DO

NOT use sheet metal screws or fasteners on

exhaust pipe joints which extend into the duct

and catch lint.

D669I

1Dryer Base

2Level

3Leveling Leg

D669I

D259I

To reduce the risk of fire and combustion

gas accumulation the dryer MUST be

exhausted to the outdoors. W604

To reduce the risk of fire and the

accumulation of combustion gases, DO

NOT exhaust dryer air into a window well,

gas vent, chimney or enclosed, unventilated

area, such as an attic, wall, ceiling, crawl

space under a building or concealed space

of a building. W045

WARNING

DRY1915N

Figure 4

This gas appliance contains or produces a

chemical or chemicals which can cause

death or serious illness and which are

known to the State of California to cause

cancer, birth defects, or other reproductive

harm. To reduce the risk from substances in

the fuel or from fuel combustion, make sure

this appliance is installed, operated, and

maintained according to the instructions in

this manual. W115

To reduce the risk of fire, DO NOT use

plastic or thin foil ducting to exhaust the

dryer. W354

WARNING

DRY1915N

DON’TDO

512061

•Ductwork that runs through unheated areas must

be insulated to help reduce condensation and lint

build-up on pipe walls.

•When exhausting the dryer to the outdoors, the

dryer can be installed with “0” inch clearance at

sides and rear. Clearance of the duct from

combustible construction must be a minimum of

2 inches (5.08 cm).

•For proper operation, it is important that the

dryer has an ample amount of outside make-up

air. The free area of any opening for the

introduction of outside air must be at least 25 in.2

(163 cm2).

•In mobile home installations, dryer exhaust duct

must be secured to mobile home structure.

•Dryer exhaust duct MUST NOT terminate under

mobile home.

•Exhaust duct must not be connected to any other

duct, vent, or chimney.

•Dryer exhausts 220 cfm (measured at back of

dryer).

•Never install flexible duct in concealed spaces,

such as a wall or ceiling.

•Energy efficient homes with low air filtration

rates should be equipped with an air exchanger

that can accomodate on demand make-up air

needs in the home. These devices can be obtained

through your building contractor or building

material suppliers.

•Static pressure in exhaust duct should not be

greater than .6 inches water column (1.5 cm),

measured with manometer placed on exhaust

duct two feet (61 cm) from dryer (check with

dryer running and no load).

•Exhausting dryer in hard-to-reach locations can

be done by installing 521P3 Flexible Metal Vent

Kit (available as optional equipment at extra

cost).

•Failure to exhaust dryer properly will void

warranty.

NOTE: Venting materials are not supplied with the

dryer (obtain locally).

Exhaust Direction

The dryer can be exhausted to the outdoors through the

back, left, right or bottom of the dryer. EXCEPTION:

Gas dryers cannot be vented out the left side

because of the burner housing.

Dryer is shipped from factory ready for rear exhaust.

Exhausting the dryer through sides or bottom can be

accomplished by installing a Directional Exhaust Kit,

528P3, available as optional equipment at extra cost.

Exhaust System

For best drying results, recommended maximum

length of exhaust system is shown in Table 1.

To prevent backdraft when dryer is not in operation,

outer end of exhaust pipe must have a weather hood

with hinged dampers (obtain locally).

NOTE: Weather hood should be installed at least

12 inches (30.5 cm) above the ground. Larger

clearances may be necessary for installations where

heavy snowfall can occur.

Table 1

NOTE: The maximum length of a 4 in. (10.2 m)

diameter flexible metal duct must not exceed

7.87 ft. (2.4 m), as required to meet UL2158, clause

7.3.2A.

Number of

90° Elbows Weather Hood Type

Recommended Use Only for Short Run installations

D673I D802I

Maximum length of 4 in. (10.2 cm) diameter rigid metal duct.

0 65 feet (19.8 m) 55 feet (16.8 m)

1 55 feet (16.8 m) 47 feet (14.3 m)

2 47 feet (14.3 m) 41 feet (12.5 m)

3 36 feet (11.0 m) 30 feet (9.1 m)

4 28 feet (8.5 m) 22 feet (6.7 m)

NOTE: Deduct 6 feet (1.8 m) for each additional elbow.

4 in.

(10.2 cm) 4 in.

(10.2 cm)

2-1/2 in.

(6.35 cm)

512061

Step 3: (Gas Dryer Only) Connect Gas

Supply Pipe

1. Make certain your dryer is equipped for use with

the type of gas in your laundry room. Dryer is

equipped at the factory for Natural Gas with a

3/8 inch NPT gas connection.

NOTE: The gas service to a gas dryer must

conform with the local codes and ordinances, or in

the absence of local codes and ordinances, with the

latest edition of the National Fuel Gas Code ANSI

Z223.1/NFPA 54 or the CAN/CSA-B149.1 Natural

Gas and Propane Installation Code.

Natural Gas, 1000 Btu/ft3(37.3 MJ/m3) service must

be supplied at minimum 5.0 inch water column

pressure to maximum 10.5 inch water column

pressure.

For proper operation at altitudes above 3000 feet

(915 m) the natural gas valve spud orifice size must be

reduced to ensure complete combustion. Refer to

Table 2.

2. Remove the shipping cap from the gas

connection at the rear of the dryer. Make sure you

do not damage the pipe threads when removing

the cap.

3. Connect to gas supply pipe.

NOTE: When connecting to a gas line, an

equipment shut-off valve must be installed within

6 feet (1.8 m) of the dryer. An 1/8 in. NPT pipe plug

must be installed as shown for checking inlet

pressure. Refer to Figure 5.

To reduce the risk of gas leaks, fire or

explosion:

• The dryer must be connected to the type

of gas as shown on nameplate located in

the door recess.

• Use a new flexible stainless steel

connector.

• Use pipe joint compound insoluble in L.P.

(Liquefied Petroleum) Gas, or Teflon tape,

on all pipe threads.

• Purge air and sediment from gas supply

line before connecting it to the dryer.

Before tightening the connection, purge

remaining air from gas line to dryer until

odor of gas is detected. This step is

required to prevent gas valve

contamination.

• Do not use an open flame to check for gas

leaks. Use a non-corrosive leak detection

fluid.

• Any disassembly requiring the use of

tools must be performed by a suitably

qualified service person. W316

WARNING

Natural Gas Altitude Adjustments

Altitude Orifice Size Part No.

feet m No. inches mm

3000 915 43 0.0890 2.26 503778

6000 1830 44 0.0860 2.18 58719

8000 2440 45 0.0820 2.08 503779

9000 2740 46 0.0810 2.06 503780

10,000 3050 47 0.0785 1.99 503781

Table 2

D233I

1New stainless steel flexible connector –

(Use design CSA certified connector)

Use only if allowed by local codes

21/8 in. NPT Pipe Plug

3Equipment Shut-Off Valve

4Black Iron Pipe

Shorter than 20 ft. (6.1 m) – use 3/8 in.

(9.5 mm) pipe

Longer than 20 ft. (6.1 m) – use 1/2 in.

(12.7 mm) pipe

53/8 in. NPT Gas Connection

Figure 5

D233I

4. Tighten all connections securely. Turn on gas and

check all pipe connections (internal & external)

for gas leaks with a non-corrosive leak detection

fluid.

NOTE: The dryer and its appliance main gas valve

must be disconnected from the gas supply piping

system during any pressure testing of that system

at test pressures in excess of 1/2 psi (3.45 kPa).

Refer to Step 9 (Check Heat Source).

L.P. (Liquefied Petroleum) Gas, 2500 Btu/ft3

(93.1 MJ/m3) service must be supplied at 10 ± 1.5 inch

water column pressure.

For proper operation at altitudes above 3000 feet (915 m)

the L.P. gas valve spud orifice size must be reduced to

ensure complete combustion. Refer to Table 3.

NOTE: DO NOT connect the dryer to L.P. Gas

Service without converting the gas valve. Install

L.P. Gas Conversion Kit 649P3, available at extra

cost.

Step 4: (Electric Dryer Only) Connect

Electrical Plug

Dryer requires 120/240 Volt or 120/208 Volt, 60 Hertz,

3 or 4 wire electrical supply. Refer to serial plate for

specific electrical requirements.

IMPORTANT: Use only a new U.L. listed No. 10

(copper wire only) three or four conductor power

supply cord kit rated 240 Volts (minimum) 30

Amperes and labeled as suitable for use in a clothes

dryer.

NOTE: The wiring diagram is located inside the

control hood.

Grounding Information

This appliance must be grounded. In the event of

malfunction or breakdown, grounding will reduce the

risk of electric shock by providing a path of least

resistance for electric current. The cord-kit must be

equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be

plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local

codes and ordinances.

Do not modify the plug provided with the cord-kit - if

it will not fit the outlet, have a proper outlet installed

by a qualified electrician.

L.P. Altitude Adjustments

Altitude Orifice Size Part No.

feet m No. inches mm

3000 915 55 0.0520 1.32 58755

8000 2440 56 0.0465 1.18 503786

Table 3

To reduce the risk of fire, electric shock,

serious injury or death, all wiring and

grounding MUST conform with the latest

edition of the National Electrical Code,

ANSI/NFPA 70, or the Canadian Electrical

Code, CSA C22.1, and such local

regulations as might apply. It is the

customer’s responsibility to have the wiring

and fuses installed by a qualified electrician

to make sure adequate electrical power is

available to the dryer. W521

WARNING

Improper connection of the equipment-

grounding conductor can result in a risk of

electric shock. Check with a qualified

electrician or service person if you are in

doubt as to whether the dryer is properly

grounded. W038

WARNING

Other manuals for ADE3LR

This manual suits for next models

Table of contents

Other Speed Queen Dryer manuals

Speed Queen

Speed Queen TMB796C User manual

Speed Queen

Speed Queen AES17AWF User manual

Speed Queen

Speed Queen AGS20AWF User manual

Speed Queen

Speed Queen BG 3119 User manual

Speed Queen

Speed Queen ADEE9BSS PLATINUM Operating instructions

Speed Queen

Speed Queen ADE3TR User manual

Speed Queen

Speed Queen HE6370 User manual

Speed Queen

Speed Queen AE7133 User manual

Speed Queen

Speed Queen HG4080 User manual

Speed Queen

Speed Queen HE6350 User manual

Speed Queen

Speed Queen KES17AWF1500 User manual

Speed Queen

Speed Queen ALE331RAW User manual

Speed Queen

Speed Queen KES17 User manual

Speed Queen

Speed Queen HE4430 User manual

Speed Queen

Speed Queen ADE4BR User manual

Speed Queen

Speed Queen ADE3TRW5431AW01 User manual

Speed Queen

Speed Queen STT30 User manual

Speed Queen

Speed Queen FES17AWF1500 User manual

Speed Queen

Speed Queen AEM497W24350 User manual

Speed Queen

Speed Queen T45 lb Stack Flier AC06-500 Owner's manual

Speed Queen

Speed Queen AEM677 User manual

Speed Queen

Speed Queen ADE3LR User manual

Speed Queen

Speed Queen 513189R2 User manual

Speed Queen

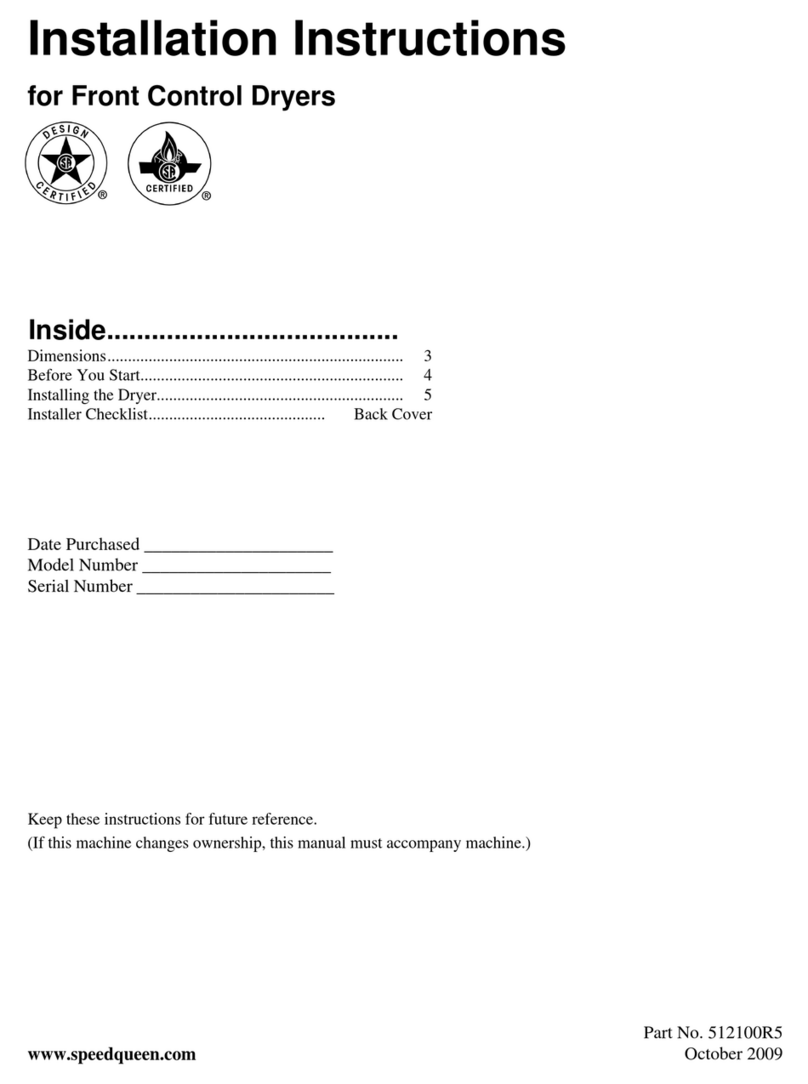

Speed Queen ADE41F User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
