Speco VL-66 User manual
Model Numbers VL-66 and VL-66W
Description Weatherproof Color DSP Camera w/Varifocal Lens and IR LEDs
Pick up Element 1/3” CCD Image Sensor
Number of Pixels <NTSC>512 (H) × 492 (V)
Back Light Compensation ON
Auto Electronics Shutter ON
AGC ON
AWB ON
Sync. Mode Internal Sync.
Scanning System 2:1 Interlace
Resolution 420 TV Lines
S/N Ratio More then 48dB
Gamma 0.45
Minimum Illumination 0 Lux with IR on, 0.5 Lux IR off, F 1.4

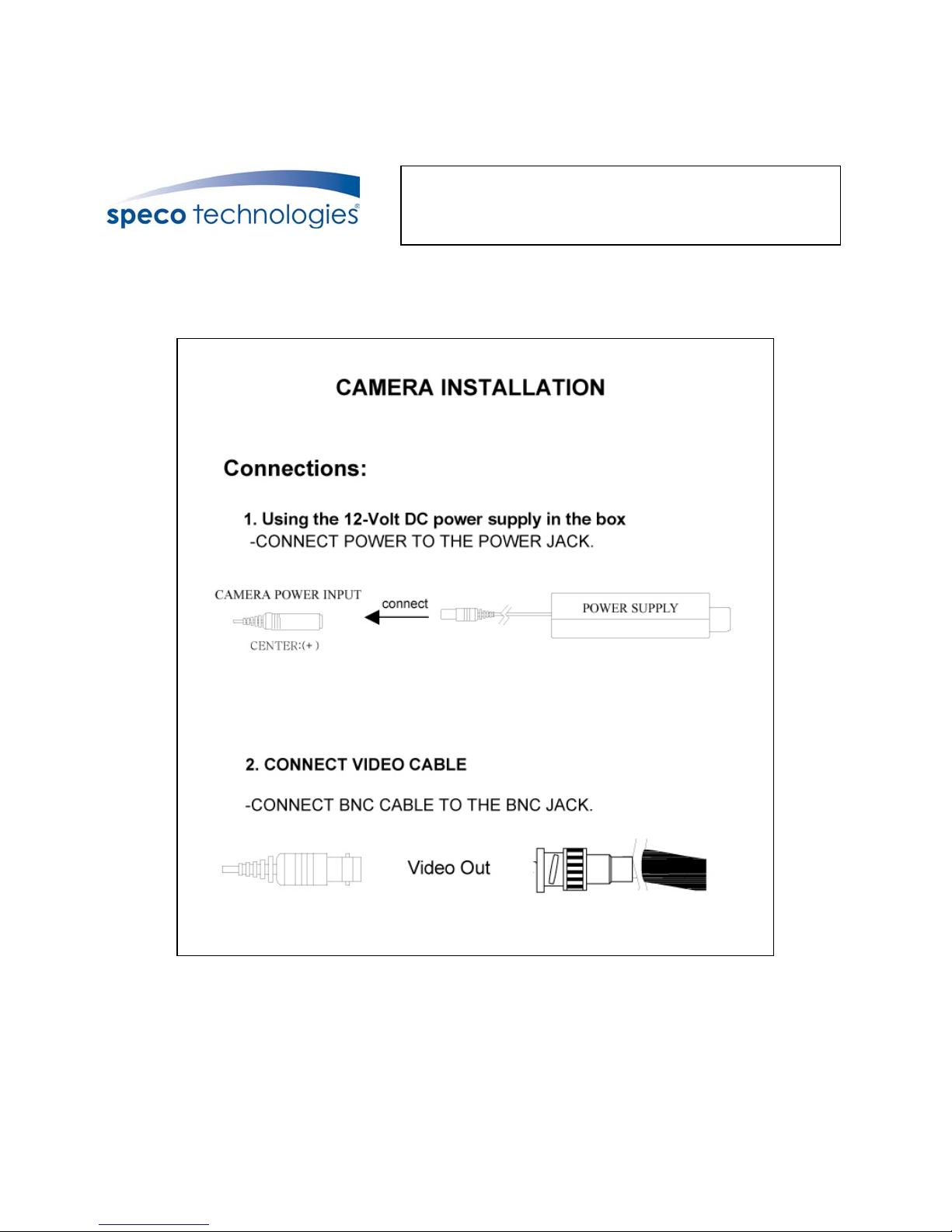

Power Source 12 Volts DC regulated power supply required
Power Consumption 180mA
Horizontal Sync. Frequency <NTSC> 15.734 KHz
Video Output 1.0 Vp-p, 75 ohm
Shutter Control <NTSC> 1/60-1/100,000 sec.
Quantity 15
Infrared
LED Radiant Distance 50 feet*
Lens Amount 4mm~8mm Manual Iris Vari-Focal Lens
Dimension 2.5” dia. ×4.75” L
Wall/Ceiling Mount Included
Specifications are subject to change without notice.
*
Depending on scene reflection
SPECIFICATIONS
VL-66/VL-66W
COLOR WEATHERPROOF CAMERA
SPECO TECHNOLOGIES
200 NEW HIGHWAY
AMITYVILLE, NY 11701
1-800-645-5516 1-631-957-8700
A
B
C
A. BUILT-IN LENS
B. IR LEDs
C. MOUNTING BRACKET
VL-66 (Black Case)
VL-66W (White Case)
SPECO TECHNOLOGIES
200 NEW HIGHWAY
AMITYVILLE, NY 11701
1-800-645-5517 1-631-957-8700
VL-66/VL-66W
COLOR WEATHERPROOF CAMERA
