Speco H5T1M User manual

l ITEM №: H5T1M

l Caution for Installation

1. In order to prevent electronic shock, don’t loosen any screws or covers.

2. Do not directly touch the front glass. If necessary, use a soft cloth

moistened with alcohol to wipe off the dust.

3. Avoid places where there are frequent vibrations or shocks.

4. Don’t operate the camera beyond its temperature, power source ratings.

5. When any abnormalities happen, make sure to unplug the camera and

contact your local dealer.

l Packing

1. Camera X1

2. Junction box X1

3. User Manual X1

4. 4*34mm Screw X4

5. 4*20mm Screw X4

6. Plastic-Conical-Anchor X4

7. Junction box cotton pad X1

8. Hexagonal Wrench X1

9. Mounting drawing paper X1

10. Screw nut waterproof ring X1

11. Screw Silica Ring X4

12. Dome base rubber ring X1

13. Power Connector Cable X1

l Specification

ITEM

H5T1M

IP Rating

IP66

Type

Removable IR Cut Filter

Signal System

NTSC/PAL

Pick Up Device

1/2.8” 5M SONY CMOS

Picture Elements

2688 (H)X1944 (V)

Min Illumination

0Lux（24 Pieces IR LED ON）

S/N Ratio

≥50dB

Lens

2.7-13.5mm Motorized Varifocal Fixed Iris Lens

Back Light Compensation

OFF

WDR

ON/OFF

OSD

With UTC Signal (DVR Control OSD)

Video Out-put

5MP TVI/AHD,4MP&2MP TVI/AHD/CVI,CVBS

Power Supply

DC12V ±10%

Current Consumption

600mA(MAX)

IR Effect Distance

49.2~65.6ft(indoor)

Dimension

Φ4.72”×3.93” inch

Weight

790g（27.86oz）

Storage Temperature

-22～+149℉

Operating Temperature

-22～+122℉

Junction box

Dimension

Φ4.72””×1.59” inch

Weight

255g (9.0oz)

Remark: Non-regulative adaptor may cause camera damaged.

l video signal output switches

5MP 4in1 Motorized Eyeball Camera with Junction Box

l Multi Format HD Analog UTC Control

（1）

（2）

（3）

（4）

（5）

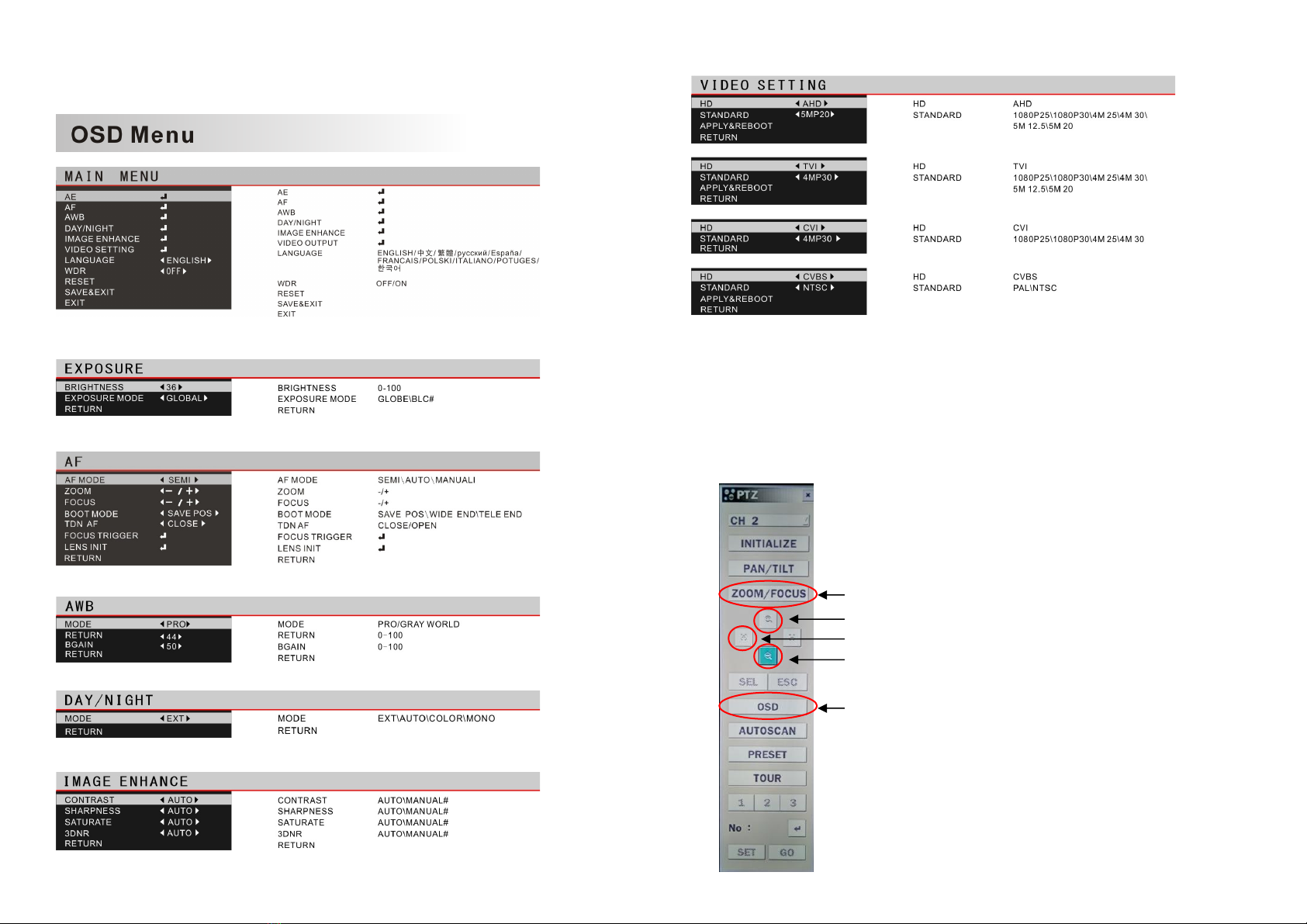

1. Zoom/Focus

As picture shown, Click(1) enter into lens

menu；Click (2) zoom in；Click (4) zoom out;

Click (3)enter into camera OSD main menu。

2. OSD

As picture show, Click (5) enter into main

menu operation page。

(1)- Zoom/focus lens menu

(2)- Zoom in

(3)- Enter into camera OSD main menu

(4)- Zoom out

(5)- Main menu operation page

● Overview

Junction box

● Installation

（1）

（2）

（3）

（4）（5）

（5）

M20 Plastic Screw

1. Paste the drawing paper on the wall and drill holes。

2. Paste the sponge pad on the back of junction

box，Fix with M20 plastic stopper on back hole or

side hole according to different installing needs。

3．Fix with 4pcs plastic rubbers into the wall, use M4

threaded screws to fix the junction box on the wall。

4．Disassemble the camera as

picture shown, use M4*20mm

screws to fix camera base on the

junction box。

5. Connect all cables and put them inside

the junction box, then fix the dome with the

metal ring, adjust camera viewing angle,

when finished, rotate the metal ring and fix

the metal ring with the screw.

Junction box

cotton pad

Drawing paper
