Speco CVC-927PTZ User manual
Specifications:
Enclosure mounting .....Ten (10) M6 x 15mm hex head
Machine screw (supplied)
Construction Finish .....Die cast and aluminum
Finish ..................Light-gray polyester powder coat
Maximum load . . . . . . . . .63.5 lb.
Dimension .............See diagram above
Weight ................1.31 lb.
Specifications:
Construction Finish .....Aluminum, steel & stainless hrdw
Finish ..................Light-gray polyester powder coat
Maximum load . . . . . . . . .20 lb.
Dimension .............See diagram above
Weight ................23 lbs.
Specifications:
Enclosure mounting .....Ten (10) M6 x 15mm hex head
Machine screws (supplied)
Two (2) M10 x 90mm hex head
Machine screws (supplied)
Two (2) M10 hex nuts (supplied)
Construction Finish .....Die cast and aluminum
Finish ..................Light-graypolyester powder coat
Maximum load . . . . . . . . .63.5 lb.
Dimension .............See diagram above
Weight . . . . . . . . . . . . . . . . .2.12 lb.
Specifications subject to change
For more information contact us at:
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
specodome accessories
Flush Mount Hardware
FLM-927
Features:
•Low cost
•Die cast and aluminum
•Easy to install
This mounting device enables the dome camera to be
mounted to the suspended ceiling. The mounting clamps
which are affixed to the ceiling tile, attach directly to the
dome’s mounting base for a quick and easy installation.
The mount enables the dome to be mounted to the T-bar of
asuspended ceiling. The mounting clamps, which are affixed
to the T-bar, attach directly to the dome’s mounting base for
a quick and easy installation.
Pole Mount
PM-927
Parapet Mount
PMT-927
Features:
•Easy to install
•Indoor applications
•Steel construction
•Cable feed through hole
conceals wiring
•Light duty ceiling mount
Specifications:
Construction ...........Steel and injection molded plastic
Maximum Load .........Approx. 4.4 lb.
Dimensions ............See diagram below
Specifications:
Construction ...........Steel 1.6t
Maximum Load .........Approx. 4.4 lb.
Finish ..................Light-gray polyester powder coat
T-Bar Mounting Adapter
TBM-927
Corner Mount
CM-927
Features:
•Low cost
•Die cast and aluminum
•Easy to install
M6 TAP”
4.7”
3.2”
4.2”
1.6”
1.97”3.35”
4.7”
1.6”
7”
2.8”
17.7” 12.2”
24.7”
35.85”
5.9”
5”
4.7”
8.7”
4.6”
3.5”
4.9”
Specifications subject to change
For moreinformation contact us at:
Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com
Toll Free: 1-800-645-5516 In Metro NY: 631-957-8700 Fax: 631-957-9142 or 631-957-3880
Indoor/Outdoor High Performance
PTZ Dome Camera
specodome
Features:
The CVC-927PTZ dome camera and accessories make up the
building blocks of your most sophisticated surveillance/
security systems. Using multiple keyboard controllers and speed
dome cameras, no place is too large for monitoring. Extendable
and flexible architecture facilitates remote control functions for
a variety of configurations.
• Built-in 18x times optical power zoom camera
with True Night Shot function
• 4.8” dome • 240 preset positions
• Image masking & blocking
• Day/night operation
• Auto iris and auto focus with manual override
keys • Wide dynamic range operation
• 8 tours consist of preset, pattern, auto-scan.
Other tours can be programmed with 240
functions and preset location. While moving,
each preset scan can be watched in smooth
vector scan mode
• 8 Auto scans including vector scan
• Auto flip rotates180˚ at bottom of tilt
• 0˚ to 90˚ tilt angle (user selectable to prevent
obstruction of the horizontal view)
• 4 patterns (240 second) • 8 Privacy zones
• 8 Alarm inputs/4 Aux outs (NC & NO)
• Variable speed from 0.1˚/sec to 90˚ sec. Turbo
speed is Max 360˚/sec. Pan/tilt speed is inversely
proportional to the zoom ratio. Maximum speed
is 380˚/sec • Programmable user preferences
(alarm, preset, title, etc.)
• Up to 999 selectable camera addresses
• Built-in RS-485/422 receiver driver
• Built-in power-line surge protection and
lightning protection
• Clear bubble with black liner (shelter) for
concealing the camera
• Optional, indoor & outdoor pendant housing
with heater & blower, indoor flush mount,
parapet mount & roof top mount
8 Alarm inputs - 4 alarm outputs- multiple
protocols - operates from many controllers & DVRs
Data Bank - Allows for dome settings to be saved
temporarily in the keyboard for uploading to a
replacement dome
Night Mode - Switches to B/W at .2 lux
Slow Shutter -Automatically slows the shutter
speed to capture more existing light when required
2 Levels of Password Protection - Increased level
of security
CVC-927PTZ
Call for details concerning remote controls and mounting options.
WH-927
& IH-927
Specifications
Horizontal Resolution . . . . . . .480 Lines
Image Sensor . . . . . . . . . . . . .1/4” ExView* color CCD
Picture Elements . . . . . . . . . .NTSC: 768 x 494 Approx.
Lens . . . . . . . . . . . . . . . . . .18x Optical zoom, 4.1mm to 73.8mm with auto focus, 12x digital zoom, F1.4 to F3.0
View Angle . . . . . . . . . . . . . .Approx. 48˚ (WIDE) to 2.7˚ (TELE)
Minimum Illumination 0.7 Lux , 0.15 lux (1/4s) in night mode 0.01 lux (1/4s with IR cut filter removed)
S/N Ratio . . . . . . . . . . . . . . .More than 60dB
Input Voltage . . . . . . . . . . . . . . . . . . .18 to 30 VAC; 24 VAC nominal, built-in power-line surge
Power Requirement . . . . . . . . . . . . .24 VAC 850mA
Power Consumption . . . . . . . . . . . .Maximum 20W
Alarm Output . . . . . . . . . . . . . . . . . .4 Normal relays 24 VDC/ 1A max (selectable NC/NO)
Alarm Input . . . . . . . . . . . . . . . . . . . .8 Normal dry contact (selectable NC/NO)
Control . . . . . . . . . . . . . . . . . . . . . . . .RS-485/422 baud rate: 2400 - 230k bps (default: 9600bps)
Access Time . . . . . . . . . . . . . . . . . . . .0.75 Second maximum preset recall time
ID (Camera Address) . . . . . . . . . . . .999 (Factory mode selectable over 999 camera)
Pan Angle . . . . . . . . . . . . . . . . . . . . . .360˚ continuous rotation
Speed . . . . . . . . . . . . . . . . . . . . . . . . . .0.5˚ to 90˚/sec. (proportional to zoom) 360˚/sec. maximum
(with CTRL/PGM key pressed) Preset speed: 380/sec.
Flip . . . . . . . . . . . . . . . . . . . . . . . . . . .Rotate 180˚ at bottom of tilt
Auto Scan . . . . . . . . . . . . . . . . . . . . . .8 Auto scan include vector scan
Preset Position . . . . . . . . . . . . . . . . .240 positions with camera status (16-character title)
Tour . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Tours
Pattern . . . . . . . . . . . . . . . . . . . . . . . .4 patterns, 240 seconds
On-Screen Display . . . . . . . . . . . . . .Displays camera ID and area name on screen
Operating Temperature . . . . . . . . .32˚ F to 122˚ F, extendable with WH-927
Operating Humidity . . . . . . . . . . . .0 to 90% RH (non-condensing)
Storage Temperature . . . . . . . . . . . .4˚ F to 140˚F
Dimensions . . . . . . . . . . . . . . . . . . . .8” H x 5” Dia.
Weight . . . . . . . . . . . . . . . . . . . . . . . .2.5 lbs.
*ExView is a trademark of the Sony corporation
Indoor/Outdoor High Performance Speed Dome Camera
specodome
Specifications subject to change
PSW-6 - 24 Volt AC power supply for
camera and weatherproof housing
Specifications:
Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24VAC, 50/60Hz
Power Consumption . . . . . . . . . . . . . . . . . . . . . .Heater 50 watts
Blower 6 watts
Dome Camera 20 watts
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Aluminum, steel and plastic (ABS)
Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Polyester powder coat
Dome Bubble . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Plastic (Acrylic)
Ambient Environment Temperature . . . . . . . .-45˚C to 50˚C
Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IP 65
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .See diagrams
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9.5 lbs.(sunshield included)
7.75 lbs
The Speco Dome camera housings are constructed of aluminum steel
and plastic. The sleek design is made to be mounted on both wall
and ceiling. The housing meets international IP65 standard for dust
and moisture.

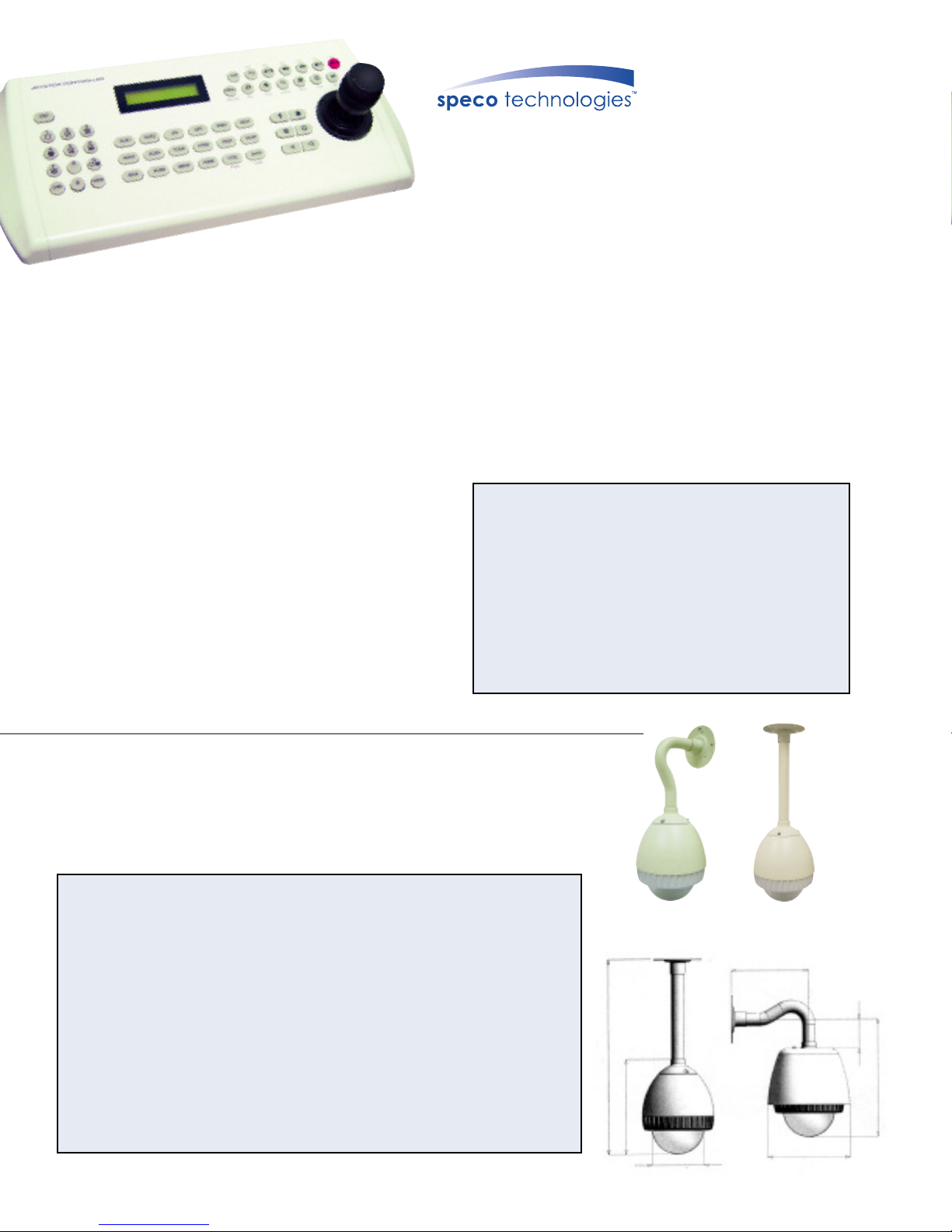

Keyboard Controller
Weatherproof and Indoor Housings
This Speco Technologies keyboard controller is capable
of controlling up to 32 speed domes.
TThheekkeeyybbooaarrddccoonnttrroolllleerrffeeaattuurreess::
Capability to control a camera’s panning and tilting
movement with variable speed from 0.5˚/sec to 90˚/sec as
well as its zoom, focus and iris command. Normal speed is
inversely proportional to the current zoom ratio. Turbo speed
is Max 380˚/sec when Ctrl key is pressed.
The ability to define and recall up to 240 presets, which are
immediate camera call-ups of preset position view with
automatic zoom and focus.
The ability to define and run up to 8 patterns which
comprise a sequential series of pan, tilt, zoom and focus
movements from a single camera.
The ability to define and run up to 8 scans which scan
between two limits.
The ability to incorporate up to 300 of the presets, patterns,
scan and tour itself in up to 8 tours where the presets,
patterns and scan are automatically displayed one after the
other on the Main monitor.
Programmable user preferences (alarm, preset, title, etc.).
Administrator and user - two levels of passwords are
supported for higher security.
One master and slave keyboard are supported to control in
a remote location.
Programmed data from up to two domes can be
downloaded
to non-volatile memory space in KBD, and uploaded to a
new dome.
Specifications:
Power Consumption . . . . . . .12VDC, 0.5W
Control Method . . . . . . . . . . .RS-485, RS-232C
Baud Rates . . . . . . . . . . . . . . . .2400 - 230K bps
Dimensions . . . . . . . . . . . . . . .15” x 6.5” x 2.75”
Weight . . . . . . . . . . . . . . . . . . .2.5 lbs.
Power Supply . . . . . . . . . . . . .Included
KBD-927
10.6”
11”
6.8”
26.4”
12.6”
3.9”
15.75”
WH-927 & IH-927
