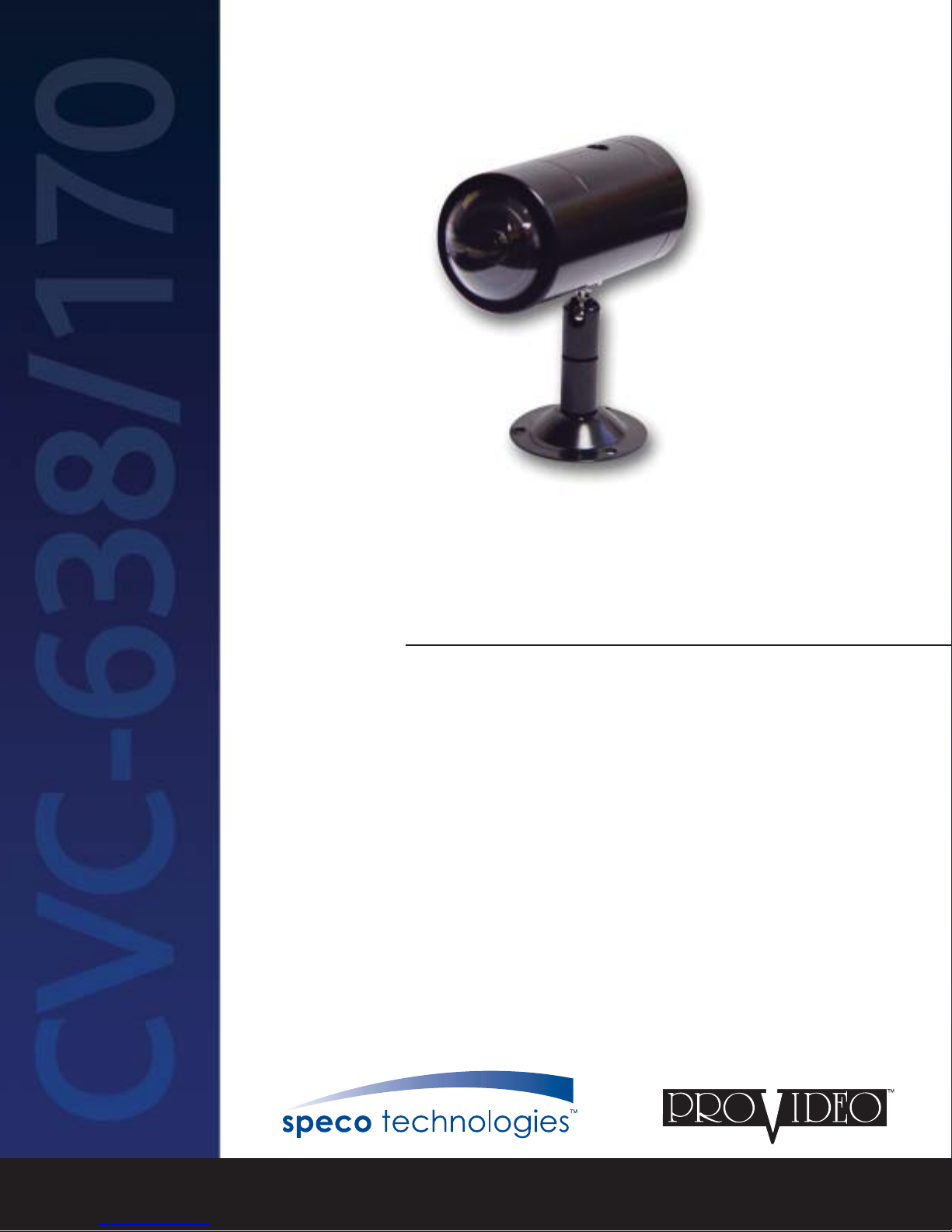

CVC-638/170

Ultra Wide Angle Color Bullet Camera

Specifications

Resolution 380 TV lines

Image Device 1/3” Color CCD

Electronic Shutter Control Auto 1/60-1/100,000 sec.

Lens/Angle of View 2.2mm, 170˚

Minimum Illumination 1 lux - at F:2.0/30 IRE

Video Output Level Color composite video signal 1Vp-p/75Ω

Video S/N Ratio Greater than 48dB

Effective Pixel Array 512 Hor. x 492 Ver.

Scanning System NTSC Color 525 TV lines 60 fields/sec

Scanning Frequency Hor. 15.734 KHz Vert. 60 Hz

Operating Temperature 14˚F to 122˚F

Power Consumption 115ma TYP.

Power Supply Regulated 12V DC power supply

(UL and CSA listed) include

Dimensions 1-1/2” W x 3-1/5” L

Weight Approx. 6.53oz.

Specifications subject to change

For more information contact us at:

Speco Technologies 200 New Highway, Amityville, NY 11701 Web: www.specotech.com

Toll Free: 1-800-645-5516 In Metro NY:631-957-8700 Fax: 631-957-9142 or 631-957-3880

The weatherproof CVC-638/170 offers a 170-degree field of view that allows you to

see small areas like elevators, vestibules, mantraps and counting rooms without any

loss of coverage. The ultra-wide angle 2.2mm lens will fully view these small spaces

when properly installed and positioned. It will even see under itself! The CVC-638/170

comes complete with a mounting bracket (which can be attached to the top or

bottom) and power supply.
