Sony SS-GN800 User manual

SS-GN800/GN88D

SERVICE MANUAL

SPEAKER SYSTEM

US Model

SS-GN800

E Model

Australian Model

SS-GN800/GN88D

SPECIFICATION

Ver 1.0 2003.04

Sony Corporation

Home Audio Company

Published by Sony Engineering Corporation

9-877-277-01

2003D0200-1

© 2003. 04

Photo: SS-GN800

•SS-GN800/GN88D are front speaker system in MHC-GN77D/GN70V/

GN88D/GN600/GN700/GN800/GX8800.

Speaker system 3-way, 4-units, bass-reflex type

Speaker units

Sub Woofer: 20 cm, cone type

Woofer: 8 cm, cone type

Tweeter: 5 cm, cone type

Nominal impedance 6 ohms

Dimensions (w/h/d) Approx. 265 x 415 x 320 mm

Mass Approx. 8.0 kg net per speaker

Design and specifications are subject to change without notice.

2

SS-GN800/GN88D

Ref. No. Part No. Description Remark

––––––– ––––––– ––––––––– ––––––

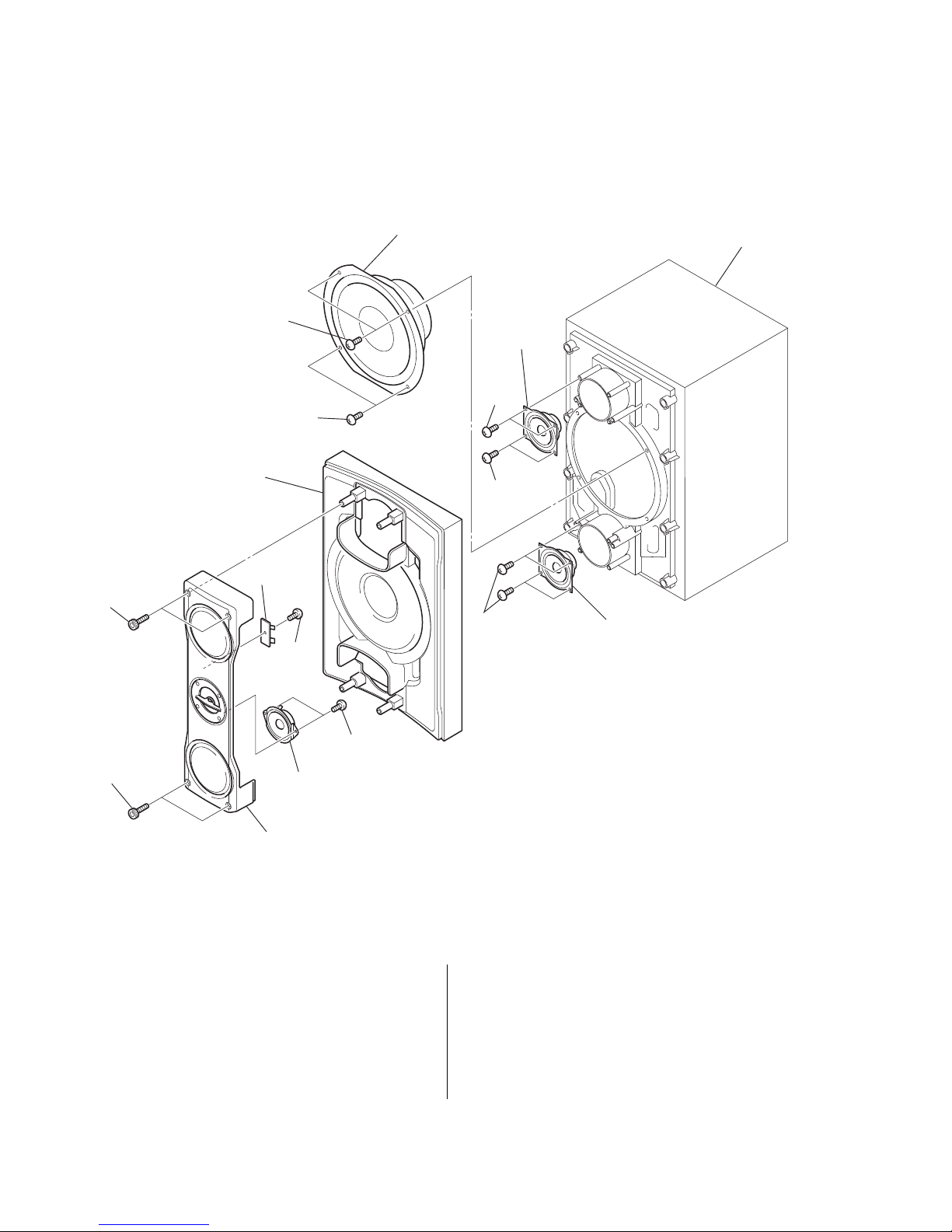

EXPLODED VIEWS

3

3

3

3

3

4

4

SP3

SP4

SP1

SP2

not supplied

not supplied

2

2

5

1

NOTE :

•-XX, -X mean standardized parts, so they may

have some difference from the original one.

•Items marked “ * ”are not stocked since they are

seldom required for routine service. Some delay

should be anticipated when ordering these items.

•The mechanical parts with no reference number

in the exploded views are not supplied.

Ref. No. Part No. Description Remark

––––––– ––––––– ––––––––– ––––––

1A-4736-148-A SUB PANEL ASSY

24-984-567-01 HEXAGON SCREW (M4X20)

34-874-614-21 SCREW (1) (3.5X14), TAPPING

47-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S

5A-4736-152-A FRONT PANEL ASSY

SP1 1-825-268-11 SPEAKER (20cm) (GN800)

SP1 1-825-269-11 SPEAKER (20cm) (GN88D)

SP2 1-825-266-11 SPEAKER (8cm) (GN800)

SP2 1-825-267-11 SPEAKER (8cm) (GN88D)

SP3 1-825-266-11 SPEAKER (8cm) (GN800)

SP3 1-825-267-11 SPEAKER (8cm) (GN88D)

SP4 1-529-907-11 SPEAKER (5cm)

3

SS-GN800/GN88D

MEMO

4

SS-GN800/GN88D

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2003.04 New

This manual suits for next models

1
