Sony SS-CT60AV User manual

SERVICE MANUAL

9-873-231-01 Sony Corporation

2001F0500-1 Home Audio Company

C2001.6 ShinagawaTec Service Manual Production Group

Ver 1.0 2001.06

SPEAKER SYSTEM

US Model

AEP Model

SS-CT70AV/SS-RC70AV/SS-RS60/SS-RS70AV

E Model

SS-CT60AV/SS-RC60AV/SS-RS60AV

UK Model

SS-RS60

Photo: SS-CT60AVPhoto: SS-RS60

• SS-CT60AV/RS60AV are center

& rear speakers in MHC-DX60AV.

• SS-CT70AV/RS70AV are center

& rear speakers in MHC-RG70AV.

• SS-RS60 is rear speaker in MHC-

RG60.

SS-CT60AV/CT70AV/RC60AV/

RC70AV/RS60/RS60AV/RS70AV

SS-RC60AV SS-RC70AV

Center Speaker SS-CT60AV SS-CT70AV

Rear Speaker SS-RS60AV SS-RS70AV

COMPONENT MODEL NAME

SS-RC60AV/RC70AV are composed of following models.

SPECIFICATIONS

[SS-CT60AV/CT70AV]

Speaker system Full range,bass-reflex type,magnetically

shielded type

Speaker units

Full range: 8 cm,cone type

Nominal impedance 6 ohms

Dimensions (w/h/d) Approx.220 ×105 ×200 mm

Mass Approx.1.2 kg net per speaker

[SS-RS60/RS60AV/RS70AV]

Speaker system Full range,bass-reflex type

Speaker units

Full range: 8 cm,cone type

Nominal impedance 6 ohms

Dimensions (w/h/d) Approx.180 ×105 ×200 mm

Mass Approx.1.0 kg net per speaker

Design and specifications are subject to change without notice.

2

SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV

EXPLODED VIEWS AND PARTS LIST

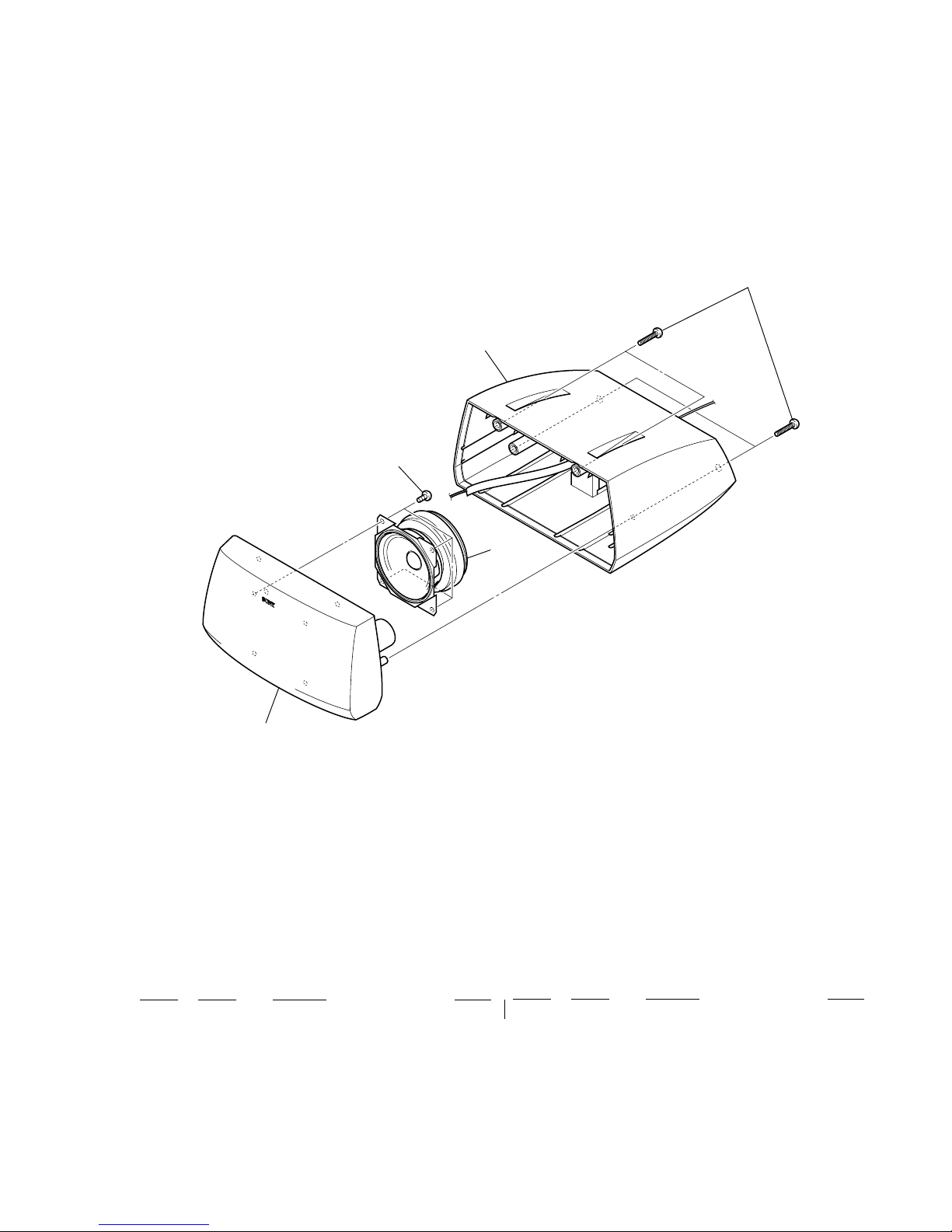

(1) SS-CT60AV/CT70AV

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering

these items.

• The mechanical parts with no reference num-

ber in the exploded views are not supplied.

NOTE:

• -XX and -X mean standardized parts, so they

may have some difference from the original

one.

• Color Indication of Appearance Parts

Example:

KNOB, BALANCE (WHITE) . . . (RED)

↑↑

Parts Color Cabinet's Color

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

1 7-685-648-79 SCREW +BVTP 3X12 SP1 1-544-926-11 SPEAKER (7cm)

1

not supplie

d

not supplied

not supplied

SP1

3

SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

51 7-685-648-79 SCREW +BVTP 3X12 SP2 1-544-927-11 SPEAKER (7cm)

(2) SS-RS60/RS60AV/RS70AV

51

not supplied

not supplied

not supplied

SP2

4

SS-CT60AV/CT70AV/RC60AV/RC70AV/RS60/RS60AV/RS70AV

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2001.06 New
