Sony SS-WL30 User guide

SSWL-30

MODEL:

DESCRIPTION:

DIMENSIONS

(WHD):

WEIGHT:

DESCRIPTION:

DIMENSIONS

(WHD):

WEIGHT:

POWER

REQUIREMENTS:

POWER

CONSUMPTION:

2 way In-Wall

Speaker System

9 7/8" x 14 7/8" x 3 1/2"

3 lbs 12 oz

120V

A

60H

z

120w(m

a

6 ohm

s

Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.

NOTE:

WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING

OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE

RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL

MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES

IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .

Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 986 3062 • b2b.sel.sony.com

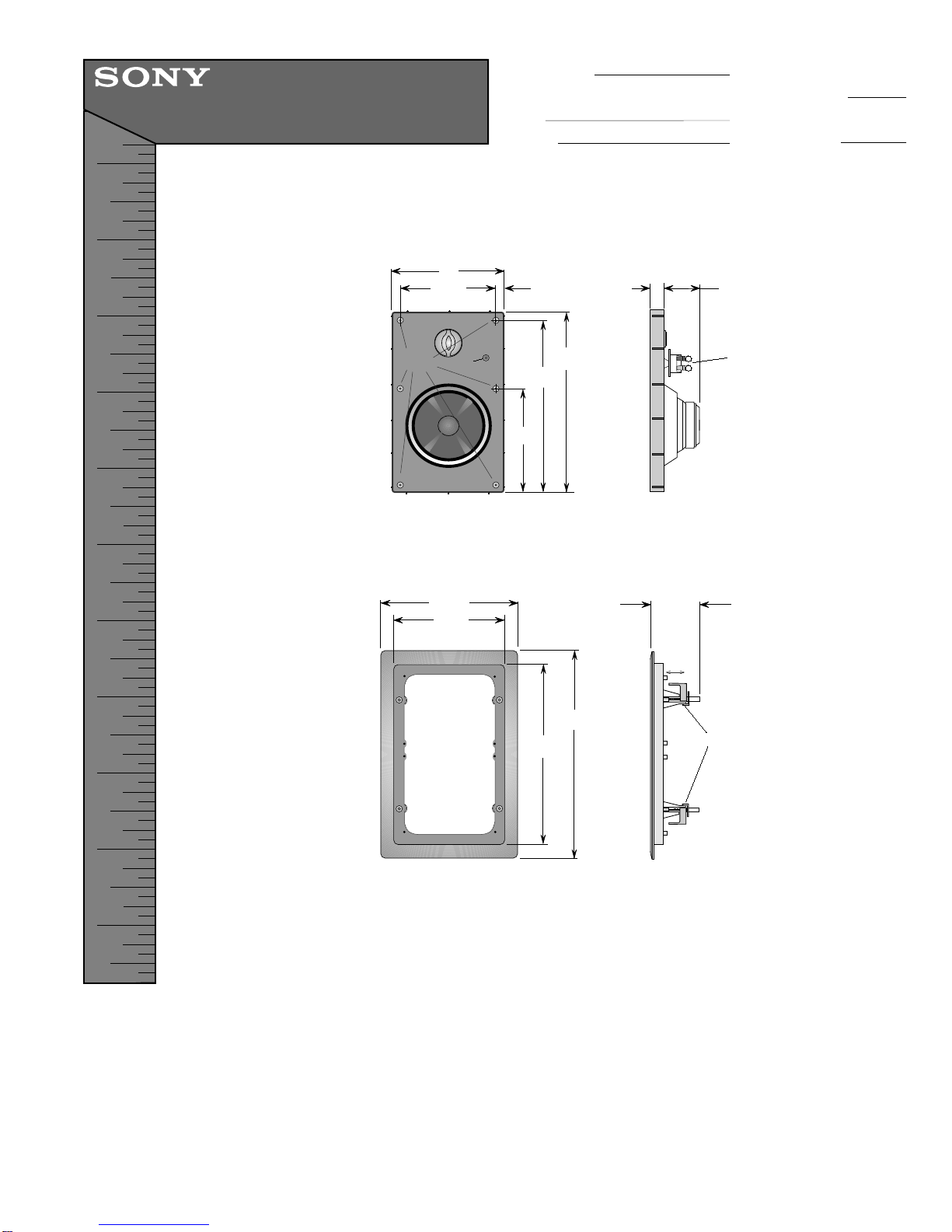

13"

FRONT VIEW SIDE VIEW

14 7/8"

SPEAKER

UNIT

8"

IR

KNOCK

OUT

SPEAKER

MOUNTING

HOLES

6 5/8"

11 3/4"

2 1/2"1"

SPEAKER

TERMINALS

9 7/8"

*8 1/2"

*13 5/8"

*CUT OPENING IN

DRYWALL TO THESE

DIMENSIONS

3 1/2"

CLAMPS HOLD

SPEAKER BRACKET

TO DRYWALL

RED

+

BLK

-

7 1/16"

INSTALLATION

BRACKET

5/8"

Speaker Grilles Not Shown!
