Sinclair ASW-09BI User manual

USER'S MANUAL

WINDOW TYPE

AIR CONDITION

ASW-09BI, ASW-12BI

Explanation of Symbols

Indicates a hazardous situation that, if not avoided, will

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may

result in minor or moderate injury.

Indicates important but not hazard-related information,

used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word

WARNING or CAUTION.

WARNING

CAUTION

DANGER

N OTIC E

Original instructions

Safety operation of flammable refrigerant 22

Operation procedure

Power requirement

CONTENTS

Thank you for choosing air conditoner. Our design is based on the best efficiency

and the lowest noise operation and it can keep the room comfortable.

Please

read this operating manual carefully before operating the unit and keep it for

consultation.

Structure mechanism and Installation

The Refrigerant

Precautions

Installation

Notes for installation

Function

Air direction adjustment

Part identification

Remote control operation procedure 10

Introduction for icons on display screen 10

Introduction for buttons on remote controller 11

Remote control panel 15

Care and maintenance

Operation Tips 16

Caution 17

Care and maintenance 19

Troubleshooting guide 20

This marking indicates that this product should not be disposed with other household wastes

throughout the EU. To prevent possible harm to the environment or human health from un-

controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-

rial resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for envi-

ronmental safe recycling.

R32: 675

After service

This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- 1 -

The Refrigerant

●To realize the function of the air conditioner unit, a special refrigerant circulates

leads to explosion

. It can

● Compared to common refrigerants, R32 is a nonpolluting refrigerant with no

lower. R32 has got very good thermodynamic features which lead to a really high

WARNING:

Do not use means to accelerate the defrosting process or to clean, other than

those recommended by the manufacture.Should repair be necessary, contact your

nearest authorized Service Centre.

The appliance shall be stored in a room without continuously operating ignition

electric heater.)

Do not pierce or burn.

than 4m .

’s

instructions only.

Be aware that refrigrants not contain odour.

Read specialist’s manual.

Please read this operating manual carefully before operating the unit.

to the material objects for reference.

- 2 -

electric shock.

Please contact dealer when you need to repair air conditioner.

injury or damage.

sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction.

● Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause

● Do not repair air conditioner by yourself. It may cause electric shock or damage.

● Maintenance must be performed by qualified professionals.Otherwise,it may cause

● The appliance is not to be used by persons (including children) with reduced physical,

● Children being supervised not to play with the appliance.

Please install the devices for short-circuit protection and electrical leakage protection

According to the local safety regulations, use qualified power supply circuit and circuit

when installing the air conditioner.

break.

Working temperature range

※ Operating Temperature Range

Indoor side DB/WB(°C)

Maximum cooling 32/23 43/-

Maximum heating 27/- 24/18

Outdoor side DB/WB(°C)

The operating temperature range (outdoor temperature) for cooling only unit is

18°C~ 43°C; for heat pump unit is -7°C~ 43°C.

Precautions

This appliance can be used by children aged from 8 years and above and persons with

reduced physical, sensory or mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

Warning

The air conditioner should be installed in accordance with national wiring regulation.

Air Conditioner should be properly grounded. Incorrect grounding may cause electric

shock.

hazard.

broken.

injury or damage.

personal injury.

● Do not connect air conditioner to multi-purpose socket.Otherwise, it may cause fire

● Do install the air switch. If not, it may cause malfunction.

● Do not spill water on the remote controller’otherwise the remote controller may be

● Do not spray water on air conditioner. It may cause electric shock or malfunction.

● Do not extend fingers or objects into air inlet or air outlet. It may cause personal

● Do not step on air conditioner, or put heavy objects. It may cause damage or

● Do not block air outlet or air inlet. It maycause malfunction.

- 3 -

Installation

Installation precaution:

Window type conditioner is so valuable and the

improper installation of it will cause a lot of da-

mage! Please associate the professional tech-

nician to install the unit and don’t install it by yourself. Otherwise, we are not

responsible for the damage like this.

Location:

●The condensation water must be drained away conveniently.

●Install air conditioner unit far away from TV set or radio etc. to avoid distur-

bing video or voice.

●In salt and coastal area or place where is near thermal springsand polluted

by sulphurous gas, or other special areas, please contact the seller before

use.

●Avoid other heat sources or direct sun light.

●Avoid a place where is easy for children to touch.

●

Don't use the unit in the immediate surrondings of a laundry,a bath,a shower

or a swimming pool.

● For window type air conditioner with remote control, install in a location

where is strong electromagnetic disturbance, you should contact the seller

in advance to avoid the malfunction in use.

How to install:

●

Choose a location where there are

no any obstacle surrounding the

unit, and the plug is accessible.

● Prepare the installation hole slig-

htly bigger than unit size.

● Choose the installation space ac-

cording to the following diagram.

The distance of obstructions from

window unit inside should be upper

300mm, lower 1500mm, left 500mm,

right 500mm, front 1500mm.

Over

1500 mm

500mm 500mm

300mm

- 4 -

Installation procedure:

1) Remove the sticker from the front panel.

3) Fill up sews in the cabinet with sponge

or foam.

2) Put the unit into the installation hole.

● When installing the unit, it should be sl-

anted down to the back to avoid the en-

largement of noise or vibration. (Slant

between 6-10mm.) (Shown at right

● The installation place should be strong

enough to avoid the enlargement of

noise or vibration.

6~10mm

Horizontal line

Installation assistance:

● Use iron support

The installation hole should be stro-

ng enough to support the air condit-

ioner.

If it cannot, iron support has to

be used

outdoors. Iron support sho-

● Use sunshade board

Air conditioner shouldavoidanything

to be dropped into it and avoid direct

sunshine. If there is no cover on it,

you shouldcontact the seller for inst-

alling the sunshade board. When in-

stalling the sunshade board, don’t let

it block the air inlet at the side grille.

Wall

Wooden

frame

Sunshade

board

Rubber

plate

6~10mm

Support

Horizontal line

- 5 -

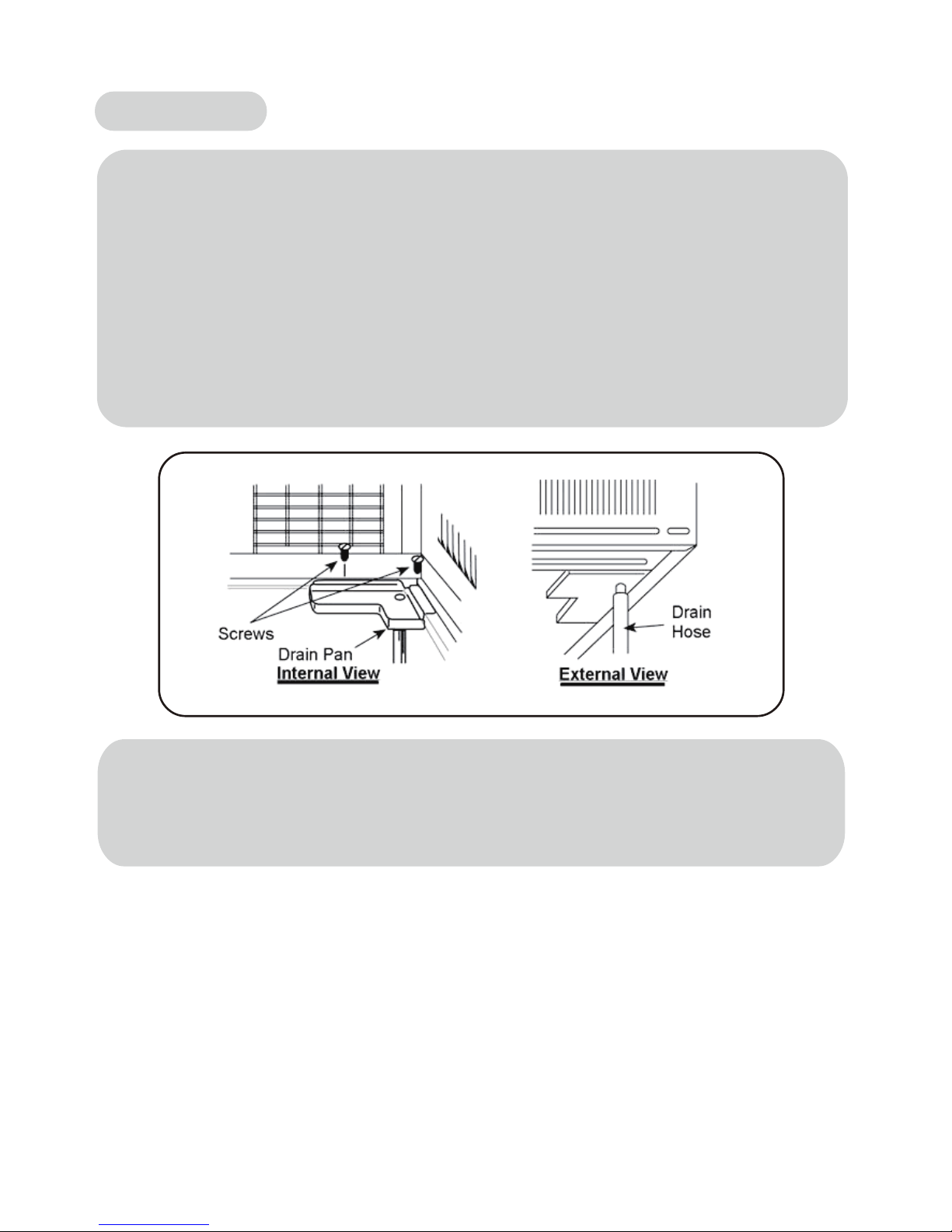

Drain water :

Drain pan and drain hose need to be installed before using. Drain hose is

not included in the products, you need to purchase it locally to satisfy your

particular needs. Use the following procedure to install drain pan and drain

hose.

1. Slide out the chassis from the cabinet.

2. Install the drain pan to the corner of the cabinet with 2 screws.

3. Connect the drain hose to the outlet on the drain pan bottom.

4. Slide the chassis into its original place in the cabinet.

To get the maximum cooling efficiency , the air conditioner is designed to

splash the condensation water on the condenser coil . If the splashing sound

annoy you , you can remove the rubber plug from the chassis to lower the

noise, which also cause a bit loss of performance.

- 6 -

Notes for installation

Remove

Noise

Electric wiring

Before removing air conditioner to the other place, you

Then it must be done under the direction of the profe-

ssional technician. In addition, the charge of this must

be paid.

enlargement of noise and vibration.

● Don’t put anything in front of the outlet of outdoor unit

to avoid increasing noise.

● Be sure that hot air or noise will not inconvenience neighbors.

● Please contact the seller as soon as there is strange noise during operation.

● Please use the safety support.

● Must connect with ground reliably.

●The exclusive circuit must be used. But removable socket

can’t be used because poor contact of it can cause over heat

● Don’t pull the power cord strongly.

and leakage current is less than 30mA.

● Connecting method between air conditioners and power cord and intercon-

necting method of each individual element with one another should accord

with wiring diagram on the unit.

●The air conditioner should be installed in accordance with national wiring

regulation.

●An all-pole disconnection switch having a contact separation of at least 3mm

●Air switch (thermal-magnetic breaker) should be installed in the circuit.

● If the supply cord is damaged,it must be replaced by the manufacturer or

●All The dectrical work must be done according to the local wiring regulations.

- 7 -

Function

Introduction

Window type room air conditioners can

regulate the room temperature and dry the

room. It is convenient for your work, study

and life. It can be widely used in residence,

so on.

Room

temp.

Spring Autumn

Winter

Wind

direction

Summer

Cooling in summer

Heating in winter

(Only for heat unit)

Dehumidifying in rainy or

humid season

In hot summer, Air conditioner can

cool down theroom air by transferring

heat out.

Without reducing the room temp., air

conditioner can dehumidify and make

the room air dry and comfortable.

Dry

In cold winter, Air conditioner can

heat up room air.

This manual suits for next models

Table of contents

Other Sinclair Air Conditioner manuals

Sinclair

Sinclair ASE-18AH User manual

Sinclair

Sinclair SDV5 Series User manual

Sinclair

Sinclair SDV5-HA Series User manual

Sinclair

Sinclair AW-12A User manual

Sinclair

Sinclair ASH-13AIA PT User manual

Sinclair

Sinclair KEYON Series User manual

Sinclair

Sinclair SDV5 Series User manual

Sinclair

Sinclair SDV4 series User manual

Sinclair

Sinclair MULTI SYSTEM SERIES User manual

Sinclair

Sinclair SDV4-180EA User manual

Sinclair

Sinclair SYMPHONY MS-H09AISW PT User manual

Sinclair

Sinclair MV-F09BI User manual

Sinclair

Sinclair ASH-18AC PT User manual

Sinclair

Sinclair SDV4-200EA Operating manual

Sinclair

Sinclair ASP-18AI User manual

Sinclair

Sinclair SMF-4E27AI User manual

Sinclair

Sinclair DUCT ASD-09A User manual

Sinclair

Sinclair MULTI VARIABLE User manual

Sinclair

Sinclair ASGE BI-3 Series User manual

Sinclair

Sinclair MS-H09AICN PT User manual

Sinclair

Sinclair ASGE-09A User manual

Sinclair

Sinclair MC-C12AI User manual

Sinclair

Sinclair ASH-13AIA1 PT User manual

Sinclair

Sinclair ELEMENT Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
