Sinclair SDV5 Series User manual

INDOOR FLOOR-CEILING UNITS SDV5-xxFA

COMMERCIAL AIR CONDITIONERS SDV5

Original instructions

IMPORTANT NOTE:

Read this manual carefully before installing or operating

your new air conditioning unit. Make sure to save this

manual for future reference.

201805 3

Ceiling & floor

1Specifications ........................................................................................ 4

2Dimensions............................................................................................ 6

3Unit Placement...................................................................................... 4

4Piping Diagram ...................................................................................... 5

5Wiring Diagram...................................................................................... 6

6Capacity Tables ...................................................................................... 8

7Electrical Characteristics ...................................................................... 16

8Sound Levels........................................................................................ 17

4 201805

Specifications

SDV5-36FA

SDV5-45FA

SDV5-56FA

SDV5-71FA

Table

1.1:

SDV5-36,45,56,71FA

specifications

Model

SDV5-36FA

SDV5-45FA

SDV5-56FA

SDV5-71FA

Power supply

1 phase, 220-240V, 50Hz

Cooling1

Capacity

3.6

4.5

5.6

7.1

kBtu/h

12.3

15.4

19.1

24.2

Power input

115

Heating2

Capacity

4.0

5.0

6.3

8.0

kBtu/h

13.6

17.1

21.5

27.3

Power input

115

Fan motor

Model

WZDK100-38GS-2

Type

Brand

Panasonic/Match-Well

Speed3

r/min 770/740/700/680/6

50/630/610

1380/1330/1300/1260/

1210/1140/1070

1380/1340/1300/12

60/1190/1140/1120

Indoor coil

Number of rows

Tube pitch × row pitch

mm 25.4×22

Fin spacing

mm 1.8

Fin type

Hydrophilic aluminum

Tube OD and type

mm Ф9.53 Inner-groove

Dimensions (L×H×W)

mm 804×254×44

804×254×66

Number of circuits

Air flow rate3

m3/h

550/525/500/480

/460/440/420

930/895/860/830/792/755/720

Sound pressure level4

dB(A)

40/39/38/38/37/

36/36

43/42/41/41/39/38/38

Sound power level

dB(A)

53/52/51/51/50/

49/49

56/55/54/54/52/51/51

Unit

Net dimensions5(WxHxD)

990×660×203

Packed dimensions (WxHxD)

1089×744×296

Net/Gross weight

26/32

28/34

Refrigerant type

R410A

Throttle

Type

Electronic expansion valve

Model

D20MISZ-1R(L)

Design pressure (H/L)

MPa

4.4/2.6

Pipe

connections

Liquid/Gas pipe

Ф6.35/Ф12.7

Ф9.53/Ф15.9

Drain pipe

OD Φ16

Notes:

1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.

2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.

3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.

4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.

5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

201805 5

Table

1.2:

SDV5-80,90,112,140FA

specifications

Model

SDV5-80FA SDV5-90FA

SDV5-112FA

SDV5-140FA

Power supply

1 phase, 220-240V, 50Hz

Cooling1

Capacity

8.0

9.0

11.2

14.0

kBtu/h

27.2

30.7

38.2

47.8

Power input

130

180

Heating2

Capacity

9.0

10.0

12.5

15.0

kBtu/h

30.7

34.1

42.7

51.2

Power input

130

180

Fan motor

Model

WZDK100-38GS-1

WZDK100-38GS-2

Type

Brand

Panasonic/Match-Well

Speed3

r/min

1300/1270/1230/1200/1160/1120/1090

1140/1090/1060/1040/1010/990/970

Indoor coil

Number of rows

Tube pitch × row pitch

mm 25.4×22

Fin spacing

mm 1.8

Fin type

Hydrophilic aluminum

Tube OD and type

mm Ф9.52 Inner-groove

Dimensions (L×H×W)

mm 1094×254×66 1360×254×66

Number of circuits

Air flow rate3

m3/h 1280/1245/1210/1170/1130/1085/1050 1890/1830/1765/1700/1660/1620/1580

Sound pressure level4

dB(A) 45/44/43/43/42/41/40 47/46/45/45/44/43/42

Sound power level

dB(A) 58/57/56/56/55/54/53 60/59/58/58/57/56/55

Unit

Net dimensions5

(WxHxD)

1280×660×203

1670×680×244

Packed dimensions

(WxHxD)

1379×744×296

1915×760×330

Net/Gross weight

35/41

48/58

Refrigerant type

R410A

Throttle

Type

Electronic expansion valve

Model

BD24FKS(L)

Design pressure (H/L)

MPa

4.4/2.6

Pipe

connections

Liquid/Gas pipe

Ф9.53/Ф15.9

Drain pipe

OD Φ16

Notes:

1. Indoor temperature 27°C DB, 19°C WB; outdoor temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.

2. Indoor temperature 20°C DB; outdoor temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.

3. Fan motor speed and air flow rate are from the highest speed to the lowest speed, total 7 rates for each model.

4. Sound pressure level is from highest level to lowest level, total 7 levels for each model. Sound pressure level is measured in a semi-anechoic chamber.

5. Unit body dimensions given are the largest external dimensions of the unit, including hanger attachments.

6 201805

2Dimensions

2.1 Unit Dimensions

Figure 2.1: Ceiling & floor dimensions (unit: mm)

Hook

Hanging arm

Table 2.1: Ceiling & floor dimensions

Model

Dimensions (mm)

A B C D E F G

SDV5-36FA

SDV5-45FA

SDV5-71FA

990 660 203 505 506 907 200

SDV5-80FA

SDV5-90FA 1280 660 203 795 506 1195 200

SDV5-112FA

SDV5-140FA 1670 680 244 1070 450 1542 200

Table 2.2: Ceiling & floor piping connections

Model Gas pipe (mm) Liquid pipe (mm)

SDV5-36FA

SDV5-45FA Ф12.7 Ф6.35

SDV5-71FA

SDV5-80FA

SDV5-90FA

SDV5-112FA

SDV5-140FA

Ф15.9 Ф9.53

4 201805

3Unit Placement

3.1 Placement Considerations

Unit placement should take account of the following considerations:

Units should not be installed in the following locations:

Where exposure to direct radiation from a high-temperature heat source or to interference from a source of

electromagnetic radiation may occur.

Where dust or dirt may affect heat exchangers.

Where exposure to oil or to corrosive or harmful gases, such as acidic or alkaline gases, may occur.

Where exposure to salinity may occur, such as seaside locations.

Where highly flammable materials are present.

Where exposure to oily air may occur, such as a kitchen.

Where exposure to very high humidity may occur, such as a laundry.

Units should be installed in positions where:

The ceiling is horizontal and is able to bear the unit’s weight.

There are no obstructions that could impede the airflow into and out of the unit.

The airflow out of the unit can reach throughout the room.

There is sufficient space for access during installation, servicing and maintenance.

The refrigerant piping and drain piping can be easily connected to the refrigerant piping and drain piping

systems.

Short-circuit ventilation (where outlet air returns quickly to a unit’s air inlet) will not occur.

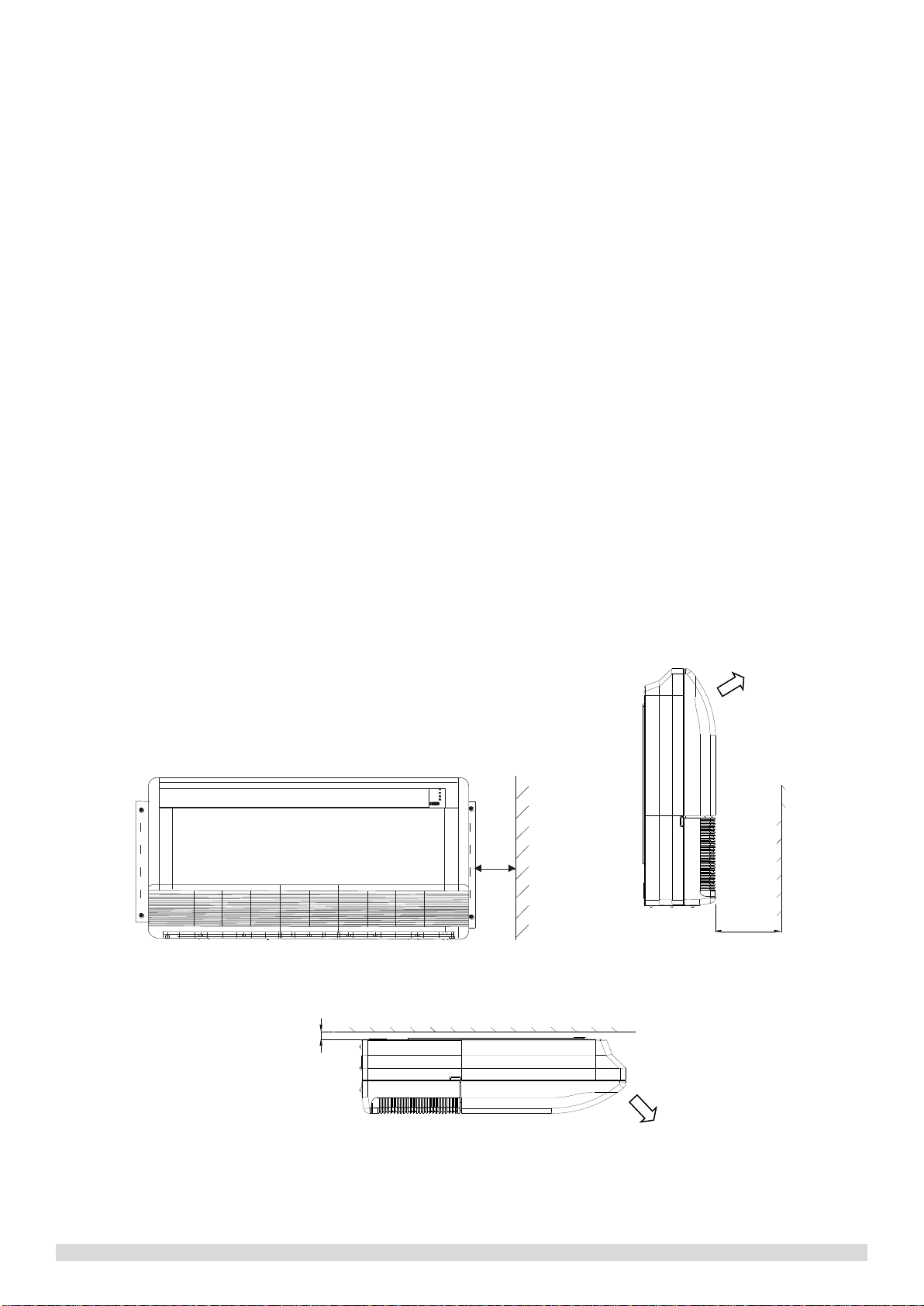

3.2 Space Requirements

Figure 3.1: Ceiling & floor space requirements (unit: mm)

>600mm

600mm

>20

Air Outlet

Obstacle

Piping connection

Obstacle

Drop ceiling

Air Outlet

201805 5

4Piping Diagram

Figure 4.1: Ceiling & floor piping diagram

flare nut

T2B

gas side

motor

heat exchanger

fan

EXV

liquid side

Legend

T1 Indoor ambient temperature sensor

T2 Indoor heat exchanger mid-point temperature sensor

T2B Indoor heat exchanger outlet temperature sensor

6 201805

5Wiring Diagram

Figure 5.1: Ceiling & floor wiring diagram

201805 7

Caution

All installation, servicing and maintenance must be carried out by competent and suitably qualified, certified

and accredited professionals and in accordance with all applicable legislation.

Units should be grounded in accordance with all applicable legislation. Metal and other conductive components

should be insulated in accordance with all applicable legislation.

Power supply wiring should be securely fastened at the power supply terminals –loose power supply wiring

would represent a fire risk.

After installation, servicing or maintenance, the electric control box cover should be closed. Failing to close the

electric control box cover risks fire or electric shock.

Switch ENC1 (indoor unit capacity setting) is factory-set and its setting should normally not be changed. The

only circumstances in which a switch ENC1 might need to be set in the field is when replacing a main PCB.

When replacing a main PCB, ensure that the capacity setting on switch ENC1 on the new PCB is consistent with

the unit capacity given on the unit’s nameplate.
