Installation Instructions

Document No. 570-136

October 26, 2016

Smoke Control Listed BACnet Fume

Hood Controller

Item No. 570-136. Rev. CA Page 1 of 11

Generic Controller I/O Layout. See Wiring Diagram for application specific details.

Control Applications

6740, 6741 and 6742

Product Description

These instructions explain how to field install or

replace the Fume Hood Controller (FHC).

This BACnet Fume Hood Controls a Fast-acting

Damper or Venturi Air Valve to maintain control of a

chemical fume hood with up to 2 sashes. It uses

fast-acting electronic actuators (shipped separately)

to control the exhaust control device.

WARNING

The application cannot detect a

broken wire to the analog input

for the second sash.

An external sash aggregating

device should be used to

calculate the face area for all

fume hoods with more than one

sash.

This controller supports up to two Offboard AVS

signals. Offboard Air Module(s) (OAM) house AVS

transducers and send signals to the AVS input(s) on

the controller board. The controller can operate

stand-alone, with a field panel, or as part of a

network.

Document No. 570-136

Installation Instructions

October 26, 2016

Page 2 of 11 Siemens Industry, Inc.

Product Numbers

Fume Hood Controller

Applications 6740,6741,6742

This controller requires Offboard

Air Module(s) (ordered and

shipped separately

570-00701PKA

Offboard Air Module –two

required, order separately

550-819B

Operator Display Panel II (ODP II)

575-820A

Power Module

AQM2200

Siemens fast-acting Lab Electronic

Actuator(s) –order and ship

separately)

GNP191.1U

Shipping carton includes a controller assembly, a

mounting rail, and two self-tapping/drilling screws.

CAUTION

Keep the unit in its static-

proof bag until installation.

Otherwise you run the risk of

damage to the PCA from

electrostatic discharge.

ATTENTION

Ne pas retirer la carte de son

emballage avant son

installion.

Autrement, une décharge

électrostatique peut

endommager la carte

équipée.

Accessories

Room Sensor Cable 25 ft.

Room Sensor Cable 50 ft.

588-100A

588-100B

Vertical Sash Sensor

50 inch range

80 inch range

546-04000

546-04001

Parts for Smoke Control Compliance

Smoke Control Listed Large

Equipment Controller Enclosure

(Long board and ATEC

controllers).

550-002K

UL Listed Class 2 transformer with

120/240/277/480 Vac 50/60 HZ

0.5A primary with hub, and 24 Vac

96VA secondary w/ hub and circuit

breaker.

TR100VA004

NOTE:

For smoke control application, primary

rating is only 120V/60 Hz.

Warning/Caution Notation

WARNING

Personal injury/loss of life may

occur if you do not follow the

procedures as specified.

CAUTION

Equipment damage or loss of

data may occur if you do not

follow the procedures as

specified.

AVERTISSMENT

Risques de blessures graves

ou mortelles, si vous ne suivez

pas les procédures indiquées.

ATTENTION

Risques de dommages ou de

pertes de données, si vous ne

suivez pas les procédures

indiquées.

Document No. 570-136

Installation Instructions

October 26, 2016

Siemens Industry, Inc. Page 3 of 11

Required Tools and Equipment

Small flat blade screwdriver

3/8-inch open end wrench

Needle nose pliers

1/4-inch poly tubing

Prerequisites

Wiring conforms to NEC and local codes and

regulations. For further information see the

Wiring Guidelines Manual

24 Vac Class II power available.

Supply power to the unit is OFF.

Any application specific hardware or devices

installed.

Fume Hood Controller Enclosure is mounted and

wiring has been roughed-in.

Operator Display Panel is installed and cable

pulled to location of controller.

Expected Installation Time

30 minutes

Installation Instructions

NOTE:

All wiring must conform to national and

local codes and regulations (NEC, CE,

etc.).

1. Secure the mounting rail in the controller’s

desired location.

2. Place the ESD wrist strap on your wrist and

attach it to a good earth ground.

3. Remove the controller from the static proof bag

and snap it into place on the mounting rail.

4. If the controller will be used with a field panel,

disconnect the field level network (FLN) trunk

from the field panel.

5. Wire the FLN trunk to the controller. After all

controllers are connected to the FLN, reconnect

the FLN trunk to the field panel.

6. If the controller requires Offboard Air Modules,

install them now following the appropriate

Installation Instructions (see

Product Numbers

7. Connect the point wiring (see

Wiring Diagram

s).

CAUTION

DO Wiring –Each DO provides a

Normally Open (NO) terminal and a

Common (C) terminal.

To reduce noise and the potential

for ground loops, both connections

of a 24 Vac load must be wired

directly to the DO terminal on the

controller board.

Plug the operator display cable into the ODP

port.

Connect the power trunk. DO NOT apply

power to the controller without first consulting

the specialist.

Document No. 570-136

Installation Instructions

October 26, 2016

Page 4 of 11 Siemens Industry, Inc.

CAUTION

It is important that the neutral that

supplies the TEC must be earth

grounded at the source of the 24

Vac power.

Possible erratic equipment

operation or damage if neutral is not

grounded.

ATTENTION

Il est très important que le neutre

qui alimente le TEC soit mis à la

terre à la source de l’alimentation

24 Vca.

Risque de fonctionnement

incohérent de l’équipement ou de

dégats si le neutre n’est pas mis à

la terre.

10.

For a Fast Acting Lab Electronic Actuator,

verify that the switches are set as shown in

Figure

Switch Settings for the Fast Acting

Lab Electronic Actuator

Damper

Venturi Air Valve

Switch Settings for the Fast Acting Lab Electronic

Actuator.

The installation is complete.

Dimensions.

Smoke Control Compliance

The following instructions and information apply if

used for smoke control sequence.

1. Install Smoke Control Listed products, enclosure

and transformer. See the

Product Numbers

and

Accessories

sections for more information.

2. Input Rating:

–24V 60 Hz 60 VA maximum

3. Digital Output (DO) are the only I/O authorized

for smoke control applications.

Digital Output (DO) Electrical Ratings:

–5 VA per DO/ maximum 40 VA total

4. The room temperature sensor (RTS) is installed

in the same area as the TEC.

5. Connection from the TEC to the field panel is a

maximum 4000 feet, 24 AWG minimum.

6. Wiring Range:

–Transformer: primary 14 AWG

–24 Vac Input Power: 14 to 18 AWG

–DO: AI: 18 to 20 AWG

–DI: 18 AWG

–LAN: 20 to 24 AWG

–RST: 24 AWG

All circuits are power limited; FLN is RS-485,

RTS is RS-232. Digital Inputs (DI) are dry

contacts.

See the following documents for more

information on configuring smoke control

applications:



Smoke Control Systems Application and

Engineering Manual (

125-1806)



Smoke Control System Application Guide

(

125-1816)



NFPA and UL Standards Relevant to Smoke

Control System Application Guide (

125-

1817)

Document No. 570-136

Installation Instructions

October 26, 2016

Siemens Industry, Inc. Page 5 of 11

NOTE:

The 24 Vac relay module is not

applicable for smoke control

application.

Regulatory

FCC Statement Part 15.19

This Device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference,

and

2. This device must accept any interference

received, including interference that may cause

undesired operation

FCC Part 15.21, Information to user

Changes or modifications not expressly approved by

the party responsible for compliance could void the

user’s authority to operate the equipment.

FCC Part 15.105, Information to user

This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection

against harmful interference in a residential

installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful interference to radio

communications. However, there is no guarantee

that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which

can be determined by turning the equipment off and

on, the user is encouraged to try to correct the

interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment

and receiver.

Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV

technician for help.

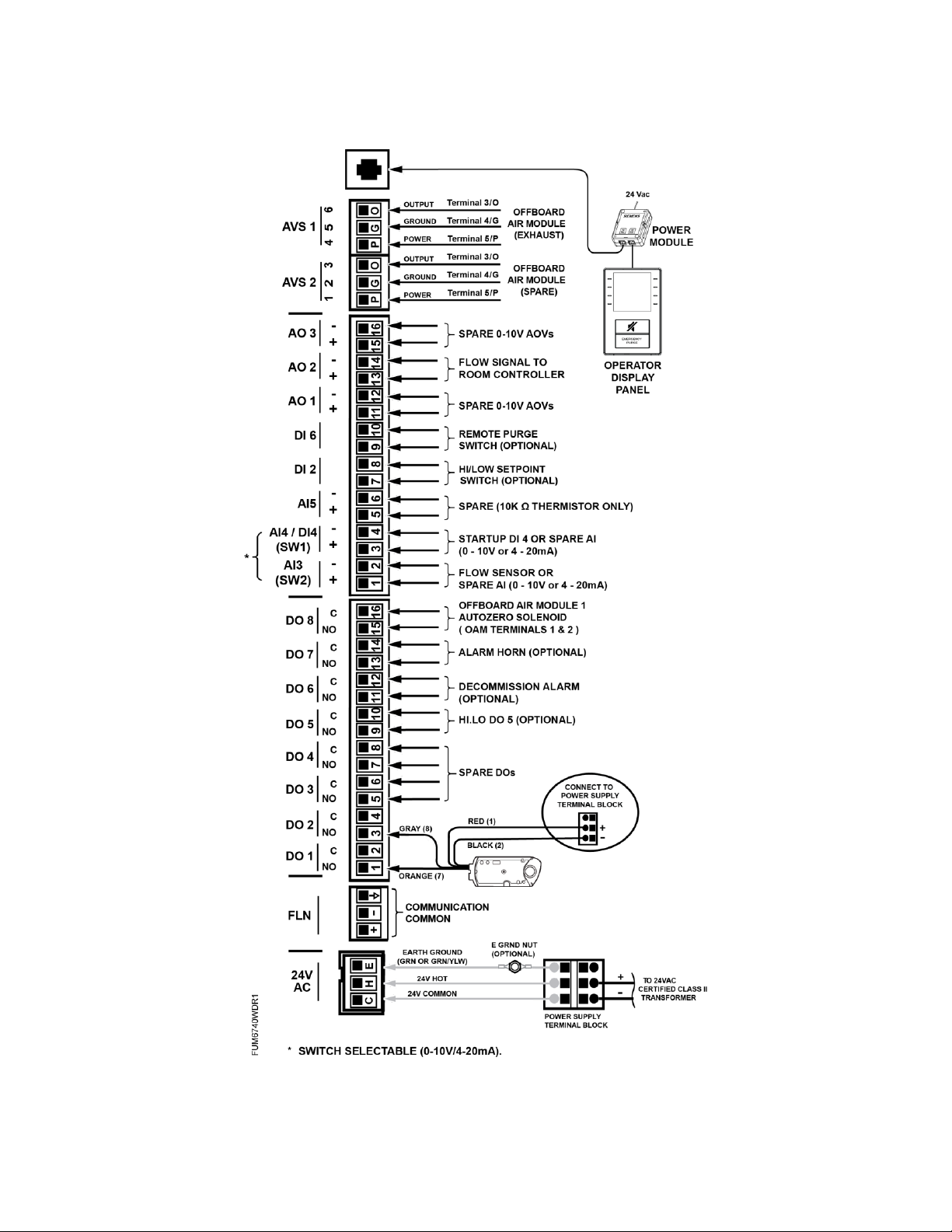

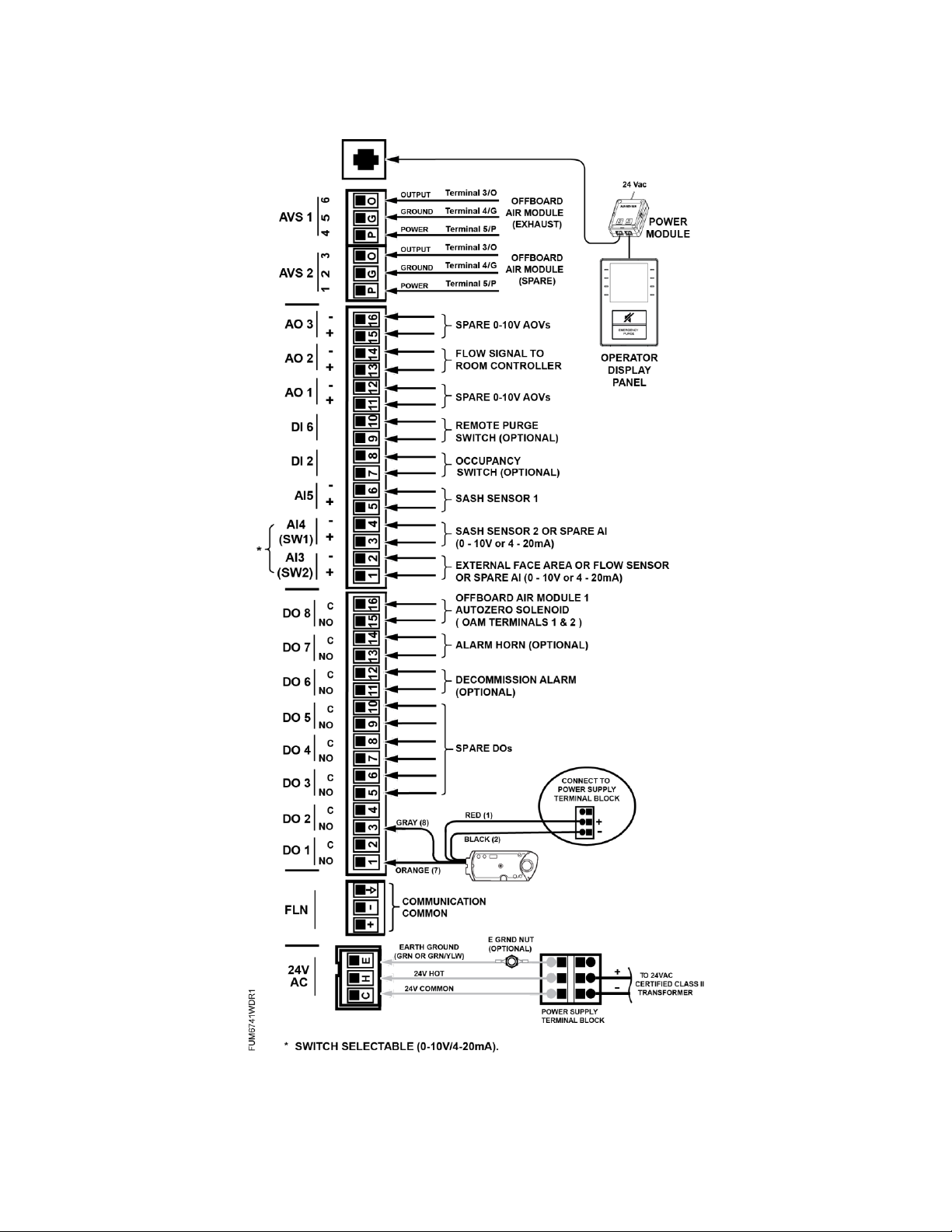

Wiring Diagrams

Offboard Air Module Wiring.

CAUTION

The FHC-OAVS has two terminal

blocks with terminations numbered

identically (terminations 1 through

16). DO NOT get these mixed up

with each other.

If the FHC-OAVS is not connected

as shown, it is not resistant to

electrical surges. It is also

susceptible to interference from

other equipment.

ATTENTION

Le LCM-OAVS est muni de deux

bornes dont les contacts sont

numérotés à l’identique (contacts 1

à 16). NE PAS les confondre.

SI le LCM-OAVS n’est pas

connecté comme indiqué, il n’est

pas protégé contre les surtensions

électriques. Il est également

susceptible à des interférences

émises par d’autres périphériques.

Document No. 570-136

Installation Instructions

October 26, 2016

Page 6 of 11 Siemens Industry, Inc.

CAUTION

A separate power supply is required

if a 4-20 mA sensor is used.

Failure to follow wiring precautions

will result in equipment damage.

ATTENTION

Une alimentation séparée est

nécessaire, si un capteur 4…20

mA est utilisé.

Risque de dégâts matériels, si

les précautions de câblage ne

sont pas respectées.

Wiring for AI5: Sash Sensor 1.

Wiring for AI4: Sash Sensor 2.

WARNING

The application cannot detect a broken

wire to the analog input for the second

sash.

An external sash aggregating device

should be used to calculate the face

area for all fume hoods with more than

one sash.

AVERTISSMENT

L’application ne peut pas détecter un fil

rompu allant à une entrée analogique

pour le second châssis.

Un dispositif externe de cumulation de

châssis devrait être utilisé pour

calculer la surface à l’entrée de toutes

les hottes de laboratoire munies de

plus d’un châssis.

WARNING

Must use external 10 Vdc power

supply.

Do not power AI from an onboard AO

that is forced to 10 volts.

AVERTISSMENT

Doit utiliser une alimentation externe

de 10 V.

Ne pas alimenter un AI à partir d’un

AO forcé à 10 volts.

Wiring for AI with a 4 to 20 mA Sensor.

Document No. 570-136

Installation Instructions

October 26, 2016

Siemens Industry, Inc. Page 7 of 11

CAUTION

Each 4-20 mA sensor requires

a SEPARATE dedicated power

limited 24 VDC power supply.

DO NOT use the same

transformer to power both the

sensor and the controller.

ATTENTION

Chaque capteur 4-20 mA

nécessite un source

d’alimentation SÉPARÉE

limitée à 24 VDC.

NE PAS utiliser le même

transformateur pour alimenter le

capteur et le contrôleur.

NOTE:

If the voltage/current switch is set to

current and a 4 to 20 mA sensor is

connected to an AI, then special wiring

requirements must be followed.

NOTE:

When wiring any actuator that uses a 0 to

10V control signal and ties AC neutral to DC

common, an additional wire must connect

the actuator AC neutral to the DC common

of the PTEC/TEC AO being used to control

the actuator.

24 Vac Modulating Control.

Actuator

Symbol

TEC

Connection

Function

Terminal

Connection

Standard

Color

Supply (SP)

Red

Neutral (SN)

Black

AO3 –15

(+)

0 to 10V

input signal

Gray

C to AO3

16 (-)

Common

jumper

NOTE:

The controller’s DOs control 24 Vac

loads only. The maximum rating is 12 VA

for each DO. An external interposing

relay is required for any of the following:

• VA requirements higher than the

maximum

• 110 or 220 Vac requirements

• DC power requirements

• Separate transformers used to power

the load

(for example, part number 540-147,

Terminal Equipment Controller Relay

Module)

Document No. 570-136

Installation Instructions

October 26, 2016

Page 8 of 11 Siemens Industry, Inc.

Application 6740 Wiring Diagram.

Document No. 570-136

Installation Instructions

October 26, 2016

Siemens Industry, Inc. Page 9 of 11

Application 6741 Wiring Diagram.

Document No. 570-136

Installation Instructions

October 26, 2016

Page 10 of 11 Siemens Industry, Inc.

Application 6742 Wiring Diagram.

Other manuals for BACnet

This manual suits for next models

Table of contents

Other Siemens Controllers manuals

Siemens

Siemens RUGGEDCOM WIN5214 User manual

Siemens

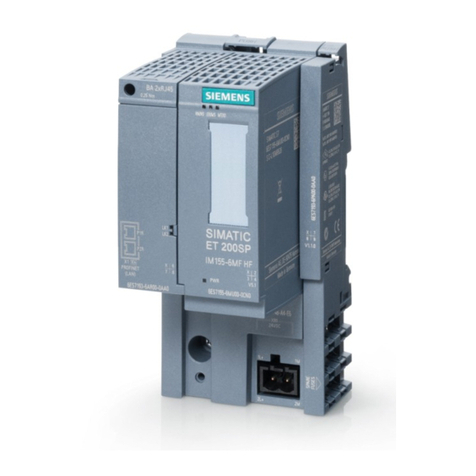

Siemens SIMATIC ET 200SP User manual

Siemens

Siemens SKB32 Series User manual

Siemens

Siemens OpenAir GIB13.1 Series User manual

Siemens

Siemens RMG 508SE User manual

Siemens

Siemens North American Electric 3RW30-40 Series User manual

Siemens

Siemens SIRIUS S2 User manual

Siemens

Siemens SINUMERIK 802D sl User manual

Siemens

Siemens GDB 1 Series User manual

Siemens

Siemens UTMC OTU User manual

Siemens

Siemens SINUMERIK 810DE Technical Document

Siemens

Siemens GCA 1 Series User manual

Siemens

Siemens ERTEC200 User manual

Siemens

Siemens SIKOSTART 3RW34 Manual

Siemens

Siemens Simatic S7-200 CPU 210 User guide

Siemens

Siemens SIMATIC S7-1200 User manual

Siemens

Siemens SIMOTION P320-4 E User manual

Siemens

Siemens SINAMICS S120 Technical Document

Siemens

Siemens SIRIUS 3RM1 User manual

Siemens

Siemens GGA 1E Series User manual

Siemens

Siemens SIMOTION P320-4 E User manual

Siemens

Siemens DESIGO PX User manual

Siemens

Siemens ST950 User manual

Siemens

Siemens Automatic Star-Delta 3TE05 2AR0 Series User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual

3M MicroTouch EX113 reference guide
