Siemens 27086-TAB Owner's manual

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 1 of 9

TECHNICAL INSTRUCTIONS

Last Revised: 01/28/2015

Description of Document:

This TID provides the procedures to

replace and set up the Siemens Gas

Valve Actuator in all AERCO boilers

featuring double-block and double-

block-and-bleed gas trains.

Siemens Actuator

Siemens

Gas Valve Actuator

Replacement Kit

P/N 27086-TAB

Actuator Replacement Kit for AERCO Boilers, P/N 27086-1

Boilers ITEM PART NO. QTY DESCRIPTION

All AERCO

Boilers

(except

BMK6000)

1 12951-4 1 Control Box Bushing

2 69038 1 Actuator, Siemens SKP15.013U1

(without POC switch)

3 TID-0092 1 Instruction Document

Actuator Replacement Kit for BMK6000 Boilers, P/N 27086-2

Boilers ITEM PART NO. QTY DESCRIPTION

BMK6000

(Only)

1 12951-4 2 Control Box Bushing

2 124138 1 Actuator, Siemens SKP15.012U1

(with POC switch)

3 TID-0092 1 Instruction Document

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 2 of 9

TABLE OF CONTENTS

1. INTRODUCTION................................................................................3

2. SPECIFICATIONS..............................................................................3

3. DIMENSIONS.....................................................................................4

4. REQUIRED TOOLS ............................................................................4

5. REPLACEMENT KIT CONTENTS ......................................................4

6. PREPARATONS.................................................................................5

7. REPLACEMENT PROCEDURE...........................................................6

Disclaimer

The information contained in this manual is subject to change without notice from

AERCO International, Inc. AERCO makes no warranty of any kind with respect to this

material, including, but not limited to, implied warranties of merchantability and fitness for

a particular application. AERCO International is not liable for errors appearing in this

manual. Nor for incidental or consequential damages occurring in connection with the

furnishing, performance, or use of this material.

Technical Support:

(Mon–Fri, 8am-5pm EST)

1-800-526-0288

www.aerco.com

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 3 of 9

1. INTRODUCTION

The Siemens electro-hydraulic gas valve actuators are used in combination with VG series gas

valves to provide safety shut-off control for industrial and commercial burner applications. It is

featured in all double-block and double-block-and-bleed gas trains used in AERCO boilers.

The electro-hydraulic actuator consists of a cylinder filled with oil, a piston containing an electric

oscillating pump, and a relief system. When power is supplied to the actuator, the relief system

closes, and the pump moves oil from the reservoir into the pressure chamber. This action

causes the piston to move downward in the cylinder, opening the gas valve. When power to the

actuator is interrupted, the relief system opens and the gas valve closes in less than 0.8

seconds. A position indicator, visible through the transparent portion of the terminal cover,

shows the entire stroke range of the actuator. A light, which is visible through the lower left

transparent portion of the terminal cover, indicates when the actuator receives power. An

optional, non-adjustable SPDT proof of closure over travel switch signals the closed position

after the gas valve has closed. An optional SPDT auxiliary switch is adjustable between 40%

and 100% of the stroke. The adjustment screw and scale are located on the right side in the

terminal box, and are visible through the transparent portion of the terminal cover.

2. SPECIFICATIONS

Agency approvals As Safety Shut-Off Valve UL/429, FM/7400, ANSI

Z21.21/CGA6.5 C/I

Power Supply

Operating Voltage 110 to 120 VAC + 10% to -15%

Operating Frequency 50 to 60 Hz + 6%

Power Consumption 3.5 VA

Duty Cycle Continuous

Operating

Environment

Ambient Operating Temperature 5°F to 140°F (–15°C to 60°C)

Mounting Position Any position except upside down

Physical

Characteristics

Weight 2.4 lb (1.1 kg)

Enclosure NEMA 1, 2, 5, and 12 for indoor

use

Dimensions

See Figure 1

Connections

Conduit Connection Two 1/2-inch NPSM threaded

knock-outs

Electrical Connection Spring loaded terminals for 14

AWG wires

Operating

Characteristics

Output Force 100 lbs. (450 N)

Maximum Stroke 1 inch (26 mm)

Opening Time For Maximum

Stroke

Varies with valve size, 14 seconds

for maximum stroke.

Closing Time <0.8 seconds

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 4 of 9

3. DIMENSIONS

Figure 1: Actuator Dimensions

4. REQUIRED TOOLS

The following tools are required to perform the instructions in this bulletin.

 Standard set of screwdrivers

 4mm Allen key driver

5. REPLACEMENT KIT CONTENTS

The contents of replacement kits are shown in Tables 1 and 2, below:

Table 1: Actuator Replacement Kit, P/N 27086-1 (All BMK, Except BMK 6000)

Boilers

ITEM

PART NO.

QTY

DESCRIPTION

All AERCO

Boilers

(except

BMK6000)

1 12951-4 1 Control Box Bushing

2 69038 1 Actuator, Siemens SKP15.013U1

(without POC Switch)

3 TID-0092 1 Instruction Document

Table 2: Actuator Replacement Kit, P/N 27086-2 (BMK 6000 Only)

Boilers

ITEM

PART NO.

QTY

DESCRIPTION

BMK6000

(Only)

12951-4

Control Box Bushing

2 124138 1 Actuator, Siemens SKP15.012U1

(with POC switch)

TID-0092

Instruction Document

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 5 of 9

6. PREPARATONS

To prepare the boiler for the retrofit, perform the following:

• Remove power from the unit by shutting off electrical power upstream from the boiler.

• Turn off the supply gas upstream from the boiler.

WARNING

HIGH VOLTAGES OF 120 VAC, 220 VAC OR 460 VAC

ARE USED IN AERCO BOILERS. IT IS REQUIRED THAT

ALL POWER APPLIED TO THESE BOILERS IS

REMOVED FIRST BEFORE PERFORMING ANY OF THE

PROCEDURES DESCRIBED IN THIS DOCUMENT. USE

EXTREME CARE WHEN ACCESSING CIRCUITS AND

ELECTRICAL CONNECTIONS WITHIN THE EQUIPMENT.

SERIOUS PERSONAL INJURY OR DEATH MAY OCCUR

IF THIS WARNING IS NOT OBSERVED.

IMPORTANT!

Observe local requirements and lockout procedures when working

on the boiler.

WARNING

Personal injury or loss of life may occur if procedures are not

followed as specified. All installations must be performed by

qualified personnel only.

WARNING

Do NOT pull the actuator shaft of the actuator.

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 6 of 9

7. REPLACEMENT PROCEDURE

Replacement instructions for the actuator are as follows:

1. After ensuring that all electrical power is removed from the boiler, remove boiler side panels

as necessary to access the actuator. Depending upon the boiler model, the actuator may be

installed at any angle except upside down. The example shown in Figure 2 is a double-block

gas train.

2. Use a standard Phillips head screwdriver to remove the screw holding the semi-transparent

wiring compartment cover of the old actuator and make a note of all wire connections.

3. After making a note of the wire connections, release the wires from the connections by

pushing down on the spring loaded lever under each wire terminal and remove wires.

4. Pull all loose wires from out of the wire conduit in the side. A spare bushing for the wiring

conduit hole is included in the kit in case it is needed.

5. Remove the four 4mm Allen bolts that hold the actuator to the valve body (Figure 2) and

then remove the actuator.

6. Install new actuator from replacement kit and affix to valve body with 4mm Allen bolts

captured in the body of the new actuator.

7. On all BMK 1.5 – 3000 models, and on BMK 6000 units with the newer actuator shown in

Figure 4, remove the new actuator cover, punch out the holes in the plastic to accommodate

the wiring, then insert the wires through wire conduit and wire it identically to the old

actuator. Skip this step on older BMK 6000 units with the original actuator (which included

an Auxiliary Switch Adjustment Screw) as shown in Figure 5, and complete Step 8, below.

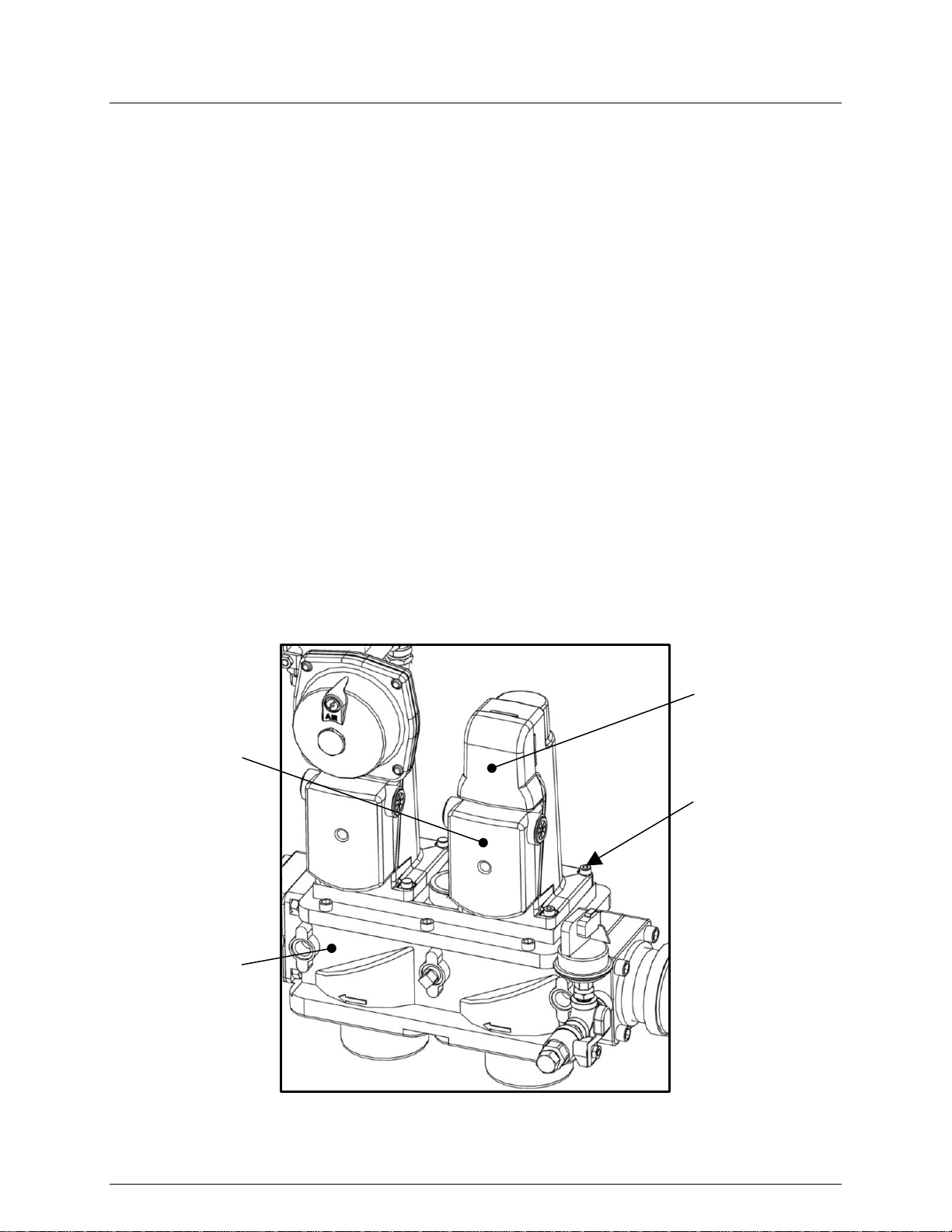

Figure 2: Actuator Installation on Valve Body

Siemens Actuator

(P/N 69038 or

124138)

VG Series

Valve Body

4mm Allen

Keyed Bolts

(x4)

Semi-Transparent

Wire Compartment

Cover

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 7 of 9

Figure 3: Actuator External Features

Figure 4: Actuator Wiring Compartment

Electrical

Ground

Screw

Wire

Terminals

Wire Conduit

Opening

Semi-

Transparent

Cover

Transparent

Window showing

Valve Position

Valve

Position

Indicator

Wire

Conduits

Cover Screw

Wire Conduit

Opening

Actuator, P/N 69038 Actuator,P/N 124138 (BMK 6000 Only)

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 8 of 9

8. Complete this step ONLY on BMK 6000 units with the original actuator, as shown in

Figure 5. Remove the new actuator cover, punch out the holes in the plastic to

accommodate the wiring, then insert the wires through wire conduit and wire it as follows:

• Wire Terminals 4, 5, N, N, L and L identically to the old actuator

• Remove & dispose of the two wires attached to Terminals 1 and 2 and wire nut, and the

wire connecting Terminal 3 to the Low Gas Pressure Switch (dashed lines)

Older Actuator Before Replacement,P/N 124138 (BMK 6000 Only)

Figure 5: Wiring Compartment

9. Disconnect Wire 153 (dotted line) from Terminal 3 and connect it to the Low Gas Pressure

Switch.

Figure 6: Wiring Diagram After Replacing Actuator

--- END ---

WIRE 153 – TO C-MORE

Auxiliary Switch

Adjustment Screw

WIRE 153 – FROM C-MORE

LOW GAS

PRESSURE

SWITCH

(DUNGS)

LOW GAS

PRESSURE

SWITCH

(DUNGS)

Siemens Gas Valve Actuator Replacement Kit # 27086-TAB Instructions

Technical Instruction Document TID-0092_0E

VD2: 01/28/2014 AERCO International, Inc. •100 Oritani Dr. •Blauvelt, New York 10913 •Phone: 800-526-0288 Page 9 of 9

International Inc.

Change Log

Date Description Changed By

11/24/2014 Rev D:

PIR 839-2: Replace 69171 with 124138 in kit # 27086-2 Chris Blair

1/28/2015

Rev E:

PIR 934-155: Added Figures 5 & 6 and steps 8 & 9 to

explain how to wire older BMK 6000 Actuators

Chris Blair

Table of contents

Other Siemens Controllers manuals

Siemens

Siemens SIMATIC NET CP 1613 A2 User manual

Siemens

Siemens SSB161.05UT User manual

Siemens

Siemens Flowrite 599 Series Owner's manual

Siemens

Siemens SIPROTEC 7SJ61 User manual

Siemens

Siemens N350E Service manual

Siemens

Siemens SIMATIC S5 User manual

Siemens

Siemens ACVATIX SAYxP Series User manual

Siemens

Siemens GBB 1 Series User manual

Siemens

Siemens Simatic S7-1500 User manual

Siemens

Siemens SIRIUS 3RW40 2 User manual

Siemens

Siemens SIRIUS 3RA2110 Series User manual

Siemens

Siemens SIMATIC FM 455 C User manual

Siemens

Siemens SAS61.03U User manual

Siemens

Siemens SIRIUS M200D User manual

Siemens

Siemens ACVATIX SAX319.03 User manual

Siemens

Siemens Simatic S7-1500 User manual

Siemens

Siemens RVP201.0 User manual

Siemens

Siemens SIMATIC MICRO-DRIVE PDC1000 Technical Document

Siemens

Siemens QAA75 series User manual

Siemens

Siemens LGA41.153A27 User manual

Siemens

Siemens SINAMICS G130 User manual

Siemens

Siemens OpenAir GLB141.1P Owner's manual

Siemens

Siemens SKP Series Owner's manual

Siemens

Siemens SINUMERIK 828D Turning Quick start guide

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual

3M MicroTouch EX113 reference guide
