P/N 315-049480-4

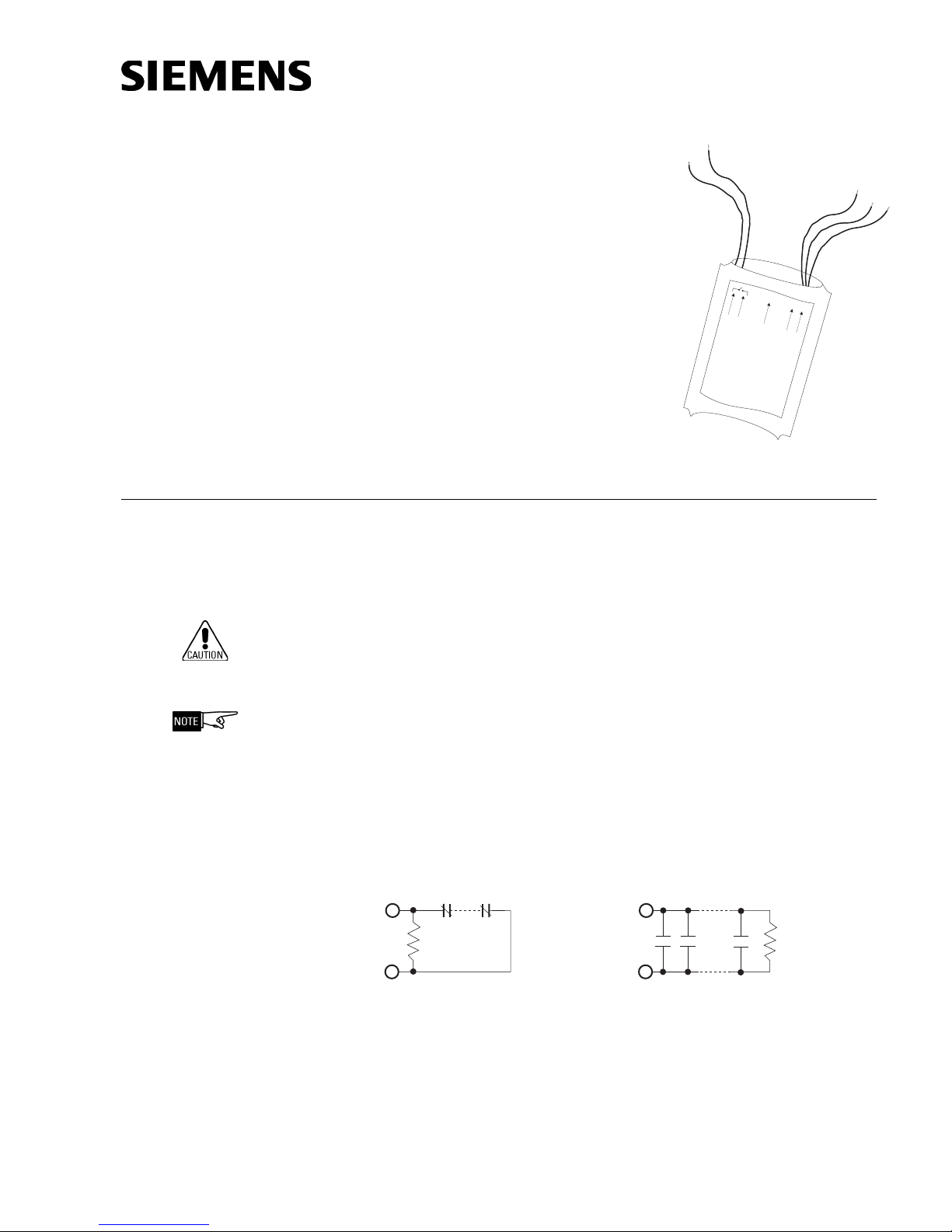

Figure 1

HTRI-M Module

The Model HTRI-M Series Addressable Interface

Module from Siemens Industry, Inc. interfaces

direct shorting devices to the DLC loop circuit of

the FireFinder-XLS System or the FS-DLC loop of

the FS-250 System. It is also approved for 1076,

Proprietary Burglary.

The HTRI-M can monitor a normally open or closed

dry contact and it can report the status of the contact.

PROGRAMMING Refer to Figure 1 to locate the red and black DLC/FS-DLC loop circuit wires of the HTRI-M.

Connect the Addressable Loop Driver circuit wires of the HTRI-M to the Model DPU

Programmer/Tester. Use the cable provided with the Programmer/Tester and the 2

alligator clip to banana plug adapters provided.

To Prevent DamageToThe DPU:

DO NOT connect a HTRI-M to the DPU until all field wiring is removed from the

red and black DLC/FS-DLC loop circuit wires of the HTRI-M.

Connection from the DPU to the HTRI-M is not polarity sensitive. Refer to Figure

3 for the proper connections to the control panel.

(Refer to Figure 2.) Follow the instructions in the DPU Programmer/Tester Manual

(P/N 315-033260) to program the desired address into HTRI-M.

Record the device address on the label located on the HTRI-M.The HTRI-M can now

be installed and wired to the system.

ORG BLK

LINE

2LINE

GRNORG RED

ALL CONNECTIONS ARE POWER LIMITED

EARTH

GND

HTRI-M

Addressable Interface Module

Installation Instructions

Model HTRI-M

NOTES:

1. There can be any number of normally closed or normally open switches.

2. The end of line resistor must be located at the last switch.

3. Do not wire a normally closed switch across the end of line resistor.

4. Only for use with security and status applications.

5. Do not use N.O. switches for security applications.

Figure 2

Wiring Switches

NORMALLY OPEN SWITCHES

(SEE NOTES 2, 3 AND 5)

PROGRAMMABLENORMALLY CLOSED SWITCHES

(SEE NOTE 4)

PROGRAMMABLE

ENDOFLINE

RESISTOR

470 OHMS,

1/4W

ENDOFLINE

RESISTOR

470 OHMS,

1/4W

WIRING (Refer to Figure 3.) Refer to the wiring diagram and wire the addressable interface

module accordingly.

Recommended wire size: 18 AWG minimum

14 AWG maximum

NOTES:

1. All supervised switches must be held closed and/or open for at least a quarter of a second to guarantee detection.

2. End of line device: 470 ohm, 1/4W resistor, P/N 140-820164. For Canadian applications, use Model EL-33 with 470 ohm, 1/4W resistor.

3. HTRI-M is polarity insensitive. Line 1 and Line 2 can be either line of the loop.

4. The supervised switches have the following ratings:

Voltage maximum: 27 VDC

Current maximum: 6mA during polling

Contact resistance maximum: 10 ohms

Maximum cable length: 200 feet (18 AWG) CLine to line: 0.02uF CLine to shield: 0.04uF

Max line size: 14 AWG Min line size: 18 AWG

Ground shield ONLY at the specified location on the Control Panel.

EOL device must be a 470 ohm, 1/4 W resistor.

When replacing an existing HTRI on a device loop,

you must also replace the EOL resistor if it is not

470 ohms, 1/4W.

5. The green wire must be connected to earth ground.

a. Use wire nuts to pass the shield wire through the electrical box with NO connection to the device green wire.

b. Use shielded wire to connect the switch wiring.

c. Tie the switch wiring shield to earth ground.

6. For proprietary burglary application:

a. Use a TSW-1/2 tamper switch to monitor the main enclosure.

b. Monitor each HTRI-M related to this application continuously by using a listed motion detector (to prevent tampering).

7. In supervisory: HTRI-M draws 1.3mA

8. All circuits are power limited.

9. Positive and negative ground fault detected at <25K ohms for orange terminals.

MOUNTING The Model HTRI-M mounts directly into a single gang switchbox

(user supplied)

Connect the appropriate wires using wire

nuts.Tuck the HTRI-M module inside the

electrical box and dress the wiring as re-

quired. (See Figure 4.)

BLACK

GREEN

ORANGE

LINE 2

LINE 1

HTRI-M

RED

TO NEXT

ADDRESSABLE DEVICE

GROUND

(SEE NOTE 5)

470 OHM, ¼W

END OF LINE DEVICE

(SEE NOTE 2)

SUPERVISED SWITCH

(SEE NOTES 1 AND 2)

FROM FIREFINDER-XLS / FS-250

CONTROL PANEL ADDRESSABLE

LOOP DRIVER CIRCUIT OR FROM

PREVIOUS ADDRESSABLE DEVICE

Figure 4

Mounting the HTRI-M

SINGLEGANG

SWITCHBOX

(USER SUPPLIED)

DO NOT

USE REAR

CONDUIT

ENTRY

BLANK SINGLEGANG

SWITCHPLATE

(USER SUPPLIED)

ORG BLKGRNORG RED

ALLCONNECTIONS ARE POWER LIMITED

EARTH

GND LINE

LINE

HTRI-M

Siemens Industry, Inc.

Building Technologies Division

Florham Park, NJ

Siemens Building Technologies, Ltd.

Fire Safety & Security Products

2 Kenview Boulevard

Brampton, Ontario

L6T 5E4 Canada

P/N 315-049480-4

ELECTRICAL RATINGS

pooLCLD-SF/CLD

tnerruC.xaMAm3.1

Figure 3

Installing the HTRI-M Wiring
