Thank you for purchasing a SHARP air conditioner. Please read this manual carefully

before operating the product.

• PRECAUTIONS ...........................................E-1

• ADDITIONAL NOTES ON OPERATION .....E-3

• TIPS ON SAVING ENERGY........................E-3

• PART NAMES..............................................E-4

• USING THE REMOTE CONTROL ..............E-6

• BASIC OPERATION ....................................E-8

• ADJUSTING THE AIR FLOW DIRECTION .E-10

CONTENTS

• ONE-HOUR OFF TIMER .................... E-11

• TIMER OPERATION........................... E-12

• AUXILIARY MODE ............................. E-14

• OPTION KIT........................................ E-14

• MAINTENANCE .................................. E-15

• BEFORE CALLING FOR SERVICE ... E-16

PRECAUTIONS

WARNINGS FOR USE

1Donotpullordeformthepowersupplycord.Pullingandmisuseofthepowersupplycord

can result in damage to the unit and cause electrical shock.

2Be careful not to expose your body directly to the outlet air for a long time. It may affect

your physical conditions.

3Whenusingtheairconditionerforinfants,children,elderly,bedridden,ordisabledpeople

make sure the room temperature is suitable for those in the room.

4Never insert objects into the unit. Inserting objects can result in injury due to the high

speed rotation of internal fans.

5Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,

waterpipe,lightningrodortelephonegroundingwire. Incomplete grounding maycause

electric shock.

6If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation

immediately and turn the circuit breaker OFF.

7Follow local rules and regulations for power supply cord cabling. Improper cable

connection can cause the power supply cord, plug and the electrical outlet to overheat

and cause fire.

8Useonlythemanufacture-specifiedpowercordforreplacement.Replacementshouldbe

performed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Donotattempttoinstall/remove/repairtheunitbyyourself.Incorrectworkwillcauseelectric

shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the

installation/removal/repair of the unit.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/

EEC as amended by 93/68/EEC.

PRECAUTIONS

CAUTIONS FOR USE

1Open a window or door periodically to ventilate the room, especially when using gas

appliances. Insufficient ventilation may cause oxygen shortage.

2Do not operate the buttons with wet hand. It may cause electric shock.

3For safety, turn the circuit breaker off when not using the unit for an extended period of

time.

4Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly

in place.

5Do not put anything on the outdoor unit nor step on it. The object or the person may fall

down or drop, causing injury.

6This unit is designed for residential use. Do not use for other applications such as in a

kennel or greenhouse to raise animals or grow plants.

7Do not place a vessel with water on the unit. If water penetrates into the unit, electrical

insulations may deteriorate and cause electric shock.

8Do not block the air inlets nor outlets of the unit. It may cause insufficient performance

or troubles.

9Be sure to stop the operation and turn the circuit breaker off before performing any

maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

Do not splash or pour water directly on the unit. Water can cause electrical shock or

equipment damage.

This appliance is not intended for use by young children or infirm persons without

supervision.

Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and

frequency.

Use of a power supply with improper voltage and frequency can result in equipment

damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire.

Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrangethedrainhosetoensuresmoothdrainage. Insufficientdrainagemaycausewetting

of the room, furniture etc.

• Make sure a leak breaker or a circuit breaker is installed, depending on the installation

location, to avoid electrical shock.

E-2

ENGLISH

INDOOR TEMP. OUTDOOR TEMP.

COOLING upper limit 32˚C D.B. 43˚C D.B.

23˚C W.B. -

lower limit 21˚C D.B. 21˚C D.B.

15˚C W.B. -

HEATING upper limit 27˚C D.B. 24˚C D.B.

- 18˚C W.B.

lower limit 20˚C D.B. -8.5˚C D.B.

- -9.5˚C W.B.

ADDITIONAL NOTES ON OPERATION

OPERATING TEMPERATURE RANGE • The built-in protective

device may prevent the

unit from operating when

used out of this range.

• Condensation may form

on the air outlet if the

unit operates continu-

ously in the COOL or

DRY mode when humid-

ity is over 80 percent.

D.B. = Dry-bulb W.B. = Wet-bulb

NOTES FOR MODELS AY-A07BE/AY-A09BE/AY-A12BE

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent

cold air from blowing out of the unit.

DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer

provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop

operating.

• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside

air temperature therefore greatly affects the heating efficiency.

• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.

• It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode (and 2°C lower in the

HEAT mode with models AY-A07BE/AY-A09BE/AY-A12BE) will save approximately 10 percent in power

consumption.

• Setting the temperature lower than necessary during cooling operation will result in increased power

consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.

• Close the windows and doors during cooling opeation (and heating operation with models AY-A07BE/AY-

A09BE/AY-A12BE).

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR

CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION

MAKE MOST OF THE TIMER OFF FUNCTION

DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN

EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically re-start in the same settings which were active before the power

failure, except for timer settings.

If the timers were set before a power failure, they will need to be re-set after power recovery.

(AY-A07BE/AY-A09BE/

AY-A12BE only)

E-3

PART NAMES

1Inlet (Air)

2Open Panel

3Air Filters

4AUX. Button

5RECEIVER Window

6Power Supply Cord

7Indicator Panel

8Vertical Adjustment Louvres

9Horizontal Adjustment Louvres

0Outlet (Air)

qRemote Control

AUTO FAN SPEED Lamp

(green )

eFAN SPEED Lamp (green )

rTIMER Lamp (orange )

tOPERATION Lamp (red )

OUTDOOR UNIT

NOTE: Actual units might vary slightly from those shown above.

INDOOR UNIT

yInlet(Air)

uRefrigerant Tube and

Interconnecting Cord

iDrainage Hose

oOutlet(Air)

E-4

AE-A09BE/AE-A12BE

AU-A09BE/AU-A12BE

AE-A07BE

AU-A07BE

ENGLISH

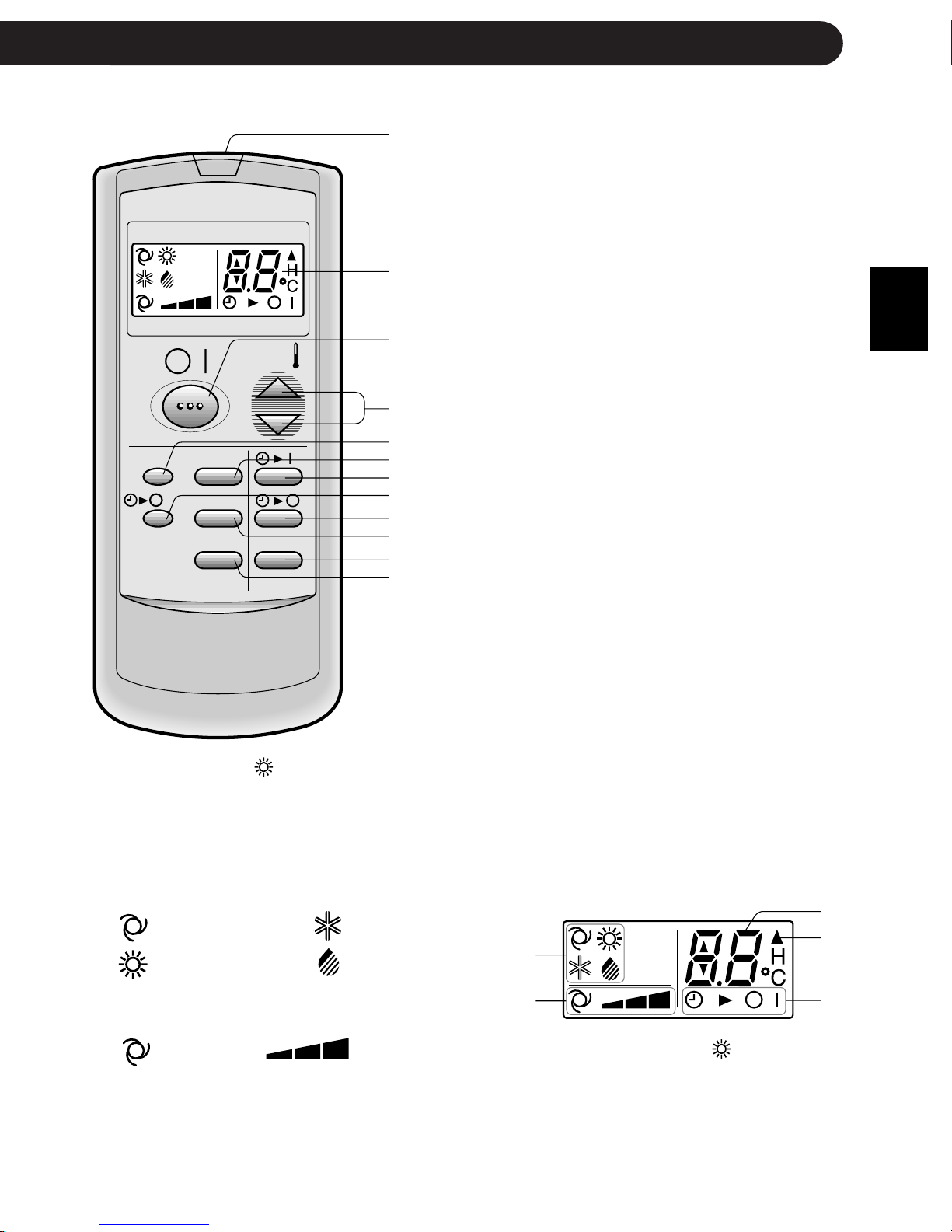

REMOTE CONTROL

1TRANSMITTER

2DISPLAY (Liquid Crystal Display)

3ON/OFF Button

4THERMO. (Thermostat) Button

5DISPLAY Button

6MODE Button

7TIMER ON Button (for setting the timer)

8ONE-HOUR OFF TIMER Button

9TIMER OFF Button (for setting the timer)

0FAN Button

qTIMER CANCEL Button

wSWING Button

(The heat mode symbol is provided

only on models AY-A07BE/AY-A09BE/AY-

A12BE)

E-5

eMODE SYMBOLS

: AUTO : COOL

: HEAT : DRY

(only for AY-A07BE/

AY-A09BE/AY-A12BE)

rFAN SPEED SYMBOLS

: AUTO : Manual setting

tTEMPERATURE AND TIMER COUNT DOWN

INDICATOR

yTRANSMITTING SYMBOL

uTIMER ON/TIMER OFF INDICATOR

Indicates when timer on or timer off is set.

L.C.D. REMOTE CONTROL DISPLAY

(The heat mode symbol is provided only on

models AY-A07BE/AY-A09BE/AY-A12BE)

MODE

DISPLAY MODE

FAN1H

SWING

CANCEL

TEMP.

FAN TIMER

1Remove the battery cover at the

back of the remote control.

2Insert batteries in the compart-

ment, making sure the ±and

—polarities are correctly

aligned.

• Lines will be indicated on the

display when batteries are

properly installed.

3Reinstall the battery cover.

USING THE REMOTE CONTROL

E-6

NOTES:

• The battery life is approximately one year in normal use.

• When you replace the batteries, always change both batteries, and make sure

they are the same type.

• If the remote control does not operate properly after replacing the batteries, take

out the batteries and reinstall them again after 30 seconds.

• If you will not be using the unit for a long time, remove the batteries from the

remote control.

Point the remote control towards

the unit’s signal receiver window

and press the desired button. The

unit generates a beep when it re-

ceives the signal.

• Make sure there is no curtain or other

object between the remote control and

the unit.

• The remote control can send signals

from up to 7 metres away.

LOADING BATTERIES Use two size-AAA (R03) batteries.

HOW TO USE THE REMOTE CONTROL

Remote control

cover

＋

−

ENGLISH

E-7

CAUTION

• Do not allow the signal receiver window to receive strong direct sunlight, since it can

adversely affect its operation. If the signal receiver window is exposed to direct sunlight,

close a curtain to block the light.

• Using a fluorescent lamp with a quick starter in the same room may interfere with

transmission of the signal.

• The unit can be affected by signals transmitted from the remote control of a television,

VCR or other equipment used in the same room.

• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit

and remote control from moisture and shock which can discolour or damage them.

Press the THERMO. button to set the

desired temperature.

AUTO/DRY MODE

The temperature can

be changed in 1°C in-

crements within the

range of 2°C higher to

2°C lower from the tem-

perature automatically

determined by the air

conditioner.

COOL(HEAT for AY-A07BE/AY-A09BE/AY-A12BE)MODE

The temperature can

be set within the range

of 18 to 32°C.

E-8

BASIC OPERATION

2Press the ON/OFF button to start op-

eration.

• The red OPERATION lamp ( ) on the

unit will light.

(HEAT is only for AY-A07BE/AY-A09BE/AY-A12BE)

Press the MODE button to select the

operation mode.

AUTO HEAT COOL DRY

MODE

DISPLAY MODE

FAN1H

SWING

CANCEL

TEMP.

FAN TIMER

Please the FAN button to set the de-

sired fan speed.

AUTO SOFT LOW HIGH

• In the DRY mode, the fan speed is pre-

set to AUTO and cannot be changed.

To turn off the unit, press the ON/OFF

button again.

• The red OPERATION lamp ( ) on the

unit will turn off.

This manual suits for next models

Table of contents

Other Sharp Air Conditioner manuals

Sharp

Sharp AY-XP18GR User manual

Sharp

Sharp Plasmacluster AH-AP18Y User manual

Sharp

Sharp AE-X3M18JR User manual

Sharp

Sharp Plasmacluster GS-XP07ER User manual

Sharp

Sharp AE-X4M30PU User manual

Sharp

Sharp Plasmacluster AE-X12FR User manual

Sharp

Sharp AH-X08CR User manual

Sharp

Sharp AY-AP18CJ User manual

Sharp

Sharp AY-XP24PU User manual

Sharp

Sharp AU-X08CR User manual

Sharp

Sharp CV10NH - 10,000 BTU Portable Air Conditioner User manual

Sharp

Sharp AY-AP12FHR User manual

Sharp

Sharp Plasmacluster GS-XP07FR User manual

Sharp

Sharp AY-X10CR User manual

Sharp

Sharp AY-XPC12JR User manual

Sharp

Sharp AF-R100FX User manual

Sharp

Sharp AH-X075E User manual

Sharp

Sharp AH-AP18DR User manual

Sharp

Sharp AH-G13 User manual

Sharp

Sharp AH-AP9MMV User manual

Sharp

Sharp AH-X079E User manual

Sharp

Sharp AH-A09BF User manual

Sharp

Sharp AH-PS19 User manual

Sharp

Sharp AF-08ERL User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
