Securitytronix ST-D700IR2812-B/W User manual

OPERATION MANUAL

ST-D700IR2812-B/W

CMOS Indoor IR Dome Camera

V1.0 7/25/13 1

PACKAGE CONTENTS

This package contains:

One (1) ST-D700IR2812-B/W 4.5” Indoor IR Dome Camera

One (1) Operation Manual

Note: The ST-D700IR2812-B/W requires a minimum 12VDC 550mA power supply such as the ST-

PS12VDC1A or ST-PS12VDC2A.

PRODUCT DESCRIPTION

The ST-D700IR2812-B/W is an indoor dome infrared color camera designed around a 1/3” Color

CMOS imager with 700TVL of resolution and 21 infrared LEDs providing visibility up to 65 feet in

total darkness. The camera’s 2.8mm –12mm manual zoom lens allows adjustment for an optimal

field of view. The 3-axis bracket, size and packaging allow it to be easily and discretely installed.

Its rich color, high definition, and stability make it attractive for CCTV security applications.

SPECIFICATIONS

ST-D7002812-B/W

Specifications (Typical)

Imager

1/3” CMOS

Pixels (HxV)

756x504

Scanning System

NTSC

Horizontal Resolution

700TV Lines

Synchronization

Internal, Negative Sync

Minimum Illumination

0.1Lux

Scanning System

2 :1 interlaced

Electronic Shutter

Auto, 1/60s ~1/100,000s

Gain Control

Automatic

10. Lens

2.8-12mm Manual Zoom Lens

11.

S/N Ratio

>48dB

12.

IR LED

φ8x36PCS

13.

IR Viewing Distance

Up to 65 feet

14.

IR Status

Under 10Lux by CDS

15.

IR Power On

CDS Auto Control

16.

Gamma Characteristic

0.45

17.

Video Output

1.0Vp-p/75Ω

18.

Operation Temperature

14F - 113F

19. Power Supply

DC12V 550mA

20.

Dimensions

5.00”(W) x 3.5”

21.

Weight

0.7 lbs

V1.0 7/25/13 2

INSTALLATION AND OPERATION

This symbol is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions.

This symbol is intended to alert the user to the presence of uninsulated “dangerous

voltage” within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electrical shock.

CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this

unit. No user serviceable parts are inside.

CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than

specified power source.

1. UNPACKING and HANDLING

Each unit is shipped assembled and factory tested.

Ensure that all accessories are removed from the container before discarding packing material

2. MECHANICAL INSPECTION

Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is

clean, and no connectors are broken, damaged, or loose. If equipment appears to be

damaged or defective please contact your distributor or SecurityTronix at 1-800-688-9282 for

assistance.

3. SPECIAL ATTENTION

a. The installer must comply with electrical safety standards. There must be sufficient

space between the camera’s power supply and video line and any high voltage

equipment and/or cables.

b. To help ensure the camera’s life and proper operation do not point the camera

towards the sun or strong light.

c. Do not install the camera in an environment where the temperature is above 113F.

d. Do not install the camera near a magnetic field or a high-power motor.

e. Do not mount the camera near a radiator or heater.

f. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe

gently with a mild detergent. Never use strong or abrasive detergents.

g. A minimum 12VDC 550mA power supply must be used. AC power cannot be applied.

Using an incorrect power supply will damage the camera.

h. Only qualified installers are allowed to install, test and disassemble the camera.

i. The camera is a low voltage product for indoor use only.

V1.0 7/25/13 3

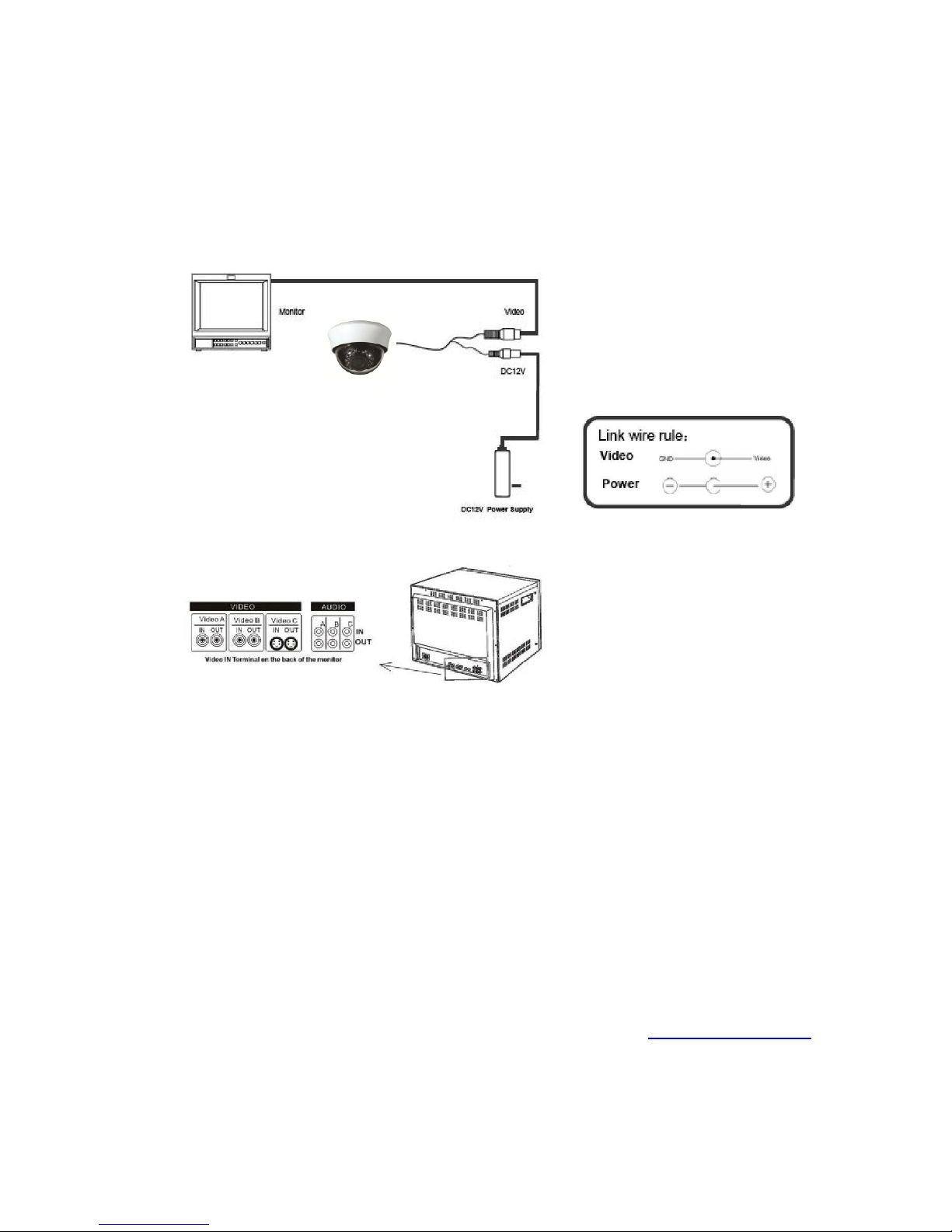

4. WIRING CONNECTIONS

a. Connect the power supply’s plug to the camera’s power outlet.

b. Connect the camera to the monitor with a 75Ωcoaxial video cable.

c. Connect power supply’s AC plug to a suitable AC power outlet.

d. Adjust the lens direction according to the required surveillance area and environment.

5. TROUBLESHOOTING

a. No picture after applying power –(i) check all plugs and cables are securely

connected to the proper connectors; (ii) ensure your power supply is providing the

correct voltage and current.

b. The picture has ripples –(i) check to see if the power supply is experiencing AC

ripple, if so a filter may be required; (ii) determine if the monitor is faulty; (iii)

determine if other peripheral equipment is causing ripple and if so make the

necessary adjustments.

c. The picture background continuously changes color –a fluorescent lamp’s magnetic

field may cause color roll, therefore, reduce the number of fluorescent lamps or

increase the distance between the camera and the lamps.

d. The picture appears smeared –(i) the power supply voltage level may be unstable,

therefore, try another power supply; (ii) ensure the cables are correctly connected

and/or the cables are of the correct impedance.

e. Other interference may require a SecurityTronix ground loop isolation filter.

f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com

in addition to support from SecurityTronix sales engineers at 1-800-688-9282.

V1.0 7/25/13 4
