L9000/LV9000 Series Lock with Indicator Escutcheon Trim Installation Instructions

L9000/LV9000

Lock with Indicator

Printed in U.S.A.

47931073 Rev. 02/24-b

Para Español, vaya a la página 12.

Pour le Français, voir la page 24.

Indicator trim is available

for either the inside,

outside, or both sides on

allowable functions.

Non-indicator trim is

furnished on the opposite

side of the door.

Conrm desired

placement (inside, outside,

or both) before installation.

The L9000 lock with

indicator is not intended for

exterior door applications.

Table of Contents

Start installation 2

Trim installation 3

Outside cylinder 3

Outside cylinder with indicator 4

Inside cylinder 5

Inside cylinder with indicator 5

Inside thumb turn 7

Inside thumb turn with indicator 7

Outside privacy 8

Outside privacy with indicator 9

Outside coin turn 9

Outside coin turn with indicator 10

Finish installation 11

Customer Service

1-877-671-7011 www.allegion.com/us

Included:



Not included:



DO NOT USE POWER TOOLS

for lock and indicator installation!

Cylinder Cylinder

Indicator options:

Coin turnThumb turn

Inside trim Outside trim

Privacy

Outside cylinder indicator with inside

non-indicator cylinder trim shown

Start installation

LNOTE: Complete installation with the lock unlocked and the door open.

1 Double-check the door preparation.

Check the door preparation dimensions with the template

included in the package. Complete drilling, if necessary.

Exterior

1²³/32" (44 mm)

3⅞" (99 mm)

³⁄8" (10 mm)

8" (203 mm)

5⁵⁄8" (143 mm)

3¹⁄4" (83 mm)

3⁹⁄32" (83 mm)

2³⁄4" (70 mm)

3⁷⁄8" (98 mm)

2³⁄4" (70 mm) Backset

⅝" (16 mm) ⁵⁄8" (16 mm)

⅜" (10 mm)

¹⁄8"

(3mm)

2²¹⁄32" (67 mm)

4⁷⁄8" (124 mm)

³⁄8" (10 mm)

1" (25 mm) Holes, 1¹⁄8" (29 mm) Deep

Agujeros de 25 mm,

29 mm de profundidad

Trous de 25 mm,

29 mm de profondeur

1¼" (32 mm)

⅛"

(3 mm)

Low Edge

Borde inferior

Bord inférieur

Low Edge

Borde inferior

Bord inférieur

Low Edge

Borde inferior

Bord inférieur

Low Edge

Borde inferior

Bord inférieur

L9000-Series Template

for Right-Handed Door

Plantilla serie L9000

para puerta con

bisagras a la derecha

Refer to function tables on

separate sheet to verify

which holes to drill.

Consulte las tablas de

funciones en una hoja

separada para verificar

qué orificios perforar.

Reportez-vous aux tableaux

de fonctions sur une feuille

séparée pour vérifier les

trous à percer.

Gabarit de la série

L9000 pour porte

ouvrant à droite

10-073 Strike

Placa hembra 10-073

Gâche 10-073

1" (25 mm) holes

4¹⁄2" (114 mm) deep

25 mm agujeros

114 mm de profundidad

25 mm trous

114 mm de profundeur

Recess ⁷⁄32" (6 mm) Deep

Entalladura de 6 mm de profundidad

Renfoncement de 6 mm de profondeur

Entalladura de 4 mm de profundidad

Renfoncement de 4 mm de profondeur

Recess ⁵⁄32" (4 mm) Deep

Strike

³⁄8"

(10mm)

High Edge

Flat (No Bevel)

High Edge

Flat (No Bevel)

1³⁄4" (44 mm) Door

1¼" (32 mm)

1¼" x 8" x ⁷⁄32"

Standard

1¹⁄16" x 8" x ⁷⁄32"

Optional

CortarDétacherDetach

Plano

Borde superior

Plano

Plat

Borde superior

Bord inférieur

Plat

Bord supérieur

⁹⁄16" (14mm)

47934852

1" (25 mm)

1¼" (32 mm)

⁹⁄16" (14 mm)

⅜"

(10 mm)

1" (25mm)

Customer Service

Servicio al cliente Service à la clientèle

1-877-671-7011 www.allegion.com/us



Customer Service

Servicio al cliente Service à la clientèle

1-877-671-7011 www.allegion.com/us

⅝"

(16 mm)

⁵⁄8"

(16 mm)

1¹⁄4" (32 mm)

Lock

³⁄16" drill hole,

³⁄4" depth

³⁄16" drill hole,

³⁄4" depth

Inside of Door

Interior de la puerta

Intérieur de la porte

Outside of Door

Exterior de la puerta

Extérieur de la porte

⅝"

(16 mm)

EL/EU Preparation

Preparación del EL/EU

Préparation de l’EL/EU

4¾" (121)

3¼"

(83) ⅜"

(10)

¾"

(19)

2⅝" (67)

For wood door • Para puerta de madera

Pour porte en bois

NOTE: Drill dimension A

is not drilled for dual

indicator installations.

NOTA: Esta medida de perforación

no se utiliza para la instalación

de indicadores dobles.

REMARQUE: Ces dimensions de

perçage n’est pas prévue

pour les installations à

double indicateur.

NOTE: Drill dimension A

is not drilled for dual

indicator installations.

NOTA: Esta medida de perforación

no se utiliza para la instalación

de indicadores dobles.

REMARQUE: Ces dimensions de

perçage n’est pas prévue

pour les installations à

double indicateur.

2 IMPORTANT! Check lock handing before installation

To change handing:

A. Pull out the latch

and rotate 180°.

B. Remove the lock

handing screw

from one side of

the chassis and

install it on the

opposite side.

The lock handing

screw should

always be on the

interior side of the

door.

L-Series

Actual size



LV-Series

Actual size

3 Install lock chassis.

Fully tighten chassis mounting screws.

4 Install springs and spindles.

Exterior

5 Prepare outside lever assembly for installation.

5a Install outside mounting posts.

FULLY TIGHTEN

MOUNTING POSTS ON

SCREWS.

5b Install outside spring cage (or spacer).

Spacer

6 Install mounting posts to indicator module and bottom

backplate of outside escutcheon.

LFor outside single indicator installations only; not

applicable for dual indicator installations.

Install Trims

Find your outside and inside trims on the chart below. Follow

instructions to install both the inside and outside trims.

Trim Page

Outside cylinder 3

Outside cylinder with indicator 4

Inside cylinder 5

Inside cylinder with indicator 5

Inside thumb turn 7

Inside thumb turn with indicator 7

Outside privacy 8

Outside privacy with indicator 9

Outside coin turn 9

Outside coin turn with indicator 10



installation steps.

Outside cylinder

1 Install outside non-indicator trim.

1a Install escutcheon assembly.

1b Insert key halfway into the cylinder, and install the

cylinder with cylinder spring as shown.

1c Rotate cylinder clockwise.

Make sure tabs are



1d Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Outside cylinder indicator

1 Install outside indicator trim.

1a Rotate the indicator module spindle until the sign moves

down and uncovers the arrow markings.

Do not use tools on spindle!

Front Back

1b Place the indicator module against the door.

1c Insert key halfway into the cylinder, and install the

cylinder with cylinder spring as shown.

2 

Before fully tightening the screw, use a level to align the

module assembly so that it is parallel with the door edge.

DO NOT drill the door hole through the module

opening!

LMake sure tabs are ush with chassis.

LNote: If not pre-drilled,

mark the top hole

of indicator module,

remove module, and



steps 1a to 1c to

reinstall.

2a Remove cylinder.

2b Mount the escutcheon.

Make sure tabs are



2c Install key cylinder.

LNOTE: cylinder must be ush with escutcheon trim.

2d Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Inside cylinder

1 Install inside non-indicator trim.

1a Install inside spring cage and mounting plate.

Use inside spacer with L9460 x XL11-635.

Interior

Spacer

LThe spring cage arrow

must point in direction of

lever down rotation. Make sure tabs are



1b Install inside trim assembly and thru bolts.

1c Insert key halfway into the cylinder, and install the

cylinder with cylinder spring as shown

1d Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Inside cylinder indicator

1 Install inside indicator.

1a Rotate the indicator module spindle until the sign moves

down and uncovers the arrow markings.

Do not use tools on spindle!

Front Back

1b Install inside spring cage and mounting plate.

Use inside spacer with L9460 x XL11-635.

Interior

Spacer

LThe spring cage arrow

must point in direction of

lever down rotation. Make sure tabs are



1c 

These anges and thru-bolts are not used in dual

indicator installations.

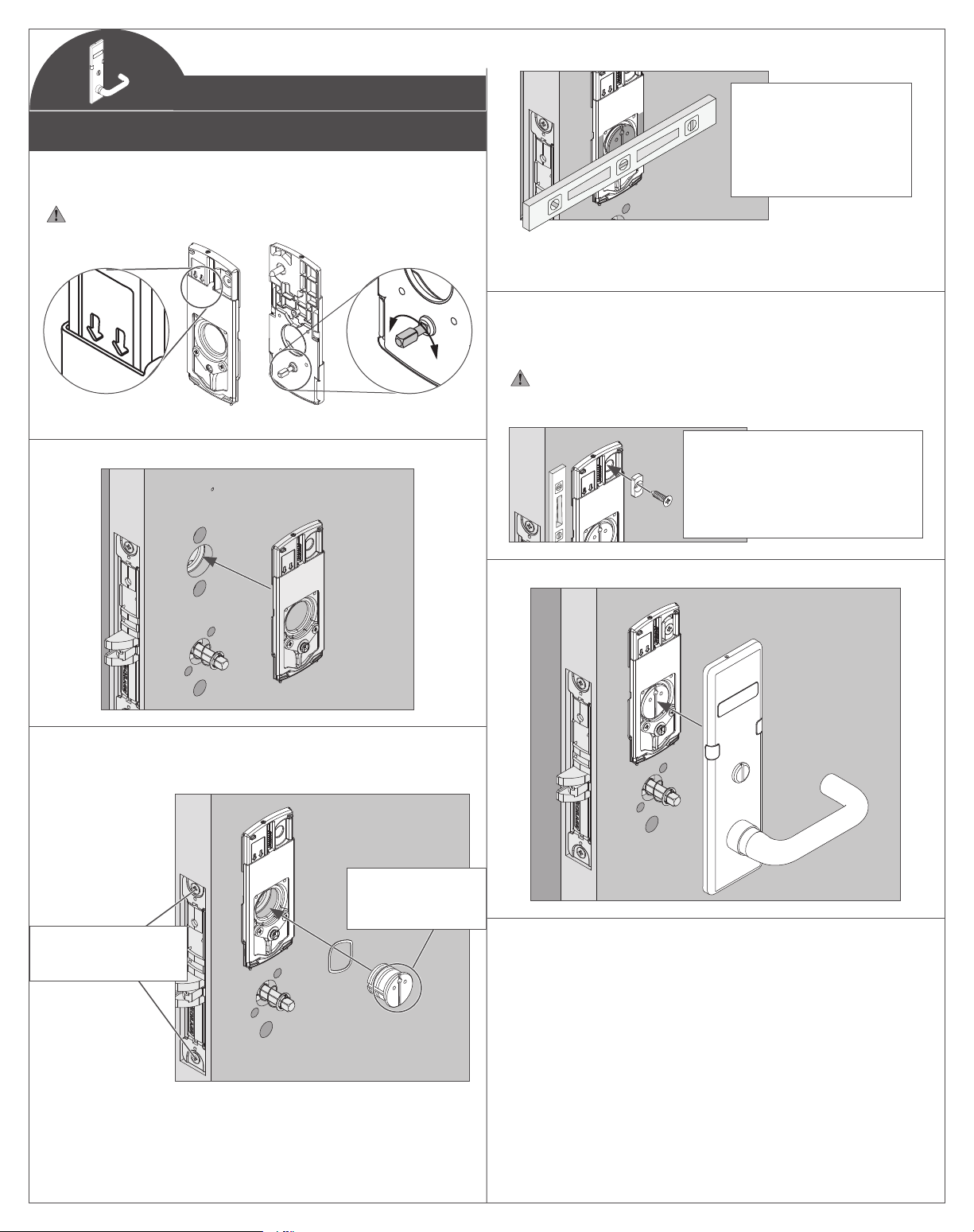

This step applies to inside indicator installations ONLY.

1d Place the indicator module against the door.

1e Insert key halfway into the cylinder, and install the

cylinder with cylinder spring as shown.

1f 

Before fully tightening the screw, use a level to align the

module assembly so that it is parallel with the door edge.

DO NOT drill the door hole through the module

opening!

LNote: If not pre-drilled,

mark the top hole of

indicator module, remove



hole. Follow steps 1d to

1f to reinstall.

1g Remove cylinder.

1h Install trim.

1i Insert key halfway into the cylinder, and install the

cylinder with cylinder spring as shown.

LNOTE: cylinder must be ush with escutcheon trim.

1j Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Thumb turn

1 Install inside non-indicator trim.

1a Install inside spring cage and mounting plate.

Use inside spacer with L9460 x XL11-635.

Interior

Spacer

LThe spring cage arrow

must point in direction of

lever down rotation. Make sure tabs are



1b Install inside trim assembly and thru bolts.

LInstall the trim with the thumbturn vertical.

1c Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Thumb turn indicator

1 Install inside indicator.

1a Rotate the indicator module spindle until the sign moves

down and uncovers the arrow markings.

Do not use tools on spindle!

Front Back

1b Install inside spring cage and mounting plate.

Use inside spacer with L9460 x XL11-635.

Interior

Spacer

LThe spring cage arrow

must point in direction of

lever down rotation. Make sure tabs are



1c 

These anges and thru-bolts are not used in dual

indicator installations.

This step applies to inside indicator installations ONLY.

1d Place the indicator module against the door.

1e Install the alignment cylinder with cylinder spring as

shown. Use any slotted screwdriver, lever wrench, or

coin to rotate the cylinder.

Slot in alignment

cylinder must be

vertical.

Use a level or the armor plate to ensure the cylinder face is



LNote: Alignment

cylinder face

needs to be ush

with indicator

module.

LNOTE: Rotate until the cylinder is ush with surface.

LNOTE: Slot in the alignment cylinder must be vertical

after installing the alignment cylinder.

1f 

Before fully tightening the screw, use a level to align the

module assembly so that it is parallel with the door edge.

DO NOT drill the door hole through the module

opening!

LNote: If not pre-drilled,

mark the top hole

of indicator module,

remove module, and



steps 1d to 1f to

reinstall.

1g Install and secure trim.

LInstall the trim with the thumbturn vertical.

1h Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Privacy

1 Install outside non-indicator trim.

1a Install the escutcheon assembly.

1b Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Privacy indicator

1 Install outside indicator assembly.

1a Rotate the indicator module spindle until the sign moves

down and uncovers the arrow markings.

Do not use tools on spindle!

Front Back

1b Place the indicator module against the door.

1c Install alignment cylinder with cylinder spring. Use any

slotted screwdriver, lever wrench, or coin to rotate the

cylinder.

LMake sure tabs are ush with chassis.

Slot in alignment

cylinder must be

vertical.

LNOTE: Rotate until the cylinder is ush with surface.

Use a level or the armor plate to ensure the cylinder face is



LNote: Alignment

cylinder face

needs to be ush

with indicator

module.

LNOTE: Slot in the alignment cylinder must be vertical

after installing the alignment cylinder.

1d 

Before fully tightening the screw, use a level to align the

module assembly so that it is parallel with the door edge.

DO NOT drill the door hole through the module

opening!

LNote: If not pre-drilled, mark

the top hole of indicator

module, remove module,



steps 1a to 1c to reinstall.

1e Install outside indicator escutcheon assembly

1f Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Coin turn

1 Install the escutcheon assembly.

1b Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Coin turn indicator

1 Install outside indicator assembly.

1a Rotate the indicator module spindle until the sign moves

down and uncovers the arrow markings.

Do not use tools on spindle!

Front Back

1b Place the indicator module against the door.

1c Install the alignment cylinder with cylinder spring as

shown. Use any slotted screwdriver, lever wrench, or

coin to rotate the cylinder.

Slot in alignment

cylinder must be

vertical.

Make sure tabs are



LNOTE: Rotate until the cylinder is ush with surface.

Use a level or the armor plate to ensure the cylinder face is



LNote: Alignment

cylinder face

needs to be ush

with indicator

module surface.

LNOTE: Slot in the alignment cylinder must be vertical

after installing the alignment cylinder.

1d 

Before fully tightening the screw, use a level to align the

module assembly so that it is parallel with the door edge.

DO NOT drill the door hole through the module

opening!

LNote: If not pre-drilled, mark

the top hole of indicator

module, remove module,



steps 1a to 1c to reinstall.

1e Install outside indicator escutcheon assembly

1f Proceed with the appropriate steps to install trim on

opposite side. If both trims are installed, proceed to page

11 to complete installation.

Other manuals for L9000 Series

This manual suits for next models

Table of contents

Languages:

Other Schlage Lock manuals

Schlage

Schlage SchlageTouch BE375 User manual

Schlage

Schlage Sentronic LCN 4040-SE User manual

Schlage

Schlage BE365 User manual

Schlage

Schlage SED100 User manual

Schlage

Schlage M400 Series User manual

Schlage

Schlage FE595 User manual

Schlage

Schlage GF3000 Gravity Force Series User manual

Schlage

Schlage AD-Series User manual

Schlage

Schlage TouchScreen Deadboltwith Alarm User manual

Schlage

Schlage FE410F User manual

Schlage

Schlage FA Series Service manual

Schlage

Schlage S-7100 User manual

Schlage

Schlage LE Mounting instructions

Schlage

Schlage SchlageTouch BE375 User manual

Schlage

Schlage D50 User manual

Schlage

Schlage B-Series User manual

Schlage

Schlage FE595 Operating instructions

Schlage

Schlage Control Series User manual

Schlage

Schlage AD-201 User manual

Schlage

Schlage B580 User manual

Schlage

Schlage B-Series User manual

Schlage

Schlage B-Series User manual

Schlage

Schlage B260 Series User manual

Schlage

Schlage BE469 User manual

Popular Lock manuals by other brands

Magic

Magic 105 manual

Gantner

Gantner GAT NET.Lock 7020 System Installation, configuration & operation

Wittkopp

Wittkopp Insys 7202 manual

Dorma

Dorma Studio Classic Installation instruction

Securam

Securam ECSL-601 quick start guide

Sudhaus

Sudhaus 3003 operating manual

Safety 1st

Safety 1st 48517 user guide

Pado

Pado FDS-10 user manual

Esco

Esco systeQ Series installation instructions

COMPX

COMPX National D8951 instruction sheet

secureo

secureo Key Box instruction manual

Stock Loks

Stock Loks C8713 instruction sheet

COMPX

COMPX 1T-058 Information

Auslock

Auslock T11 user manual

ELCOM

ELCOM 7205 Operating instruction

Stealth SAFES

Stealth SAFES ShadowVault Instructions & Troubleshooting

Knox

Knox KeySecure 5 Admin & user guide

Kwikset

Kwikset 48334/01 Quick installation guide
