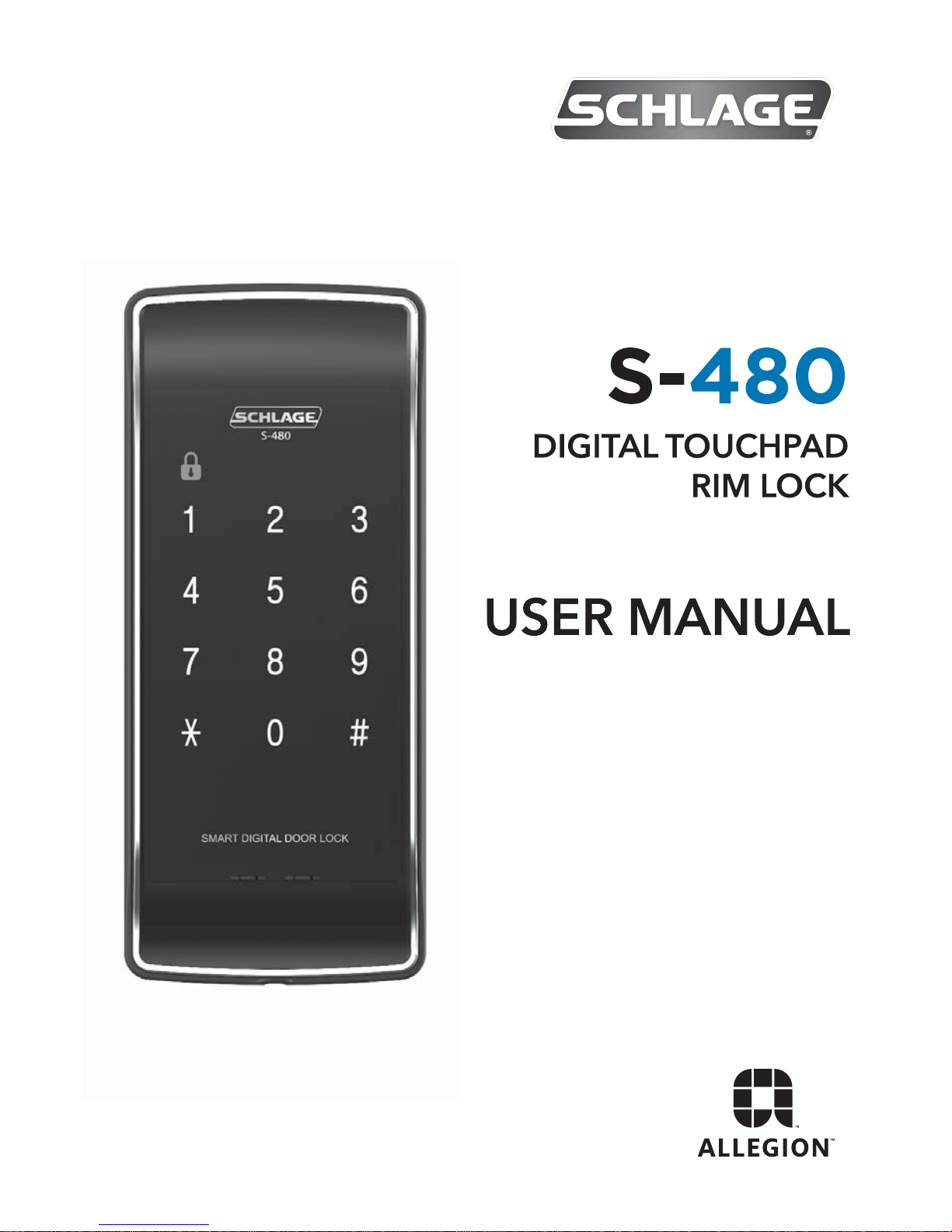

Schlage S-480 User manual

Before using

Product components 4

Front of lock 5

Back of lock 6

How to replace batteries 7

How to apply emergency power 7

Touch-pad & random security function 8

How to change mode 9

Basic function

NORMAL MODE

Register PIN code in normal mode 10

Register card/fob in normal mode 10

Delete all card/fobs in normal mode 11

SAFETY MODE

Register code in safety mode 12

Register card/fob in safety mode 13

Delete card/fob in safety mode 14

Delete individual card/fob 14

Guest PIN mode (Temporary use) 15

Manager code in safety mode 16

Change manager card/fob 16

BASIC FUNCTION

How to open from outside 17

How to lock the door from outside 18

How to lock the door from inside 18

How to set auto/manual locking system

18

Open or close with thumb-tum 19

Open or close with button from inside

19

Hold or release the entry code

or card/fob 19

User Manual Index

Applications

How to set double locking function 20

Auto-locking system 20

Auto-relocking system 20

How to control volume level 21

Warning against unwarrented entry 22

Warning against unauthorised entry 22

System reset 23

4.

Product Components

1.

2. 3.

4.

5.

10.

6. 7. 8.

9.

(4-1)

Installation

template

User manual

No. Product speciﬁcation

1. Front assembly 71.8mm (W) x 163.6mm (H) x 18.4mm (D) Incl. rubber gasket

2. Back assembly 154mm (W) x 93mm (H) x 37mm (D) Incl. rubber gasket

3. Strike 76mm (W) x 140mm (H) x 28mm (D)

4. Strike spacer 31mm (W) x 140mm (H) x 2mm (D) lEA

31mm (W) x 140mm (H) x 4.5mm (D) 3EA

Using for height of strike

5. Card/fob 2x Card, 2x Fob, 2x Patch

6. Battery 4 pcs (1.5V, “AA” size, LR6 Alkaline) 77mm (W)

7. Mounting plate 77mm (W) x 87mm (H) x 3mm (D)

8. User manual Main user manual

9. Installation template Use for making hole at the door

10. Screw 5 x 60mm 2EA: For back cover

5 x 30mm 2EA: For back cover

5 x 29mm 4EA: For inner upper part

4 x 30mm 12EA: For front/back plate

4 x 19mm 12EA: For front/back plate

TH M5 x 60mm

TH M5 x 30mm

OH M5 x 29mm

FH T4 x 30mm

FH T4 x 19mm

11. Door thickness For 40-50mm

(4-1) Dead Bolt Guider: Should remove after ﬁnishing installation.

5.

6.

7.

•

•

•

•

•

•

8.

NOTE

• Do not wear gloves during operation for touch pad.

• When you use random security coding function, actual code should be entered at

the end.

• Please use soft cloth when you clean touch pad.

9.

•

•

•

•

•

•

•

•

•
