Schlage L9000 Series User manual
*P516-908*
P516-908
1 IMPORTANT! Check lock handing before installation.
To change handing:
1. Pull out the latch
and rotate 180°.
2. Remove the lock
handing screw
from one side of
the chassis and
install it on the
opposite side.
The lock handing
screw should
always be on the
interior side of the
door.
Pull
Rotate
180°
Handing
screw

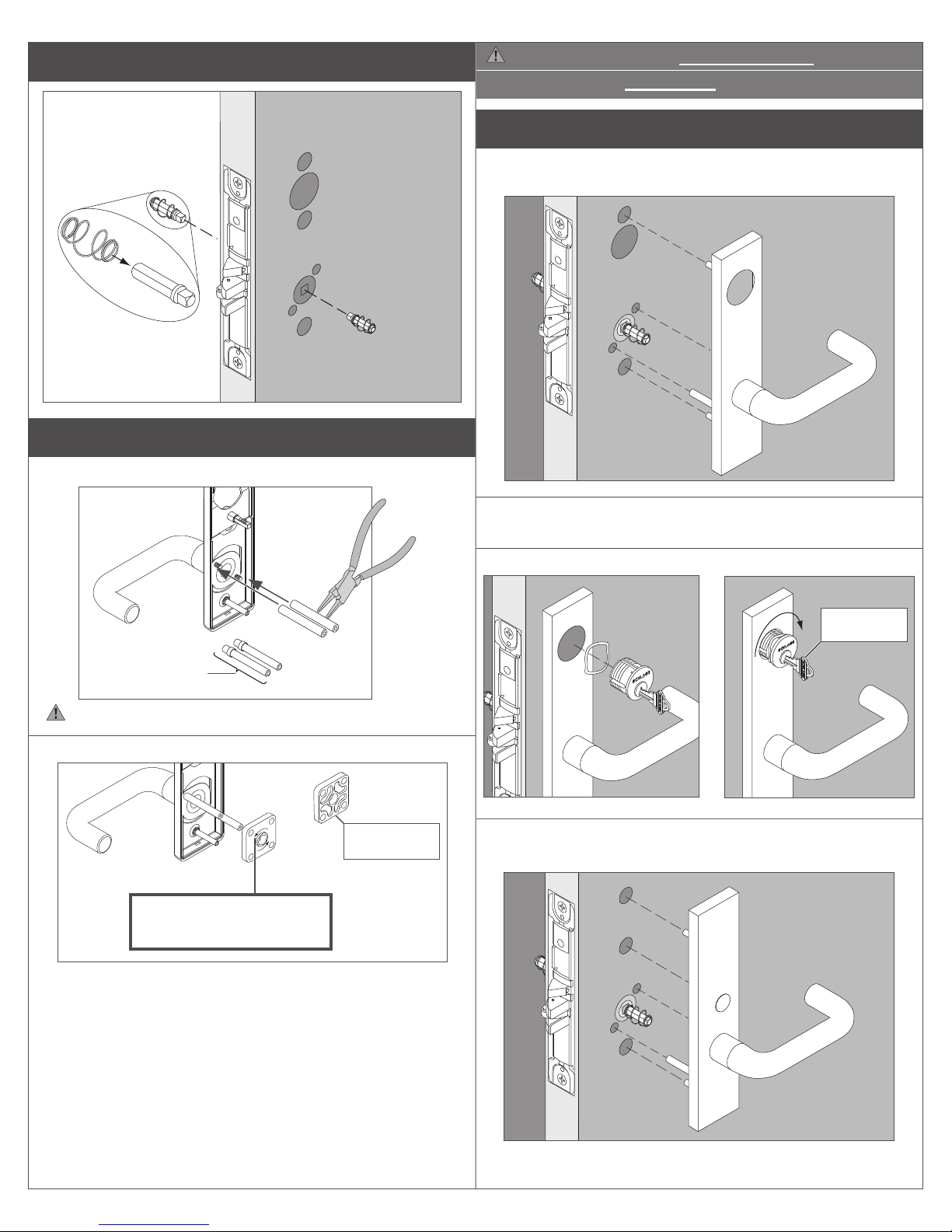

2 Install lock chassis.
DO NOT FULLY
TIGHTEN CHASSIS
MOUNTING
SCREWS

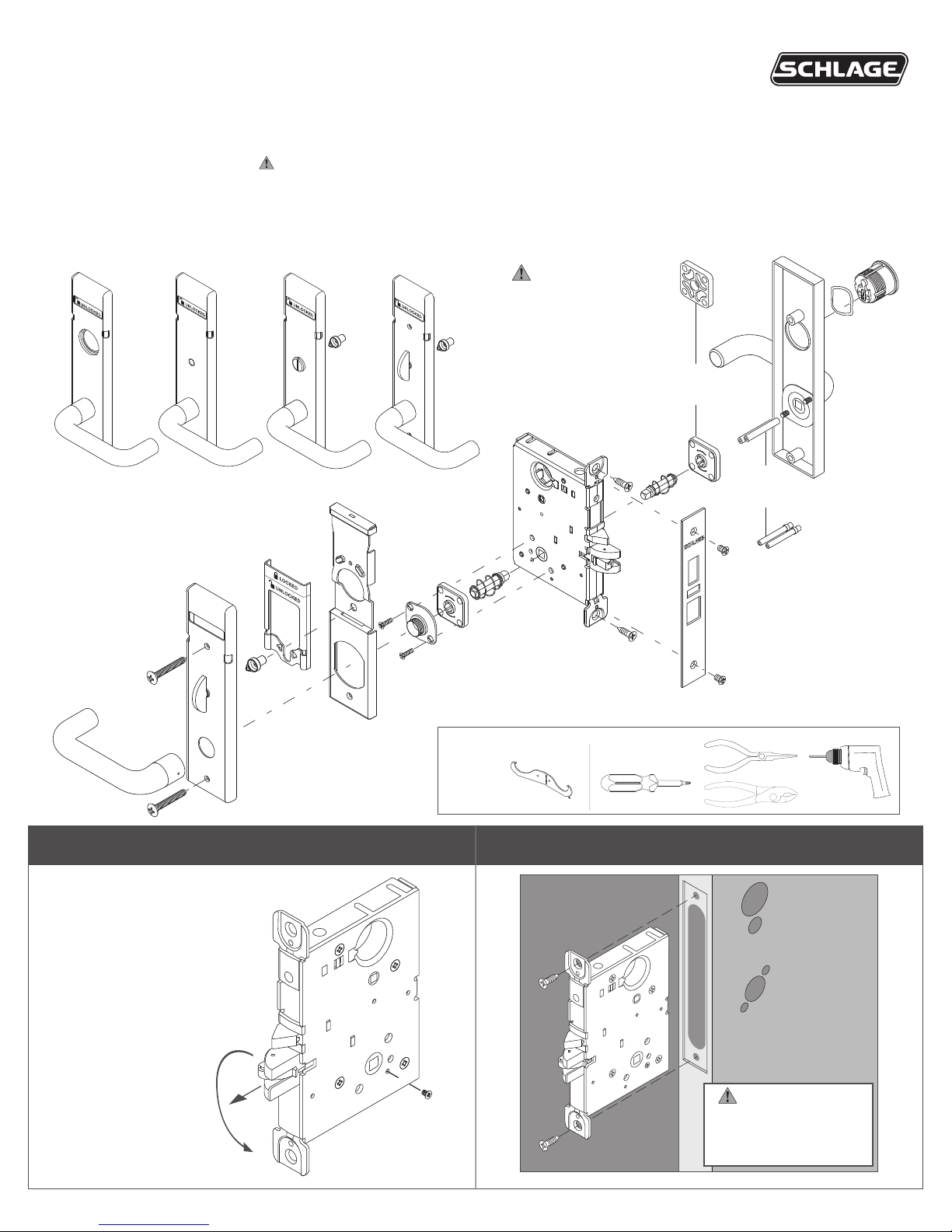

L9000 Series Lock with Indicator Escutcheon Trim
L9000 Lock with Indicator
Installation Instructions
Indicator trim is available for
either the inside or outside of the
door on allowable functions.
Non-indicator trim is furnished on
the opposite side of the door.
Conrm desired placement
(inside or outside) before
installation.
The L9000 lock with indicator
is not intended for exterior
door applications.
For retrot, see page 9.
Thumb turn with indicator
inside x cylinder non-indicator
outside shown
OR
OR
Indicator options:
Privacy Coin turnCylinder
Tools for installation:
Not included:
Included:
Check the
door preparation
dimensions with
the template
included in the
package.
Thumb turn
2

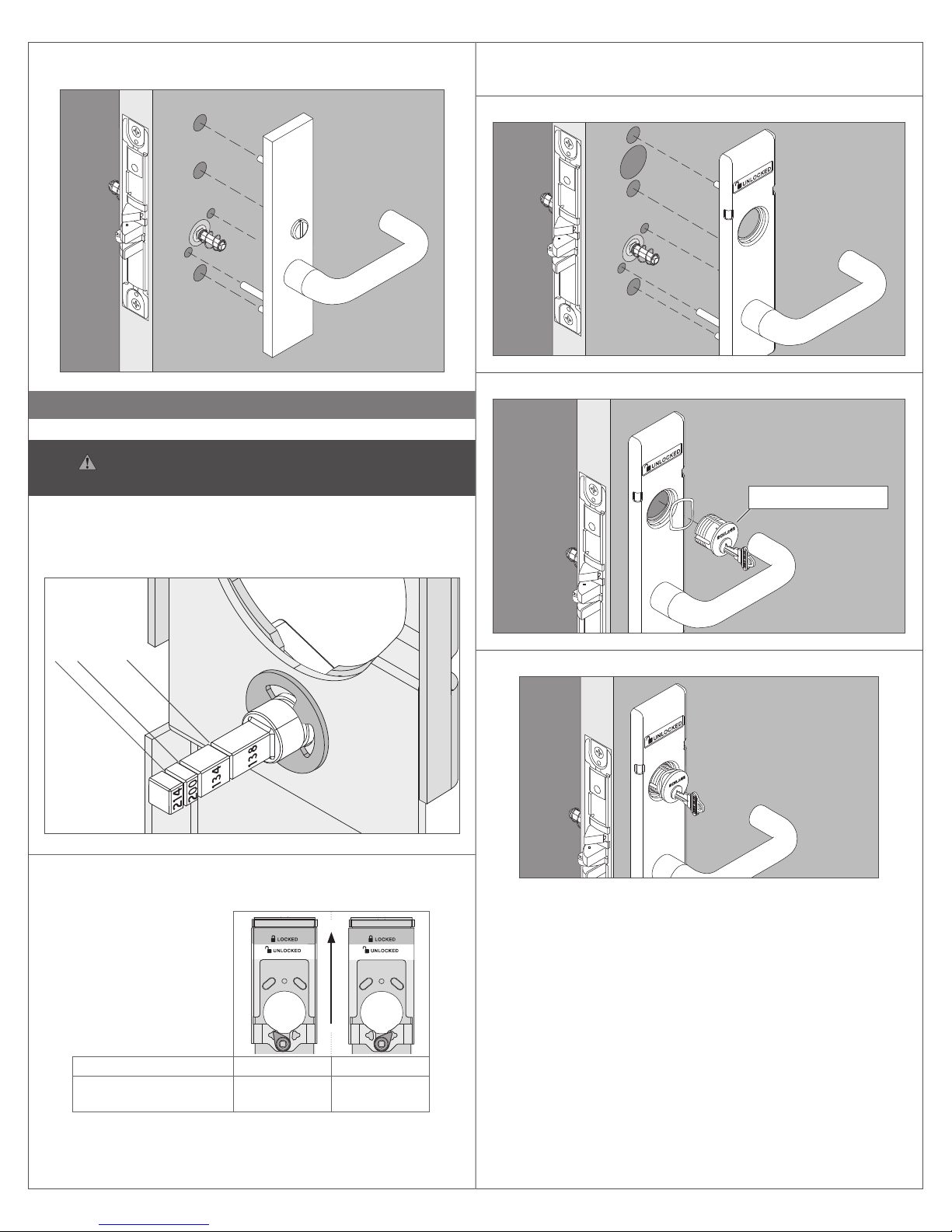

3 Install springs and spindles.
Exterior
4 Prepare outside lever assembly for installation.
4a Install outside mounting posts.
LV functions
FULLY TIGHTEN MOUNTING POSTS ON SCREWS.
4b Install outside spring cage or spacer.
OR
O
OU
LThe spring cage arrow
must point in direction
of lever down rotation.
Install spacer
for L/LV9485
STEP 5 for OUTSIDE NON-INDICATOR TRIM ONLY.
For OUTSIDE INDICATOR trim, skip to STEP 6.

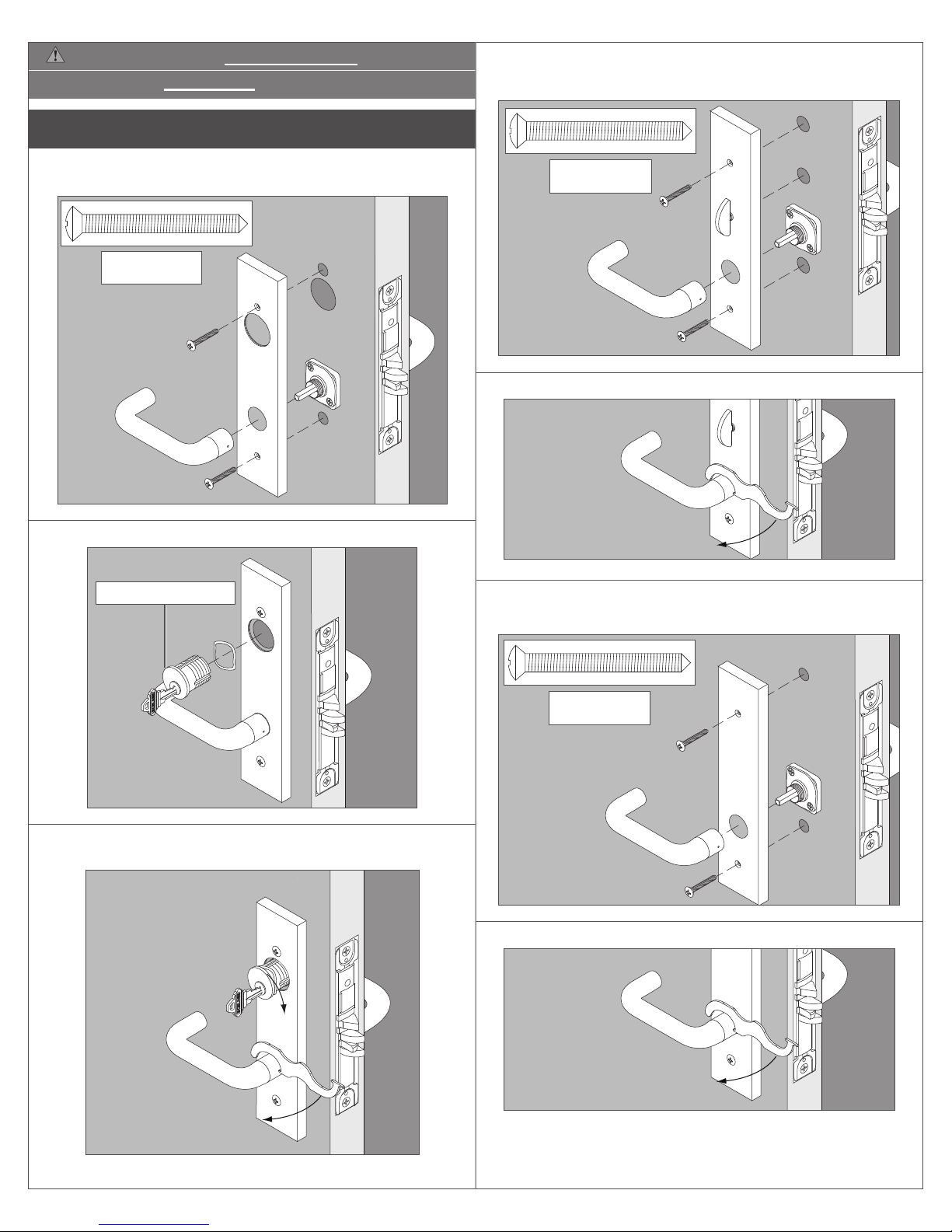

5 Install outside trim.
Cylinder Functions
5a Install escutcheon assembly.
Exterior
5b Insert key halfway into the cylinder, and install the
cylinder with cylinder spring as shown.
5c Rotate cylinder clockwise.
b.
Exterior
Key inserted
halfway
c.
Privacy Functions
5a Install escutcheon assembly.
3
Coin Turn Functions
5a Install escutcheon assembly.
For INSIDE INDICATOR trim, skip to step 7.

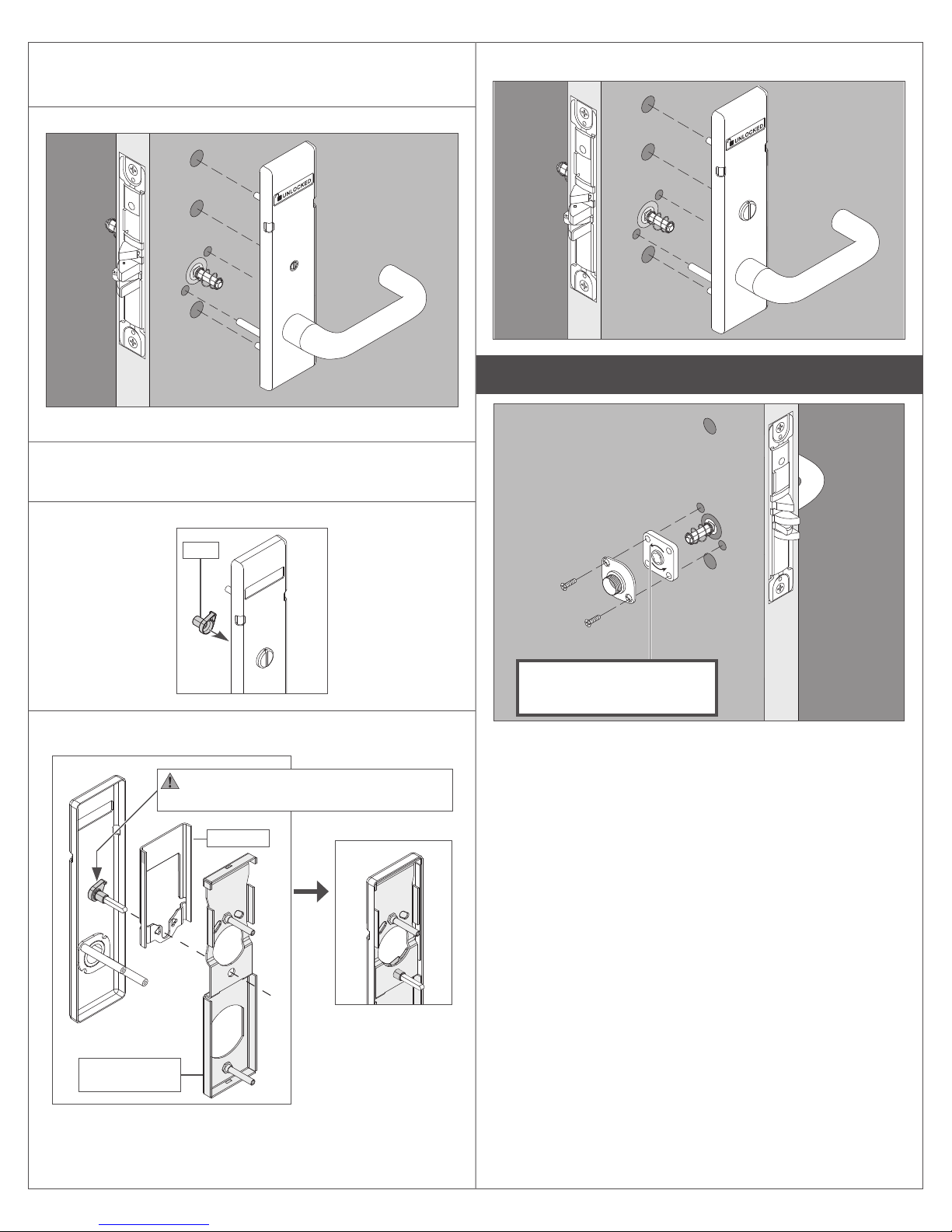

6 For Outside Indicator Trim ONLY – Install outside
indicator.
A. Trim the cam spindle if necessary (cylinder and privacy
functions only).
Break the spindle at the appropriate mark according to door
thickness. (If necessary, remove clip.)
2" 1C\v" 1C\,"
B. IMPORTANT! Check indicator handing with indicator
positioned against top rim of reinforcement plate.
OUTSIDE
INDICATOR
Non-deadbolt functions* RH/RR LH/LR
Deadbolt functions and
L9040, L9044, L9056 LH/LR RH/RR
* Except L9040, L9044, L9056
If necessary to change indicator handing, refer to steps on
page 8.
Cylinder Functions with Indicator

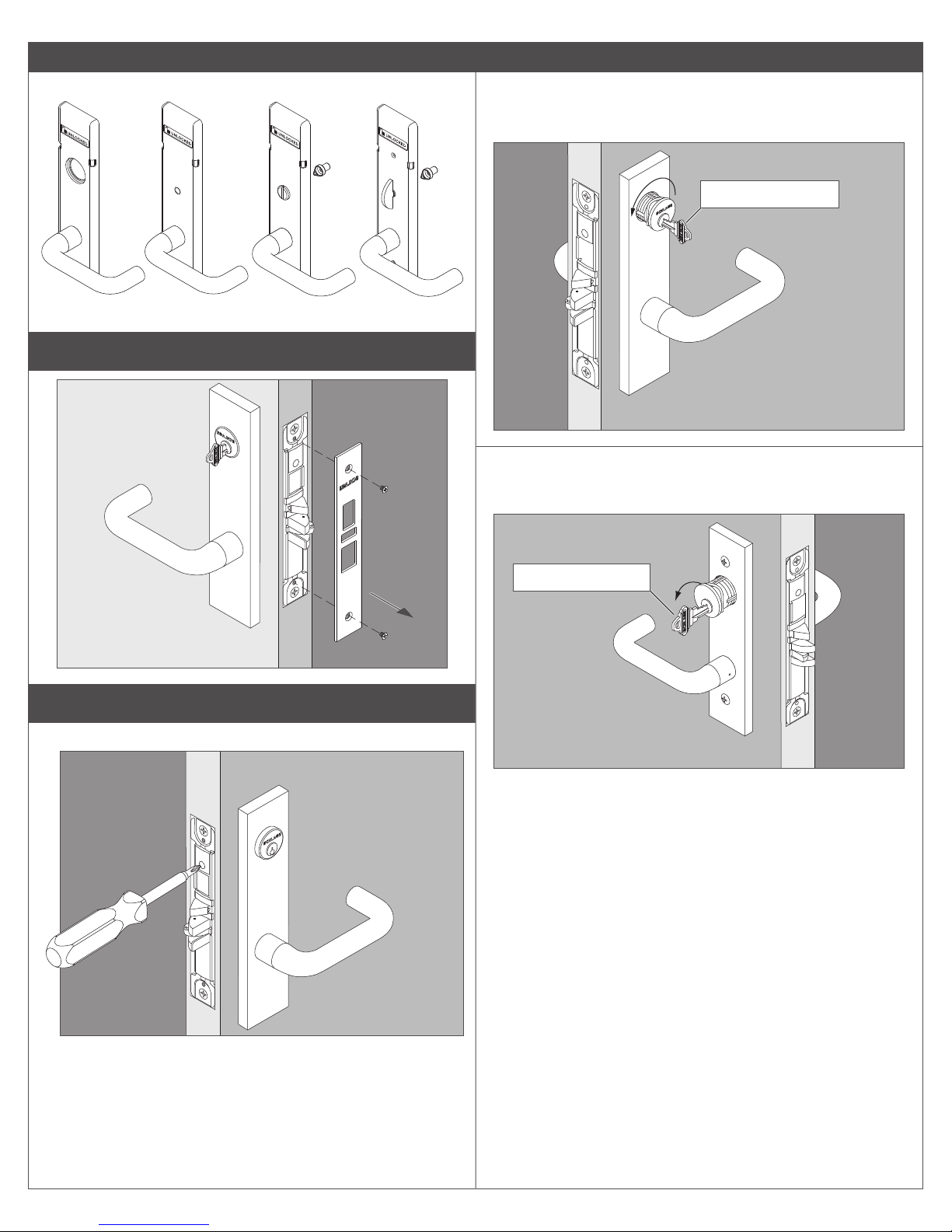

6a Unlock the door.
6b Install the indicator/escutcheon assembly.
Exterior
6c Install the cylinder with cylinder spring as shown.
Key inserted halfway
6d Rotate cylinder clockwise.
LAdditional outside indicator functions are shown on the
following page.
4
Privacy Functions with Indicator
6a Unlock the door.
6b Install the indicator/escutcheon assembly.
Exterior
Coin Turn Functions with Indicator
6a Unlock the door.
6b Assemble the coin turn faceplate and cam.
Cam
6c Place indicator and reinforcement plate on faceplate
assembly.
Indicator
Reinforcement
plate
Be sure to position the cam according
to door handing chart shown on page 3.
6d Install the indicator/escutcheon assembly.
Exterior

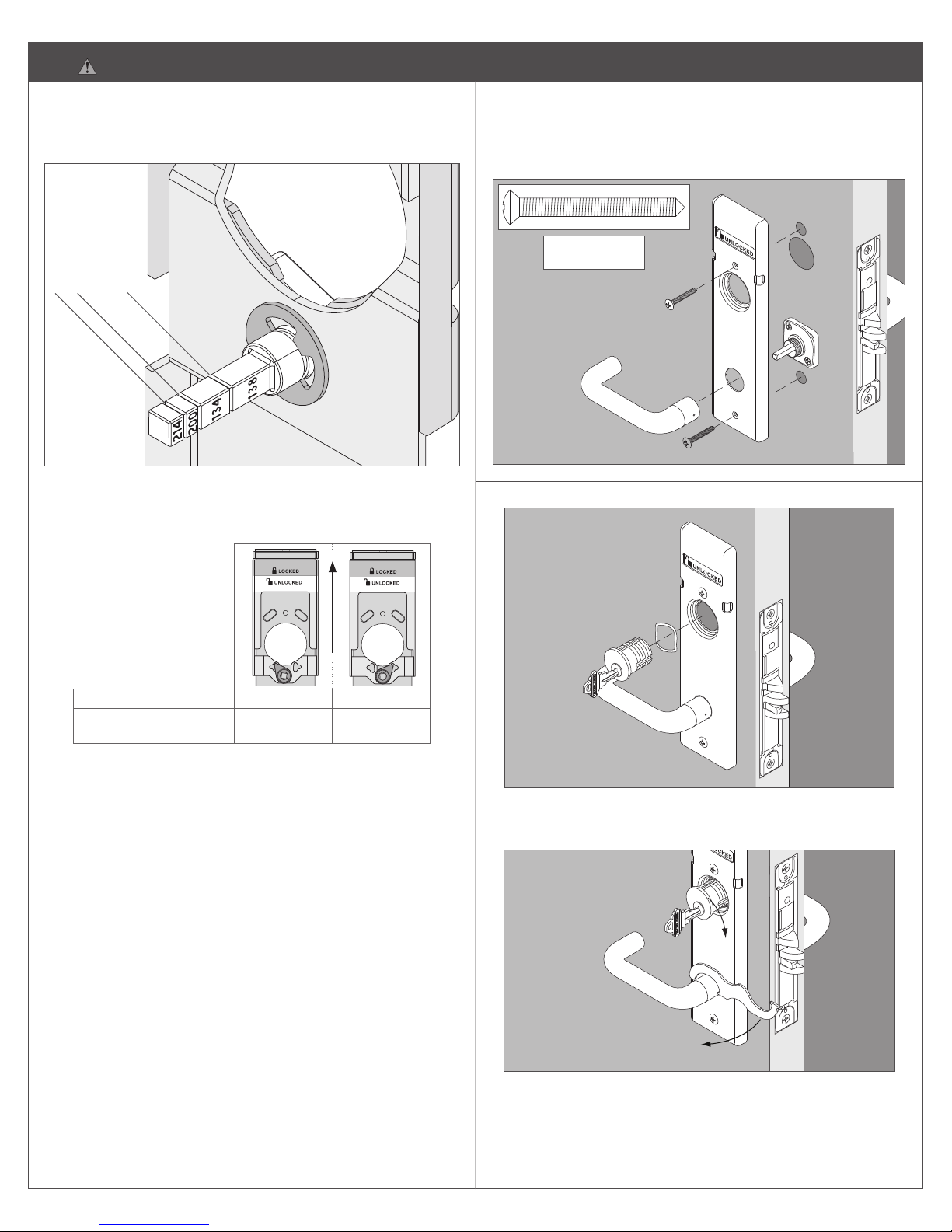

7 Install inside spring cage and mounting plate.
LThe spring cage arrow
must point in direction
of lever down rotation.
Interior
5
STEP 8 for INSIDE NON-INDICATOR TRIM ONLY.
For INSIDE INDICATOR TRIM, skip to STEP 9.
8 Install inside cylinder or thumb turn trim.
Cylinder Functions
8a Install the escutcheon/lever assembly.
Interior
DO NOT
overtighten.
8b Install the cylinder with cylinder spring as shown.
Key inserted halfway
8c Rotate cylinder clockwise and tighten bushing with
spanner wrench.
Thumb Turn Functions
8a Install the escutcheon/lever assembly.
Interior
DO NOT
overtighten.
8b Tighten bushing with spanner wrench.
Lever Only Functions
8a Install the escutcheon/lever assembly.
Interior
DO NOT
overtighten.
8b Tighten bushing with spanner wrench.
If both inside and outside of lock are now installed, skip to step 10.
6

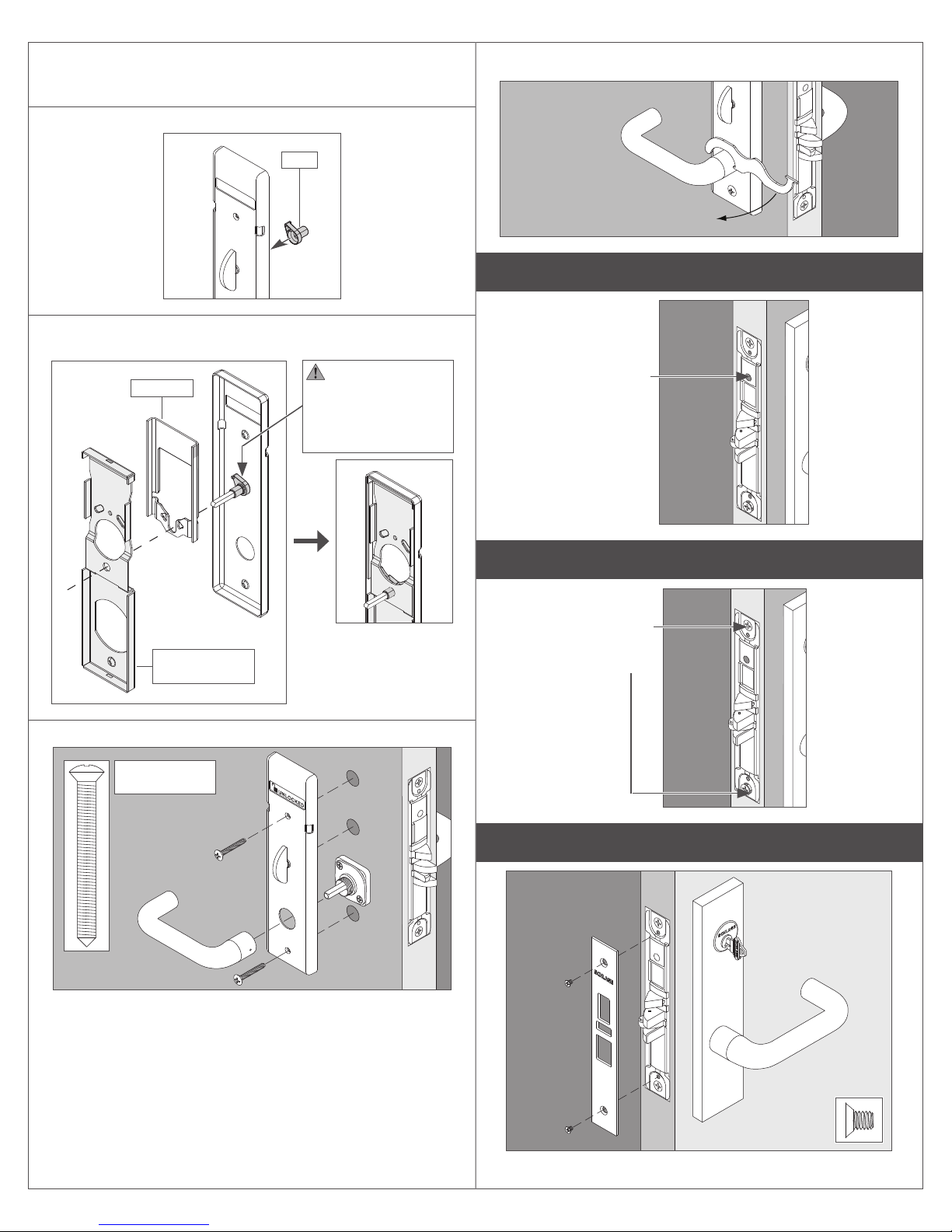

9 For Inside Indicator Trim ONLY – Install inside indicator.
A. Trim the cam spindle if necessary (cylinder and privacy
functions only).
Break the spindle at the appropriate mark according to door
thickness. (If necessary, remove clip.)
2" 1C\v" 1C\,"
B. IMPORTANT! Check indicator handing with indicator
positioned against top rim of reinforcement plate.
INSIDE
INDICATOR
Non-deadbolt functions* LH/LR RH/RR
Deadbolt functions and
L9040, L9044, L9056 RH/RR LH/LR
* Except L9040, L9044, L9056
If necessary to change indicator handing, refer to steps on
page 8.
Cylinder Functions with Indicator
9a Unlock the door.
9b Install the indicator/escutcheon assembly.
Interior
DO NOT
overtighten.
9c Install the cylinder with cylinder spring as shown.
9d Rotate cylinder clockwise and tighten bushing with
spanner wrench.
7
Thumb Turn Functions with Indicator
9a Unlock the door.
9b Assemble the thumb turn faceplate and cam.
Cam
9c Place indicator and reinforcement plate on faceplate
assembly.
Reinforcement
plate
Indicator Be sure to
position the cam
according to door
handing chart shown
on page 6.
9d Install the indicator/escutcheon assembly.
Interior
DO NOT
overtighten.
9e Tighten bushing with spanner wrench.
10 Tighten cylinder mounting screw (if applicable).
Cylinder
mounting
screw
11 Tighten top and bottom chassis mounting screws.
Chassis
mounting
screws
12 Install armor front.
8

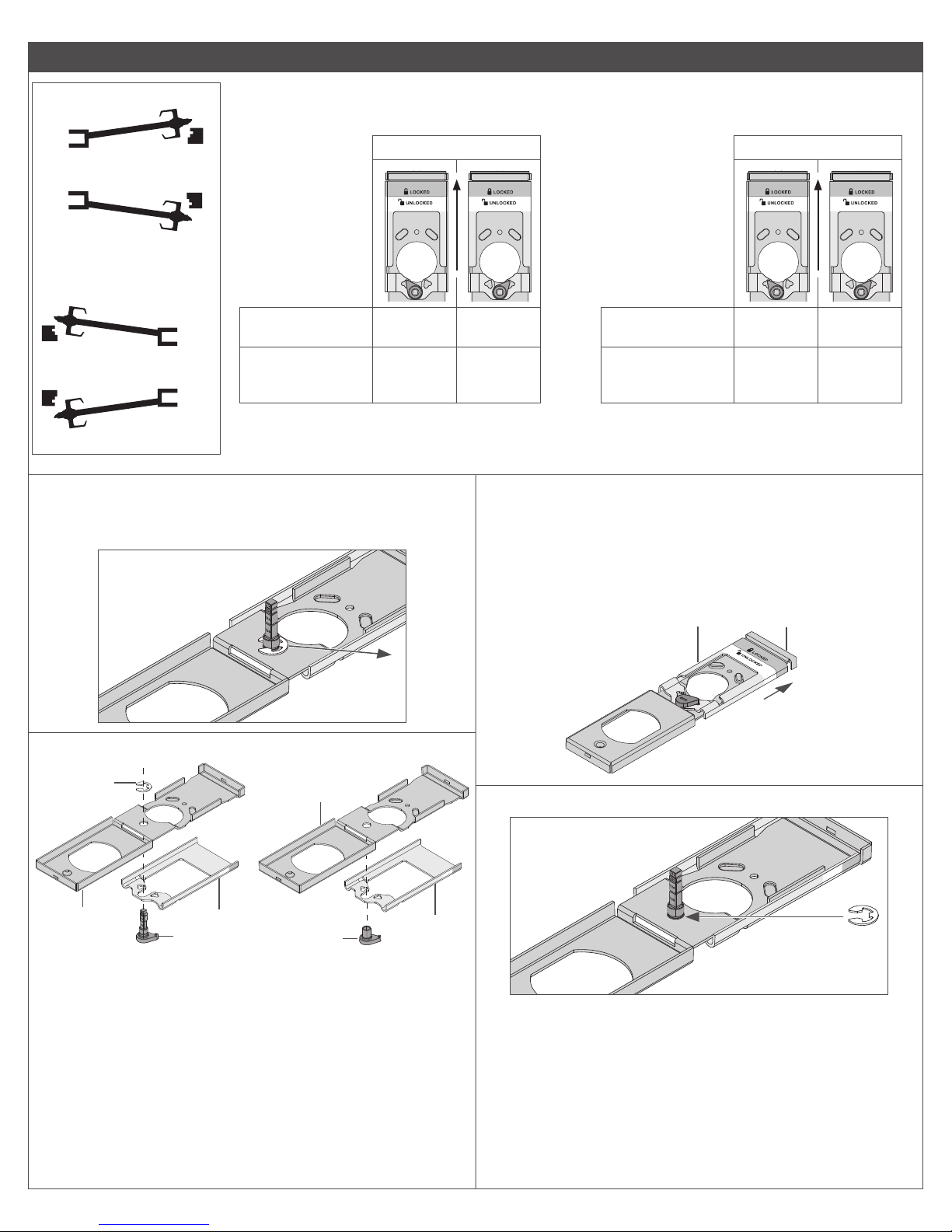

INDICATOR HANDING
LH
Left Hand
LR
Left Hand
Reverse Bevel
RH
Right Hand
RR
Right Hand
Reverse Bevel
INSIDE
INSIDE
OUTSIDE
OUTSIDE
INSIDE
INSIDE
OUTSIDE
OUTSIDE
A. Determine the door's handing from outside.
B. Check indicator handing with indicator positioned against top rim of reinforcement plate.
Outside
Non-deadbolt
functions*
RH/RR LH/LR
Deadbolt functions
and L9040, L9044,
L9056
LH/LR RH/RR
*Except L9040, L9044, L9056
Inside
Non-deadbolt
functions*
LH/LR RH/RR
Deadbolt functions
and L9040, L9044,
L9056
RH/RR LH/LR
*Except L9040, L9044, L9056
To rehand the indicator:
A. Remove the E-Clip (cylinder and privacy functions only).
B. Disassemble the indicator.
Thumb Turn and
Coin Turn Functions
Cam Indicator
Reinforcement
plate
Cylinder and Privacy Functions
Reinforcement
plate Indicator
Cam
E-Clip
C. Reorient the cam.
• Unlock the door.
• Position the indicator against the top rim of the reinforcement
plate (unlocked position).
• Position the cam as shown on charts above.
LUse OUTSIDE or INSIDE chart according to indicator side.
Reinforcement
plateIndicator
D. Replace the E-Clip (cylinder and privacy functions only).
9
INDICATOR LOCK RETROFIT INSTRUCTIONS
Indicator options:
Privacy Coin turnCylinder Thumb turn

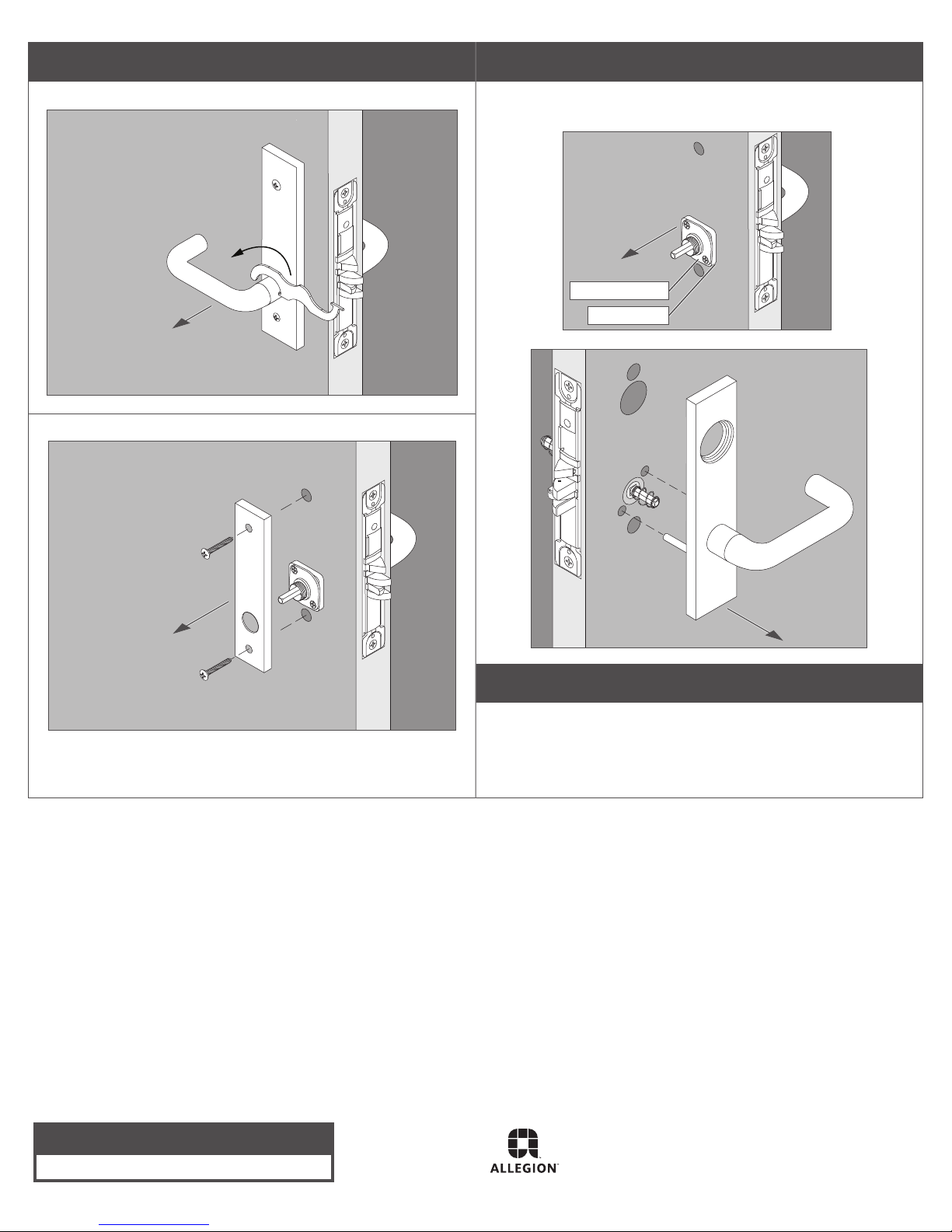

1 Remove armor front.
2 Remove cylinder(s) if applicable.
2a Loosen the cylinder mounting screw.
2b Remove the outside cylinder.
Insert the key halfway into the cylinder and rotate cylinder
counterclockwise to remove.
Exterior
Key inserted halfway
2c Remove the inside cylinder (if applicable).
Insert the key halfway into the cylinder and rotate cylinder
counterclockwise to remove.
Interior
Key inserted halfway
© Allegion 2016
Printed in U.S.A.
P516-908 Rev. 10/16-d
Customer Service
1-877-671-7011 www.allegion.com/us
3
3a Remove the inside lever.
Interior
3b Remove the inside escutcheon.
4
For indicator trim on outside of door, remove the inside mounting
plate and spring cage. Then, remove the ouside trim.
Exterior
Interior
Mounting plate
Spring cage
5 Complete installation of indicator trim.
Go to STEP 5 ON PAGE 2 and follow the instructions to
complete the installation of the indicator trim.
