INSTALLATION GUIDE

SV10 Wastewater Sampling Port

MODEL NUMBER:

SV10

DESCRIPTION: Wastewater Sampling Port

PART #: 8065-001-01

DATE: 01/01/2023 REV:

ECO:

page 1 of 10

When Installing Interceptor Inside

Fernco or similar

rubber ﬂow

restriction end

cap

SPECIAL PRECAUTIONS

Installation Instructions

Hydrostatic Slabs (or Pressure Slabs)

High Temperature Kitchen Water

concrete slab subject to hydrostatic pressure

watertight

concrete

vault

Do not install this unit in any manner

except as described in these instructions.

Doing so may result in property damage, personal injury or death.

installation

instructions

DO NOT AIR TEST UNIT OR RISER SYSTEM!

For Schier Grease Interceptor Installations - Failure to follow this guidance voids

your warranty

cold water supply line

high temperature

euent ( > 150º F)

approved backﬂow

prevention assembly

DTV (drain water

tempering valve)

directly connected indirectly connected

If water is entering the interceptor at excessive temperature (over 150º F), a

drain water tempering valve (DTV) and approved backﬂow prevention assembly

must be installed. Most state and local plumbing codes prohibit water above

150º F being discharged into the sanitary sewer. Water above 150º F will

weaken or deform PVC Schedule 40 pipe, poly drainage ﬁxtures like

interceptors and erode the coating of cast iron (leading to eventual failure).

Installation instructions and additional

components are included with the

interceptor. Read all instructions prior to

installation. This interceptor is intended to

be installed by a licensed plumber in

conformance with all local codes.

If your dishwashing sink(s)

discharges into a ﬂoor

drain/sink (drain), you must

regulate the ﬂow into the drain

to avoid an overﬂow of water

onto the kitchen ﬂoor. This can

be done by installing a valve or

ﬂow restriction cap on the sink

piping that discharges into the

drain. See drawing for

guidance. For detailed

guidance on indirect connections, go to:

webtools.schierproducts.com/Technical_Data/Indirect_Connections.pdf

When installed under a

hydrostatic slab (slab

designed to withstand

upward lift, usually caused by

hydrostatic pressure)

interceptor must be enclosed

in a watertight concrete vault.

InterceptorInterceptor

SV10 Installation Guide page 2 of 10

SPECIAL PRECAUTIONS

AGS1

The wet weight of the interceptor combined with

high temperature kitchen water creates the

potential for tank deformation when installed

above grade. In these situations Above Grade

Support Kit model AGS1 or AGS2 should be

installed to maintain structural integrity. AGS1 is

required for some GB-250 installations. AGS2 is

required for all GB-500 installations.

Above Grade Installation Support

(for Models GB-250 and GB-500 Only)

Install unit on solid, level surface in

contact with the entire footprint of unit

base; for suspended installations design

trapeze to support the wet weight of the

unit. Do not partially support unit or

suspend unit using metal U-channel to

create a trapeze.

Fully Support Base of Unit

For above grade installations ensure heavy

inlet and outlet piping (such as cast iron or

long runs) is properly supported or suspended

during the entire installation process to

prevent connection failure or damage to

bulkhead ﬁttings.

Support Inlet and Outlet Piping

pipe supports

concrete ﬂoor

suspended installation

DO NOT

COMPACT

BACKFILL

For Schier Grease Interceptor Installations - Failure to follow this guidance voids your

warranty

Interceptors and risers are not designed

to withstand water table height in

excess of the top of the unit when

buried (see ﬁgure). If it is possible for

this to occur, install the interceptor and

risers in a water-tight concrete vault or

backﬁll with concrete or ﬂowable ﬁll

(wet concrete and ﬂowable backﬁll

should be poured in stages to avoid

crushing the interceptor). At risk areas

include but are not limited to tidal surge

areas, ﬂoodplains and areas that

receive storm water. Great Basin™

models that are direct buried in high water table scenarios must be installed with an

anchor kit. Models GB-50, GB-75, and GB-250 use model AK1 anchor kit. Model

GB-500 uses model AK2 anchor kit for use with deadmen anchors. Models

GB-1000, GGI-750 and GGI-1500 use model AK3 anchor kit for use with deadmen

anchors.

max water table height for

direct burial

model AK1

anchor kit

High Water Table Installations

InterceptorInterceptor

SV10 Installation Guide page 3 of 10

GETTING TO KNOW THE SV10

1. Polyethylene Cover with Gasket

2. Quarter-Turn Camlock

Cover Bolts (x2)

3. Safety Star

4. Safety Star Tether

5. Riser Cut Line

6. Sampling Port Body

7. 6" Plain End Outlet Connection

(achieved by cutting o the 4"

connection at the trim line)

8. 4" Plain End Outlet Connection

(standard)

9. 4" Plain End Inlet Connection

(standard)

10. 6" Plain End Inlet Connection

(achieved by cutting o the 4"

connection at the trim line)

11. 2" x 33" Butyl Mastic Tape Roll (x2)

SV10 Installation Guide page 4 of 10

Special Precautions

BURIED INSTALLATION

Install sampling port as close as possible to and downstream

from interceptor being served

Provide at least 16"

clearance above unit for

routine maintenance.

16" min.

3 Risers

(94") Max

Max Water Level

Risers are

not designed

to retain water

3ODOR ALERT!

Interceptor is not a sewer gas trap. All

upstream ﬁxtures must be trapped

1Test sampling port for water tightness

For base unit testing, cap both connection points with 4"

ﬂexible PVC caps. Remove cover and ﬁll with water to just

above the highest connection.

Inspect unit and connections for leaks. Check water level at

speciﬁc time intervals per local code.

Have a Leak?

Call customer care at 913-951-3300

Hours 8am-5pm CST, M-F

SIDE VIEW

Fill Line

SV10 Installation Guide page 5 of 10

4 Wet or Air Test Piping Per Local Code

Doing so may result in property damage, personal injury or death.

DO NOT AIR TEST UNIT OR RISER SYSTEM! Have a Leak?

Call customer care

at 913-951-3300

Hours 8am-5pm CST, M-F

Excavate hole at least 12" larger than sampling port on all

sides and 6" deeper than port bottom.

Lay a level bed of well-packed, crushed aggregate

(approximately 3/4" size rock or sand, with no ﬁnes) in the

base of hole.

2a 2b

6" or more

12" 12"

2 Excavate Burial Pit

BURIED INSTALLATION

4" Plain End

3b1

3 Connect Piping

Lower unit into pit and set level. Mechanically couple inlet and

outlet drainage lines to unit.

IMPORTANT! Make sure the sampling port is correctly aligned.

The SV10 outlet is 2" lower than the inlet to facilitate sample

retrieval and comply with local codes. DO NOT install backwards

as doing so will result in improper drainage slope.

Do not solvent weld. Vent per local code.

Flexible PVC Couplings

Drainage Lines

The SV10 sampling port comes from the factory

ready to connect to 4" drain lines.

6" Connections Only

Cut o the 4" connections

at the premarked cut

lines. Remove any burrs

from the cut.

INLET OUTLET

SV10 Installation Guide page 6 of 10

BURIED INSTALLATION

5 Bring Cover Flush-to-Grade

The SV10 is ready for burial depth of 14-1/2" from ﬁnished grade to bottom of unit (or 10-1/4" to centerline of inlet, 12-1/4" to centerline

of outlet). Deeper burials will require adding a risers.

Measure dimension X to determine riser height needed.

Disconnect the SV10 and remove it from the

burial pit. Cut the SV10 at the Riser Cut Line,

freeing the cover adapter from the sampling

port body.

Riser Height Risers

Needed Required

>0" - 31" FCR3 (x1)

>31" - 64" FCR3 (x2)

>64" - 97" FCR3 (x3)

See instructions included with FCR10

for installation details.

Install Schier Riser(s) FCR10

5c1

OR Install Your Own Riser. The SV10 is designed to accommodate any

non-perforated, 8" nominal diameter drain pipe for riser use. Sch. 40 PVC or

corrugated drain pipe is recommended.

5c2

Return the SV10 to the burial pit and

reconnect the drain lines

Place the cover/cover adapter onto

the top of the riser and check to

see if ﬂush with grade. If too high,

remove cover and trim riser as

needed.

Insert Riser into

SV10 Body.

Cut riser to a length

2" longer than the riser

height needed.

Secure cover/cover adapter using the

other piece of the provided butyl mastic

tape. Make sure joint is completely

sealed and cover is level and

ﬂush-to-grade.

Use 1 piece of the provided

butyl mastic tape to secure the

riser joint. Make sure joint is

completely sealed and riser is

aligned square to the SV10

Body.

x+2"

SV10 Installation Guide page 7 of 10

BURIED INSTALLATION

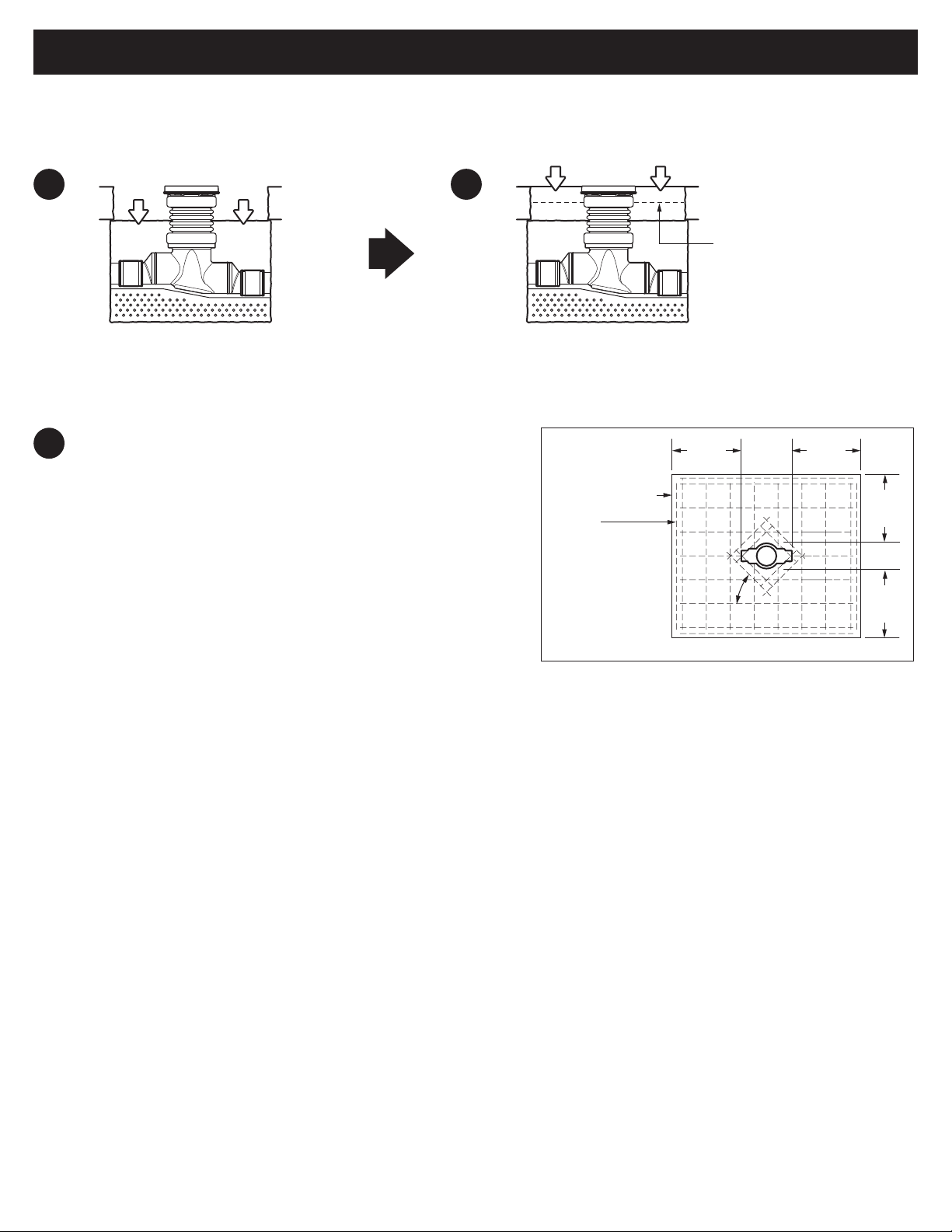

6 Backﬁll and Finished Grade

TOP VIEW 18"

min

18"

min

45º

18"

min

18"

min

Concrete Slab

Rebar

Pour concrete slab to ﬁnished grade.

Vehicular Trac Areas:

Minimum 8" thick concrete slab with rebar required. Thickness of concrete

around covers to be determined by specifying engineer. If trac loading is

required the concrete slab dimensions shown are for guideline purposes only.

Concrete to be 28 day compressive strength to 4,000 PSI. Use No. 4 rebar (ø

1/2") grade 60 steel per ASTM A615: connected with tie wire. Rebar to be 2-1/2"

from edge of concrete and spaced in a 12" grid with 4" spacing around access

openings.

Pedestrian Trac or Greenspace Areas:

Minimum 4" thick concrete slab with rebar required.

6b1

Rebar

Backﬁll evenly around tank using crushed aggregate

(approximately 3/4" size rock or sand with no ﬁnes) or ﬂowable ﬁll.

Do not compact backﬁll around unit.

SV10 Installation Guide page 8 of 10

Special Precautions

Install sampling port as close as possible

to and downstream from interceptor

being served

ON THE FLOOR INSTALLATION

ODOR ALERT!

Sampling port is not a sewer gas trap. All

upstream ﬁxtures must be trapped

ODOR ALERT!

Do not install air

gap on outlet side

of sampling port.

Provide at least 16"

clearance above unit for

routine maintenance.

16" min.

1Test sampling port for water tightness

For base unit testing, cap both connection points with 4"

ﬂexible PVC caps. Remove cover and ﬁll with water to just

above the highest connection.

Inspect unit and connections for leaks. Check water level at

speciﬁc time intervals per local code.

Have a Leak?

Call customer care at 913-951-3300

Hours 8am-5pm CST, M-F

SIDE VIEW

Fill Line

SV10 Installation Guide page 9 of 10

ON THE FLOOR INSTALLATION

2 Connect Piping

4" Plain End

The SV10 sampling port comes from the factory

ready to connect to 4" drain lines.

6" Connections Only

Cut o the 4" connections

at the premarked cut

lines. Remove any burrs

from the cut.

3 Wet or Air Test Piping Per Local Code

Doing so may result in property damage, personal injury or death.

DO NOT AIR TEST UNIT OR RISER SYSTEM! Leak? Call customer care at

913-951-3300

8a – 5p M – F CST

FLOOR BELOW INSTALLATION DETAIL

Mechanically couple inlet and

outlet drainage lines to unit.

IMPORTANT! Make sure the

sampling port is correctly

aligned. The SV10 outlet is 2"

lower than the inlet to facilitate

sample retrieval and comply

with local codes. DO NOT

install backwards as doing

so will result in improper

drainage slope.

Do not solvent weld. Vent

per local code.

vent per

local code

DETAIL

Flexible PVC

Coupling

Plain End

Fitting

Drain line

INLET

OUTLET

SV10 Installation Guide page 10 of 10

Other manuals for SV10

Table of contents

Popular Plumbing Product manuals by other brands

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

Kohler

Kohler K-6228 Installation and care guide

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Operator's manual

American Standard

American Standard DetectLink 6072121 manual

Uponor

Uponor Contec TS Mounting instructions

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis MILANO 78211JS installation instructions

Kohler

Kohler K-12183 Homeowner's guide

Maxxus

Maxxus MX-M206-01 instruction manual

Moen

Moen 5922 Series installation instructions

Viega

Viega Prevista Pure 8512 Instructions for use

Kohler

Kohler Centerset K-15240 Homeowner's guide

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv

baliv WT-140 manual
