sauter TVL User manual
Sauter GmbH
Ziegelei 1
D-72336 Balingen
e-mail: info@kern-sohn.com
Phone : +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.sauter.eu
Instruction manual manual test bench
SAUTER TVL/TVL-XL
Version 2.0
04/2020
GB
TVL_TVL-XL-BA-e-2020
PROFESSIONAL MEASURING
2 TVL_TVL-XL-BA-e-2020
GB
SAUTER TVL/TVL-XL
V. 2.0 11/2020
Instruction manual manual test bench
Thank you for purchasing the manual crank test stand from SAUTER. We hope that
you will be very satisfied with the high quality of this measuring system with its high
reproducibility. For any questions, wishes and suggestions please do not hesitate to
contact us.
Table of contents:
1Scope of delivery........................................................................................... 3
2Warnings ........................................................................................................ 3
3Technical description.................................................................................... 3
3.1 Technical data test bench ....................................................................................................... 3
3.2 Technical data length measuring unit LA (without serial interface) ................................... 4
4Maintenance................................................................................................... 4
TVL_TVL-XL-BA-e-2020 TVL_TVL-XL-BA-e-20203
1 Scope of delivery
•SAUTER TVL
•A hook
2 Warnings
Incorrectly performed force measurements can lead to serious injury to persons and
damage to property and must therefore only be performed by trained and experienced
personnel.

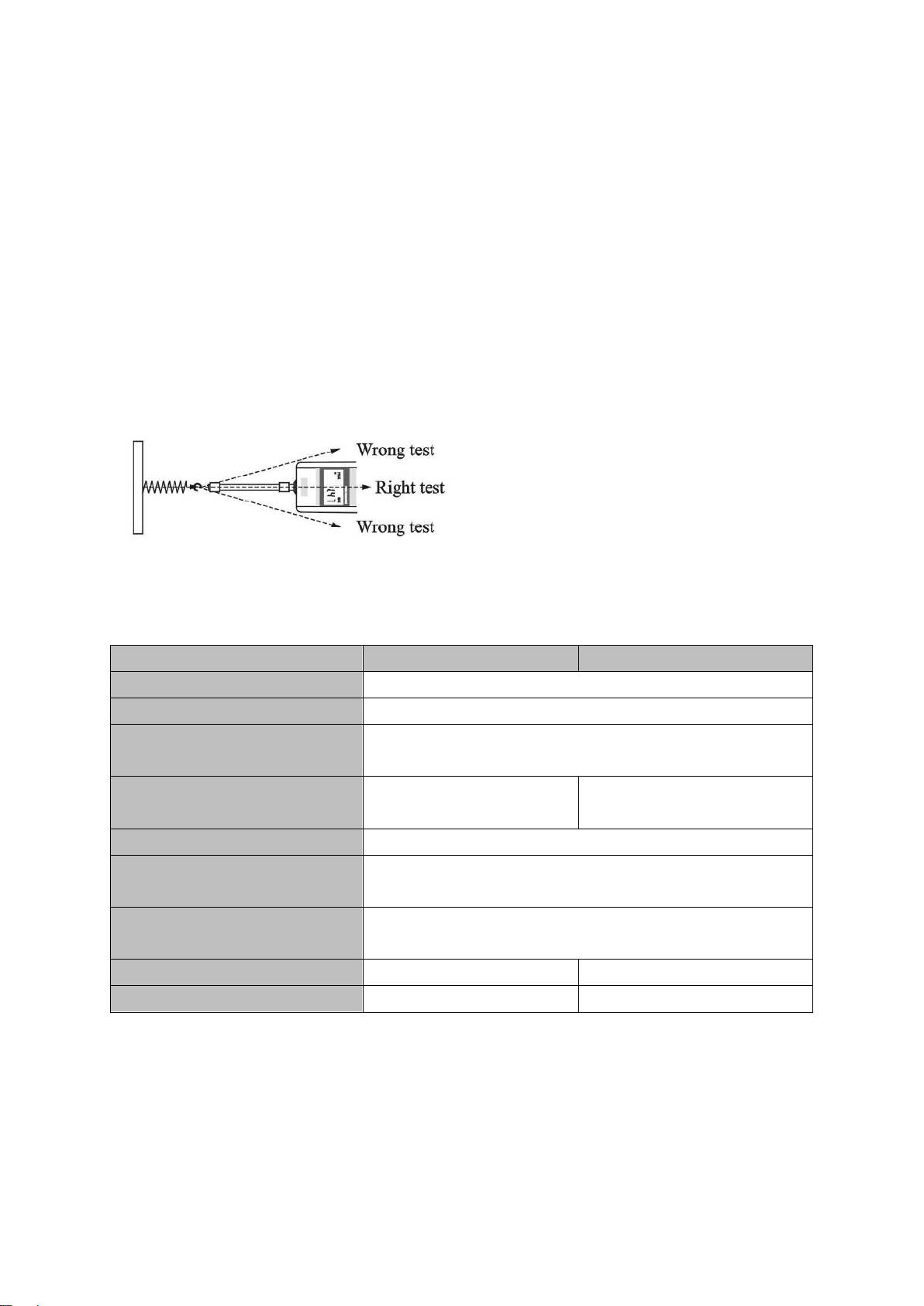

In particular, it should be avoided that forces are applied to the measuring device by
the test stand which exceed the maximum load (Max) of the test stand or themeasuring
device or which do not act on the device axially via the test stand.
3 Technical description
3.1 Technical data test bench
TVL
TVL-XL
maximum force
500N
Measurement direction
vertical and horizontal
Spindle stroke per
revolution
3mm
Mounting height of upper
hook from base plate
Approx. 470mm
Approx. 720
Thread hook
M6
Spindle height from base
plate
230mm
Thread of the encoder
mounting plate
4x M3 (included in delivery)
Workspace
Approx. 200mm
Approx. 450mm
Weight
8kg
15kg
4 TVL_TVL-XL-BA-e-2020
3.2 Technical data length measuring unit LA (without serial interface)
TVL
TVL-XL
Scale length
200mm
Readability
0,01mm
Control buttons
On/0
•Switch on
•Zeroing the display of the LA
mm/in
Change of units between millimeters and inches
▲
Manual length preselection, upwards
▼
Manual length selection, downwards
4 Maintenance
To avoid rust, the test stand should be cleaned with a soft cloth after each use.
Under no circumstances should aggressive cleaning agents be used.
