SATO M8460S User manual

M8460S/ Opposite Hand

Parts List

SATO America, Inc.

10350-A Nations Ford Rd.

Charlotte, NC 28273

Tel (704) 644-1650

Fax(704) 644-1662

P/N9001062REV. C

M8460S Opposite Hand

2

Table of Content

Frame Assembly 3 – 8

Thermal Head Assembly 9 – 11

Platen Frame Assembly 12 – 18

Ribbon Assembly 19 – 24

Cover Assembly 25 – 27

Main PCB Assembly 28 – 28

Check PCB Assembly 29 – 29

Memory Card PCB Assembly 30 – 30

(Option)

M8460S Opposite Hand

3

Frame Assembly

M8460S Opposite Hand

4

Frame Assembly

M8460S Opposite Hand

5

Frame Assembly

M8460S Opposite Hand

6

Frame Assembly

M8460S Opposite Hand

7

Frame Assembly

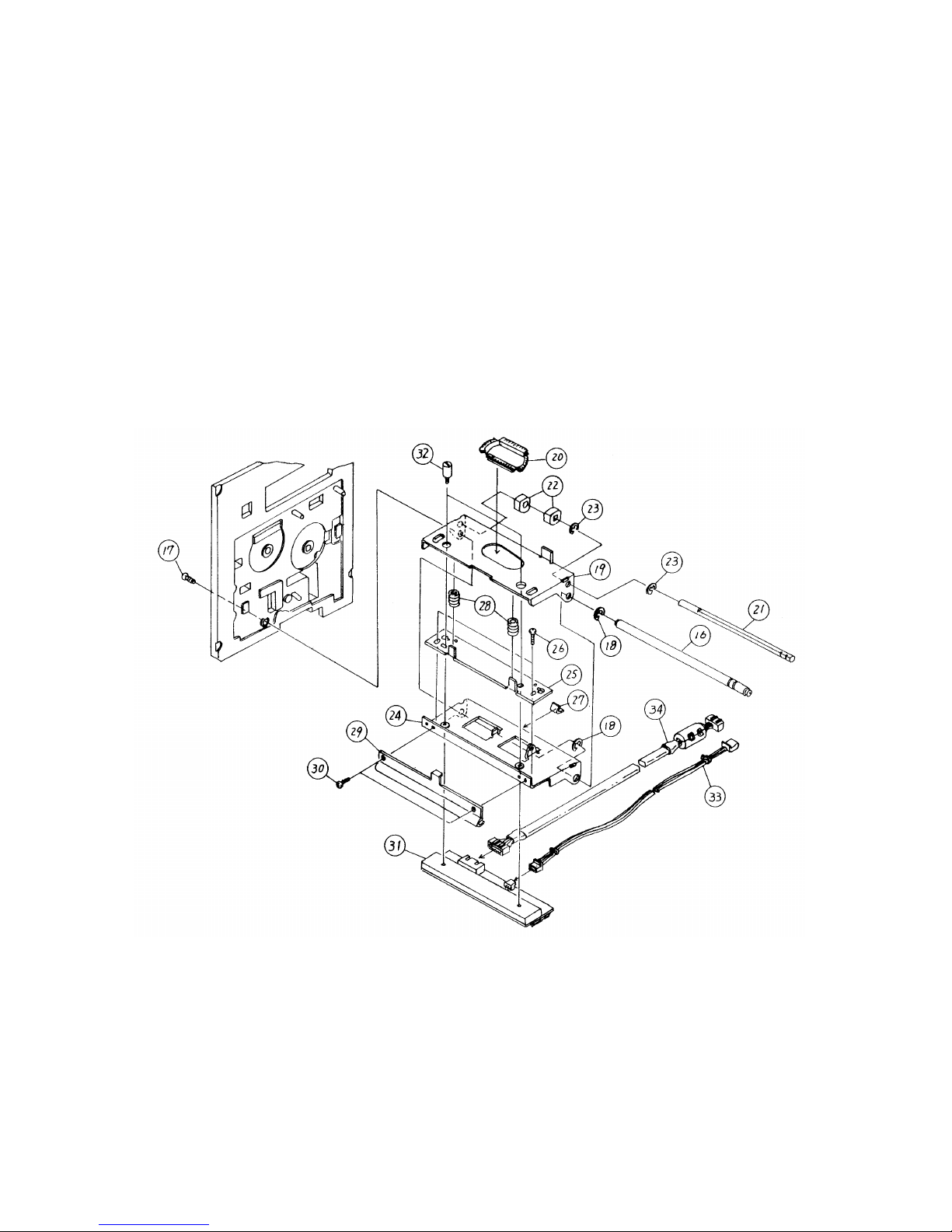

ITEM # Part Number Description QTY

1 PR1734600 Engine frame 1

2 MD3300822 Pan head screw 1

3 MA0301022 Pan head screw 1

4 MT1300522 Hex nut 1

5 PB0734200 Guide post 1

6 MC0401022 Pan head screw 1

7 PR1734700 Stay 1

8 MN0401224 Hex bolt 2

9 PA3739400 Guide plate (head bracket) 1

10 MN0300824 Hex bolt 1

11 PA3732500 Spring bracket 1

12 MC0301022 Pan head screw 1

13 PC0730200 Spring (head open) 1

14 PB0734300 Shaft (support) 1

15 MN0401024 Hex bolt 1

16 PB0734400 Shaft (ribbon adjust) 1

17 MN0401024 Hex bolt 1

18 PR1733900 Roller 1

19 PR0731600 Feed roller 1

20 PT1112060 Ball supporter 1

21 PT1109050 Ball supporter 1

22 PE8730100 Gear 1

23 ND0040030 E-snap ring 1

24 PV2730500 Disk plate cover 1

25 MD4300622 Pan head screw 2

26 PA3738400 Dispense bar bracket 1

27 MN0300824 Hex bolt 1

28 PH0730200 DSW cover 1

29 PA3730200 Sensor bracket (ribbon) 1

30 MC0301022 Pan head screw 1

31 RH1730400 SEN4 cable 1

32 MA0300622 Pan head screw 2

33 RH1731100 SEN5 cable 1

34 MD3201222 pan head screw 2

35 RJ2730100 DSW PCB assy 1

M8460S Opposite Hand

8

Frame Assembly

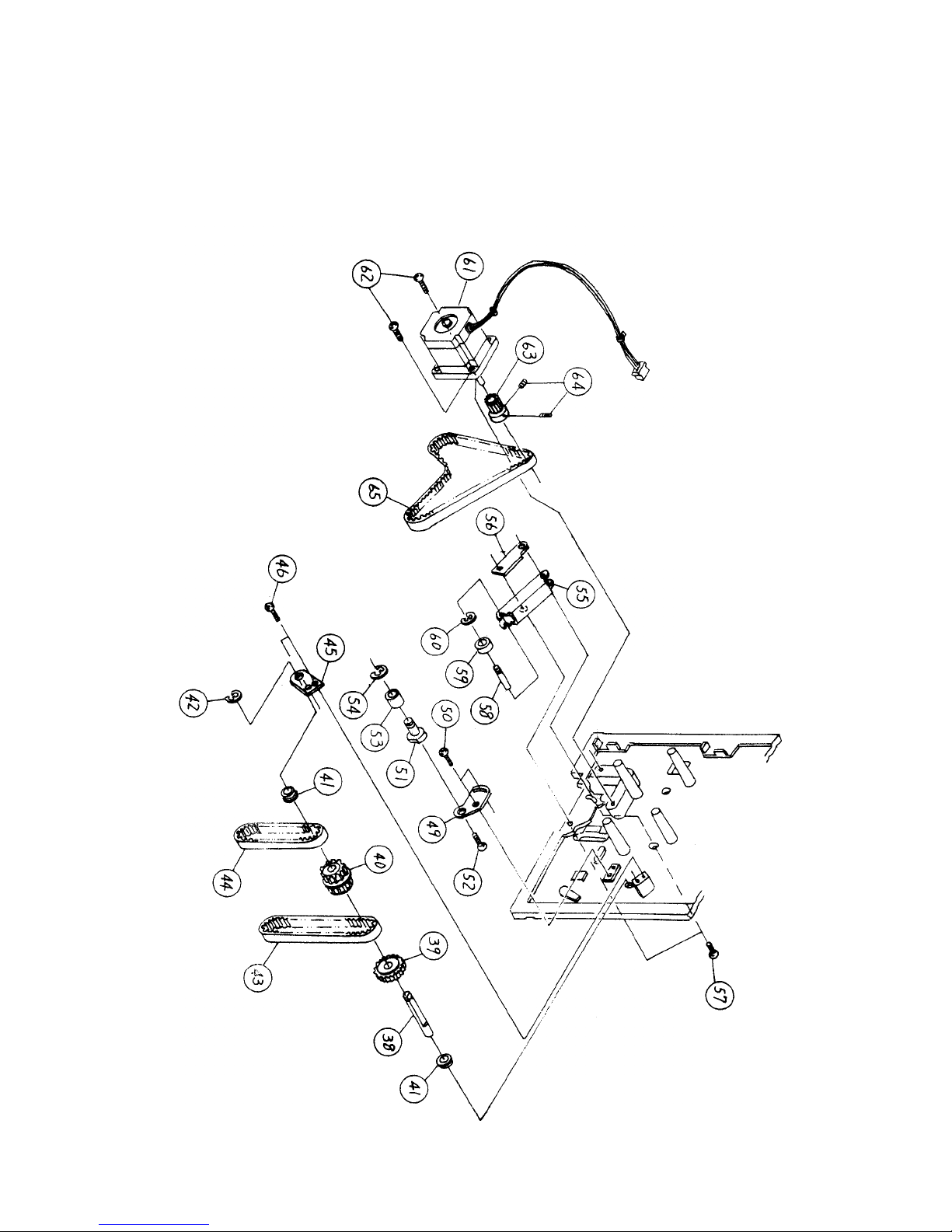

ITEM # Part Number Description QTY

36 MD3300822 Pan head screw 2

37 RH1731600 DSW cable set 1

38 PB0731701 Shaft (idle) 1

39 PE8730100 Gear 1

40 PE8730300 Pulley 1

41 PT1112060 Ball supporter 2

42 ND0040030 E-snap ring 1

43 PT8150064 Timing belt (motor) 1

44 PT8085048 Timing belt 1

45 PA1730500 Shaft bracket 1

46 MC0401022 Pan head screw 2

49 PA1730700 Tension bracket 1

50 MD4300822 Pan head screw 2

51 PB0730600 Post (tension) 1

52 MD4400822 Pan head screw 1

53 PR1730600 Tension roller 1

54 ND0040030 E-snap ring 1

55 PA3734800 Pulley bracket 1

56 PA2730700 Plate nut 1

57 MD4402022 Pan head screw 2

58 PB0731600 Shaft (roller) 1

59 PR1732600 Tension roller 1

60 ND0040030 E-snap ring 1

61 RH1733600 STP cable 1

62 MC0401222 Pan head screw 2

63 PL1720100 Motor pulley 1

64 MJ1400524 W-point screw 2

65 PT8190064 Timing belt 1

66 PR4730501 Key board cover 1

67 MD4301222 Pan head screw 4

68 RJ2730200 KB PCB 1

69 MH0300821 P-tight screw 4

70 RH1731300 PSW cable 1

M8460S Opposite Hand

9

Thermal Head Assembly

M8460S Opposite Hand

10

Thermal Head Assembly
