Sanus WSSAWM1 User manual
WSSAWM1
SOUNDBAR WALL MOUNT
DESIGNED FOR
Sonos®Arc™
INSTRUCTION MANUAL
WE’RE HERE TO HELP
If you have any questions along the way, our US-based
install experts are standing by to help.
Or, chat at: US: SANUS.com/chatSP
Call us at: US: 800-359-5520
UK: 0800 056 2853
EMEA: +31 (0) 495 580 852
This mount is designed
to support Sonos®Arc™
soundbar and works with
SANUS and other TV
mount brands.
2
YOU’D LOVE THIS KIT!
Complete your installation by hiding your cables with the
In-Wall Power Kit for Soundbar + Mounted TV
Check out SANUS.com, SONOS.com, or Amazon.com!
• Works perfectly with the
Sonos®Arc™Wall Mount
• Hides all cabling behind the wall
• Can power multiple devices
• Safe and easy to install with no
electrician needed
BEFORE
IN-WALL
POWER KIT
FOR SOUNDBAR + MOUNTED TV
Model WSIWPSB1-W1
Available in the U.S. only
3
14 lbs.
(6.4 kg)

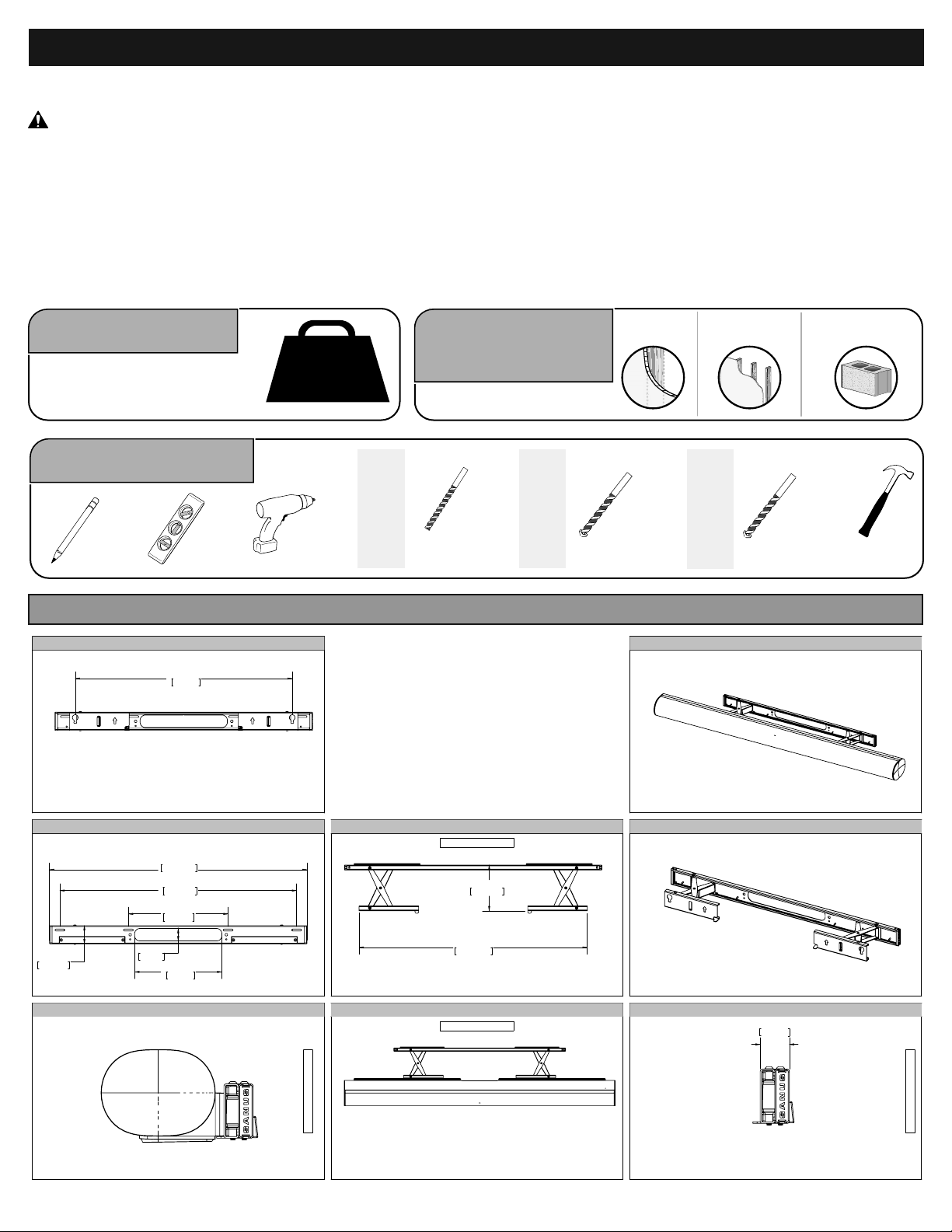

CAUTION: To avoid potential personal injuries and property damage:
•This soundbar mount is only designed for use with the Sonos® Arc™ speaker.
•Please read through these instructions completely to be sure you’re comfortable with this easy install process.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service.
Before getting started, let’s make sure this product is perfect for you!
IMPORTANT SAFETY INSTRUCTIONS. READ ENTIRE MANUAL PRIOR TO USE. SAVE THESE INSTRUCTIONS
23.98in
609mm
9.65in
245mm
1.38in
35mm
2.00in
50.8mm
28.45in
722.6mm
11.02in
280mm
26.16in
664.4mm
25.21in
640.4mm
5.05in
128.4mm
1.08in
27.4mm
SIMULATED 55"
FLAT SCREEN TV
WALL IS ON RIGHT
WALL IS ON TOP
WALL IS ON TOP
WALL IS ON RIGHT
TV INTERFACE
WALL PLATE
TOP VIEW - TV MOUNTED
3-D
3-D
SIDE VIEW
TOP VIEW
FULLY ASSEMBLED MOUNT
DIMENSIONS IN. [MM]
Weight Limit
DO NOT EXCEED
Wall
Construction
Concrete block/
Solid concrete
Dry wall Wood stud
Drill Bit
Tools Needed
Drywall
Install
Pencil Level Electric Drill Hammer
Drill Bit
13/32 in.
(10 mm)
Concrete
Concrete
Install
13/32 in.
(10 mm)
Wood Stud
Install
Drill Bit
1/8 in.
(3 mm)
Wood
4

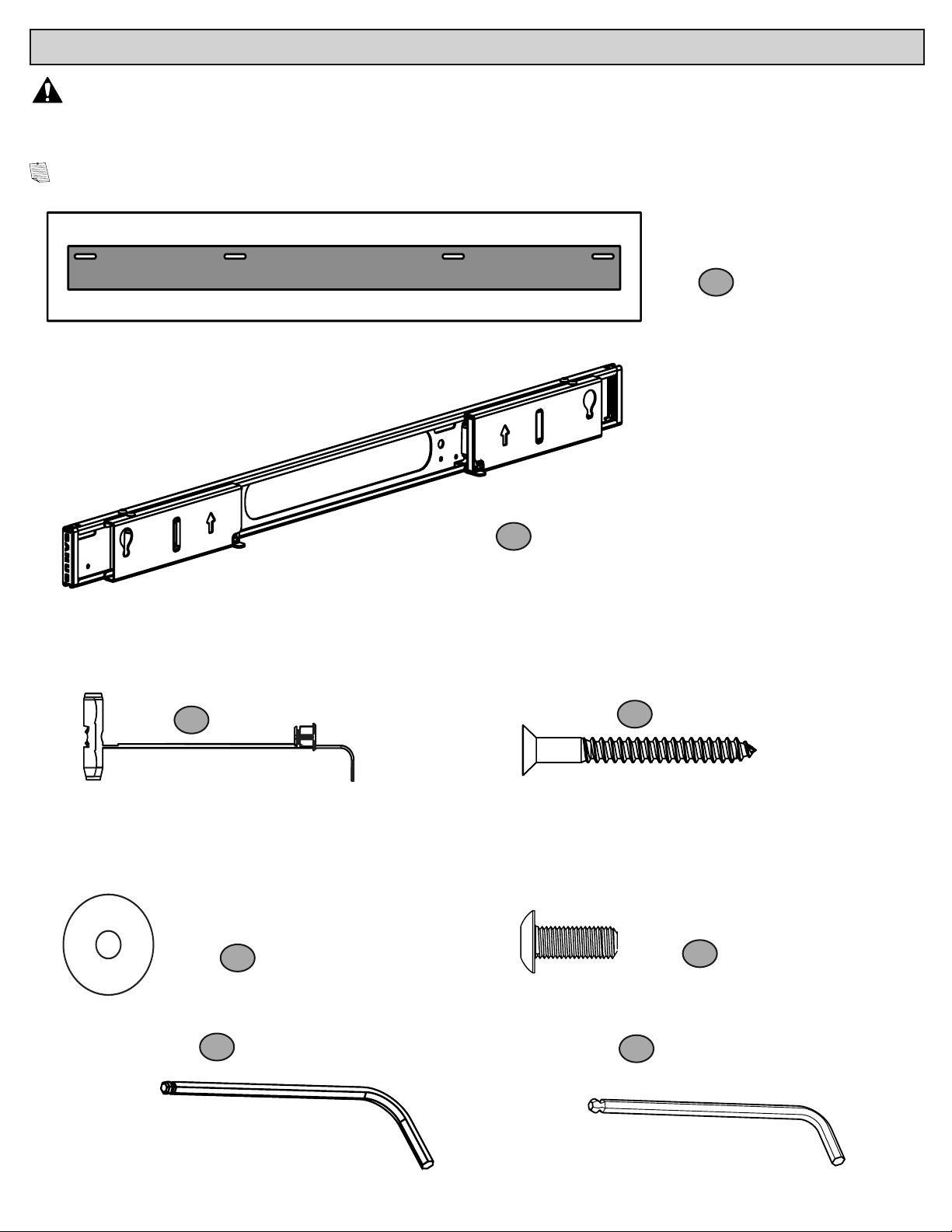

SUPPLIED PARTS AND HARDWARE
NOTE: Not all hardware included in this kit will be used.
WARNING:
This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged,
DO NOT return the damaged item to your dealer; Contact Sanus (See back page). Never use damaged parts!
(qty. 4)
4
Screw
3
Drywall/Concrete Anchors
(qty. 4)
1
Wall Template
M4/M5 Washer
(qty. 1)
5(qty. 4)
M5 x 14 mm Screw
M3 Ball Hex Key
(qty. 1)
5/64 Hex Key
(qty. 1)
6(qty. 2)
2
Soundbar Mount
(qty. 1)
78
5

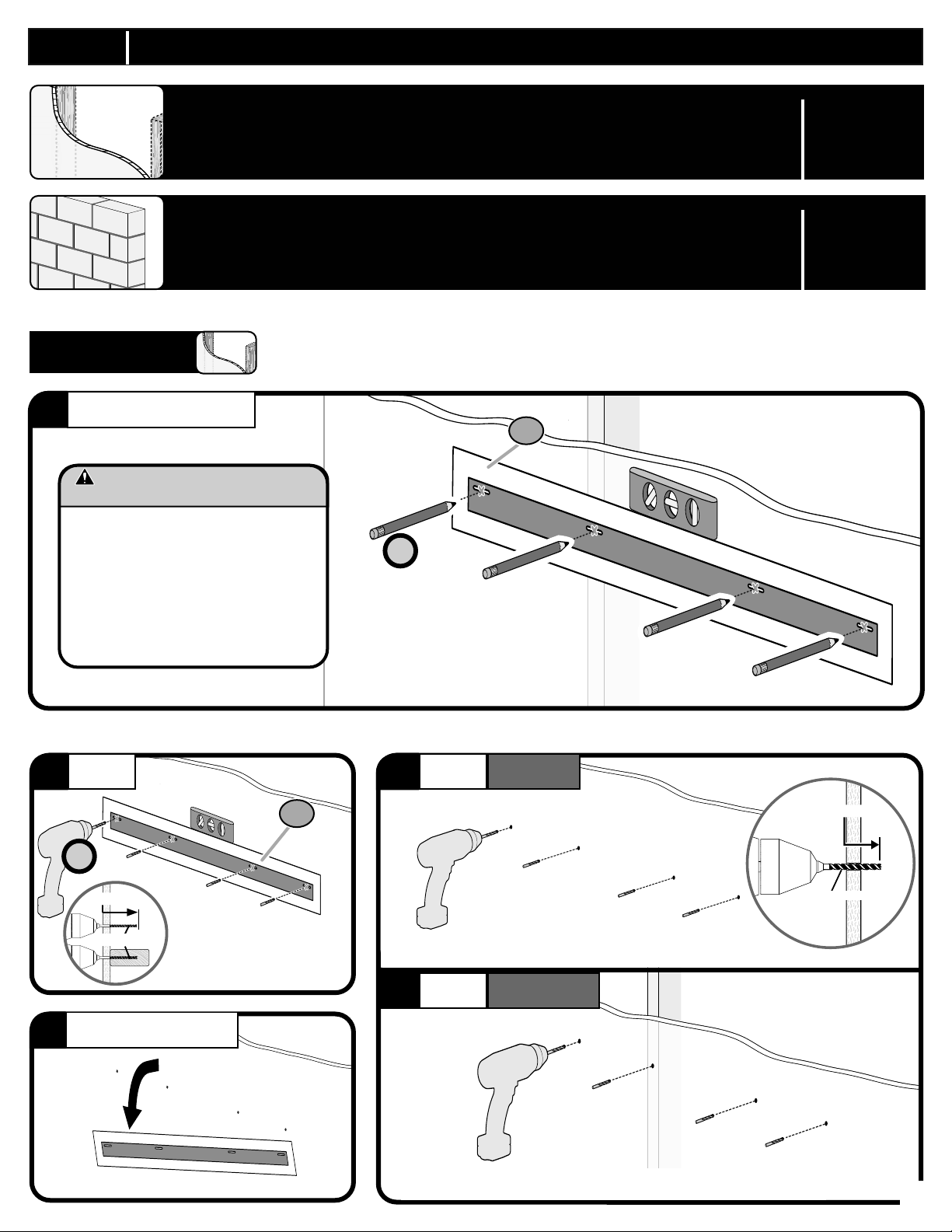

STEP 1A Drywall Installation
1
4X
1POSITION TEMPLATE
●Drywall covering the wall must not
exceed 1/2 in. (1.2 cm).
●Minimum wood stud size:
nominal 2 x 4 in. (5.1 x 10.2 cm)
actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)
●Stud centers must be verified
●IMPORTANT: Ensure wall plate is level
before drilling.
CAUTION: Avoid potential personal
injury or property damage!
2DRILL
4X
1
Drill 1/8 in. (3.0 mm) pilot holes to
verify wall.
STEP 1 ATTACH SOUNDBAR MOUNT TO WALL
Drywall Installation /
Drywall + Wood Stud Installation
Concrete Block/
Solid Concrete Installation
Page 5
Page 7
3REMOVE TEMPLATE
1/8 in. (3.0 mm)
4a DRILL
If pilot hole is located in drywall, drill 13/32 in. (10 mm) hole.
13/32 in. (10 mm)
1 in. (25 mm)
DRYWALL
WOOD STUD
4b DRILL
If pilot hole is located on a stud, proceed to Step 5.
3 in. (76.2 mm)
6
5b
5c 5d
2
3
3
3
3
4
• Use anchors for drywall and concrete only. Do not use with wood studs.
• If pilot hole is located on a stud, anchor is not needed. Screw directly into stud. Then use anchors for remaining screws in drywall.
5
6SECURELY TIGHTEN
5INSERT DRYWALL/CONCRETE ANCHORS
5a
IMPORTANT:
7

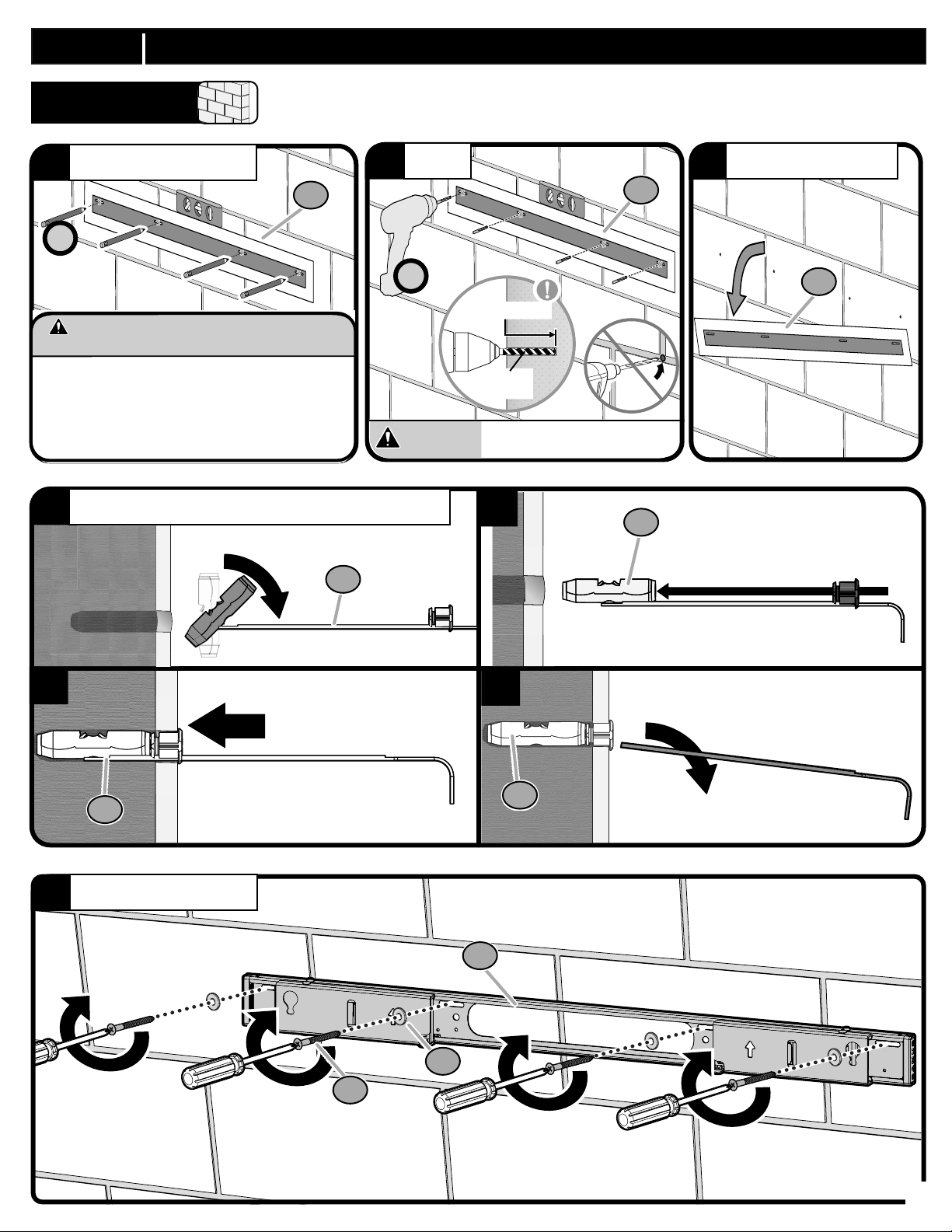

STEP 1C ATTACH SOUNDBAR MOUNT TO WALL
STEP 1C Concrete Installation
1
4X
1POSITION TEMPLATE 2DRILL
4X
4b
4c 4d
5SECURELY TIGHTEN
3REMOVE TEMPLATE
1
2
002862.eps
5
4
CAUTION: Avoid potential personal injury or
property damage!
●Minimum solid concrete thickness: 8 in. (20.3 cm)
●Minimum concrete block size: 8 x 8 x 16 in. (20.3 x
20.3 x 40.6 cm)
●Minimum horizontal space between fasteners: 16
in. (40.6 cm)
CAUTION:
Never drill into the mortar
between blocks.
13/32 in.
(10 mm)
3 in. (7.6 cm)
1
3
3
33
3REMOVE TEMPLATE
4a INSERT DRYWALL/CONCRETE ANCHORS
• Use anchors for drywall and concrete only. Do not use with wood studs.
• If pilot hole is located on a stud, anchor is not needed. Screw directly into stud. Then use anchors for remaining screws in drywall.
8
2
6
≈ 1/4 in.
(6.35 mm)
CAUTION: Avoid potential
personal injury or property damage!
The brackets contain potential pinch points
during operation. Keep fingers away from
pinch points when retracting the brackets.
(see arrows)
IMPORTANT:
Partially insert the bolt leaving
a 1/8”-1/4” gap between the
bolt head and speaker.
STEP 2 ATTACH SOUNDBAR TO SOUNDBAR MOUNT
1OPEN MOUNT BRACKETS
2INSERT SOUNDBAR SCREWS 3ATTACH SOUNDBAR AND SECURELY TIGHTEN
8
6
8
8
6
8
6
9
ADJUSTMENTS
2
CAUTION: Avoid potential
personal injury or property damage!
The brackets contain potential pinch points
during operation. Keep fingers away from
pinch points when retracting the brackets.
(see arrows)
RETRACT
CAUTION: Avoid potential
personal injury or property damage!
The brackets contain potential pinch points
during operation. Keep fingers away from
pinch points when retracting the brackets.
(see arrows)
7
7
IMPORTANT:
Tighten to a locked position if desired.
Otherwise, keep tension loose for free movement.
IMPORTANT:
Tighten to a locked position if desired.
Otherwise, keep tension loose for free movement.
EXTEND
10
