VMPL50A Instruction Manual

Installation

video

available at

SANUS.com

English - How to use this manual

For best results, reference both the text and illustrations. Cut along

the dashed lines to match your language with the illustrations.

Select one item or the other.

OPT

This item is optional

English Text Pages 3-10

Français - Utilisation de ce guide

Pour obtenir de meilleurs résultats, reportez-vous à la fois au texte

et aux illustrations. Couper le long de la ligne pointillée pour faire

correspondre les illustrations à votre langue de préférence.

Sélectionnez un article ou l’autre.

OPT

Cet article est facultatif.

Texte français page 12-13

Español - Cómo usar este manual

Para obtener mejores resultados, consulte el texto y las ilustraciones.

Corte por las líneas discontinuas para hacer coincidir su idioma con

las ilustraciones.

Seleccione uno de los elementos.

OPT

Este elemento es opcional.

Texto en español página 14-15

Specifications

ÙWeight capacity-DO NOT EXCEED: 68 kg (150 lbs) includes TV and any accessories

ÙTilt: -10° to +8.5°

CAUTION: Avoid potential personal injuries and property damage!

ÙDo not use this product for any purpose not explicitly specified by manufacturer.

ÙThe wall must be capable of supporting five times the weight of the monitor and mount combined.

ÙThis product is not designed for use in metal stud walls!

ÙIf you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this

product, contact manufacturer Customer Service or call a qualified contractor.

ÙManufacturer is not responsible for damage or injury caused by incorrect assembly or use.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

TV INTERFACE

WALL PLATE

TOP VIEW - EXTENDED

3-D

SIDE VIEW RETRACTED

FULLY ASSEMBLED MOUNT

3.94

100

MIN

23.62

600 MAX

15.75

400

MAX

3.94

100

MIN

29.98

761.5

7.10

180.3

27.25

692.2

2.92

74.1

24.00

609.6

16.00

406.4

16.68

423.6

1.8

47.0

0.50

12.7

TOTAL HEIGHT

ADJUST

10deg

8.5˚

English

Dimensions in [mm]

M6 x 20 mm M6 x 35 mm

M8 x 25 mm M8 x 50 mm

M6 x 12 mm

M8 x 35 mm

M4 x 12 mm M4 x 35 mm

2.5mm5mm22mmM6/M8M4

M8 x 16 mm

10 mm

(3/8 in.)

5.5mm

(7/32 in.)

13 mm

(1/2 in.)

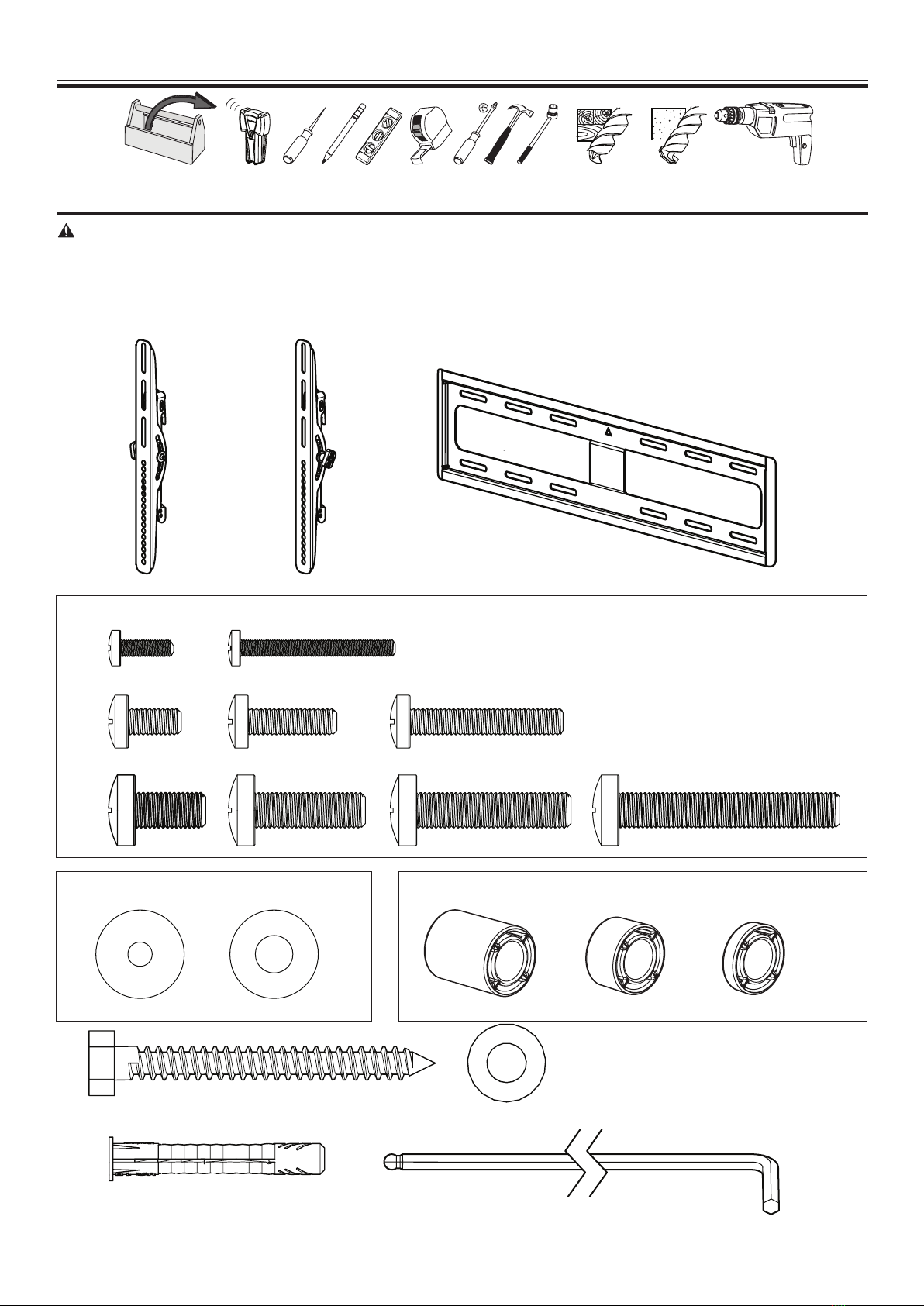

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged

item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: M4, M6, or M8 describes the diameter, mm describes the length of screws that are labeled M0 X 00mm. Not all hardware included will be used.

Required Tools

[04]

[05] [06]

[01]

qty. 1

qty. 4 each

qty. 4

qty. 1

qty. 4 each

qty. 1 qty. 1

[02] [03]

[08]

[09]

⁄ x 2 ¾ in.

UX10 x 60R

[07]

[10]

⁄ in. Hex Key

1 Install TV Brackets

Before you begin, hand thread screws into the threaded

inserts on the back of your TV to determine the correct

screw diameter (M4, M6, or M8). Verify that there are

adequate threads to secure the brackets to the monitor. If

you encounter resistance, stop immediately and contact

customer service.

CAUTION: Avoid potential personal injuries and property

damage! Use the shortest screw and spacer combination to

accommodate your needs. Using hardware that is too long

may damage your monitor’s internal components.

1-1 For TV's with a flat/unobstructed back

M4/M6/M8

Ensure the brackets are level on the back of the TV and

the directional arrow at the bottom of each bracket is

pointing upward.

If you require additional space for cables, recesses, or

protrusions, see the next conguration.

[01], [02]

[04]

[05] [02] [01]

1-2 For TV's with an irregular/obstructed back

M4/M6/M8

[06]

[05]

[04]

For TVs with an irregular back

Ensure the brackets are level on the back of the TV and

the directional arrow at the bottom of each bracket is

pointing upward.

Standard congurations are shown. For special

applications, or if you are uncertain about your hardware

selection, contact Customer Service.

[01], [02]

[01]

[02]

≤ 16 mm

(5/8 in.) 40.6 - 61 cm

(16 - 24 in.)

2Mount the Wall Plate

Wood stud mounting

Wood stud only

5.5mm

(7/32 in.)

13 mm

(1/2 in.)

For assitance in determining wall plate location, see Height Finder at SANUS.com.

Locate studs. Verify the center of the stud with an awl or thin

nail or use an edge to edge stud finder.

CAUTION: Avoid potential personal injuries and property

damage!

ÙDrywall covering the wall must not exceed 16 mm (5/8

in.).

ÙMinimum wood stud size: common 51 x 102 mm (2 x 4

in.) nominal 38 x 89 mm (1½ x 3½ in.).

ÙMinimum horizontal space between fasteners: 40.6 cm

(16 in.).

[03]

[08]

[07]

Drill pilot holes as illustrated.

CAUTION: Improper use could reduce the holding power

of the lag bolt. To avoid potential injuries or property damage:

pilot holes MUST be drilled to a depth of 75 mm (3 in.), using

a 5.5 mm (7/32 in.) diameter drill bit.

Level wall plate [03] and mark hole locations.

CAUTION: Improper use could reduce the holding power

of the lag bolt. To avoid potential injuries or property damage:

pilot holes MUST be drilled to a depth of 75 mm (3 in.), using

a 5.5 mm (7/32 in.) diameter drill bit.

Tighten lag bolts [07] only until the washers [08] are pulled

firmly against the wall plate [03].

CAUTION: Improper use could reduce the holding power

of the lag bolt. To avoid potential injuries or property damage

DO NOT over-tighten the lag bolts [07].

75 mm

(3 in.)

2Mount the Wall Plate

Solid concrete or concrete block

concrete only

13 mm

(1/2 in.)

10 mm

(3/8 in.)

For assitance in determining wall plate location, see Height Finder at SANUS.com.

[03]

002862.eps

75 mm

(3 in.)

[09]

Drill pilot holes as illustrated.

CAUTION: To avoid potential injuries or property damage:

ÙPilot holes MUST be drilled to adepth of 75 mm (3 in.) using a

10 mm (3/8 in.) diameter drill bit.

ÙNever drill into the mortar between blocks.

Insert lag bolt anchors [09].

CAUTION: To avoid potential injuries or property damage be

sure the anchors [09] seat flush with the concrete surface.

Tighten the lag bolts [07] only until the washers [08] are pulled

firmly against the wall plate [03].

CAUTION: Improper use could reduce the holding power of

the lag bolt. To avoid potential injuries or property damage DO NOT

over-tighten the lag bolts [07].

[03]

[08]

[07]

Level wall plate and mark the hole locations.

CAUTION: Avoid potential personal injuries and property

damage!

ÙMount the wall plate [03] directly onto the concrete surface.

ÙMinimum solid concrete thickness: 203mm (8 in.).

ÙMinimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.).

ÙMinimum horizontal space between fasteners: 40.6 cm (16 in.).

3 Hang the TV with Mounting Brackets onto the Wall Plate

CAUTION: You will need assistance with this step.

Install the TV / Bracket assembly by fitting the top

hooks of the mounting brackets over the top edge of

the wall mount.

Swing the mounting brackets down until the spring

loaded locking tabs slip over and fully engage the

bottom edge of the wall mount. You will hear an

audible “CLICK”.

Tilt tension can be adjusted with the vertical bracket

knobs by hand or using the hex key [10].

[10]

±12.7 mm

(± ½ in.)

5 Remove the TV from the Wall

4 Adjust Level

ProSet Post Installation Leveling

To remove the TV from the wall plate, flip the locking

tabs of each vertical bracket away from the wall plate

to release the brackets, then lift the TV up and out from

the wall.

CAUTION: You will need assistance with this step.

[10]
