Sanus VLF510 User manual

Customer Service

Americas: 800-359-5520 • 952-225-6013 • info@sanus.com

UK: 0800 056 2853

Europe, Middle East, and Africa: +31 (0) 495 580 852 • europe[email protected]om

Asia Pacic: 86 755 8996 9226 • sanus.ap@milestone.com

SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA

All other brand names or marks are used for identication purposes and are trademarks of their respective owners.

We are here

to help!

Please contact

Customer

Service with

any questions.

VLF510

Instruction Manual

Installation

video available at

Sanus.com

sanus.com

6901-002284 00

Before You Begin

WARNING: This product contains a magnet. If an implanted medical device such as a pacemaker or implantable

cardioverter debrillator (ICD) is in use, magnetic elds may aect the operation of those devices, resulting in serious injury

or death. If you have an implanted medical device, keep at least 13 cm (5 in.) between your device and the magnet. Please

consult with your physician or medical professional prior to using this product.

CAUTION: Avoid potential personal injuries and property damage!

Refer to the documentation that came with your TV for additional considerations

Do not use this product for any purpose not explicitly specied by manufacturer

The wall must be capable of supporting ve times the weight of the monitor and mount combined

This product is not designed for use in metal stud walls

If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this

product, contact Customer Service or call a qualied contractor

Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Required Tools

13mm

(1/2 in.)

5.5mm

(7/32 in.)

10mm

(3/8 in.)

Specifications

Weight capacity-DO NOT EXCEED: 57 kg (125 lb.) includes TV and any accessories

Swivel: ±30°

Tilt: +0° to –10°

Level: ±1.5°

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Technical Specifications

4.80

121.9

6.18

156.9

30.60

777.2

16.54

420.0

29.22

742.2

32.16

816.9

20.34

516.5

2.14

54.4

MONITOR BRACKET

CENTER

WALL PLATE

CENTER

4.00

101.6

10.80

274.3

18.80

477.5

14.80

375.9

22.80

579.1

8.98

228.0

12.31

312.6

13.51

343.0

1.54

39.2

10.29

261.3

10.00°

M4 M6/M8

M4 x 12 mm M4 x 30 mm M6 x 14 mm M6 x 40 mm M8 x 16 mm

5/16 x 2¾ in.

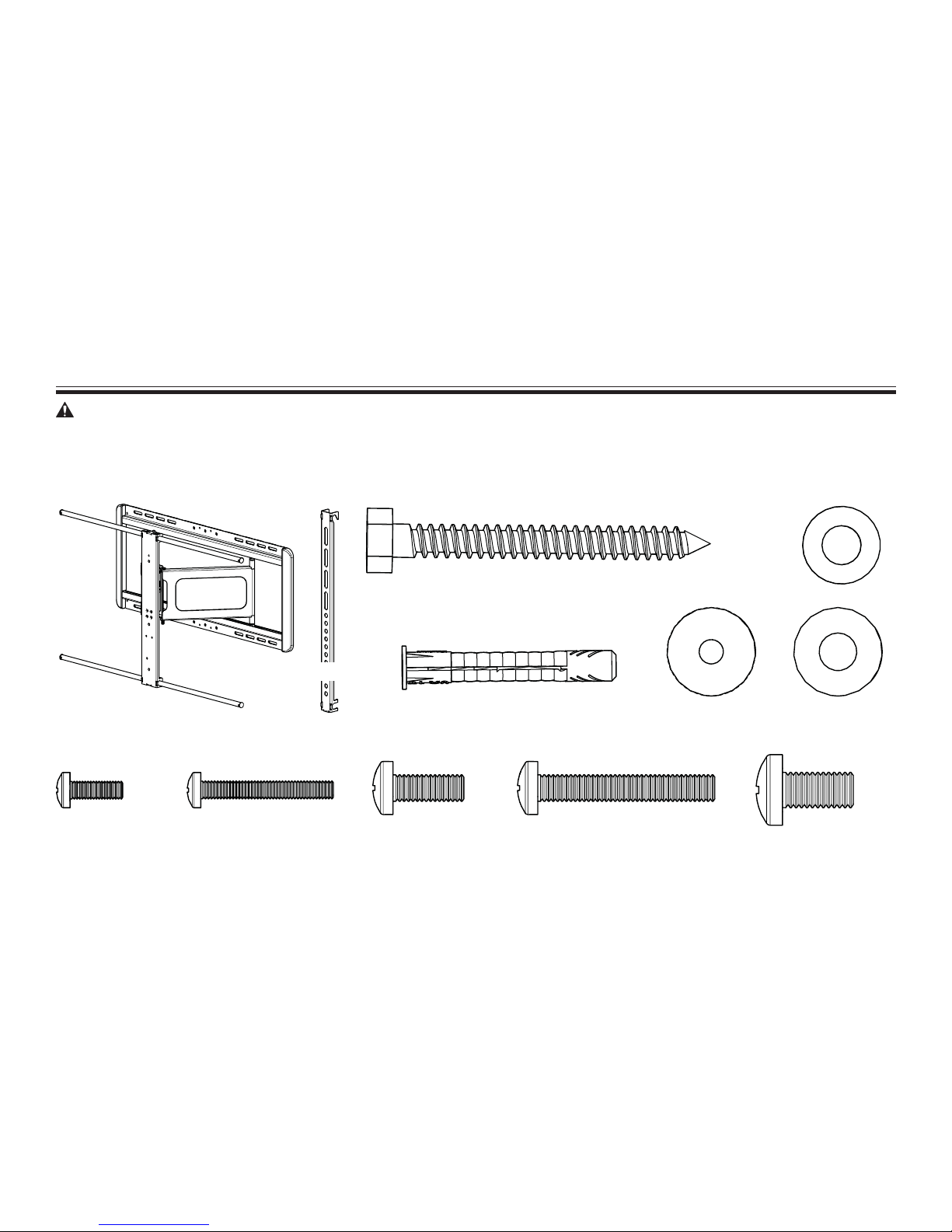

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the

damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: M4, M6, or M8 describes the diameter, mm describes the length of screws that are labeled M# X ##mm. Not all hardware

included will be used.

[01] x 1

[02] x 2

[03] x 4 [04] x 4

[05] x 4

[06] x 4 [07] x 4

[08] x 4 [09] x 4 [10] x 4 [11] x 4 [12] x 4

M8 x 40 mm

14 mm 24 mm

3mm

M4 x 25mm 10-32 x 3/8 in. 10-32 x 3/4 in. 1/8 in.

5/32 in.

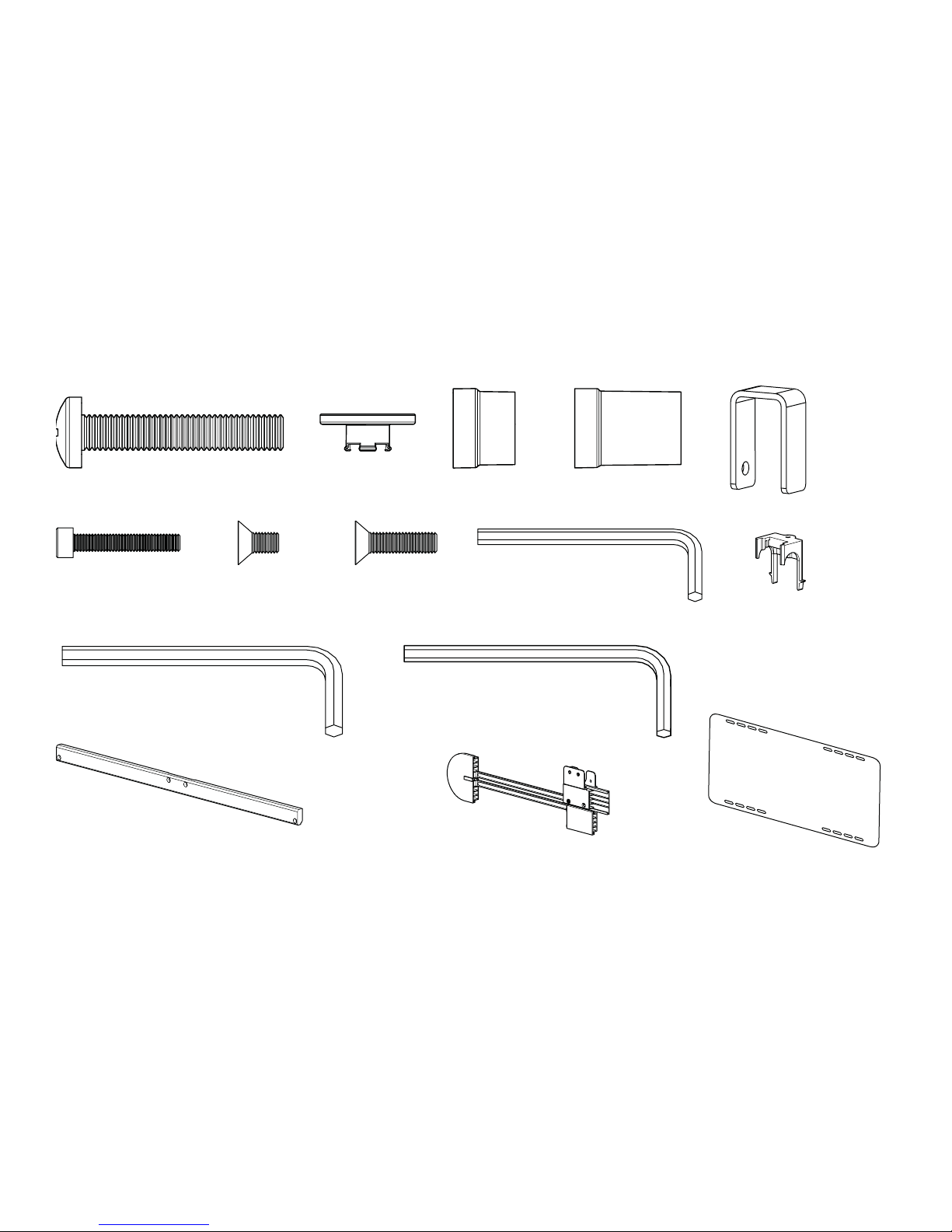

[13] x 4 [14] x 4

[15] x 4 [16] x 4 [17] x 1

[18] x 2 [19] x 2 [20] x 8 [21] x 1 [22] x 2

[23] x 1 [24] x 1

[25] x 2 [26] x 1 [27] x 1

1 Select TV Hardware

Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6, or M8). Try

using a screw alone first. If you need more space, try a screw with a spacer.

CAUTION: Avoid potential personal injuries and property damage! Using hardware that is too long may damage your TV. If

you encounter resistance, stop immediately and contact customer service.

1-1 Attach brackets to TV

Using the hardware you selected in step 1, attach the brackets to your TV.

A. Use option A if your TV has a flat/unobstructed back.

B. Use option B if your TV has an irregular back, recessed mounting holes,

or if you need more room for cables, recesses, or protrusions.

Confirm that the brackets are level on the back of the TV.

[08] [10] [12]

[06] [07]

[02]

[09] [11] [13]

[06] [07]

[15] [16]

[14]

[02]

[15] [16]

Slide the arms of the wall plate [01] together and insert the slide lock [17] into place. This will lock the arms into full extension

making the wall plate mounting and TV attachment easier.

[01]

[17]

[01]

[17]

2 Mount the Wall Plate

2-1 Prepare the Wall Plate for Mounting

2-2 (Wood stud mounting) Locate studs and mark the wall

For assistance in determining wall plate location, see Height Finder at sanus.com.

CAUTION: Avoid potential personal injuries and property damage!

Drywall covering the wall must not exceed 16 mm (5/8 in.)

Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1/ x 3/ in.)

1. Locate studs. Verify the center of the stud with an awl or thin nail or use an edge to edge stud finder.

2. Level the wall plate template [27] and mark the hole locations.

≤ 16 mm

(5/8 in.)

[27]

75 mm

(3 in.)[04]

CAUTION: Avoid potential injuries or property damage! Pilot holes MUST be drilled to a depth of 75 mm (3 in.), using a 5.5

mm (7/32 in.) diameter drill bit.

CAUTION:

Improper use could reduce the holding power of the lag bolt.

DO NOT over-tighten the lag bolts [03].

Tighten the lag bolts [03] only until the washers [04] are pulled firmly against the wall plate [01].

2-3 Drill pilot holes and attach wall plate

5.5 mm

(7/32 in.)

[03]

13 mm

(1/2 in.)
